BU280K-QLQDS (1999)

Toyota Quick Deli/Urban Sup

Production Aug 1999 - Jun 2004
Engine 4B
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )BU280,LY228,270..DSL

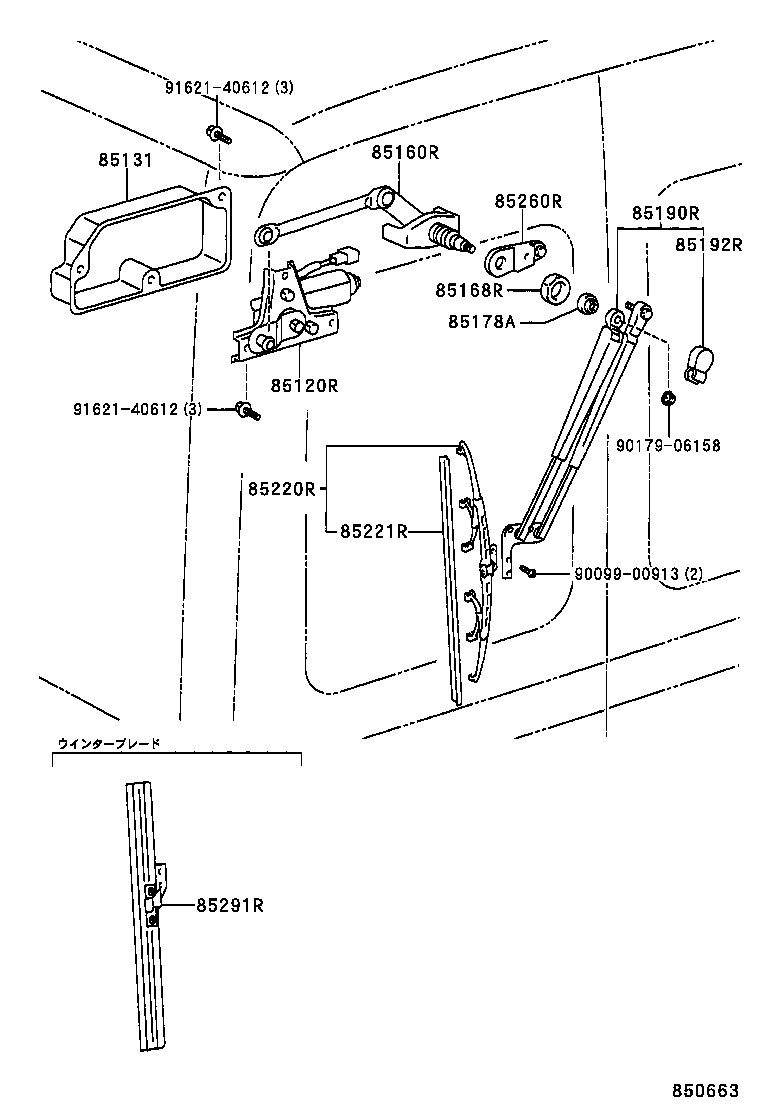

Click highlighted areas on diagram

diagram 85120R 85131 85160R 85168R 85178A 85190R 85192R 85220R 85221R 85260R 85291R 9009900913 9017906158 9162140612 9162140612
Part # Description Qty Price
85120R - MOTOR AND BRACKET ASSY, REAR WIPER
85080-37020

BU280..D..DSL

 1
85131 - COVER, REAR WIPER MOTOR
85131-37010

BU280,LY228,270..D..DSL

 1
85160R - LINK ASSY, REAR WIPER
85170-37010

BU280,LY228,270..D..DSL

 1
85168R - NUT, REAR WIPER LINK PIVOT, NO.1
85186-90D00

BU280,LY228,270..D..DSL

 1
85178A - CAP, WIPER LINK
85178-90D00

BU280,LY228,270..D..DSL

 1
85190R - ARM ASSY, REAR WIPER
85190-90F01

BU280,LY228,270..D..DSL

 1
85192R - COVER, REAR WIPER ARM
85192-14020

BU280,LY228,270..D..DSL

 1
85220R - BLADE ASSY, REAR WIPER
85242-90D00

BU280,LY228,270..D..DSL

 1
85221R - BLADE, REAR WIPER
85214-24H90

BU280,LY228,270..D..DSL

 1
85260R - LINK ASSY, REAR WIPER, NO.2
85150-90D00

BU280,LY228,270..D..DSL

 1
85291R - BLADE,REAR WIPER, WINTER
85291-90D00

BU280,LY228,270..D..DSL

 1
Common parts
90099-00913
90179-06158
91621-40612
