BU280K-QLQDS (1999)
Toyota Quick Deli/Urban Sup

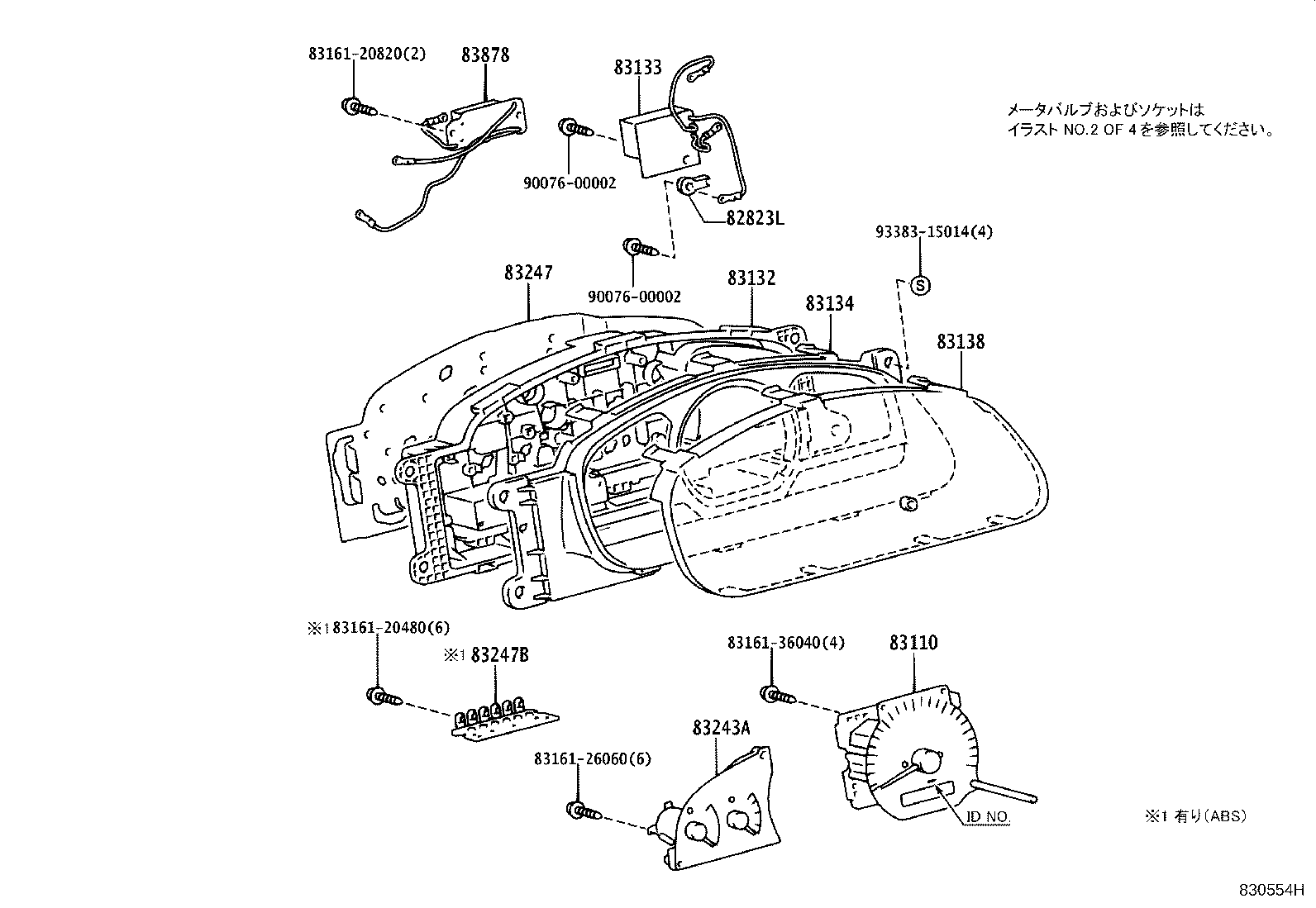

ILLUST NO. 1 OF 4(9908-0610)
ｺﾝﾋﾞﾈｰｼｮﾝﾒｰﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-37040 |
BU28#..DSL YAZAKI,ID NO.無し |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-37400 |
BU28#,LY228,270,RZU280,XZU281..MTM..(DSL,LPG) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83811-37400 |
BU28#,XZU28#..DCR,DSL |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-37400 |
BU28#,LY228,270,RZU280,XZU28# |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-37400 |
BU28#,LY228,270,RZU280,XZU28# |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-37400 |
BU28#,XZU28#..DCR,DSL |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-37390 |
BU28#,XZU28#..DCR,DSL |
1 | ||
| 83861-37400 |
BU280,XZU280..DCR,DSL ｱﾘ(ABS) |
1 | ||
| 83247B - PLATE, METER CIRCUIT, NO.2 | ||||
| 83861-36420 |
BU280,XZU280..DCR,DSL ｱﾘ(ABS) |
1 | ||
| 83878 - RESISTOR, COMBINATION METER | ||||
| 83878-37400 |
BU28#,XZU28#..DCR,DSL |
1 | ||
| Common parts | ||||
| 83161-20480 | ||||
| 83161-20820 | ||||
| 83161-26060 | ||||
| 83161-36040 | ||||
| 90076-00002 | ||||
| 93383-15014 | ||||

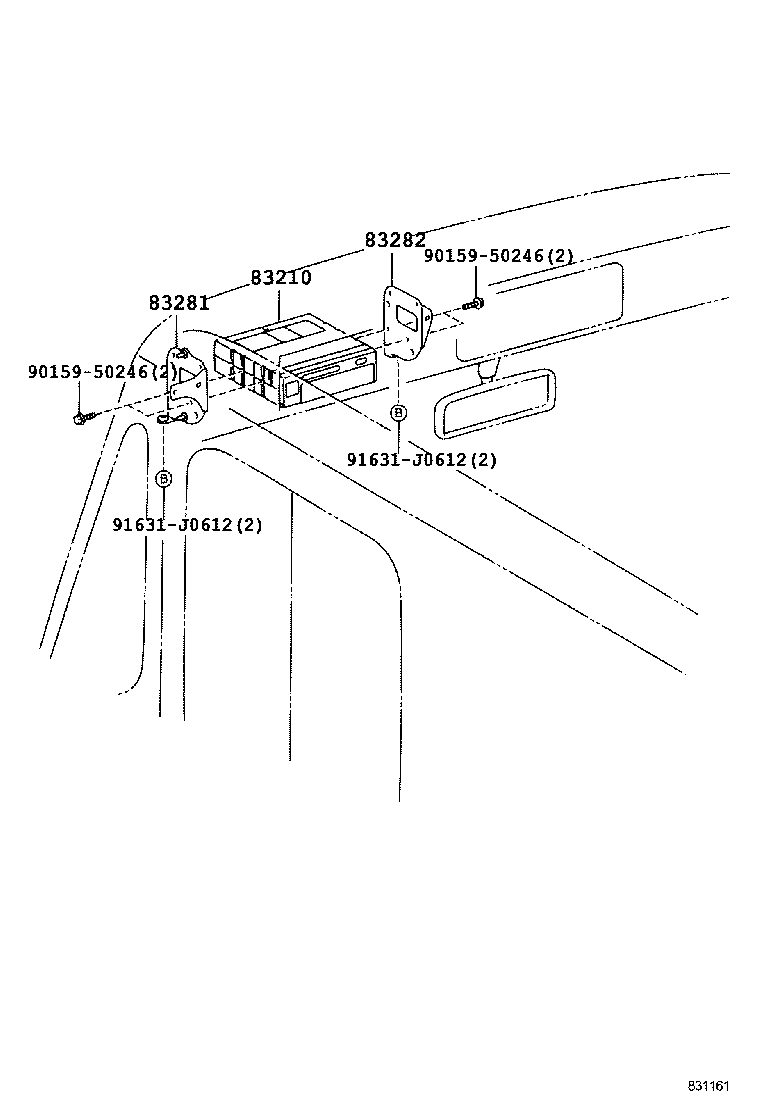

ILLUST NO. 3 OF 4(9908- )
ﾀｺｸﾞﾗﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83210 - TACHOGRAPH ASSY | ||||
| 83210-37160 |
BU28#,XZU28#..DCR,DSL |
1 | ||
| 83281 - BRACKET, TACHOGRAPH, NO.1 | ||||
| 83281-37050 |
BU28#,LY228,270,RZU280,XZU281..DSL,LPG |
1 | ||
| 83282 - BRACKET, TACHOGRAPH, NO.2 | ||||
| 83282-37010 |
BU280..D..DSL;BU280,RZU280..N;BU281,LY228,270,XZU281..DSL,LPG |
1 | ||
| Common parts | ||||
| 90159-50246 | ||||
| 91631-J0612 | ||||

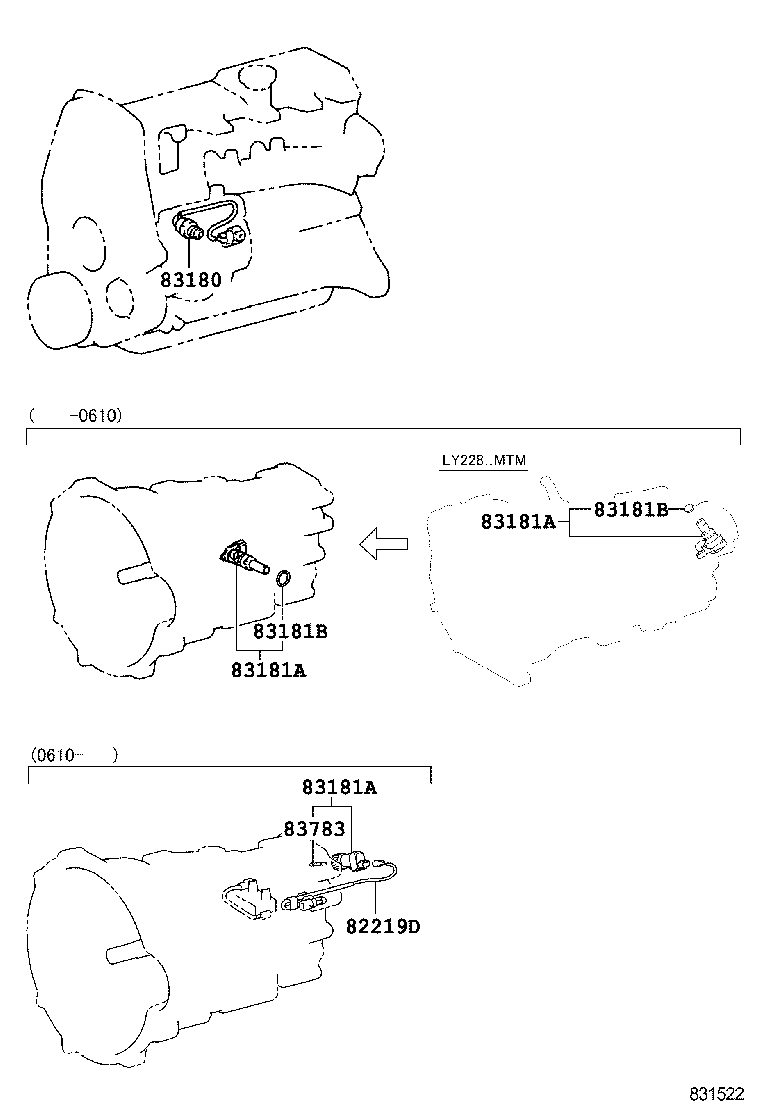

ILLUST NO. 4 OF 4(9908- )
ｽﾋﾟｰﾄﾞﾒｰﾀ ｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-37040 |
BU28#,RZU280,XZU28# |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-37040 |
BU28#,RZU280,XZU28# |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-37040 |
BU28#,RZU280,XZU28# |
1 | ||
| 83181B - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 90301-18004 |
LY228..ATM;BU28#,LY270,RZU280,XZU28# |
1 | ||
| 83181B - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 90301-18004 |
LY228..ATM;BU28#,LY270,RZU280,XZU28# |
1 | ||

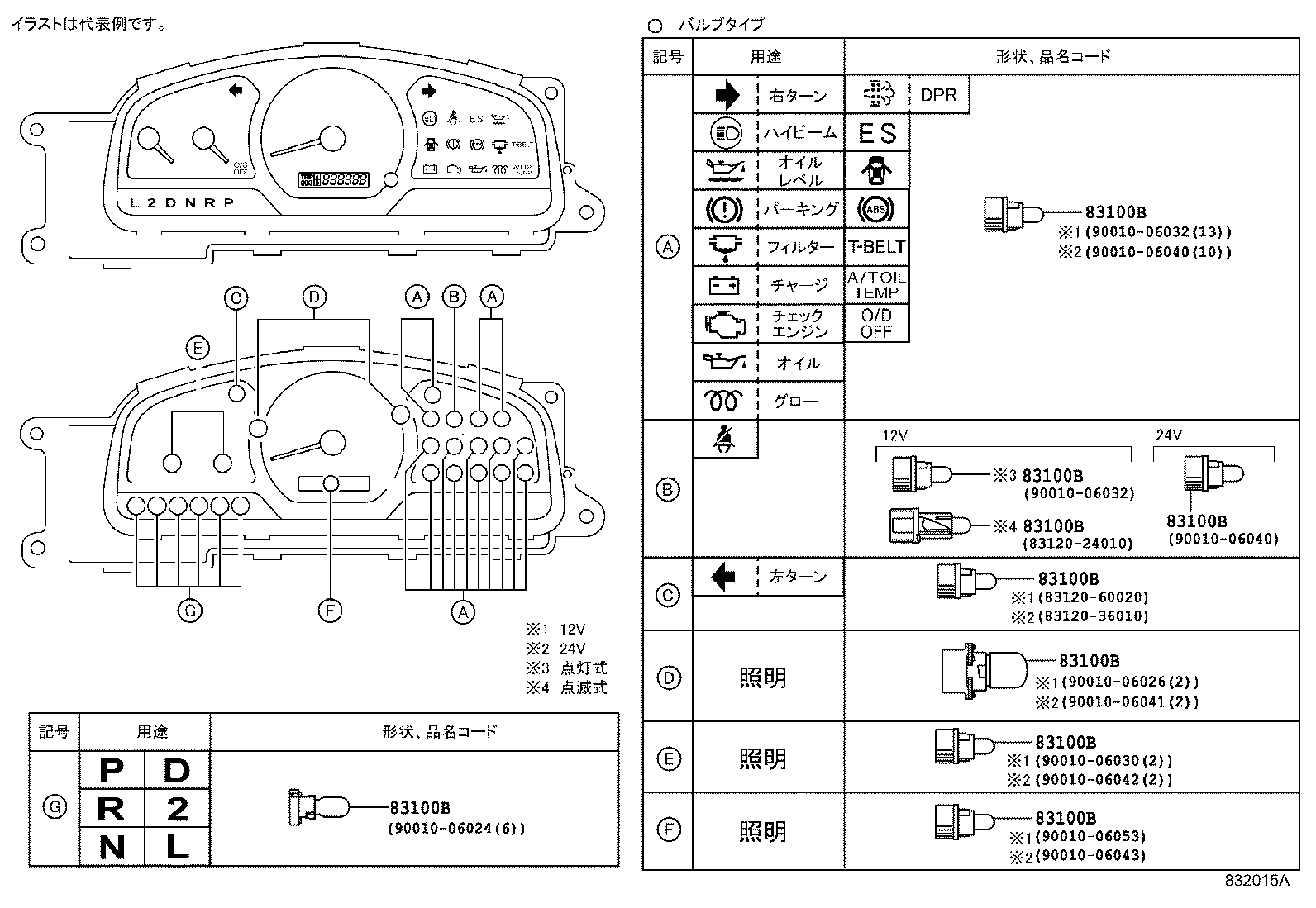

ILLUST NO. 2 OF 4(9908-0610)
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06043 |
BU28#..DSL 28V 2.0W,ｿｹｯﾄ付き |
1 | ||
| 90010-06040 |
BU28#..DSL 28V 1.12W,ｿｹｯﾄ付き |
1 | ||
| 90010-06041 |
BU28#..DSL 28V 3.1W,ｿｹｯﾄ付き |
1 | ||
| 83120-36010 |
BU28#,XZU28#..DCR,DSL 24V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06042 |
BU28#..DSL 28V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06043 |
BU28#..DSL 28V 2.0W,ｿｹｯﾄ付き |
1 | ||
| 90010-06040 |
BU28#..DSL 28V 1.12W,ｿｹｯﾄ付き |
1 | ||
| 90010-06041 |
BU28#..DSL 28V 3.1W,ｿｹｯﾄ付き |
1 | ||
| 83120-36010 |
BU28#,XZU28#..DCR,DSL 24V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06042 |
BU28#..DSL 28V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06043 |
BU28#..DSL 28V 2.0W,ｿｹｯﾄ付き |
1 | ||
| 90010-06040 |
BU28#..DSL 28V 1.12W,ｿｹｯﾄ付き |
1 | ||
| 90010-06041 |
BU28#..DSL 28V 3.1W,ｿｹｯﾄ付き |
1 | ||
| 83120-36010 |
BU28#,XZU28#..DCR,DSL 24V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06042 |
BU28#..DSL 28V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06043 |
BU28#..DSL 28V 2.0W,ｿｹｯﾄ付き |
1 | ||
| 90010-06040 |
BU28#..DSL 28V 1.12W,ｿｹｯﾄ付き |
1 | ||
| 90010-06041 |
BU28#..DSL 28V 3.1W,ｿｹｯﾄ付き |
1 | ||
| 83120-36010 |
BU28#,XZU28#..DCR,DSL 24V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06042 |
BU28#..DSL 28V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06043 |
BU28#..DSL 28V 2.0W,ｿｹｯﾄ付き |
1 | ||
| 90010-06040 |
BU28#..DSL 28V 1.12W,ｿｹｯﾄ付き |
1 | ||
| 90010-06041 |
BU28#..DSL 28V 3.1W,ｿｹｯﾄ付き |
1 | ||
| 83120-36010 |
BU28#,XZU28#..DCR,DSL 24V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06042 |
BU28#..DSL 28V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06043 |
BU28#..DSL 28V 2.0W,ｿｹｯﾄ付き |
1 | ||
| 90010-06040 |
BU28#..DSL 28V 1.12W,ｿｹｯﾄ付き |
1 | ||
| 90010-06041 |
BU28#..DSL 28V 3.1W,ｿｹｯﾄ付き |
1 | ||
| 83120-36010 |
BU28#,XZU28#..DCR,DSL 24V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06042 |
BU28#..DSL 28V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06043 |
BU28#..DSL 28V 2.0W,ｿｹｯﾄ付き |
1 | ||
| 90010-06040 |
BU28#..DSL 28V 1.12W,ｿｹｯﾄ付き |
1 | ||
| 90010-06041 |
BU28#..DSL 28V 3.1W,ｿｹｯﾄ付き |
1 | ||
| 83120-36010 |
BU28#,XZU28#..DCR,DSL 24V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06042 |
BU28#..DSL 28V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06043 |
BU28#..DSL 28V 2.0W,ｿｹｯﾄ付き |
1 | ||
| 90010-06040 |
BU28#..DSL 28V 1.12W,ｿｹｯﾄ付き |
1 | ||
| 90010-06041 |
BU28#..DSL 28V 3.1W,ｿｹｯﾄ付き |
1 | ||
| 83120-36010 |
BU28#,XZU28#..DCR,DSL 24V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06042 |
BU28#..DSL 28V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06043 |
BU28#..DSL 28V 2.0W,ｿｹｯﾄ付き |
1 | ||
| 90010-06040 |
BU28#..DSL 28V 1.12W,ｿｹｯﾄ付き |
1 | ||
| 90010-06041 |
BU28#..DSL 28V 3.1W,ｿｹｯﾄ付き |
1 | ||
| 83120-36010 |
BU28#,XZU28#..DCR,DSL 24V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06042 |
BU28#..DSL 28V 1.4W,ｿｹｯﾄ付き |
1 | ||
