BU280K-QLQDS (1999)
Toyota Quick Deli/Urban Sup

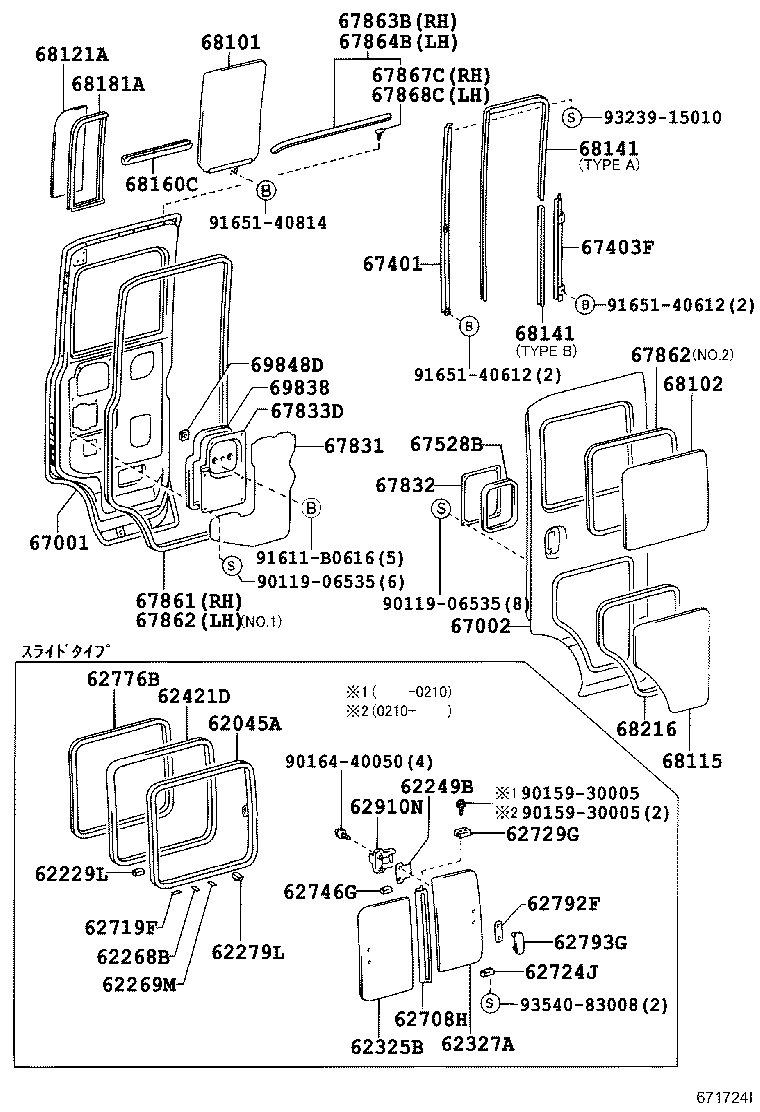

ILLUST NO. 1 OF 2(9908- )
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62045A - FRAME SUB-ASSY, FRONT DOOR WINDOW, OUTER LH | ||||
| 62045-37010 |
BU28#,LY228,270 |
1 | ||
| 62229L - PACKING, FRONT DOOR WINDOW, LH | ||||
| 62229-95J00 |
BU28#,LY228,270,RZU280,XZU28# |
2 | ||
| 62249B - PLATE, SIDE WINDOW | ||||
| 62249-95700 |
BU28#,LY228,270,RZU280,XZU28# |
2 | ||
| 62268B - FILM, SIDE WINDOW FRAME, B | ||||
| 62268-90A00 |
BU28#,LY228,270,RZU280,XZU28# |
2 | ||
| 62269M - FILM, FRONT DOOR WINDOW FRAME, LH | ||||
| 62269-90A00 |
BU28#,LY228,270,RZU280,XZU28# |
2 | ||
| 62279L - SPACER, SIDE WINDOW FRAME | ||||
| 62279-26040 |
BU28#,LY228,270 |
3 | ||
| 62325B - GLASS, FRONT DOOR WINDOW, FRONT LH | ||||
| 62325-37010 |
BU28#,LY228,270 *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 62327A - GLASS, FRONT DOOR WINDOW, REAR LH | ||||
| 62327-37010 |
BU28#,LY228,270,RZU280,XZU28# *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 62421D - RUN, FRONT DOOR WINDOW, LH | ||||
| 62421-37010 |
BU28#,LY228,270,RZU280,XZU28# |
1 | ||
| 62708H - FRAME SUB-ASSY, SIDE FRONT WINDOW, LH | ||||
| 62708-37010 |
BU28#,LY228,270,RZU280,XZU28# |
1 | ||
| 62719F - PACKING, SIDE FRONT WINDOW | ||||
| 62719-26010 |
BU28#,LY228,270,RZU280,XZU28# |
1 | ||
| 62724J - STOP, SIDE WINDOW GLASS | ||||
| 62724-26010 |
BU28#,LY228,270,RZU280,XZU28# |
1 | ||
| 62729G - PAD, REAR WINDOW CENTER SASH | ||||
| 62729-90K01 |
BU28#,LY228,270,RZU280,XZU28# |
1 | ||
| 62746G - PACKING, QUARTER WINDOW | ||||
| 62746-26020 |
BU28#,LY228,270,RZU280,XZU28# |
4 | ||
| 62776B - CLIP, SLIDE DOOR WINDOW, LH | ||||
| 62776-37010B0 |
BU28#,LY228,270,RZU280,XZU28# LT.GRAY,TRIM1# |
1 | ||
| 62792F - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
BU28#,LY228,270,RZU280,XZU28# |
2 | ||
| 62793G - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-95A01 |
BU28#,LY228,270,RZU280,XZU28# |
2 | ||
| 62910N - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95703 |
BU28#,LY228,270,RZU280,XZU28# |
2 | ||
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-37100 |
BU28# |
1 | ||
| 67001-37101 |
RZU280..D;BU28#..DSL |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-37120 |
RZU280..D;BU28#..DSL |
1 | ||
| 67401 - BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT RH | ||||
| 67503-37010 |
BU28#,LY228,270,RZU280,XZU28# |
1 | ||
| 67528B - PACKING, SLIDE DOOR LOWER COVER | ||||
| 69838-37011 |
BU28#,LY228,270,RZU280,XZU28# |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-37030 |
BU28#,LY228,270,RZU280,XZU28# |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-37030 |
BU28#,LY228,270,RZU280,XZU28# |
2 | ||
| 67833D - COVER, FRONT DOOR SERVICE HOLE, NO.2 RH | ||||
| 67833-37010 |
BU28#,LY228,270,RZU280,XZU28# |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67862-37030 |
BU28#,LY228,270,RZU280,XZU28# |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67872-37010 |
BU280 NO.2 |
1 | ||
| 67862-37030 |
BU28#,LY228,270,RZU280,XZU28# |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67872-37010 |
BU280 NO.2 |
1 | ||
| 67862-37030 |
BU28#,LY228,270,RZU280,XZU28# |
1 | ||
| 67863B - WEATHERSTRIP, FRONT DOOR, NO.2 RH | ||||
| 67863-37030 |
BU28#,LY228,270,RZU280,XZU28# |
1 | ||
| 67864B - WEATHERSTRIP, FRONT DOOR, NO.2 LH | ||||
| 67864-37030 |
BU28#,LY228,270,RZU280,XZU28# |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67868-30040 |
BU28#,LY228,270,RZU280,XZU28# |
8 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67868-30040 |
BU28#,LY228,270,RZU280,XZU28# |
9 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-37120 |
BU28#,LY228,270,RZU280,XZU28# *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-37090 |
BU280 *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68115 - GLASS, FRONT DOOR WINDOW, LOWER | ||||
| 68125-37010 |
BU28#,LY228,270,RZU280,XZU28# |
1 | ||
| 68121A - GLASS, DOOR VENTILATING WINDOW, RH | ||||
| 68121-37010 |
BU28#,LY228,270,RZU280,XZU28# |
1 | ||
| 68141 - RUN, FRONT DOOR GLASS | ||||
| 68143-37010 |
BU28#,LY228,270,RZU280,XZU28# TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 68141-37020 |
BU28#,LY228,270,RZU280,XZU28# TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 68141 - RUN, FRONT DOOR GLASS | ||||
| 68143-37010 |
BU28#,LY228,270,RZU280,XZU28# TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 68141-37020 |
BU28#,LY228,270,RZU280,XZU28# TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH | ||||
| 68161-37020 |
BU28#,LY228,270,RZU280,XZU28# |
1 | ||
| 68181A - WEATHERSTRIP, FRONT DOOR VENT WINDOW, RH | ||||
| 68181-37010 |
BU28#,LY228,270,RZU280,XZU28# |
1 | ||
| 68216 - WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH | ||||
| 68216-37010 |
BU28#,LY228,270,RZU280,XZU28# |
1 | ||
| 69838 - SEAL, WINDOW REGULATOR HOLE, NO.2 | ||||
| 69838-37011 |
BU28#,LY228,270,RZU280,XZU28# |
1 | ||
| 69848D - SEAL, WINDOW REGULATOR HOLE | ||||
| 69848-90D00 |
BU28#,LY228,270,RZU280,XZU28# |
1 | ||
| Common parts | ||||
| 90119-06535 | ||||
| 90159-30005 | ||||
| 90164-40050 | ||||
| 91611-B0616 | ||||
| 91651-40612 | ||||
| 91651-40814 | ||||
| 93239-15010 | ||||
| 93540-83008 | ||||

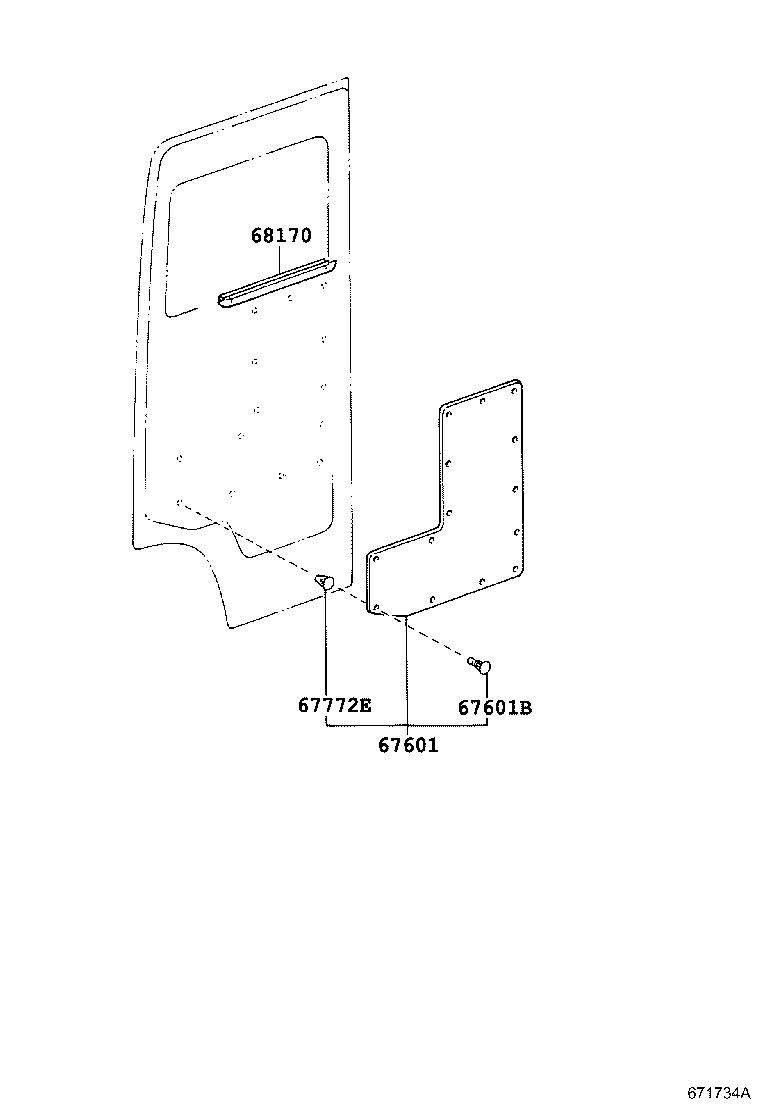

ILLUST NO. 2 OF 2(9908- )
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67611-37100B0 |
BU28#,LY228,270,RZU280,XZU28# BLUISH GRAY,TRIM1# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-0705433 |
BU28#,LY228,270,RZU280 LIGHT GRAY,TRIM1# |
14 | ||
| 67772E - CAP, FRONT DOOR TRIM RETAINER | ||||
| 67772-95J01 |
BU28#,LY228,270,RZU280,XZU28# |
14 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-37020 |
BU28#,LY228,270,RZU280,XZU28# |
1 | ||
