BU280K-QLQDS (1999)

Toyota Quick Deli/Urban Sup

Production Aug 1999 - Jun 2004
Engine 4B
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )

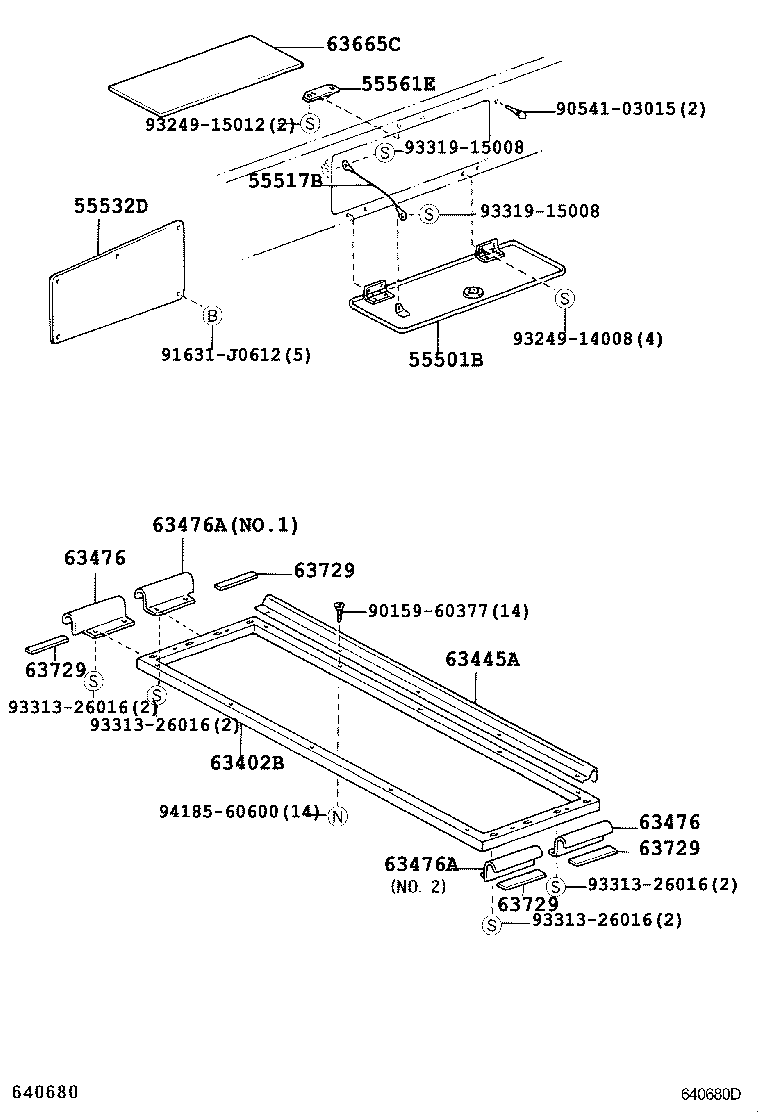

Click highlighted areas on diagram

diagram 55501B 55517B 55532D 55561E 63402B 63445A 63476 63476 63476A 63476A 63665C 63729 63729 63729 63729 9015960377 9054103015 91631J0612 9324914008 9324915012 9331326016 9331326016 9331326016 9331326016 9331915008 9331915008 9418560600
Part # Description Qty Price
55501B - DOOR SUB-ASSY, GLOVE COMPARTMENT
55501-37020A0

BU280,LY228,270..D..DSL

WHITE,TRIM1#

 1
55517B - STOPPER, LEGREST
55517-37010

BU28#..N;BU280..D..DSL

 1
55532D - PANEL, GLOVE COMPARTMENT, LH
55532-37010A0

BU280,LY228,270..D..DSL

ｱﾘ(ﾀｺｸﾞﾗﾌ),WHITE,TRIM1#

 1
55532-37020A0

BU280..D..DSL;LY228,270,RZU280..D

WHITE,TRIM1#

 1
55561E - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR
55054-37010

BU28#..N;BU280..D..DSL

 1
63665C - MAT, ROOF CONSOLE BOX
63665-37010

BU28#..DSL

 1
63729 - CUSHION, ROOM RACK COVER
63729-25010

BU28#..N;BU280..D..DSL

 4
63729 - CUSHION, ROOM RACK COVER
63729-25010

BU28#..N;BU280..D..DSL

 4
63729 - CUSHION, ROOM RACK COVER
63729-25010

BU28#..N;BU280..D..DSL

 4
63729 - CUSHION, ROOM RACK COVER
63729-25010

BU28#..N;BU280..D..DSL

 4
Common parts
90159-60377
90541-03015
91631-J0612
93249-14008
93249-15012
93313-26016
93319-15008
94185-60600
