BU280K-QLQDS (1999)

Toyota Quick Deli/Urban Sup

Production Aug 1999 - Jun 2004
Engine 4B
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9908- )

Click highlighted areas on diagram

diagram 42601A 42601C 42601F 42601R 42611G 42611J
Part # Description Qty Price
42601A - WHEEL, DISC (FOR SPARE)
42601-37300

BU280,RZU280..D

15X5J,#,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
42601C - NUT, HUB (FOR AXLE)
42633-55030

BU28#,RZU280,XZU28#

ﾘﾔ右側

 5
90942-01107

BU28#,RZU280,XZU28#

ﾌﾛﾝﾄ右側

 5
42634-55030

BU28#,RZU280,XZU28#

ﾘﾔ左側

 5
90942-01108

BU28#,RZU280,XZU28#

ﾌﾛﾝﾄ左側

 5
42601F - WHEEL, DISC (FOR FRONT)
42601-37300

BU280,RZU280..D

15X5J,#,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
42601R - WHEEL, DISC (FOR REAR)
42601-37300

BU280,RZU280..D

15X5J,#,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 4
42611G - VALVE (FOR TUBELESS TIRE)
90942-05026

RZU280..D;BU280..D..DSL

 6
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05026

RZU280..D;BU280..D..DSL

 1

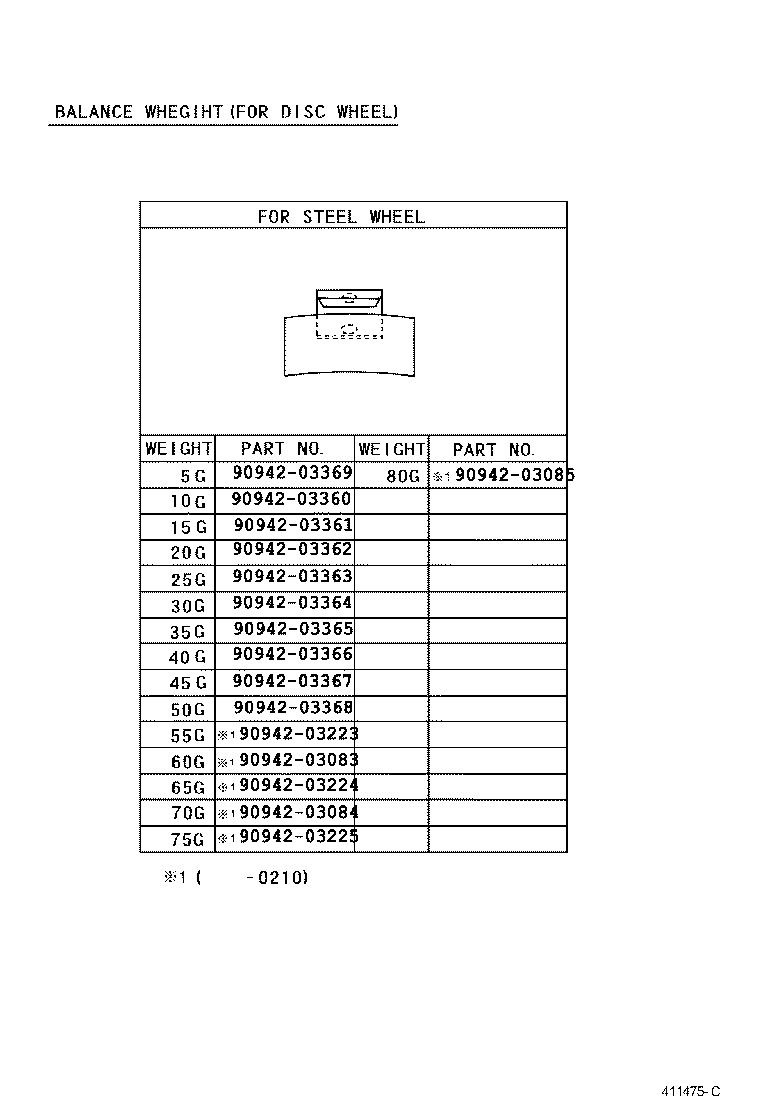

ILLUST NO. 2 OF 2(9908- )

Click highlighted areas on diagram

diagram 9094203083 9094203084 9094203085 9094203223 9094203224 9094203225 9094203360 9094203361 9094203362 9094203363 9094203364 9094203365 9094203366 9094203367 9094203368 9094203369
Part # Description Qty Price
Common parts
90942-03083
90942-03084
90942-03085
90942-03223
90942-03224
90942-03225
90942-03360
90942-03361
90942-03362
90942-03363
90942-03364
90942-03365
90942-03366
90942-03367
90942-03368
90942-03369
