BU280K-QLQDC (2000)

Toyota Quick Deli/Urban Sup

Production Jan 2000 - Jun 2003
Engine 3RZFPE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9908-0610)BU28#,RZU280,XZU28#

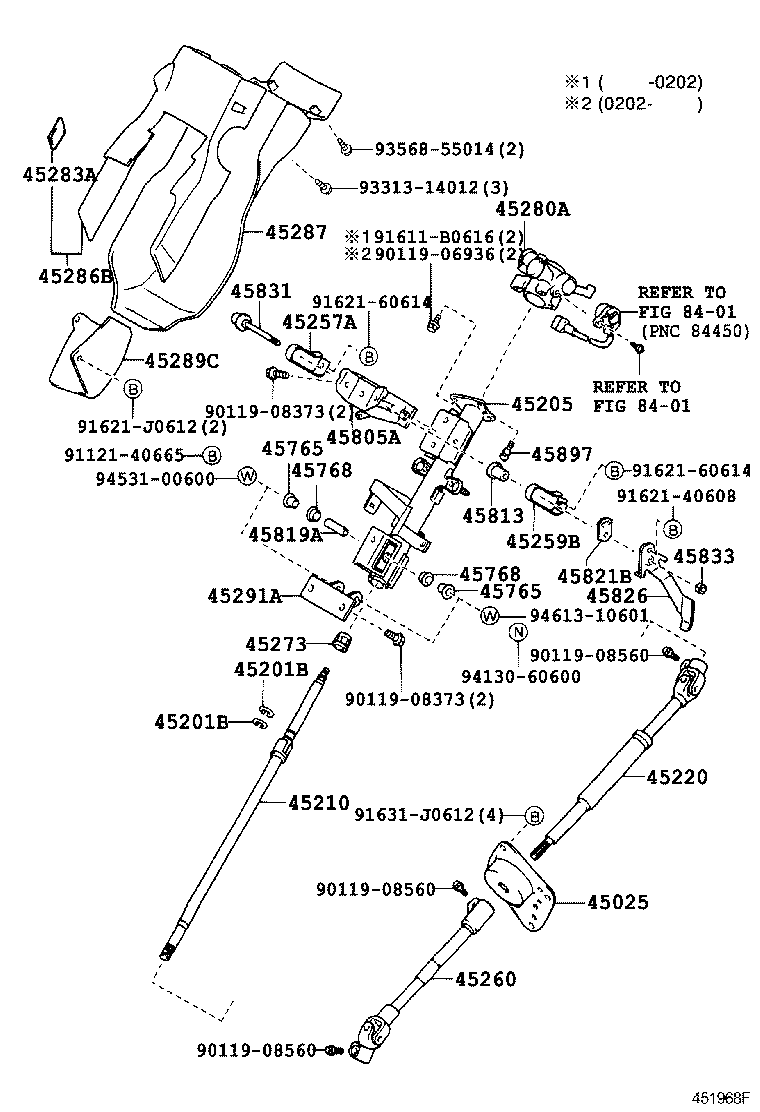

Click highlighted areas on diagram

diagram 45025 45201B 45201B 45205 45210 45220 45257A 45259B 45260 45273 45280A 45283A 45286B 45287 45289C 45291A 45765 45765 45768 45768 45805A 45813 45819A 45821B 45826 45831 45833 45897 8401 8401 9011906936 9011908373 9011908373 9011908560 9011908560 9011908560 9112140665 91611B0616 9162140608 9162160614 9162160614 91621J0612 91631J0612 9331314012 9356855014 9413060600 9453100600 9461310601
Part # Description Qty Price
45025 - COVER, STEERING INTERMEDIATE SHAFT
45025-37010

BU28#,LY228,270

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17269

BU280..LPG

厚さ=1.20

 2
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17269

BU280..LPG

厚さ=1.20

 2
45205 - TUBE SUB-ASSY, STEERING COLUMN
45205-37060

BU280..LPG

 1
45210 - SHAFT ASSY, STEERING MAIN
45210-37140

BU280..LPG

 1
45220 - SHAFT ASSY, STEERING INTERMEDIATE
45220-37100

BU280..LPG

 1
45257A - PLATE, STEERING COLUMN ENERGY ABSORBING
45257-37020

BU280..LPG

 1
45259B - PLATE, STEERING COLUMN ENERGY ABSORBING, NO.2
45259-37020

BU280..LPG

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-37030

BU280..LPG

 1
45273 - BUSH, STEERING MAIN SHAFT
45273-33030

BU280..LPG

 1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-37100

RZU280..N;LY228,270..MTM;BU280,XZU28#..DCR,LPG

 1
45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION
45283-22010

BU280..LPG

 1
45286B - COVER, STEERING COLUMN, UPR
45286-37100B0

LY228,270;RZU280..N;BU280,XZU28#..DCR,LPG

BLUISH GRAY,TRIM1#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-37100B0

LY228,270;RZU280..N;BU280,XZU28#..DCR,LPG

BLUISH GRAY,TRIM1#

 1
45289C - COVER, STEERING COLUMN, LWR NO.2
45289-37010

BU280..LPG

 1
45291A - SUPPORT, STEERING COLUMN TUBE
45803-37010

BU280..LPG

 1
45765 - GUIDE, TELESCOPIC STEERING
45765-37010

BU280..LPG

 2
45765 - GUIDE, TELESCOPIC STEERING
45765-37010

BU280..LPG

 2
45768 - BUSH, TELESCOPIC STEERING
45768-37010

BU280..LPG

 2
45768 - BUSH, TELESCOPIC STEERING
45768-37010

BU280..LPG

 2
45805A - SUPPORT SUB-ASSY, TILT STEERING
45805-36010

BU280..LPG

 1
45813 - COLLAR, TILT STEERING SUPPORT, NO.1
45813-37010

BU280..LPG

外径=30

 1
45819A - COLLAR(FOR TILT LEVER RETAINER)
90387-06037

BU280..LPG

 1
45821B - REINFORCE, TILT STEERING SUPPORT, NO.1
45821-12010

BU280..LPG

 1
45826 - LEVER, STEERING TILT
45826-37020

BU280..LPG

 1
45831 - BOLT, TILT LEVER LOCK, NO.1
45831-37010

BU280..LPG

 1
45833 - NUT, TILT STEERING ADJUSTING, NO.1
45833-37010

BU280..LPG

 1
45897 - BOLT, STEERING LOCK SET
45897-25010

BU280..LPG

 1
45897-12030

BU28#,LY228,270..MTM

 1
Common parts
90119-06936
90119-08373
90119-08560
91121-40665
91611-B0616
91621-40608
91621-60614
91621-J0612
91631-J0612
93313-14012
93568-55014
94130-60600
94531-00600
94613-10601
Linked diagrams
8401
