UP36V-D (1969)

Toyota Publica

Production Apr 1969 - Dec 1971
Engine 2UC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(6904-7112)UP3#

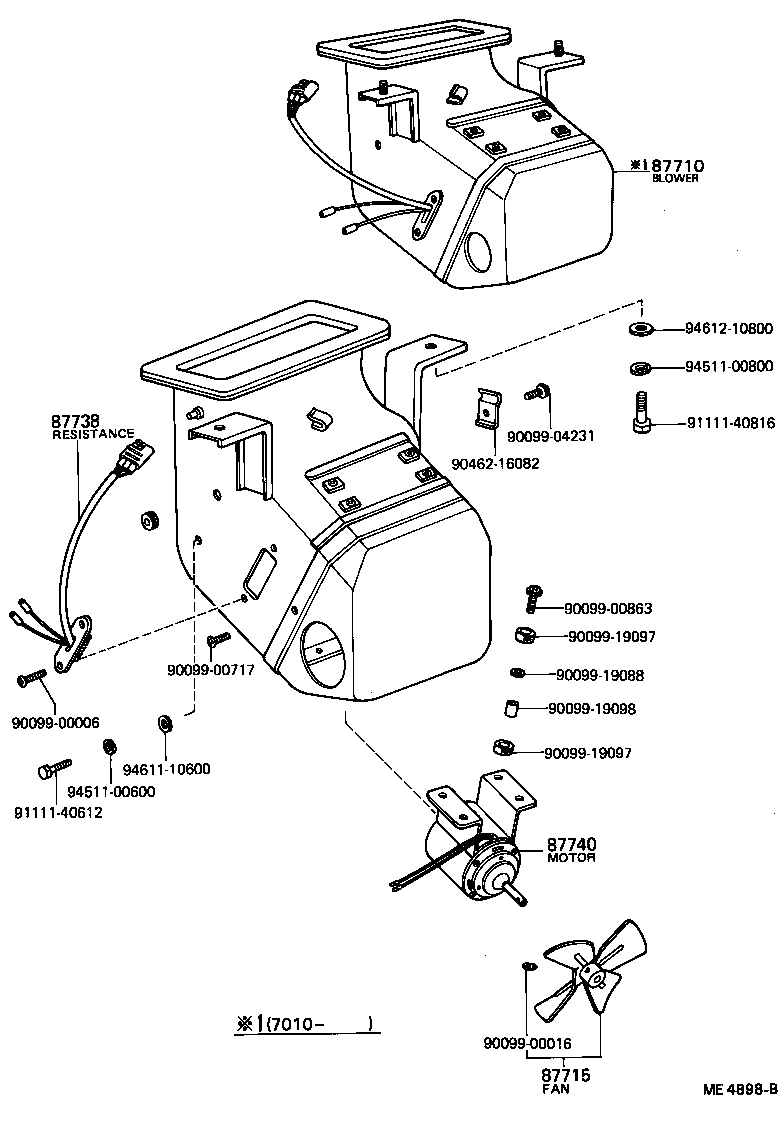

Click highlighted areas on diagram

diagram 87710 87715 87738 87740 9009900006 9009900016 9009900717 9009900863 9009904231 9009919088 9009919097 9009919097 9009919098 9046216082 9111140612 9111140816 9451100600 9451100800 9461110600 9461210800
Part # Description Qty Price
87710 - BLOWER ASSY, REAR WINDOW DEFOGGER
87710-10011

UP3#

 1
87715 - FAN, WINDOW DEFOGGER OR REAR HEATER BLOWER
87701-10010

UP3#

 1
87738 - RESISTANCE, DEFOGGER BLOWER
87138-10060

UP3#

 1
87740 - MOTOR SUB-ASSY, WINDOW DEFOGGER OR REAR HEATER
87740-10010

UP3#

 1
Common parts
90099-00006
90099-00016
90099-00717
90099-00863
90099-04231
90099-19088
90099-19097
90099-19098
90462-16082
91111-40612
91111-40816
94511-00600
94511-00800
94611-10600
94612-10800
