UP36V-D (1969)

Toyota Publica

Production Apr 1969 - Dec 1971
Engine 2UC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

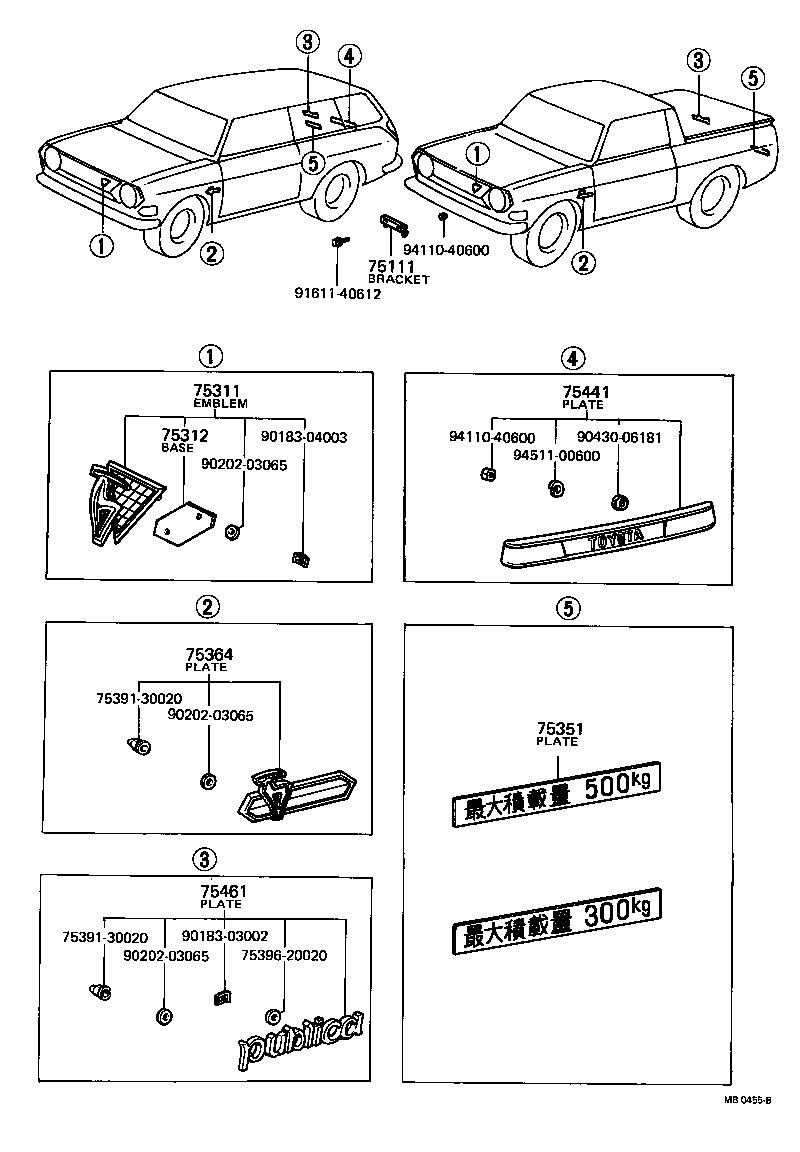

(6904-7010)KP36,UP36

Click highlighted areas on diagram

diagram 75111 75311 75312 75351 75364 7539130020 7539130020 7539620020 75441 75461 9018303002 9018304003 9020203065 9020203065 9020203065 9043006181 9161140612 9411040600 9411040600 9451100600
Part # Description Qty Price
75111 - BRACKET, FRONT LICENSE PLATE
75111-20010

KP3#,50,UP3#

 1
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-19045

KP3#,UP3#

 1
75312 - BASE, RADIATOR GRILLE EMBLEM
75312-10010

KP3#,UP3#

 1
75351 - PLATE, REAR NAME, NO.6 (MAXIMUM LOAD)
75471-11030

KP36,UP36..V

 1
75364 - PLATE, FRONT FENDER NAME, NO.2 (GRADE MARK)
75350-10010

KP30,36,UP3#..DLX

 2
75353-10901

KP3#,UP3#..DLX

 2
75441 - PLATE, REAR NAME, NO.1
75403-19025

UP36

 1
75403-19016

KP36,UP36..V

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75442-19115

KP36,UP36

 1
75442-19095

KP3#,UP3#

 1
Common parts
75391-30020
75396-20020
90183-03002
90183-04003
90202-03065
90430-06181
91611-40612
94110-40600
94511-00600

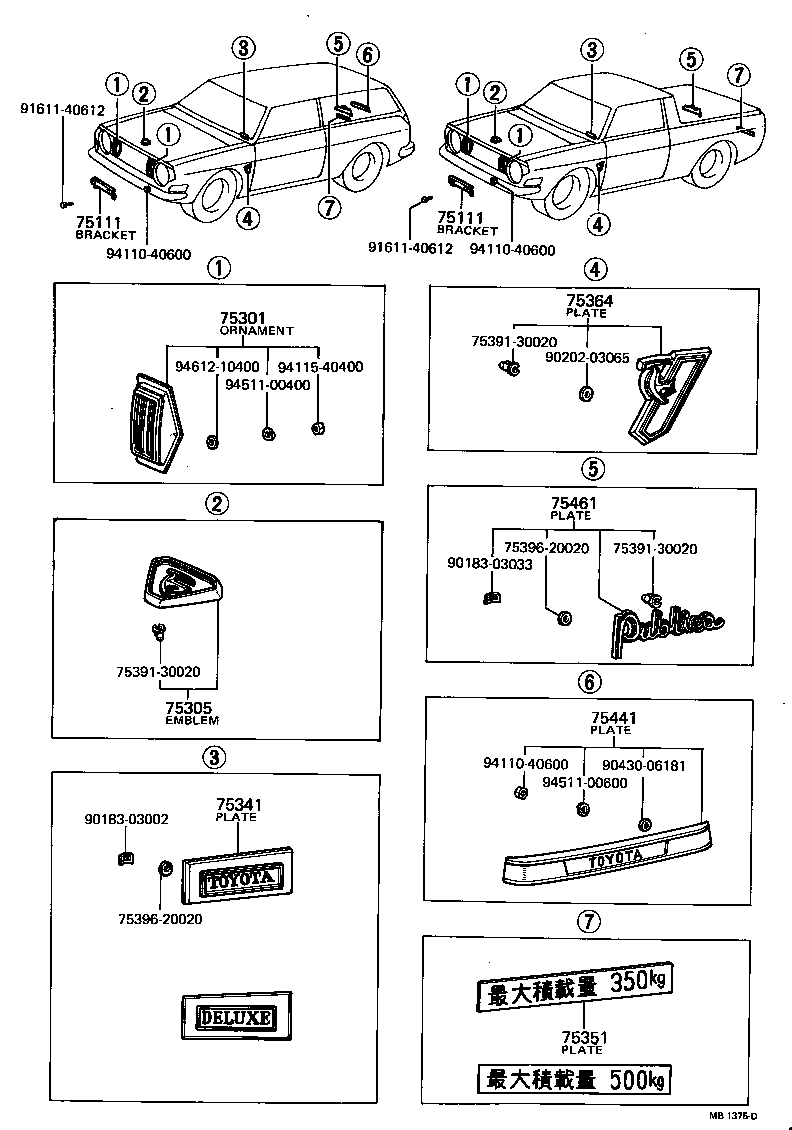

(7010-7112)KP36,UP36

Click highlighted areas on diagram

diagram 75111 75111 75301 75305 75341 75351 75364 7539130020 7539130020 7539130020 7539620020 7539620020 75441 75461 9018303002 9018303033 9020203065 9043006181 9161140612 9161140612 9411040600 9411040600 9411040600 9411540400 9451100400 9451100600 9461210400
Part # Description Qty Price
75111 - BRACKET, FRONT LICENSE PLATE
75111-20010

KP3#,50,UP3#

 1
75111 - BRACKET, FRONT LICENSE PLATE
75111-20010

KP3#,50,UP3#

 1
75301 - ORNAMENT, RADIATOR GRILLE (OR FRONT PANEL)
75316-19025

KP3#,UP3#..DLX,HDX,STD

LH

 1
75315-19025

KP3#,UP3#..DLX,HDX,STD

RH

 1
75305 - EMBLEM, HOOD
75330-10030

KP3#,UP3#

 1
75351 - PLATE, REAR NAME, NO.6 (MAXIMUM LOAD)
75471-11030

KP36,UP36..V

 1
75364 - PLATE, FRONT FENDER NAME, NO.2 (GRADE MARK)
75350-10010

KP30,36,UP3#..DLX

 2
75353-10901

KP3#,UP3#..DLX

 2
75441 - PLATE, REAR NAME, NO.1
75403-19025

UP36

 1
75403-19016

KP36,UP36..V

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75442-19115

KP36,UP36

 1
75442-19095

KP3#,UP3#

 1
Common parts
75391-30020
75396-20020
90183-03002
90183-03033
90202-03065
90430-06181
91611-40612
94110-40600
94115-40400
94511-00400
94511-00600
94612-10400
