UP36V-D (1969)
Toyota Publica
Production
Apr 1969
-
Dec 1971
Engine
2UC
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(6904-7809)V

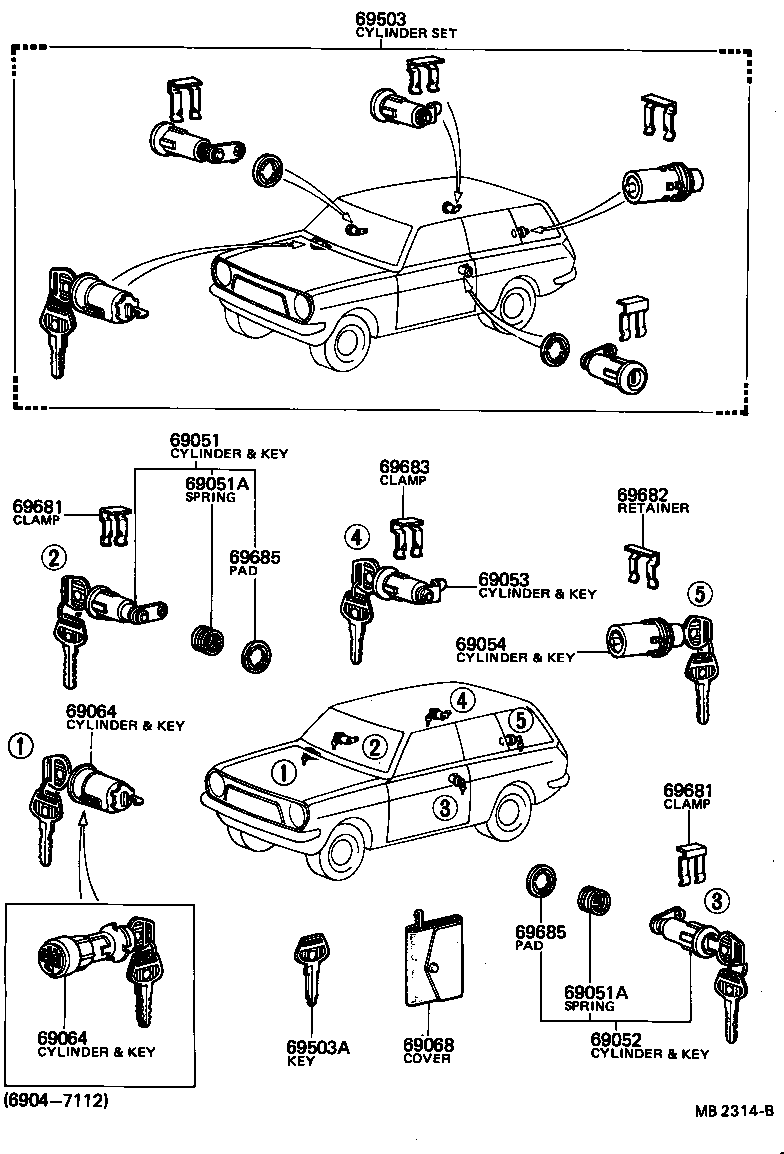

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-11020 |
KP36,UP36 |
1 | ||
| 69051A - SPRING, DOOR LOCK CYLINDER | ||||
| 90508-09280 |
KP36,UP36 |
2 | ||
| 69051A - SPRING, DOOR LOCK CYLINDER | ||||
| 90508-09280 |
KP36,UP36 |
2 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-11010 |
KP36,UP36 |
1 | ||
| 69053 - CYLINDER & KEY SET, FUEL INLET LOCK | ||||
| 69053-11021 |
KP36,UP36..DLX |
1 | ||
| 69053-11010 |
KP36,UP36..DLX |
1 | ||
| 69054 - CYLINDER & KEY SET, BACK DOOR LOCK | ||||
| 69054-11021 |
KP36,UP36..V |
1 | ||
| 69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 84045-11010 |
KP36,UP36 |
1 | ||
| 84045-11021 |
KP36,UP36 |
1 | ||
| 69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 84045-11010 |
KP36,UP36 |
1 | ||
| 84045-11021 |
KP36,UP36 |
1 | ||
| 69068 - COVER SUB-ASSY, KEY | ||||
| 84041-12010 |
KP3#,UP3# |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69503-11041 |
KP36,UP36..V..DLX |
1 | ||
| 69503-19215 |
KP36,UP36..V..DLX |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00040 |
KP36,UP36 |
1 | ||
| 69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE | ||||
| 69681-11010 |
KP36,UP36 |
2 | ||
| 69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE | ||||
| 69681-11010 |
KP36,UP36 |
2 | ||
| 69682 - RETAINER, LOCK CYLINDER | ||||
| 69682-13010 |
KP36,37,UP36..V |
1 | ||
| 69683 - CLAMP, FUEL LOCK CYLINDER | ||||
| 69681-20010 |
KP3#,UP3#..DLX,HDX |
1 | ||
| 69683-10010 |
KP3#,UP3#..DLX,HDX,SL |
1 | ||
