UP36V-D (1969)

Toyota Publica

Production Apr 1969 - Dec 1971
Engine 2UC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(6904- )KP36,37,38,39,UP36

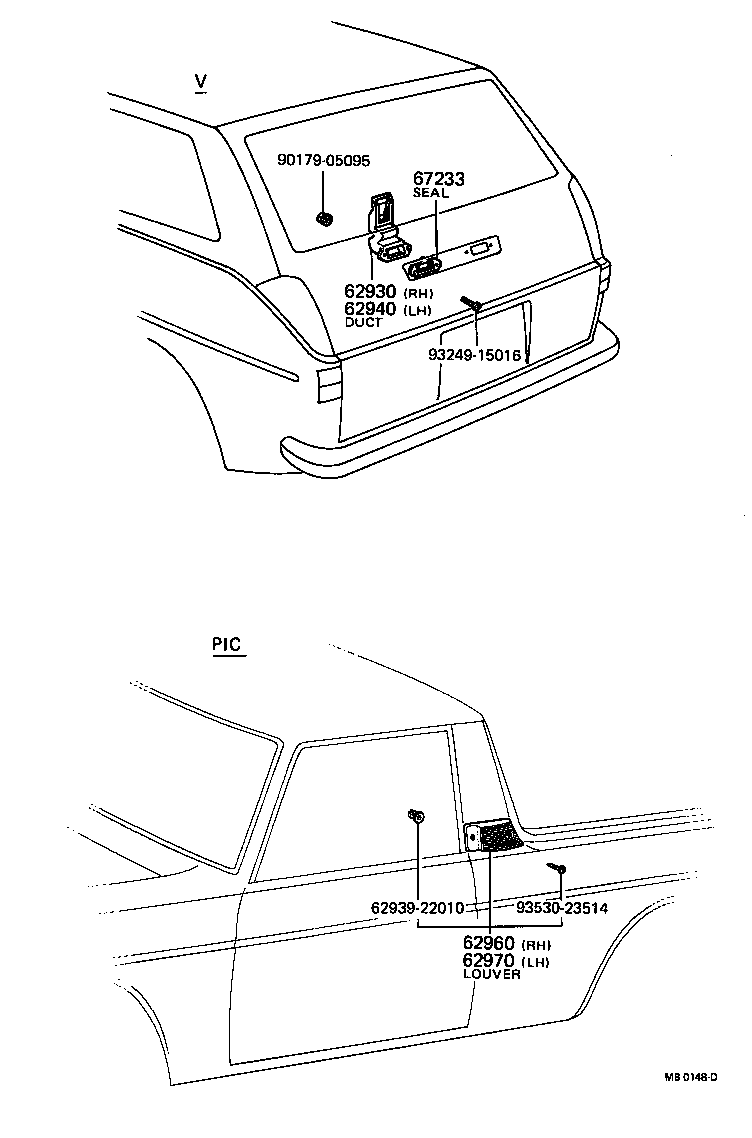

Click highlighted areas on diagram

diagram 62930 6293922010 62940 62960 62970 67233 9017905095 9324915016 9353023514
Part # Description Qty Price
62930 - DUCT ASSY, ROOF SIDE VENT, RH
67230-11010

KP36,37,UP36..V

 1
62940 - DUCT ASSY, ROOF SIDE VENT, LH
67230-11010

KP36,37,UP36..V

 1
67233 - SEAL, BACK DOOR VENT
67233-11010

KP36,37,UP36..V

 2
Common parts
62939-22010
90179-05095
93249-15016
93530-23514
