UP36V-D (1969)
Toyota Publica
Production
Apr 1969
-
Dec 1971
Engine
2UC
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(6904-7112)UP3#

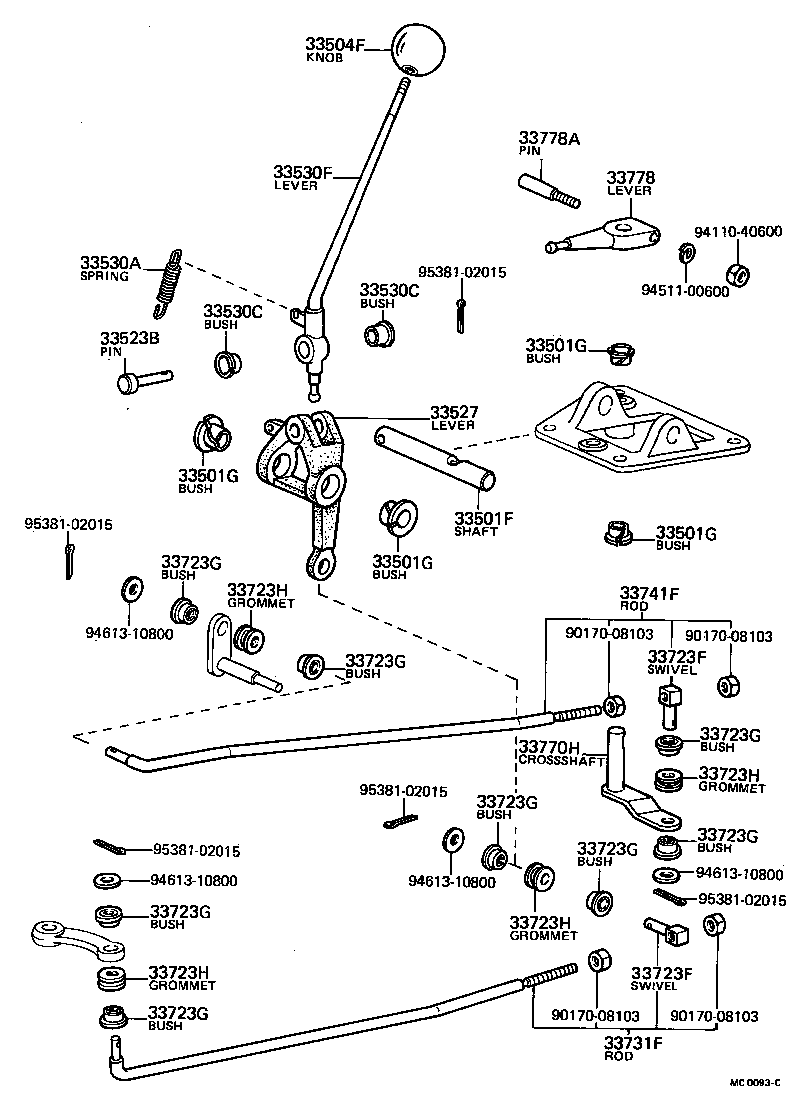

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33501F - SHAFT SUB-ASSY, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-10030 |
UP3# |
1 | ||
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90386-16102 |
UP3# CONTROL SHAFT |
2 | ||
| 90386-12101 |
UP3# CROSSSHAFT |
2 | ||
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90386-16102 |
UP3# CONTROL SHAFT |
2 | ||
| 90386-12101 |
UP3# CROSSSHAFT |
2 | ||
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90386-16102 |
UP3# CONTROL SHAFT |
2 | ||
| 90386-12101 |
UP3# CROSSSHAFT |
2 | ||
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90386-16102 |
UP3# CONTROL SHAFT |
2 | ||
| 90386-12101 |
UP3# CROSSSHAFT |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-22020 |
KP3#,UP3#..4F..(DLX,HDX,SR,STD) |
1 | ||
| 33523B - PIN, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 90240-08024 |
UP3# |
1 | ||
| 33527 - LEVER, CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33527-10030 |
UP3# |
1 | ||
| 33530A - SPRING, COMPRESSION (FOR SHIFT LEVER) | ||||
| 90506-16227 |
UP3# |
1 | ||
| 33530C - BUSH (FOR SHIFT LEVER) | ||||
| 90386-08043 |
UP3# |
2 | ||
| 33530C - BUSH (FOR SHIFT LEVER) | ||||
| 90386-08043 |
UP3# |
2 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33541-10070 |
UP3# |
1 | ||
| 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) | ||||
| 33723-10020 |
UP3# |
2 | ||
| 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) | ||||
| 33723-10020 |
UP3# |
2 | ||
| 33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90999-99017 |
UP3# |
8 | ||
| 33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90999-99017 |
UP3# |
8 | ||
| 33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90999-99017 |
UP3# |
8 | ||
| 33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90999-99017 |
UP3# |
8 | ||
| 33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90999-99017 |
UP3# |
8 | ||
| 33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90999-99017 |
UP3# |
8 | ||
| 33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90999-99017 |
UP3# |
8 | ||
| 33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90999-99017 |
UP3# |
8 | ||
| 33723H - GROMMET (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90480-17177 |
UP3# |
4 | ||
| 33723H - GROMMET (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90480-17177 |
UP3# |
4 | ||
| 33723H - GROMMET (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90480-17177 |
UP3# |
4 | ||
| 33723H - GROMMET (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90480-17177 |
UP3# |
4 | ||
| 33731F - ROD, GEAR SELECTING, NO.1 (FOR FLOOR SHIFT) | ||||
| 33731-10905 |
UP3# |
1 | ||
| 33741F - ROD, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT) | ||||
| 33741-10905 |
UP3# |
1 | ||
| 33770H - CROSS SHAFT ASSY (FOR FLOOR SHIFT) | ||||
| 33709-10020 |
UP3# |
1 | ||
| 33778 - LEVER, CROSS SHAFT, NO.1 | ||||
| 33778-10030 |
UP3# |
1 | ||
| 33778A - PIN(FOR CROSS SHAFT LEVER, NO.1) | ||||
| 33282-35010 |
UP3# OD=6,P=1.0 |
1 | ||
| Common parts | ||||
| 90170-08103 | ||||
| 94110-40600 | ||||
| 94511-00600 | ||||
| 94613-10800 | ||||
| 95381-02015 | ||||
