UP36V-D (1969)
Toyota Publica
Production
Apr 1969
-
Dec 1971
Engine
2UC
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(6904-7112)2UC

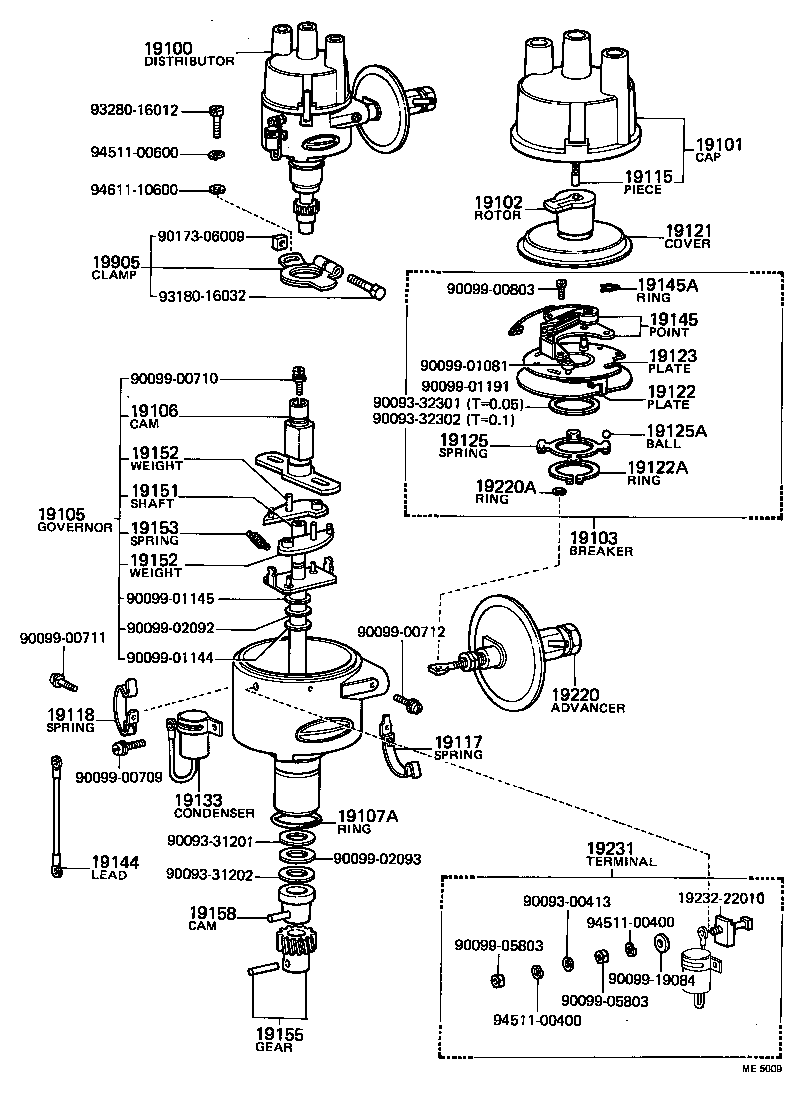

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19100-10012 |
2UC..UP3# |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-10010 |
2UC..UP3# |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-22010 |
2UC..UP3# |
1 | ||
| 19103 - BREAKER SUB-ASSY, DISTRIBUTOR | ||||
| 19103-10011 |
2UC..UP3# |
1 | ||
| 19105 - GOVERNOR SUB-ASSY | ||||
| 19105-10012 |
2UC..UP3# |
1 | ||
| 19106 - CAM SUB-ASSY, DISTRIBUTOR | ||||
| 19106-10013 |
2UC..UP3# |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 90099-14007 |
2UC..UP3# |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-50010 |
2UC..UP3# |
1 | ||
| 19117 - SPRING, DISTRIBUTOR CAP, A | ||||
| 19117-30030 |
2UC..UP3# |
1 | ||
| 19118 - SPRING, DISTRIBUTOR CAP, B | ||||
| 19118-30030 |
2UC..UP3# |
1 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-10010 |
2UC..UP3# |
1 | ||
| 19122 - PLATE, STATIONARY, DISTRIBUTOR | ||||
| 19122-29021 |
2UC..UP3# |
1 | ||
| 19122A - RING, SNAP(FOR DISTRIBUTOR STATIONARY PLATE) | ||||
| 90099-07081 |
2UC..UP3# |
1 | ||
| 19123 - PLATE, DISTRIBUTOR BREAKER | ||||
| 19123-10011 |
2UC..UP3# |
1 | ||
| 19125 - SPRING(FOR DISTRIBUTOR STATIONARY PLATE) | ||||
| 19125-30010 |
2UC..UP3# |
1 | ||
| 19125A - BALL, DISTRIBUTOR STATIONARY PLATE | ||||
| 90099-12003 |
2UC..UP3# |
4 | ||
| 19133 - CONDENSER, DISTRIBUTOR | ||||
| 19133-10010 |
2UC..UP3# |
1 | ||
| 19144 - LEAD, DISTRIBUTOR BREAKER | ||||
| 19144-10010 |
2UC..UP3# |
1 | ||
| 19145 - POINT, DISTRIBUTOR | ||||
| 04191-40010 |
2UC..UP3# |
1 | ||
| 19145A - RING, SNAP(FOR DISTRIBUTOR KIT) | ||||
| 90099-07042 |
2UC..UP3# |
1 | ||
| 19151 - SHAFT, GOVERNOR | ||||
| 19151-10013 |
2UC..UP3# |
1 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-30010 |
2UC..UP3# |
2 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-30010 |
2UC..UP3# |
2 | ||
| 19153 - SPRING, GOVERNOR, A | ||||
| 19153-10013 |
2UC..UP3# |
1 | ||
| 19155 - GEAR, SPIRAL, DISTRIBUTOR | ||||
| 19195-10010 |
2UC..UP3# |
1 | ||
| 19158 - CAM, FUEL PUMP | ||||
| 19158-10010 |
2UC..UP3# |
1 | ||
| 19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR | ||||
| 19220-10014 |
2UC..UP3# |
1 | ||
| 19220A - RING, SNAP(FOR DISTRIBUTOR VACUUM ADVANCER) | ||||
| 90099-07011 |
2UC..UP3# |
1 | ||
| 19231 - TERMINAL, DISTRIBUTOR | ||||
| 19231-10010 |
2UC..UP3# |
1 | ||
| 19905 - CLAMP SUB-ASSY, DISTRIBUTOR | ||||
| 19905-10010 |
2UC..UP3# |
1 | ||
| Common parts | ||||
| 19232-22010 | ||||
| 90093-00413 | ||||
| 90093-31201 | ||||
| 90093-31202 | ||||
| 90093-32301 | ||||
| 90093-32302 | ||||
| 90099-00709 | ||||
| 90099-00710 | ||||
| 90099-00711 | ||||
| 90099-00712 | ||||
| 90099-00803 | ||||
| 90099-01081 | ||||
| 90099-01144 | ||||
| 90099-01145 | ||||
| 90099-01191 | ||||
| 90099-02092 | ||||
| 90099-02093 | ||||
| 90099-05803 | ||||
| 90099-19084 | ||||
| 90173-06009 | ||||
| 93180-16032 | ||||
| 93280-16012 | ||||
| 94511-00400 | ||||
| 94511-00600 | ||||
| 94611-10600 | ||||
