UP36V- (1969)

Toyota Publica

Production Apr 1969 - Dec 1971
Engine 2UC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(6904-7112)UP3#

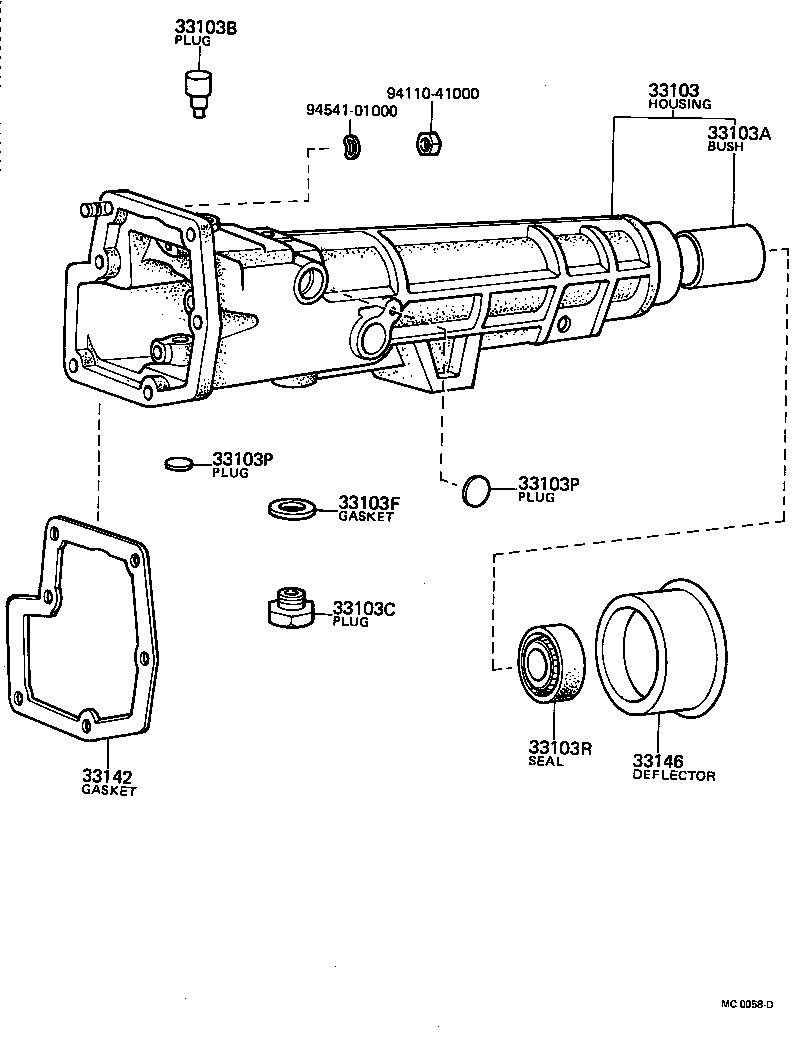

Click highlighted areas on diagram

diagram 33103 33103A 33103B 33103C 33103F 33103P 33103P 33103R 33142 33146 9411041000 9454101000
Part # Description Qty Price
33103 - HOUSING SUB-ASSY, EXTENSION(MTM)
33141-10901

UP3#

 1
33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90999-72018

UP3#

 1
33103B - PLUG, BREATHER(FOR TRANSMISSION EXTENSION HOUSING)
90930-03038

UP3#

 1
33103C - PLUG, NO.1(FOR EXTENSION HOUSING)
90341-18014

UP3#

 1
90341-18057

UP3#

 1
33103F - GASKET(FOR EXTENSION HOUSING PLUG NO.1)
12157-10010

UP3#

 1
33103P - PLUG, EXPANSION(FOR EXTENSION HOUSING)
90330-15004

UP3#

 2
33103P - PLUG, EXPANSION(FOR EXTENSION HOUSING)
90330-15004

UP3#

 2
33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90311-28088

UP3#

 1
33142 - GASKET, EXTENSION HOUSING(MTM)
33142-10010

UP3#

T=0.5

 1
33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM)
33146-10010

UP3#

 1
33146-12010

KP30,31,36,38,39,50..MTM

 1
Common parts
94110-41000
94541-01000
