UP36V- (1969)

Toyota Publica

Production Apr 1969 - Dec 1971
Engine 2UC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(6904-7112)2UC

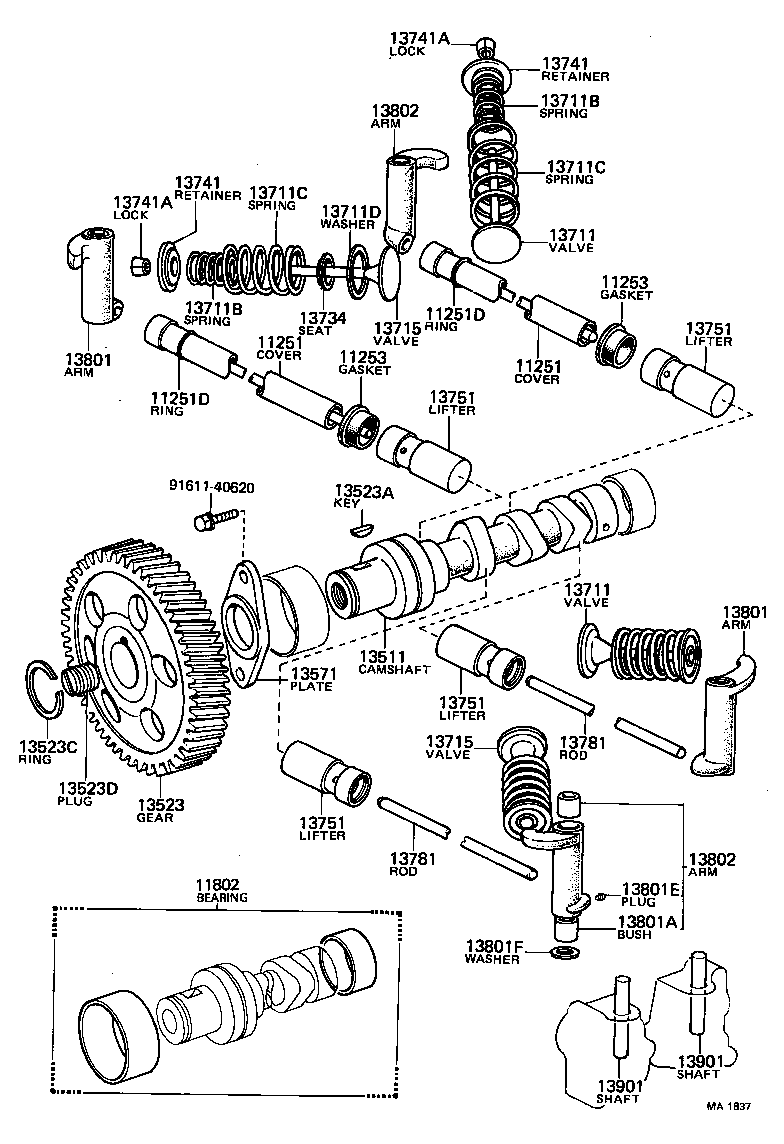

Click highlighted areas on diagram

diagram 11251 11251 11251D 11251D 11253 11253 11802 13511 13523 13523A 13523C 13523D 13571 13711 13711 13711B 13711B 13711C 13711C 13711D 13715 13715 13734 13741 13741 13741A 13741A 13751 13751 13751 13751 13781 13781 13801 13801 13801A 13801E 13801F 13802 13802 13901 13901 9161140620
Part # Description Qty Price
11251 - COVER, VALVE PUSH ROD
11251-10010

2UC..UP3#

 4
11251 - COVER, VALVE PUSH ROD
11251-10010

2UC..UP3#

 4
11251D - RING, O(FOR VALVE PUSH ROD COVER)
90301-15032

2UC..UP3#

ID=15.7,T=2.4

 4
96740-02016

2UC..UP3#

ID=10.7,T=2.4

 4
11251D - RING, O(FOR VALVE PUSH ROD COVER)
90301-15032

2UC..UP3#

ID=15.7,T=2.4

 4
96740-02016

2UC..UP3#

ID=10.7,T=2.4

 4
11253 - GASKET, VALVE PUSH ROD COVER
11253-10012

2UC..UP3#

 4
11253 - GASKET, VALVE PUSH ROD COVER
11253-10012

2UC..UP3#

 4
11802 - BEARING SET, CAMSHAFT
11803-10011

2UC..UP3#

U/S 0.200

 1
11802-10011

2UC..UP3#

STD

 1
11804-10011

2UC..UP3#

U/S 0.400

 1
13511 - CAMSHAFT
13511-10011

2UC..UP3#

 1
13523 - GEAR OR SPROCKET, CAMSHAFT TIMING
13523-10011

2UC..UP3#

N=44

 1
13523A - KEY, WOODRUFF(FOR TIMING GEAR)
90280-05008

2UC..UP3#

 1
13523C - RING, SNAP CAMSHAFT(FOR TIMING GEAR)
90520-29051

2UC..UP3#

 1
13523D - PLUG, STRAIGHT SCREW(FOR TIMING GEAR)
90340-16010

2UC..UP3#

 1
13571 - PLATE, CAMSHAFT THRUST
13571-10010

2UC..UP3#

 1
13711 - VALVE, INTAKE
13711-10010

2UC..UP3#

 2
13711 - VALVE, INTAKE
13711-10010

2UC..UP3#

 2
13711B - SPRING, COMPRESSION(FOR INNER)
90501-26109

2UC..UP3#

WD=2.6,CW=7.5

 4
13711B - SPRING, COMPRESSION(FOR INNER)
90501-26109

2UC..UP3#

WD=2.6,CW=7.5

 4
13711C - SPRING, COMPRESSION(FOR OUTER)
90501-40111

2UC..UP3#

WD=4,CW=6.5

 4
13711C - SPRING, COMPRESSION(FOR OUTER)
90501-40111

2UC..UP3#

WD=4,CW=6.5

 4
13711D - WASHER, PLATE(FOR VALVE SPRING SEAT)
90201-24144

2UC..UP3#

 4
13715 - VALVE, EXHAUST
13715-10010

2UC..UP3#

 2
13715 - VALVE, EXHAUST
13715-10010

2UC..UP3#

 2
13734 - SEAT, VALVE SPRING
13734-10010

2UC..UP3#

 4
13741 - RETAINER, VALVE SPRING
13741-10010

2UC..UP3#

 4
13741 - RETAINER, VALVE SPRING
13741-10010

2UC..UP3#

 4
13741A - LOCK, VALVE SPRING RETAINER
90913-03005

2UC..UP3#

 16
13741A - LOCK, VALVE SPRING RETAINER
90913-03005

2UC..UP3#

 16
13751 - LIFTER, VALVE
13750-10010

2UC..UP3#

 4
13751 - LIFTER, VALVE
13750-10010

2UC..UP3#

 4
13751 - LIFTER, VALVE
13750-10010

2UC..UP3#

 4
13751 - LIFTER, VALVE
13750-10010

2UC..UP3#

 4
13781 - ROD, VALVE PUSH
13781-10010

2UC..UP3#

 4
13781 - ROD, VALVE PUSH
13781-10010

2UC..UP3#

 4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13801-10011

2UC..UP3#

 2
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13801-10011

2UC..UP3#

 2
13801A - BUSH, BIMETAL FORMED(FOR ROCKER ARM)
90999-70006

2UC..UP3#

 8
13801E - PLUG, W/HEAD TAPER(FOR ROCKER ARM)
90335-03001

2UC..UP3#

 4
13801F - WASHER, WAVE(FOR ROCKER ARM)
90206-16025

2UC..UP3#

 4
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13802-10011

2UC..UP3#

 2
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13802-10011

2UC..UP3#

 2
13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1
13911-10010

2UC..UP3#

 4
13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1
13911-10010

2UC..UP3#

 4
Common parts
91611-40620
