UP30-D (1969)

Toyota Publica

Production Apr 1969 - Dec 1971
Engine 2UC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(6904- )

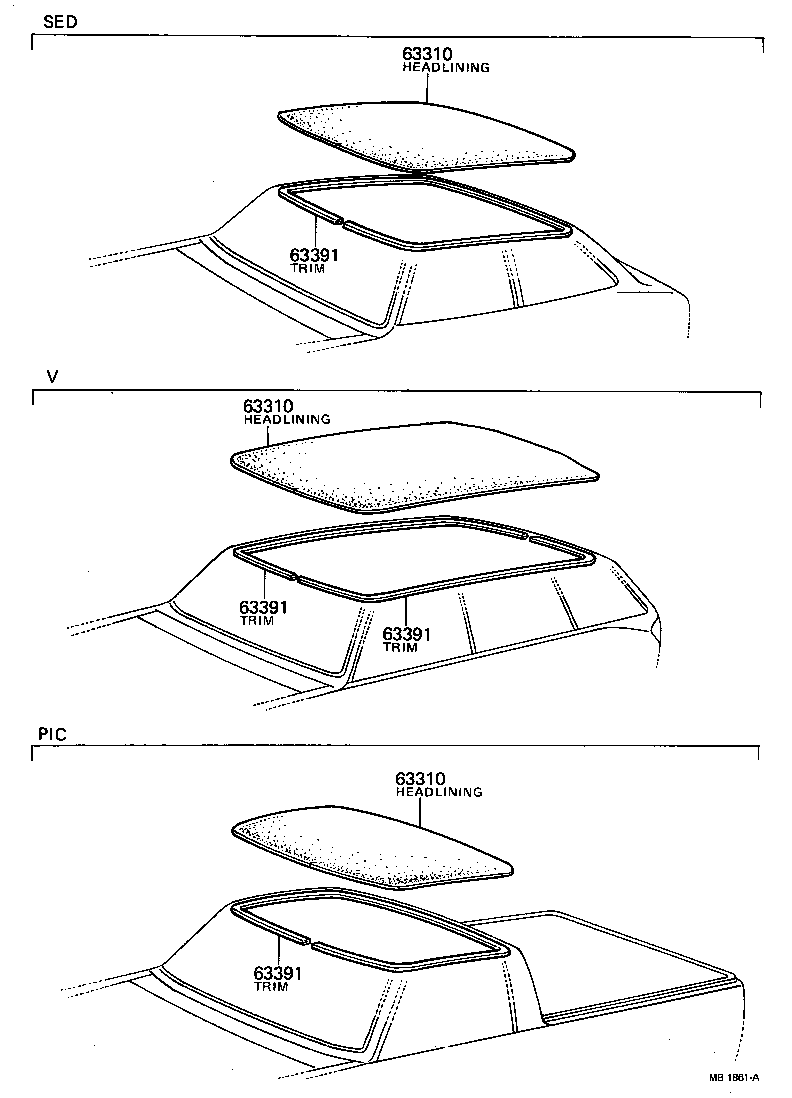

Click highlighted areas on diagram

diagram 63310 63310 63310 63391 63391 63391 63391
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63311-1003003

KP30,UP30

LIGHT GRAY,GRAY,TRIM2#,4#

 1
63311-1003013

KP30,31,UP30..DLX,HDX,STD

LIGHT GRAY,GRAY,TRIM2#,4#

 1
63310 - HEADLINING ASSY, ROOF
63311-1003003

KP30,UP30

LIGHT GRAY,GRAY,TRIM2#,4#

 1
63311-1003013

KP30,31,UP30..DLX,HDX,STD

LIGHT GRAY,GRAY,TRIM2#,4#

 1
63310 - HEADLINING ASSY, ROOF
63311-1003003

KP30,UP30

LIGHT GRAY,GRAY,TRIM2#,4#

 1
63311-1003013

KP30,31,UP30..DLX,HDX,STD

LIGHT GRAY,GRAY,TRIM2#,4#

 1
63391 - TRIM, ROOF HEADLINING, FRONT
63391-10020

KP30,31,UP30..DLX,HDX,SL,STD

 1
63391 - TRIM, ROOF HEADLINING, FRONT
63391-10020

KP30,31,UP30..DLX,HDX,SL,STD

 1
63391 - TRIM, ROOF HEADLINING, FRONT
63391-10020

KP30,31,UP30..DLX,HDX,SL,STD

 1
63391 - TRIM, ROOF HEADLINING, FRONT
63391-10020

KP30,31,UP30..DLX,HDX,SL,STD

 1
