UP30-D (1969)

Toyota Publica

Production Apr 1969 - Dec 1971
Engine 2UC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(6904- )

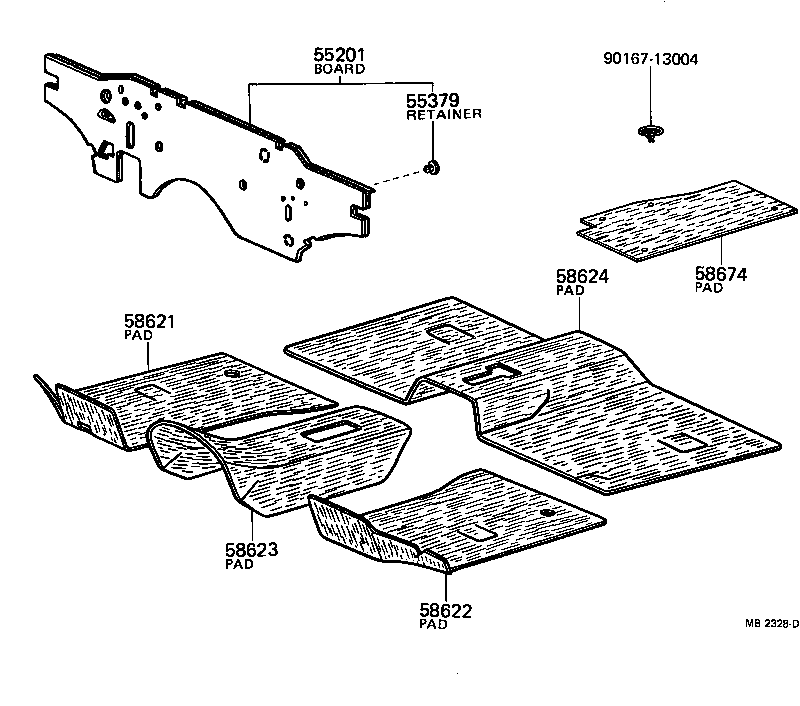

Click highlighted areas on diagram

diagram 55201 55379 58621 58622 58623 58624 58674 9016713004
Part # Description Qty Price
55201 - BOARD SUB-ASSY, DASH PANEL SILENCER
55201-10151

UP3#

W/EXHAUST HEATER

 1
55201-10150

UP3#

W/EXHAUST HEATER

 1
55201-10171

UP3#

W/COMBUSTION HEATER

 1
55201-10170

UP3#

W/COMBUSTION HEATER

 1
55201-10290

UP3#

W/COMBUSTION HEATER,UNDER TRAY

 1
58621 - PAD, FLOOR SILENCER, FRONT RH
58621-10030

KP3#,50,UP3#

 1
58622 - PAD, FLOOR SILENCER, FRONT LH
58622-10010

KP3#,50,UP3#

 1
58624 - PAD, FLOOR SILENCER, REAR SIDE
58624-10010

KP30,UP30

 1
Common parts
90167-13004
