UP30-D (1969)

Toyota Publica

Production Apr 1969 - Dec 1971
Engine 2UC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(6904- )

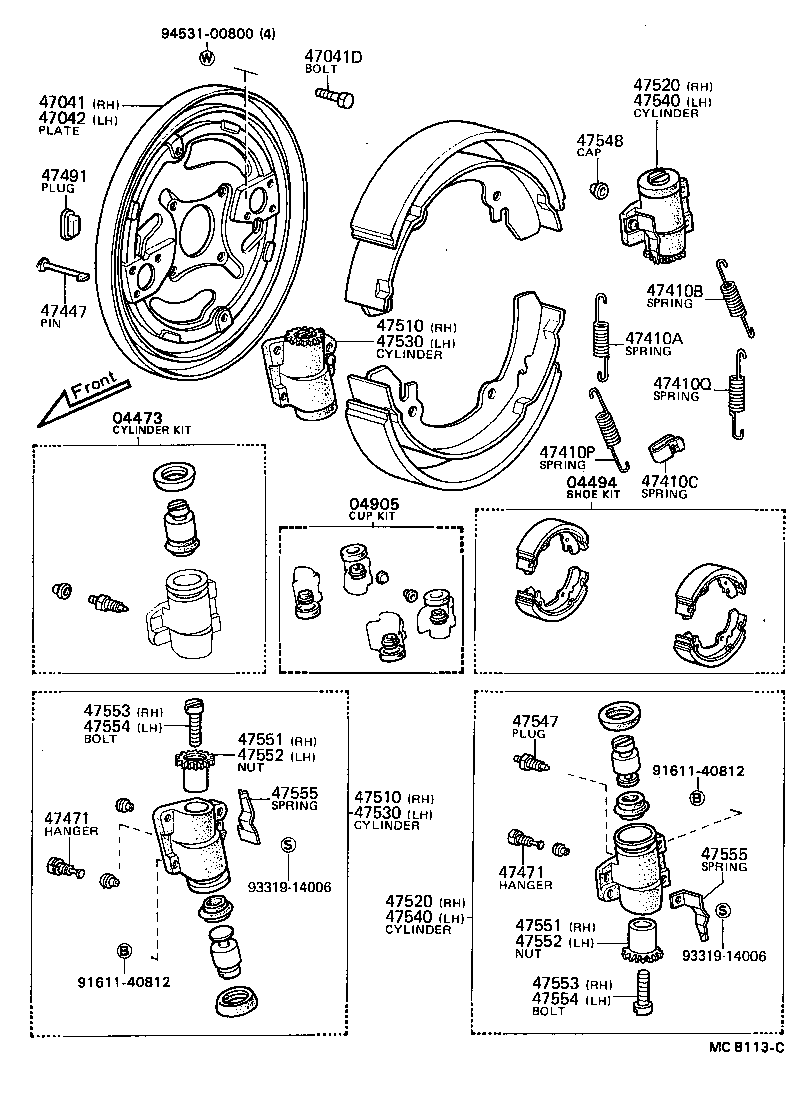

Click highlighted areas on diagram

diagram 04473 04494 04905 47041 47041D 47042 47410A 47410B 47410C 47410P 47410Q 47447 47471 47471 47491 47510 47510 47520 47520 47530 47530 47540 47540 47547 47548 47551 47551 47552 47552 47553 47553 47554 47554 47555 47555 9161140812 9161140812 9331914006 9331914006 9453100800
Part # Description Qty Price
04473 - CYLINDER KIT, FRONT WHEEL
04473-12030

KP30,36,UP3#

 4
04494 - SHOE KIT, FRONT BRAKE
04494-10010

KP30,36,UP3#..SED,V

 1
04496-10010

KP30,36,UP3#..DLX,STD

REBUILT

 1
04494-10010

KP30,36,UP3#..DLX,STD

 1
04496-10010

KP30,36,UP3#..SED,V

REBUILT

 1
04905 - CUP KIT, FRONT WHEEL CYLINDER
04905-12040

KP3#,UP3#..DLX,STD

 1
47041 - PLATE SUB-ASSY, BRAKE BACKING, FRONT RH
47041-10020

KP30,36,UP3#

 1
47041D - BOLT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)
91611-60812

KP30,36,UP3#

 8
47042 - PLATE SUB-ASSY, BRAKE BACKING, FRONT LH
47042-10020

KP30,36,UP3#

 1
47410A - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)
90506-20056

KP30,36,UP3#

RH

 1
90506-20057

KP30,36,UP3#

LH

 1
47410B - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)
90506-14050

KP3#,UP3#

 2
90506-16286

KP30,36,UP3#

 2
47410C - SPRING(FOR FRONT BRAKE SHOE HOLD DOWN)
47446-10010

KP30,36,UP3#

 4
47410P - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)
90506-14050

KP3#,UP3#

 2
90506-16286

KP30,36,UP3#

 2
47410Q - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)
90506-20056

KP30,36,UP3#

RH

 1
90506-20057

KP30,36,UP3#

LH

 1
47447 - PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)
47447-10010

KP30,36,UP3#

 4
47471 - HANGER, SHOE RETRACTING SPRING(FOR FRONT BRAKE)
47481-10011

KP30,36,UP3#

 4
47471 - HANGER, SHOE RETRACTING SPRING(FOR FRONT BRAKE)
47481-10011

KP30,36,UP3#

 4
47491 - PLUG, HOLE(FOR FRONT BRAKE)
47491-30020

KP30,36,UP3#

 4
47510 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER
47510-19035

KP30,36,UP3#

 1
47510 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER
47510-19035

KP30,36,UP3#

 1
47520 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)
47520-19025

KP30,36,UP3#

 1
47520 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)
47520-19025

KP30,36,UP3#

 1
47530 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER
47530-19035

KP30,36,UP3#

 1
47530 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER
47530-19035

KP30,36,UP3#

 1
47540 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)
47540-19025

KP30,36,UP3#

 1
47540 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)
47540-19025

KP30,36,UP3#

 1
47547 - PLUG, BLEEDER(FOR FRONT DRUM BRAKE)
47547-12010

UP3#

 2
47548 - CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT)
31478-30010

UP3#

 2
47551 - NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE
47551-10010

KP30,36,UP3#

LH SCREW

 2
47551 - NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE
47551-10010

KP30,36,UP3#

LH SCREW

 2
47552 - NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE
47552-10010

KP30,36,UP3#

RH SCREW

 2
47552 - NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE
47552-10010

KP30,36,UP3#

RH SCREW

 2
47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK
47553-10010

KP30,36,UP3#

LH SCREW

 2
47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK
47553-10010

KP30,36,UP3#

LH SCREW

 2
47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK
47554-10010

KP30,36,UP3#

RH SCREW

 2
47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK
47554-10010

KP30,36,UP3#

RH SCREW

 2
47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE)
47555-12010

KP30,36,UP3#

RH

 2
47555-10010

KP30,36,UP3#

RH

 2
47555-12020

KP30,36,UP3#

LH

 2
47555-10020

KP30,36,UP3#

LH

 2
47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE)
47555-12010

KP30,36,UP3#

RH

 2
47555-10010

KP30,36,UP3#

RH

 2
47555-12020

KP30,36,UP3#

LH

 2
47555-10020

KP30,36,UP3#

LH

 2
Common parts
91611-40812
93319-14006
94531-00800
