UP30-D (1969)

Toyota Publica

Production Apr 1969 - Dec 1971
Engine 2UC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(6904-7112)2UC

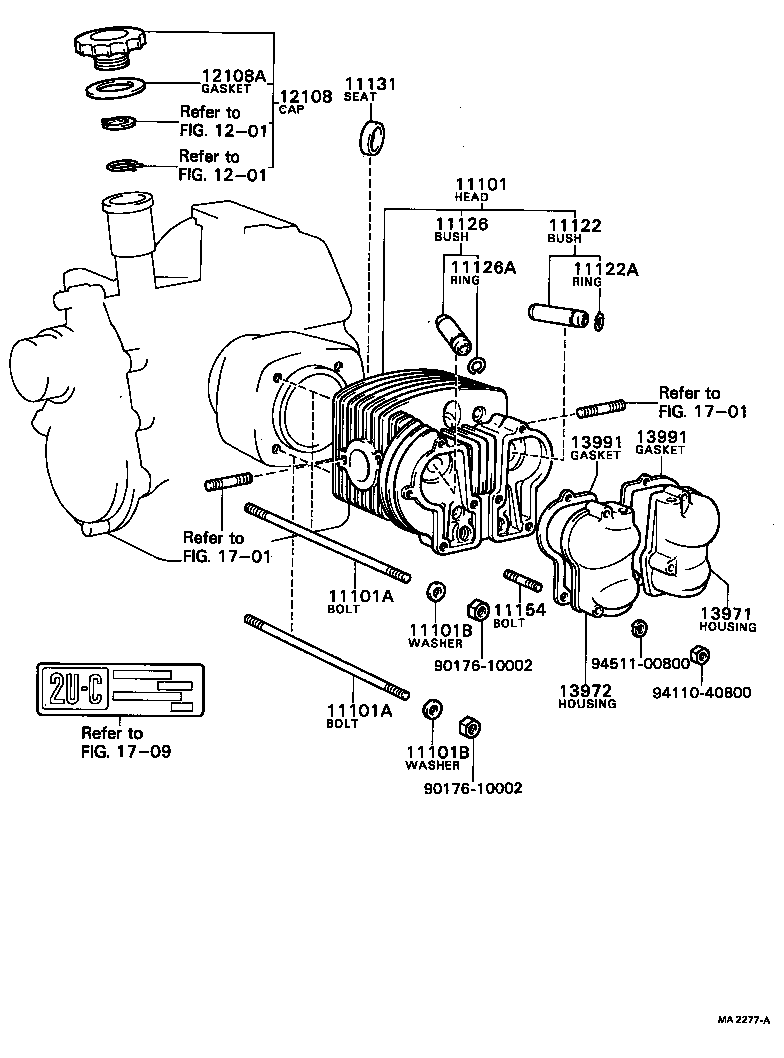

Click highlighted areas on diagram

diagram 11101 11101A 11101A 11101B 11101B 11122 11122A 11126 11126A 11131 11154 1201 1201 12108 12108A 13971 13972 13991 13991 1701 1701 1709 9017610002 9017610002 9411040800 9451100800
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11102-11020

2UC..UP3#

LH

 1
11101-11020

2UC..UP3#

RH

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90116-10116

2UC..UP3#

L=189,S=26&26

 4
90116-10108

2UC..UP3#

L=212,S=26&26

 4
11101A - BOLT(FOR CYLINDER HEAD SET)
90116-10116

2UC..UP3#

L=189,S=26&26

 4
90116-10108

2UC..UP3#

L=212,S=26&26

 4
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-10092

2UC..UP3#

 8
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-10092

2UC..UP3#

 8
11122 - BUSH, INTAKE VALVE GUIDE
11122-10030

2UC..UP3#

STD

 2
11123-10030

2UC..UP3#

O/S 0.10

 2
11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
90520-12049

2UC..UP3#

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11127-10030

2UC..UP3#

O/S 0.10

 2
11126-10030

2UC..UP3#

STD

 2
11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
90520-12049

2UC..UP3#

 4
11131 - SEAT, INTAKE VALVE
11131-10011

2UC..UP3#

STD

 2
11132-10010

2UC..UP3#

O/S 0.03

 2
11154 - BOLT, STUD(FOR HEAD TO VALVE ROCKER HOUSING)
90116-08064

2UC..UP3#

L=64,S=16&16

 12
12108 - CAP SUB-ASSY, OIL FILLER
12180-11010

2UC..UP3#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-57127

2UC..UP3#

 1
13971 - HOUSING, VALVE ROCKER, NO.1
13971-10010

2UC..UP3#

 2
13972 - HOUSING, VALVE ROCKER, NO.2
13972-10010

2UC..UP3#

 2
13991 - GASKET, VALVE ROCKER HOUSING
13991-10011

2UC..UP3#

 4
13991 - GASKET, VALVE ROCKER HOUSING
13991-10011

2UC..UP3#

 4
Common parts
90176-10002
94110-40800
94511-00800
Linked diagrams
1201
1701
1709
