UP30- (1969)

Toyota Publica

Production Apr 1969 - Dec 1971
Engine 2UC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(6904-7112)2UC

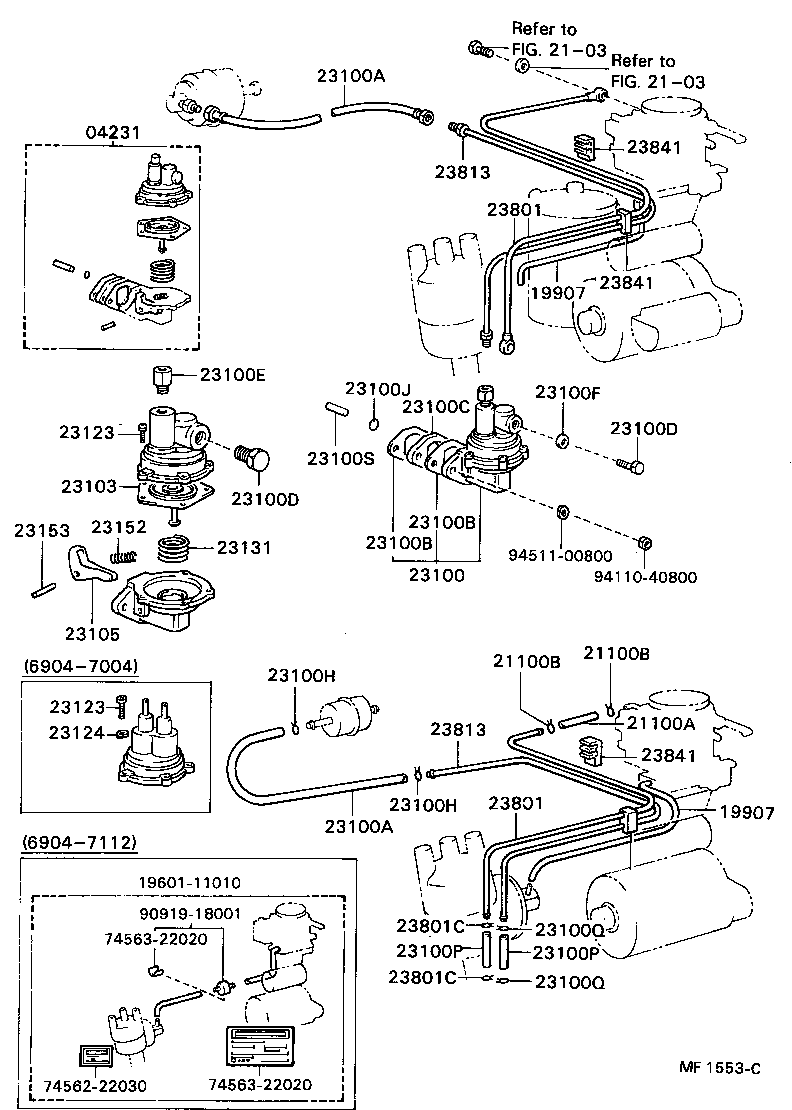

Click highlighted areas on diagram

diagram 04231 1960111010 19907 19907 2103 2103 21100A 21100B 21100B 23100 23100A 23100A 23100B 23100B 23100C 23100D 23100D 23100E 23100F 23100H 23100H 23100J 23100P 23100P 23100Q 23100Q 23100S 23103 23105 23123 23123 23124 23131 23152 23153 23801 23801 23801C 23801C 23813 23813 23841 23841 23841 7456222030 7456322020 7456322020 9091918001 9411040800 9451100800
Part # Description Qty Price
04231 - PUMP KIT, FUEL
04231-11011

2UC..UP3#

 1
04231-10021

2UC..UP3#

 1
19907 - HOSE, VACUUM, NO.1
90445-07021

2UC..UP3#

 1
19907 - HOSE, VACUUM, NO.1
90445-07021

2UC..UP3#

 1
21100A - HOSE(FOR CARBURETOR)
90445-11117

2UC..UP3#

 1
21100B - CLIP(FOR CARBURETOR)
90467-10013

2UC..UP3#

 4
21100B - CLIP(FOR CARBURETOR)
90467-10013

2UC..UP3#

 4
23100 - PUMP ASSY, FUEL
23100-19025

2UC..UP3#

 1
23100-19026

2UC..UP3#

 1
23100A - HOSE, FUEL
90923-01137

2UC..UP3#

 1
90445-11126

2UC..UP3#

 1
23100A - HOSE, FUEL
90923-01137

2UC..UP3#

 1
90445-11126

2UC..UP3#

 1
23100B - GASKET, FUEL PUMP
90923-05006

2UC..UP3#

 2
23100B - GASKET, FUEL PUMP
90923-05006

2UC..UP3#

 2
23100C - INSULATOR, FUEL PUMP
23915-10011

2UC..UP3#

 1
23100D - UNION, NIPPLE(FOR FUEL OUTLET)
90404-13209

2UC..UP3#

CMBSTN TYPE

 1
90401-10004

2UC..UP3#

 1
23100D - UNION, NIPPLE(FOR FUEL OUTLET)
90404-13209

2UC..UP3#

CMBSTN TYPE

 1
90401-10004

2UC..UP3#

 1
23100E - UNION, NIPPLE(FOR FUEL INLET)
23116-24010

2UC..UP3#

 1
23100F - GASKET, NIPPLE UNION(FOR FUEL OUTLET)
90430-10204

2UC..UP3#

INLET

 2
23100H - CLIP(FOR FUEL HOSE)
90467-10013

2UC..UP3#

 2
23100H - CLIP(FOR FUEL HOSE)
90467-10013

2UC..UP3#

 2
23100J - RING, O(FOR FUEL PUMP)
96710-01008

2UC..UP3#

 1
90301-07047

2UC..UP3#

 1
23100P - HOSE(FOR FUEL PUMP TO FUEL TUBE)
90445-11117

2UC..UP3#

 2
23100P - HOSE(FOR FUEL PUMP TO FUEL TUBE)
90445-11117

2UC..UP3#

 2
23100Q - CLIP(FOR FUEL PUMP TO FUEL TUBE HOSE)
90467-10013

2UC..UP3#

 2
23100Q - CLIP(FOR FUEL PUMP TO FUEL TUBE HOSE)
90467-10013

2UC..UP3#

 2
23100S - PIN, STRAIGHT(FOR FUEL PUMP)
90250-08187

2UC..UP3#

 1
90250-08152

2UC..UP3#

 1
23103 - DIAPHRAGM SUB-ASSY
23103-10011

2UC..UP3#

 1
23103-10010

2UC..UP3#

 1
23105 - ARM SUB-ASSY, ROCKER
23155-10010

2UC..UP3#

 1
23123 - SCREW, COVER SET, NO.1
23123-33011

2UC..UP3#

 5
23123-60021

2UC..UP3#

 7
23123-60022

2UC..UP3#

 7
23123 - SCREW, COVER SET, NO.1
23123-33011

2UC..UP3#

 5
23123-60021

2UC..UP3#

 7
23123-60022

2UC..UP3#

 7
23124 - WASHER, COVER SET, NO.2
23124-60010

2UC..UP3#

 7
23131 - SPRING, DIAPHRAGM(FOR FUEL PUMP)
23131-10010

2UC..UP3#

 1
23152 - SPRING, ROCKER ARM
23152-10011

2UC..UP3#

 1
23153 - PIN, ROCKER ARM
23153-60011

2UC..UP3#

 1
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
23811-11030

2UC..UP3#

 1
23801-11020

2UC..UP3#

 1
23811-11020

2UC..UP3#..STD

 1
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
23811-11030

2UC..UP3#

 1
23801-11020

2UC..UP3#

 1
23811-11020

2UC..UP3#..STD

 1
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
90467-10013

2UC..UP3#

 4
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
90467-10013

2UC..UP3#

 4
23813 - PIPE, FUEL
23802-11010

2UC..UP3#

 1
23813-11010

2UC..UP3#

 1
23813 - PIPE, FUEL
23802-11010

2UC..UP3#

 1
23813-11010

2UC..UP3#

 1
23841 - CLAMP, FUEL PIPE(HOSE), NO.1
23841-11020

2UC..UP3#

 2
23841 - CLAMP, FUEL PIPE(HOSE), NO.1
23841-11020

2UC..UP3#

 2
23841 - CLAMP, FUEL PIPE(HOSE), NO.1
23841-11020

2UC..UP3#

 2
Common parts
19601-11010
74562-22030
74563-22020
90919-18001
94110-40800
94511-00800
Linked diagrams
2103
