UP30- (1969)
Toyota Publica
(6904-7112)2UC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

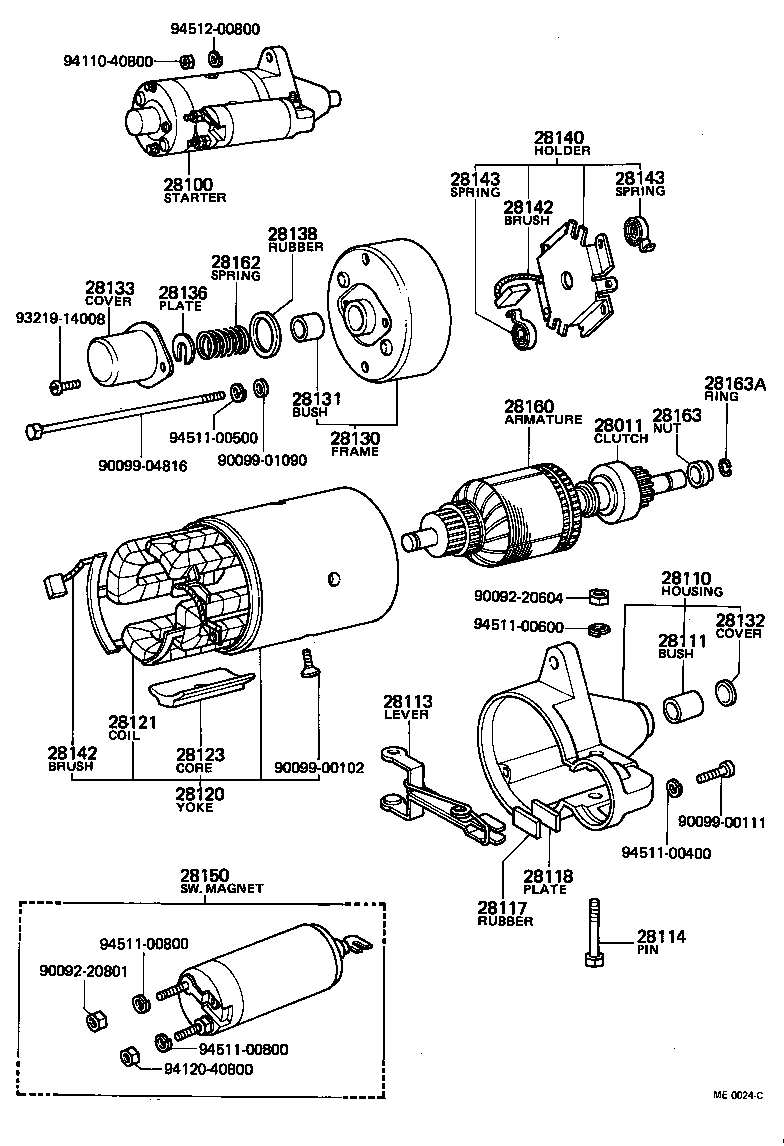

| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-22020 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ,2UC..KP3#,50,UP3# 12V 0.6KW,0.8KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-10012 |
2UC..UP3# 12V 0.6KW |
1 | ||
| 28100-10013 |
2UC..UP3# 12V 0.6KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-10013 |
2UC..UP3# 12V 0.6KW |
1 | ||
| 28111 - BUSH(FOR STARTER HOUSING) | ||||
| 28111-51011 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ,2UC..KP3#,50,UP3# 12V 0.6KW,0.8KW |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-41011 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ,2UC..KP3#,50,UP3# 12V 0.6KW,0.8KW |
1 | ||
| 28114 - PIN, STARTER DRIVE LEVER SET | ||||
| 28114-41011 |
KB,2K,3K,3KB#,2UC..KP3#,UP3# 12V 0.6KW,0.8KW |
1 | ||
| 28117 - RUBBER(FOR STARTER YOKE) | ||||
| 28117-41012 |
KB,2K,3K,3KB#,2UC..KP3#,UP3# 12V 0.6KW,0.8KW |
1 | ||
| 28118 - PLATE(FOR STARTER YOKE) | ||||
| 28118-41012 |
KB,2K,3K,3KB#,2UC..KP3#,UP3# 12V 0.6KW,0.8KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-10013 |
2UC..UP3# 12V 0.6KW |
1 | ||
| 28121 - COIL, STARTER FIELD | ||||
| 28121-22011 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ,2UC..KP3#,50,UP3# 12V 0.6KW |
1 | ||
| 28123 - CORE, STARTER POLE | ||||
| 28123-10011 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ,2UC..KP3#,50,UP3# 12V 0.6KW |
4 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-21011 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ,2UC..KP3#,50,UP3# 12V 0.6KW,0.8KW |
1 | ||
| 28131 - BUSH, COMMUTATOR END FRAME | ||||
| 90099-10040 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ,2UC..KP3#,50,UP3# 12V 0.6KW,0.8KW,U/S 0.5 |
1 | ||
| 28131-20010 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ,2UC..KP3#,50,UP3# 12V 0.6KW,0.8KW,STD |
1 | ||
| 90099-10039 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ,2UC..KP3#,50,UP3# 12V 0.6KW,0.8KW,U/S 0.3 |
1 | ||
| 28132 - COVER, STARTER BEARING(FOR DRIVE HOUSING) | ||||
| 28166-41010 |
KB,2K,2UC..KP3#,UP3# 12V 0.6KW,0.8KW |
1 | ||
| 28133 - COVER, BEARING(FOR END FRAME) | ||||
| 28132-41011 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ,2UC..KP3#,50,UP3# 12V 0.6KW,0.8KW |
1 | ||
| 28136 - PLATE, STARTER LOCK | ||||
| 28136-41011 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ,2UC..KP3#,50,UP3# 12V 0.6KW,0.8KW |
1 | ||
| 28138 - RUBBER(FOR STARTER BEARING COVER) | ||||
| 28138-41011 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ,2UC..KP3#,50,UP3# 12V 0.6KW,0.8KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-22010 |
KB,2K,2UC..KP3#,UP3# 12V 0.6KW |
1 | ||
| 28142 - BRUSH, STARTER | ||||
| 28142-10011 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ,2UC..KP3#,50,UP3# 12V 0.6KW |
2 | ||
| 28142 - BRUSH, STARTER | ||||
| 28142-10011 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ,2UC..KP3#,50,UP3# 12V 0.6KW |
2 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 28143-40010 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ,2UC..KP3#,50,UP3# 12V 0.6KW,0.8KW |
4 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 28143-40010 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ,2UC..KP3#,50,UP3# 12V 0.6KW,0.8KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-41011 |
2UC..UP3# 12V 0.6KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-22010 |
KB,2K,2UC..KP3#,UP3# 12V 0.6KW |
1 | ||
| 28162 - SPRING, STARTER BRAKE | ||||
| 28162-41011 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ,2UC..KP3#,50,UP3# 12V 0.6KW,0.8KW |
1 | ||
| 28163 - NUT OR COLLAR, PINION STOP, STARTER | ||||
| 28163-40011 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ,2UC..KP3#,50,UP3# 12V 0.6KW,0.8KW |
1 | ||
| 28163A - RING, SNAP(FOR STARTER PINION STOP NUT) | ||||
| 90099-07047 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ,2UC..KP3#,50,UP3# 12V 0.6KW,0.8KW |
1 | ||
| Common parts | ||||
| 90092-20604 | ||||
| 90092-20801 | ||||
| 90099-00102 | ||||
| 90099-00111 | ||||
| 90099-01090 | ||||
| 90099-04816 | ||||
| 93219-14008 | ||||
| 94110-40800 | ||||
| 94120-40800 | ||||
| 94511-00400 | ||||
| 94511-00500 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
| 94512-00800 | ||||
