KP50-DMG (1976)

Toyota Publica

Production Jun 1976 - Feb 1978
Engine 3KU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7606-7802)5F

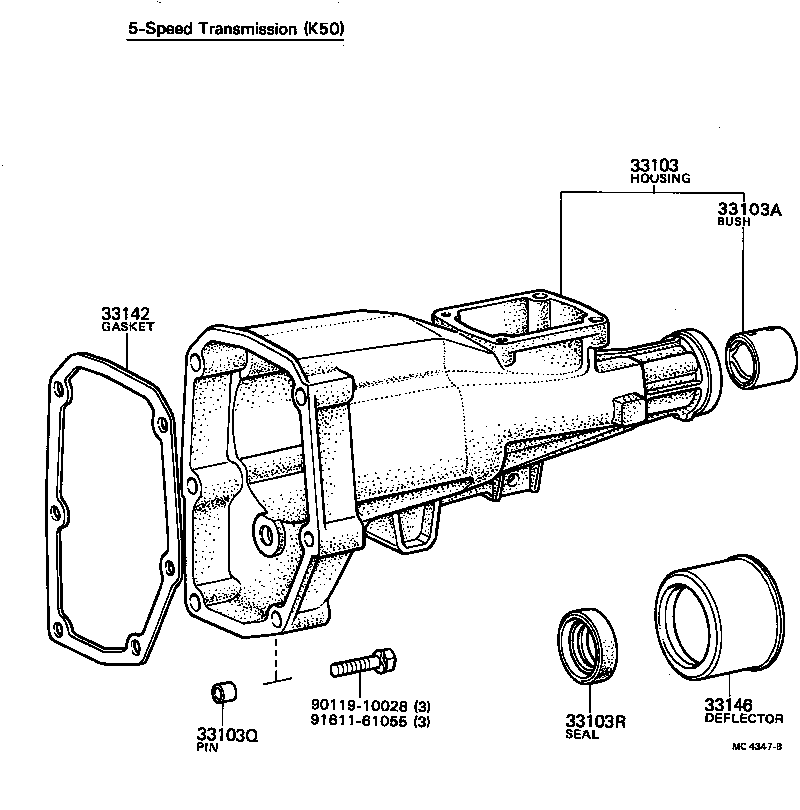

Click highlighted areas on diagram

diagram 33103 33103A 33103Q 33103R 33142 33146 9011910028 9161161055
Part # Description Qty Price
33103 - HOUSING SUB-ASSY, EXTENSION(MTM)
33103-10042

KP50..5F

 1
33103Q - PIN, RING(FOR EXTENSION HOUSING)
90253-13017

KP50..5F

 1
33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90311-32086

KP3#,50..MTM

 1
33142 - GASKET, EXTENSION HOUSING(MTM)
33142-10021

KP50..5F

 1
33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM)
33146-12010

KP30,31,36,38,39,50..MTM

 1
Common parts
90119-10028
91611-61055
