KP50-DKN (1976)
Toyota Publica
Production
Jan 1976
-
Feb 1978
Engine
3KU
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7601-7802)3KU

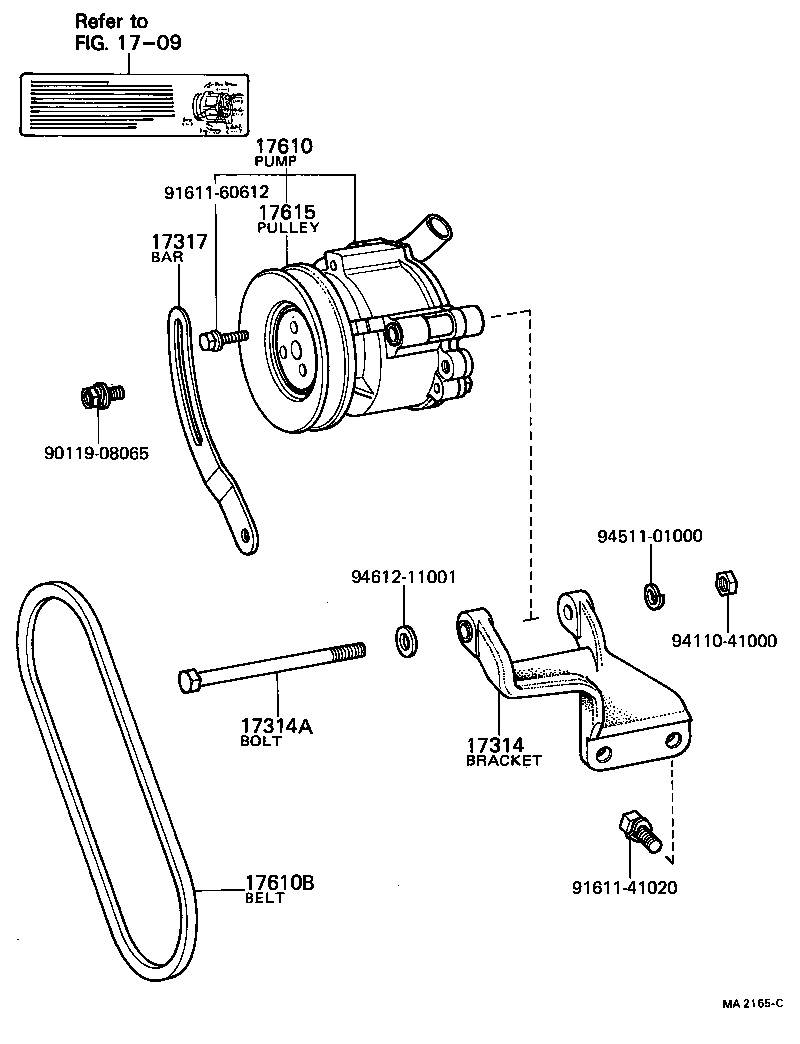

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17314 - BRACKET, AIR PUMP | ||||
| 17314-24010 |
3KU..KP50 |
1 | ||
| 17314A - BOLT, HEXAGON(FOR AIR PUMP BRACKET SETTING) | ||||
| 90101-10279 |
3KU..KP50 |
1 | ||
| 17317 - BAR, AIR PUMP ADJUSTING, NO.1 | ||||
| 17317-24010 |
3KU..KP50 |
1 | ||
| 17610 - PUMP ASSY, AIR | ||||
| 17610-24031 |
3KU..KP50 |
1 | ||
| 17610B - BELT, V(FOR AIR PUMP) | ||||
| 99522-10942 |
3KU..KP50 |
1 | ||
| 99522-11028 |
3KU..KP50 W/COOLER |
1 | ||
| 17615 - PULLEY(FOR AIR PUMP) | ||||
| 17615-24020 |
3KU..KP50 |
1 | ||
| Common parts | ||||
| 90119-08065 | ||||
| 91611-41020 | ||||
| 91611-60612 | ||||
| 94110-41000 | ||||
| 94511-01000 | ||||
| 94612-11001 | ||||
| Linked diagrams | ||||
| 1709 | ||||
