KP50-DKD (1976)
Toyota Publica
Production
Jan 1976
-
Feb 1978
Engine
3KU
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7701-7802)3KU

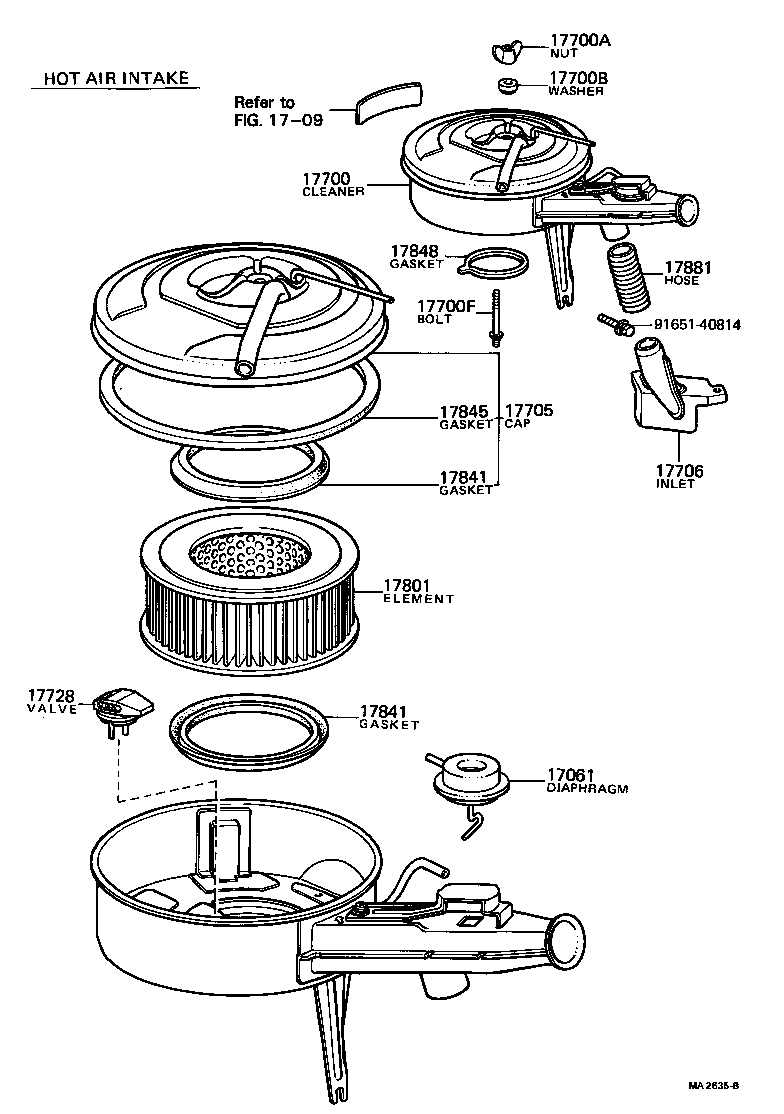

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17061 - DIAPHRAGM SUB-ASSY | ||||
| 17061-24010 |
3KU..KP50 HOT AIR INTAKE |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-24283 |
3KU..KP50 |
1 | ||
| 17700-24481 |
3KU..KP50 HOT AIR INTAKE |
1 | ||
| 17700-24480 |
3KU..KP50 HOT AIR INTAKE |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06131 |
2K,3K,3KHJ,3KU..KP3#,50 L=102,S=12&30 |
2 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-24142 |
3KU..KP50 |
1 | ||
| 17705-24260 |
3KU..KP50 HOT AIR INTAKE |
1 | ||
| 17706 - INLET SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17895-24030 |
3KU..KP50 HOT AIR INTAKE,COLD SPEC |
1 | ||
| 17728 - VALVE, THERMOSTATIC | ||||
| 17728-24010 |
3KU..KP50 HOT AIR INTAKE |
1 | ||
| 17728-24011 |
3KU..KP50 HOT AIR INTAKE |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-24010 |
2K,3K,3KHJ,3KU..KP3#,50 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 17848-24010 |
3KU..KP50 |
1 | ||
| Common parts | ||||
| 91651-40814 | ||||
| Linked diagrams | ||||
| 1709 | ||||
