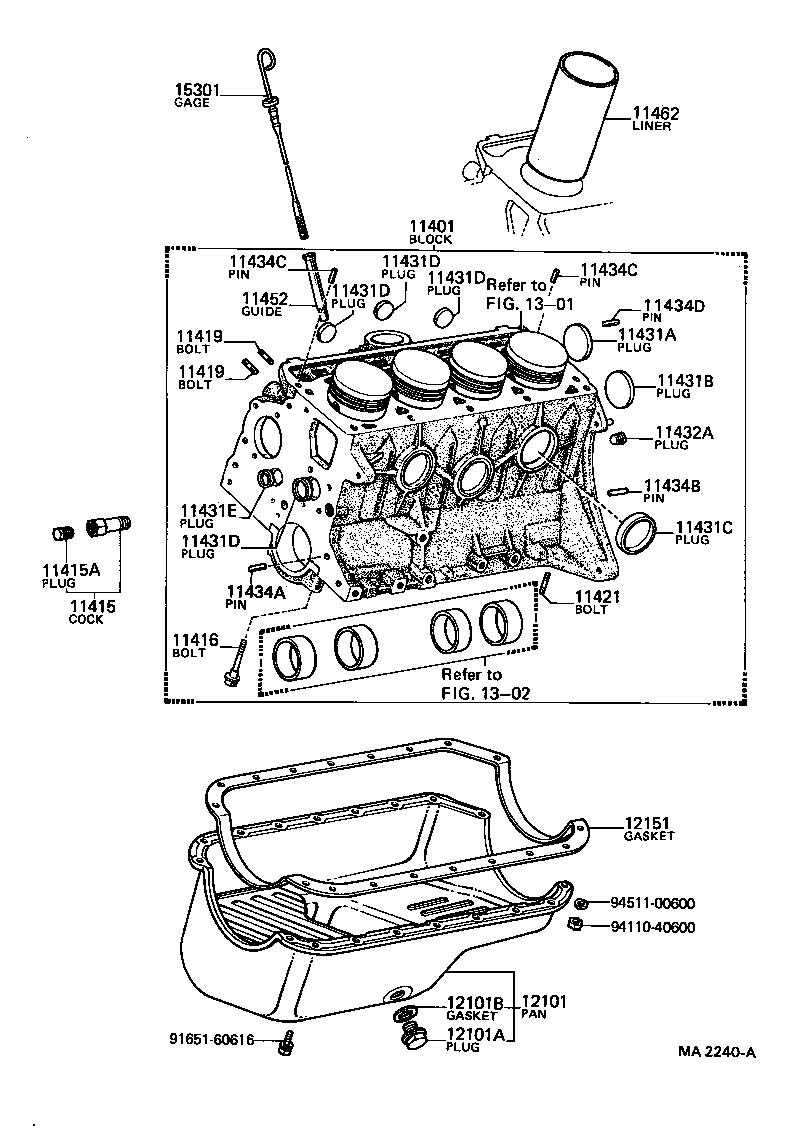

Toyota Publica KP50 CYLINDER BLOCK

Part #	Description	Period	Qty
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
96431-23814	2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 L=28	04/1969 - 04/1985	1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02019	KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 *10-1.25PX55-18	04/1969 - 08/1988	10
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
90331-47025	KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 OD=46.5	04/1969 - 08/1988	1
11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)
96412-01800	KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 OD=18	04/1969 - 08/1988	1
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90344-53011	KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50	04/1969 - 08/1988	1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-08120	KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 長さ=18,外径=8,L=18,OD=8	04/1969 - 08/1988	2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113	KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 長さ=22,外径=10,L=22,OD=10	04/1969 - 08/1988	2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-08120	KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 長さ=18,外径=8,L=18,OD=8	04/1969 - 08/1988	2
12151 - GASKET, OIL PAN
12151-24021	3K#..KP37,50	03/1977 - 02/1978	1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-22011	2K,3K,3KB#,3KHJ,3KU..KP3#,50	04/1969 - 07/1977	1
Common parts
91651-60616
94110-40600
94511-00600
Linked diagrams
1301
1302

KP50-DKD (1976)
