KP50-DCD (1976)
Toyota Publica
Production
Oct 1976
-
Feb 1978
Engine
3KU
Transmission
2FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(6904-8201)KB,2K,3K,3KB#,3KHJ

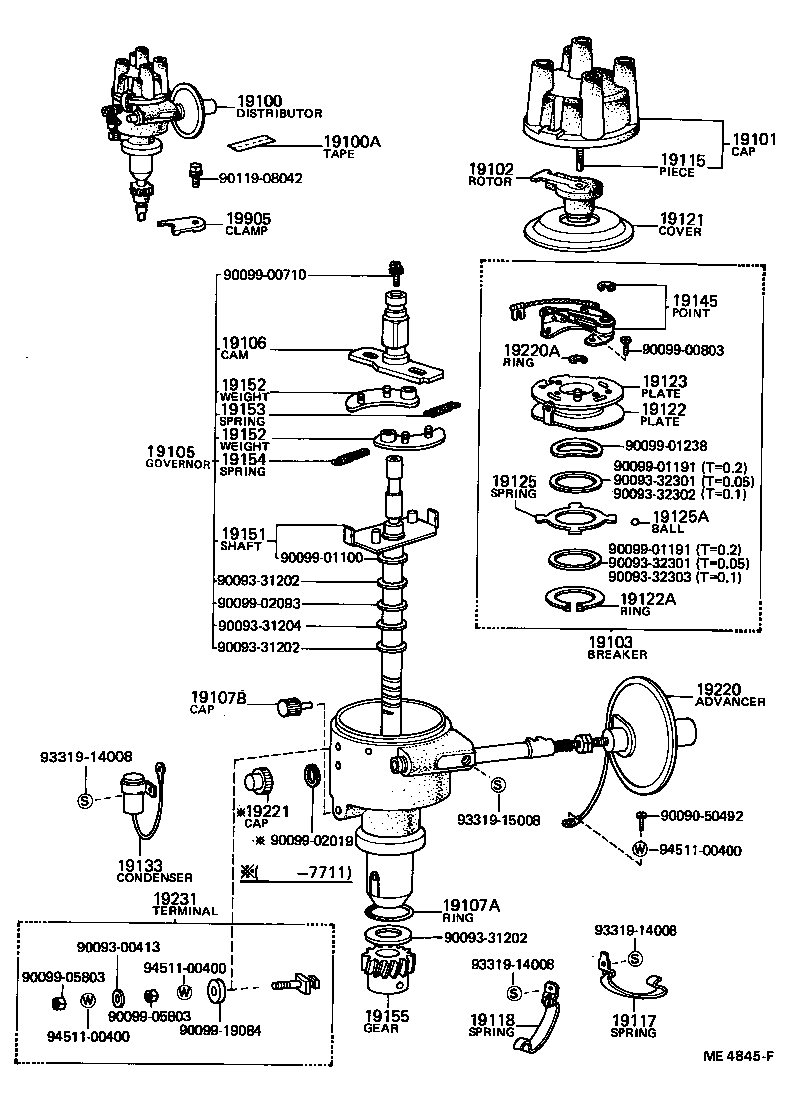

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19100-24150 |
3KU..KP50..2FC |
1 | ||
| 19105 - GOVERNOR SUB-ASSY | ||||
| 19105-24150 |
3KU..KP50..2FC |
1 | ||
| 19106 - CAM SUB-ASSY, DISTRIBUTOR | ||||
| 19106-25021 |
3KU..KP50..2FC |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 90099-14020 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-50010 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
1 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-28010 |
3KU..KP50 |
1 | ||
| 19121-38030 |
3KU..KP50 |
1 | ||
| 19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR | ||||
| 19220-24150 |
3KU..KP50..2FC |
1 | ||
| 19221 - CAP, ADJUSTER, DISTRIBUTOR | ||||
| 19221-30030 |
3KU..KP50 |
1 | ||
| 19221-30030 |
KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50 |
1 | ||
| 19231 - TERMINAL, DISTRIBUTOR | ||||
| 19231-44111 |
3KU..KP50 |
1 | ||
| Common parts | ||||
| 90090-50492 | ||||
| 90093-00413 | ||||
| 90093-31202 | ||||
| 90093-31204 | ||||
| 90093-32301 | ||||
| 90093-32302 | ||||
| 90093-32303 | ||||
| 90099-00710 | ||||
| 90099-00803 | ||||
| 90099-01100 | ||||
| 90099-01191 | ||||
| 90099-01238 | ||||
| 90099-02019 | ||||
| 90099-02093 | ||||
| 90099-05803 | ||||
| 90099-19084 | ||||
| 90119-08042 | ||||
| 93319-14008 | ||||
| 93319-15008 | ||||
| 94511-00400 | ||||
