KP37V-N (1972)

Toyota Publica

Production Jan 1972 - Nov 1975
Engine 3K 3KH
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

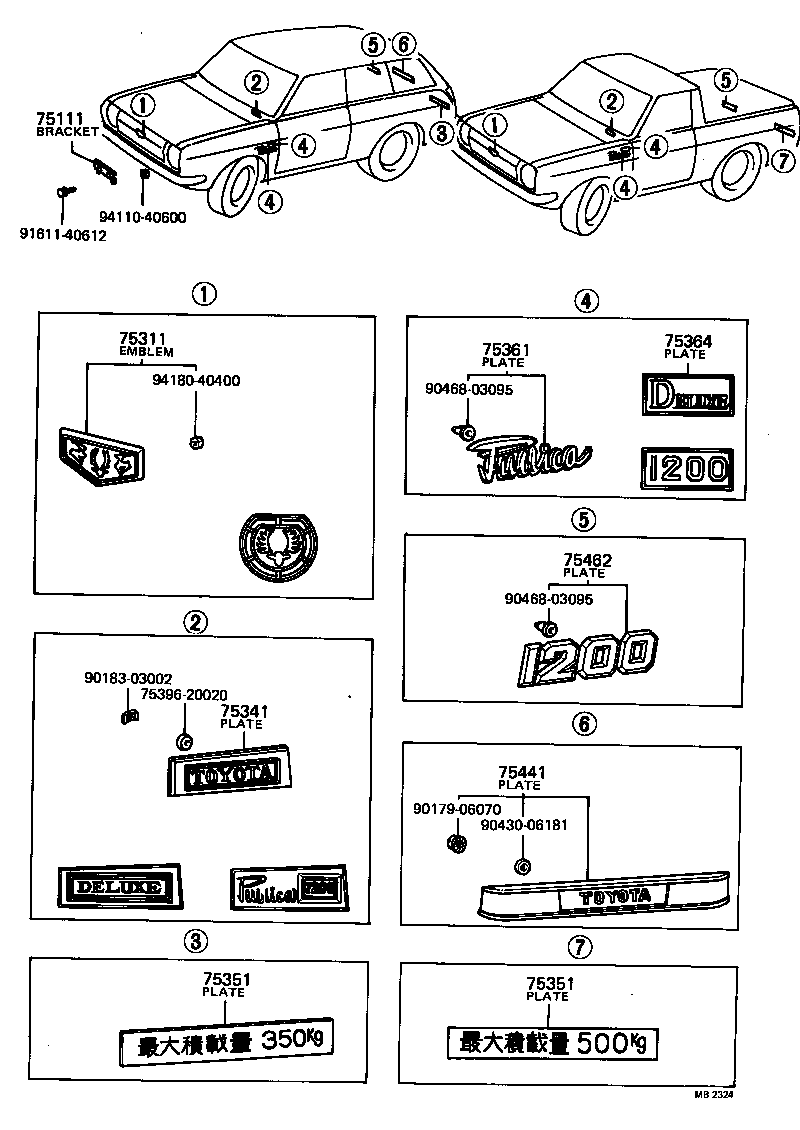

(7201-7410)KP36,37

Click highlighted areas on diagram

diagram 75111 75311 75341 75351 75351 75361 75364 7539620020 75441 75462 9017906070 9018303002 9043006181 9046803095 9046803095 9161140612 9411040600 9418040400
Part # Description Qty Price
75111 - BRACKET, FRONT LICENSE PLATE
75111-20010

KP3#,50,UP3#

 1
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-19045

KP3#,UP3#

 1
75311-19046

KP3#..DLX,HDX,STD,XL

 1
75341 - PLATE, INSTRUMENT PANEL NAME, NO.1
55046-11010

KP37

 1
75361 - PLATE, FRONT FENDER NAME, NO.1 (MODEL MARK)
75361-10030

KP3#

 2
75364 - PLATE, FRONT FENDER NAME, NO.2 (GRADE MARK)
75351-11010

KP37

 2
75351-10070

KP37;KP30,36..DLX

 2
75462 - PLATE, REAR NAME, NO.3 (DISPLACEMENT)
75442-11020

KP37

 1
Common parts
75396-20020
90179-06070
90183-03002
90430-06181
90468-03095
91611-40612
94110-40600
94180-40400

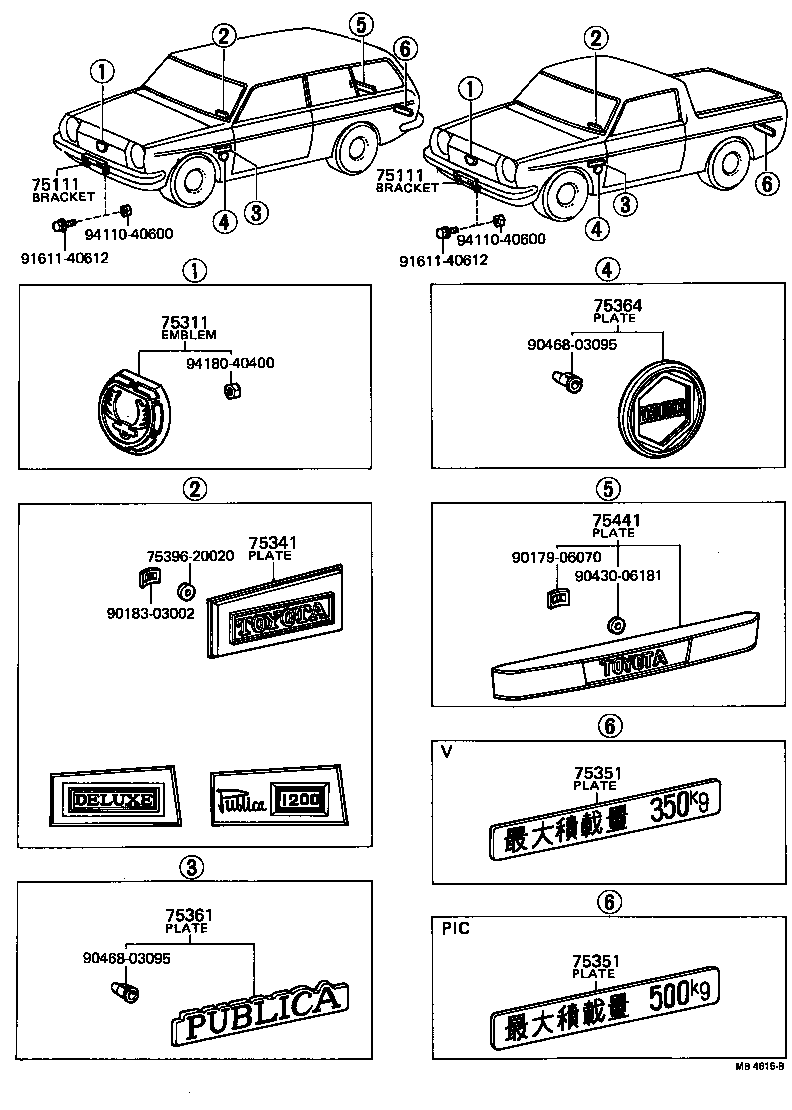

(7410-7511)KP36,37

Click highlighted areas on diagram

diagram 75111 75111 75311 75341 75351 75351 75361 75364 7539620020 75441 9017906070 9018303002 9043006181 9046803095 9046803095 9161140612 9161140612 9411040600 9411040600 9418040400
Part # Description Qty Price
75111 - BRACKET, FRONT LICENSE PLATE
75111-20010

KP3#,50,UP3#

 1
75111 - BRACKET, FRONT LICENSE PLATE
75111-20010

KP3#,50,UP3#

 1
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-19045

KP3#,UP3#

 1
75311-19046

KP3#..DLX,HDX,STD,XL

 1
75341 - PLATE, INSTRUMENT PANEL NAME, NO.1
55046-11010

KP37

 1
75361 - PLATE, FRONT FENDER NAME, NO.1 (MODEL MARK)
75361-10030

KP3#

 2
75364 - PLATE, FRONT FENDER NAME, NO.2 (GRADE MARK)
75351-11010

KP37

 2
75351-10070

KP37;KP30,36..DLX

 2
Common parts
75396-20020
90179-06070
90183-03002
90430-06181
90468-03095
91611-40612
94110-40600
94180-40400
