KP37V-N (1972)
Toyota Publica

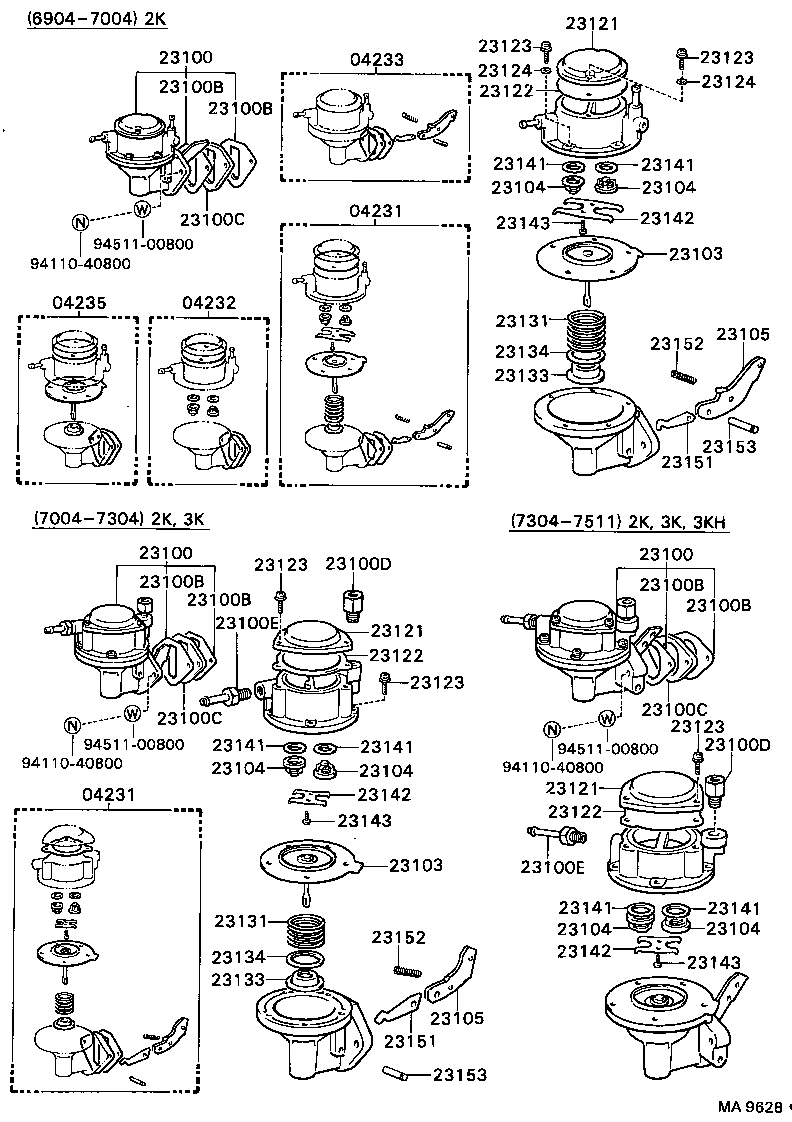

ILLUST NO. 2 OF 2(6904-7511)2K,3K
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04231 - PUMP KIT, FUEL | ||||
| 04231-24011 |
2K,3K,3KB#..KP3# |
1 | ||
| 04231 - PUMP KIT, FUEL | ||||
| 04231-24011 |
2K,3K,3KB#..KP3# |
1 | ||
| 23100 - PUMP ASSY, FUEL | ||||
| 23100-29037 |
2K,3K,3KB#..KP3# |
1 | ||
| 23100 - PUMP ASSY, FUEL | ||||
| 23100-29037 |
2K,3K,3KB#..KP3# |
1 | ||
| 23100 - PUMP ASSY, FUEL | ||||
| 23100-29037 |
2K,3K,3KB#..KP3# |
1 | ||
| 23100B - GASKET, FUEL PUMP | ||||
| 90923-05006 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
2 | ||
| 23100B - GASKET, FUEL PUMP | ||||
| 90923-05006 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
2 | ||
| 23100B - GASKET, FUEL PUMP | ||||
| 90923-05006 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
2 | ||
| 23100B - GASKET, FUEL PUMP | ||||
| 90923-05006 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
2 | ||
| 23100B - GASKET, FUEL PUMP | ||||
| 90923-05006 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
2 | ||
| 23100B - GASKET, FUEL PUMP | ||||
| 90923-05006 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
2 | ||
| 23100C - INSULATOR, FUEL PUMP | ||||
| 90923-06003 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
1 | ||
| 23100C - INSULATOR, FUEL PUMP | ||||
| 90923-06003 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
1 | ||
| 23100C - INSULATOR, FUEL PUMP | ||||
| 90923-06003 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
1 | ||
| 23100E - UNION, NIPPLE(FOR FUEL INLET) | ||||
| 90404-51266 |
2K,3K,3KB#..KP3# |
1 | ||
| 23100E - UNION, NIPPLE(FOR FUEL INLET) | ||||
| 90404-51266 |
2K,3K,3KB#..KP3# |
1 | ||
| 23103 - DIAPHRAGM SUB-ASSY | ||||
| 23103-24011 |
2K,3K,3KB#..KP3# |
1 | ||
| 23103 - DIAPHRAGM SUB-ASSY | ||||
| 23103-24011 |
2K,3K,3KB#..KP3# |
1 | ||
| 23104 - VALVE SUB-ASSY | ||||
| 23104-40010 |
KB,2K,3K,3KB#,3KHJ..KP3# |
2 | ||
| 23104 - VALVE SUB-ASSY | ||||
| 23104-40010 |
KB,2K,3K,3KB#,3KHJ..KP3# |
2 | ||
| 23104 - VALVE SUB-ASSY | ||||
| 23104-40010 |
KB,2K,3K,3KB#,3KHJ..KP3# |
2 | ||
| 23104 - VALVE SUB-ASSY | ||||
| 23104-40010 |
KB,2K,3K,3KB#,3KHJ..KP3# |
2 | ||
| 23104 - VALVE SUB-ASSY | ||||
| 23104-40010 |
KB,2K,3K,3KB#,3KHJ..KP3# |
2 | ||
| 23104 - VALVE SUB-ASSY | ||||
| 23104-40010 |
KB,2K,3K,3KB#,3KHJ..KP3# |
2 | ||
| 23105 - ARM SUB-ASSY, ROCKER | ||||
| 23105-22010 |
KB,2K,3K,3KB#..KP3# |
1 | ||
| 23105 - ARM SUB-ASSY, ROCKER | ||||
| 23105-22010 |
KB,2K,3K,3KB#..KP3# |
1 | ||
| 23131 - SPRING, DIAPHRAGM(FOR FUEL PUMP) | ||||
| 23131-24010 |
2K,3K,3KB#..KP3# |
1 | ||
| 23131-10010 |
KB,2K,3K,3KB#..KP3# |
1 | ||
| 23131 - SPRING, DIAPHRAGM(FOR FUEL PUMP) | ||||
| 23131-24010 |
2K,3K,3KB#..KP3# |
1 | ||
| 23131-10010 |
KB,2K,3K,3KB#..KP3# |
1 | ||
| 23141 - PACKING, VALVE | ||||
| 23141-60010 |
KB,2K,3K,3KB#,3KHJ..KP3# |
2 | ||
| 23141 - PACKING, VALVE | ||||
| 23141-60010 |
KB,2K,3K,3KB#,3KHJ..KP3# |
2 | ||
| 23141 - PACKING, VALVE | ||||
| 23141-60010 |
KB,2K,3K,3KB#,3KHJ..KP3# |
2 | ||
| 23141 - PACKING, VALVE | ||||
| 23141-60010 |
KB,2K,3K,3KB#,3KHJ..KP3# |
2 | ||
| 23141 - PACKING, VALVE | ||||
| 23141-60010 |
KB,2K,3K,3KB#,3KHJ..KP3# |
2 | ||
| 23141 - PACKING, VALVE | ||||
| 23141-60010 |
KB,2K,3K,3KB#,3KHJ..KP3# |
2 | ||
| 23142 - RETAINER, VALVE | ||||
| 23142-30020 |
KB,2K,3K,3KB#,3KHJ..KP3# |
1 | ||
| 23142 - RETAINER, VALVE | ||||
| 23142-30020 |
KB,2K,3K,3KB#,3KHJ..KP3# |
1 | ||
| 23142 - RETAINER, VALVE | ||||
| 23142-30020 |
KB,2K,3K,3KB#,3KHJ..KP3# |
1 | ||
| 23143 - SCREW, VALVE RETAINER SET | ||||
| 23143-60021 |
KB,2K,3K,3KB#,3KHJ..KP3# |
2 | ||
| 23143 - SCREW, VALVE RETAINER SET | ||||
| 23143-60021 |
KB,2K,3K,3KB#,3KHJ..KP3# |
2 | ||
| 23143 - SCREW, VALVE RETAINER SET | ||||
| 23143-60021 |
KB,2K,3K,3KB#,3KHJ..KP3# |
2 | ||
| 23151 - LINK, ROCKER ARM | ||||
| 23151-22010 |
KB,2K,3K,3KB#..KP3# |
1 | ||
| 23151 - LINK, ROCKER ARM | ||||
| 23151-22010 |
KB,2K,3K,3KB#..KP3# |
1 | ||
| 23152 - SPRING, ROCKER ARM | ||||
| 23152-30020 |
KB,2K,3K,3KB#..KP3# |
1 | ||
| 23152 - SPRING, ROCKER ARM | ||||
| 23152-30020 |
KB,2K,3K,3KB#..KP3# |
1 | ||
| 23153 - PIN, ROCKER ARM | ||||
| 23153-60011 |
KB,2K,3K,3KB#..KP3# |
1 | ||
| 23153 - PIN, ROCKER ARM | ||||
| 23153-60011 |
KB,2K,3K,3KB#..KP3# |
1 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||

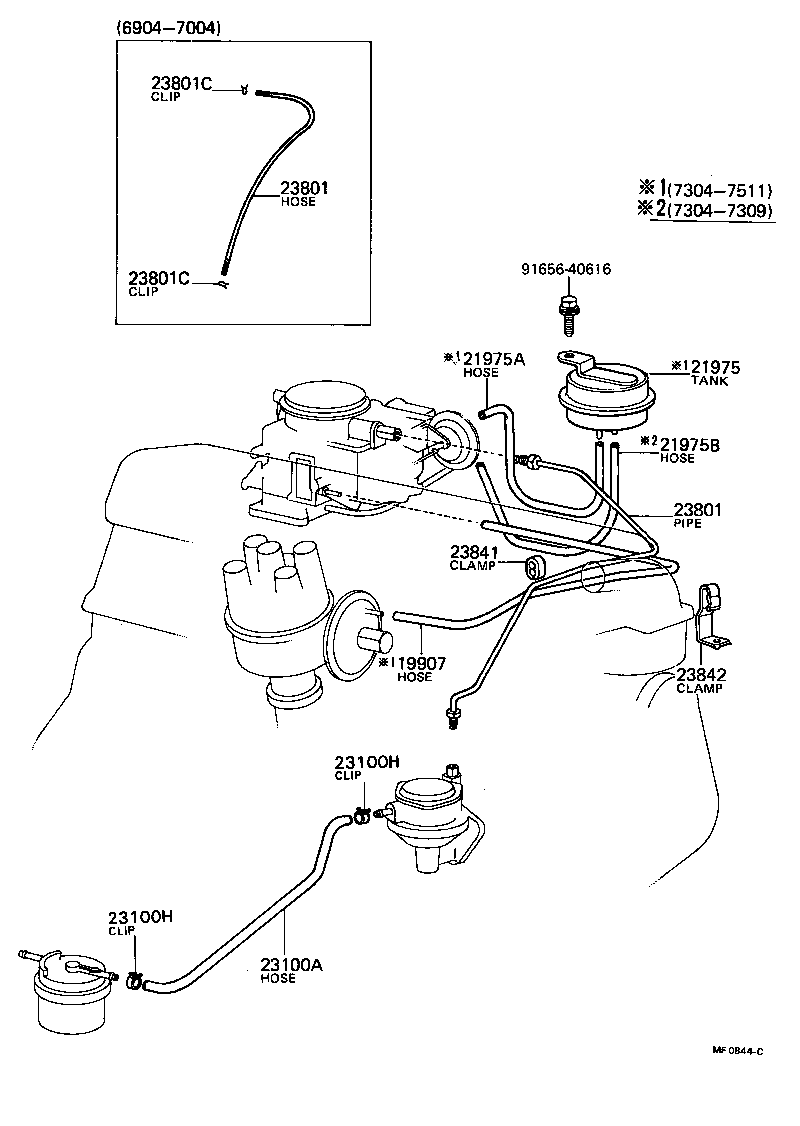

ILLUST NO. 1 OF 2(6904-7511)2K,3K
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19907 - HOSE, VACUUM, NO.1 | ||||
| 90445-07004 |
2K,3K..KP3# |
1 | ||
| 90445-07004 |
2K,3K,3KB#..KP3# |
1 | ||
| 21975 - TANK, THROTTLE CONTROL | ||||
| 21975-24020 |
3K,3KB#..KP31,37 |
1 | ||
| 21975-24021 |
3K,3KB#..KP31,37 |
1 | ||
| 21975A - HOSE(CARBURETOR TO CONTROL TANK) | ||||
| 90445-07916 |
3K,3KB#..KP31,37 |
1 | ||
| 21975B - HOSE(CONTROL TANK TO HEAT INSULATOR) | ||||
| 90445-07916 |
3K,3KB#..KP31,37 |
1 | ||
| 23100A - HOSE, FUEL | ||||
| 95323-07028 |
2K,3K,3KB#..KP3# |
1 | ||
| 95332-08030 |
2K,3K,3KB#..KP3# W/COOLER,*H,L=280 |
1 | ||
| 95332-06030 |
2K,3K,3KB#..KP3# |
1 | ||
| 95332-08030 |
2K,3K,3KB#..KP3# |
1 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96113-10150 |
2K,3K,3KB#..KP3# |
2 | ||
| 90467-12140 |
2K,3K,3KB#..KP3# |
2 | ||
| 90467-13138 |
2K,3K,3KB#..KP3# |
2 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96113-10150 |
2K,3K,3KB#..KP3# |
2 | ||
| 90467-12140 |
2K,3K,3KB#..KP3# |
2 | ||
| 90467-13138 |
2K,3K,3KB#..KP3# |
2 | ||
| Common parts | ||||
| 91656-40616 | ||||
