KP37V-N (1972)

Toyota Publica

Production Jan 1972 - Nov 1975
Engine 3K 3KH
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(6904-7511)2K,3K..KP36,37..V

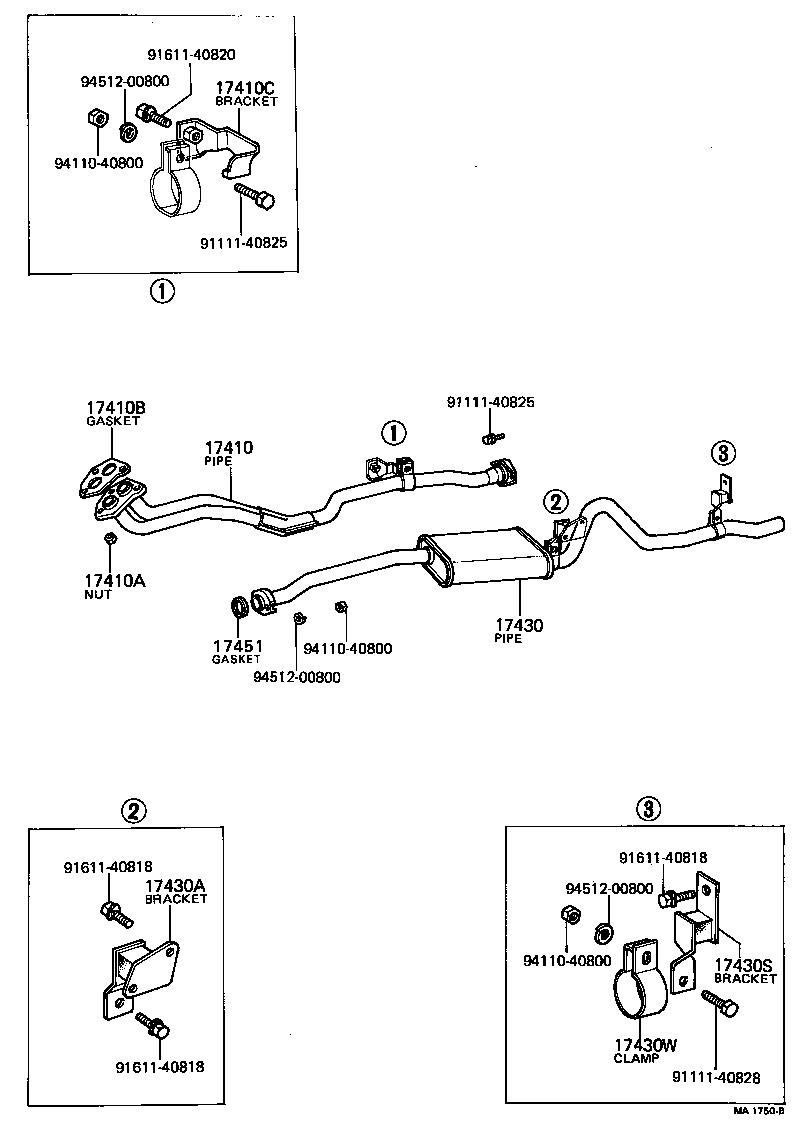

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410C 17430 17430A 17430S 17430W 17451 9111140825 9111140825 9111140828 9161140818 9161140818 9161140818 9161140820 9411040800 9411040800 9411040800 9451200800 9451200800 9451200800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-22042

3K,3KB#..KP31,37

 1
17410-12012

2K,3K..KP3#

 1
17410-22043

3K,3KB#..KP31,37

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90170-10199

KB,2K,3K..KP3#

 3
17410B - GASKET, EXHAUST PIPE
90917-06006

2K,3K,2UC..KP3#,UP3#

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-22010

KB,2K,3K,3KB#..KP3#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-12040

2K,3K..KP36,37..V

 1
17430-12041

2K,3K..KP36,37..V

 1
17430-12042

2K,3K..KP36,37..V

 1
17430-12024

2K,3K..KP36,37..V

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17562-12021

2K,3K..KP36,37..V

 1
17562-12020

2K,3K,2UC..KP36,37,UP36..V

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17563-12020

2K,3K,3KHJ,2UC..KP36,37,UP36..V

 1
Common parts
91111-40825
91111-40828
91611-40818
91611-40820
94110-40800
94512-00800
