KP37V-KRJ (1975)

Toyota Publica

Production Nov 1975 - Sep 1978
Engine 3KHJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(6904-7809)V

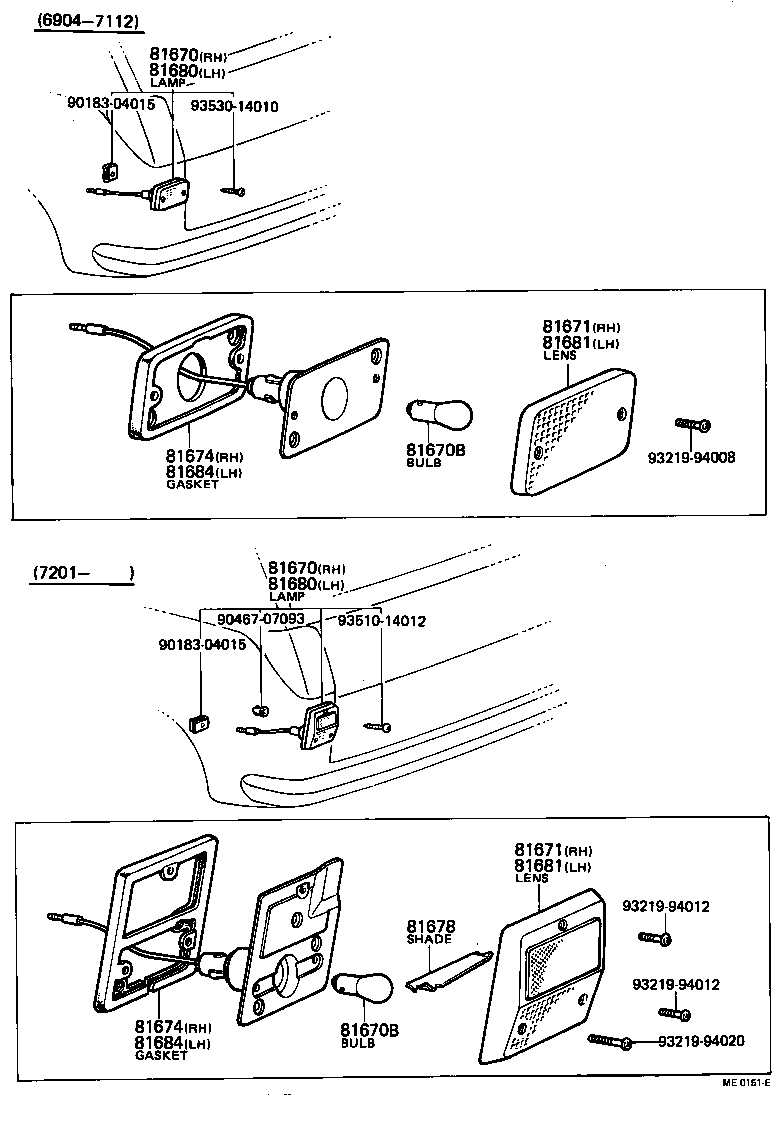

Click highlighted areas on diagram

diagram 81670 81670 81670B 81670B 81671 81671 81674 81674 81678 81680 81680 81681 81681 81684 81684 9018304015 9018304015 9046707093 9321994008 9321994012 9321994012 9321994020 9351014012 9353014010
Part # Description Qty Price
81670B - BULB(FOR BACK-UP LAMP)
90981-12002

KP36,37,UP36..V

12V 12W

 2
81670B - BULB(FOR BACK-UP LAMP)
90981-12002

KP36,37,UP36..V

12V 12W

 2
Common parts
90183-04015
90467-07093
93219-94008
93219-94012
93219-94020
93510-14012
93530-14010
