KP37V-KDJ (1975)

Toyota Publica

Production Nov 1975 - Sep 1978
Engine 3KHJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(6904-7901)MTM

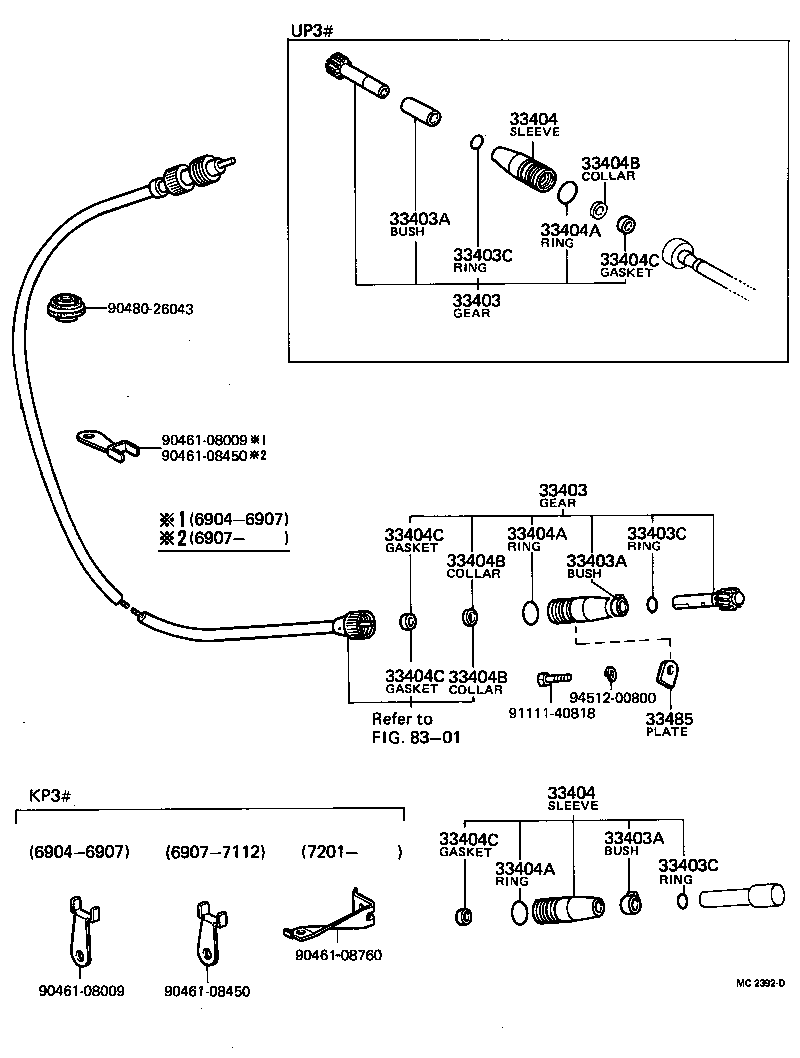

Click highlighted areas on diagram

diagram 33403 33403 33403A 33403A 33403A 33403C 33403C 33403C 33404 33404 33404A 33404A 33404A 33404B 33404B 33404B 33404C 33404C 33404C 33404C 33485 8301 9046108009 9046108009 9046108450 9046108450 9046108760 9048026043 9111140818 9451200800
Part # Description Qty Price
33403A - BUSH (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT SLEEVE)
90386-09055

KP3#,50

 1
33403A - BUSH (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT SLEEVE)
90386-09055

KP3#,50

 1
33403A - BUSH (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT SLEEVE)
90386-09055

KP3#,50

 1
33403C - RING, O (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT)
90301-09017

KP3#,UP3#

 1
33403C - RING, O (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT)
90301-09017

KP3#,UP3#

 1
33403C - RING, O (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT)
90301-09017

KP3#,UP3#

 1
33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)
33404-19015

KP3#,50

 1
33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)
33404-19015

KP3#,50

 1
33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90301-17011

KP3#,UP3#

 1
33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90301-17011

KP3#,UP3#

 1
33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90301-17011

KP3#,UP3#

 1
33404B - COLLAR, SPEEDOMETER FLEXIBLE TUBE SHAFT GASKET (MTM)
90201-07069

KP3#,50

 1
33404B - COLLAR, SPEEDOMETER FLEXIBLE TUBE SHAFT GASKET (MTM)
90201-07069

KP3#,50

 1
33404B - COLLAR, SPEEDOMETER FLEXIBLE TUBE SHAFT GASKET (MTM)
90201-07069

KP3#,50

 1
33404C - GASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (MTM)
90303-06017

KP3#,50

 1
33404C - GASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (MTM)
90303-06017

KP3#,50

 1
33404C - GASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (MTM)
90303-06017

KP3#,50

 1
33404C - GASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (MTM)
90303-06017

KP3#,50

 1
33485 - PLATE, SPEEDOMETER SLEEVE LOCK (MTM)
33485-10010

KP3#,50

 1
Common parts
90461-08009
90461-08450
90461-08760
90480-26043
91111-40818
94512-00800
Linked diagrams
8301
