KP37-KDJ (1975)

Toyota Publica

Production Nov 1975 - Jul 1979
Engine 3KHJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

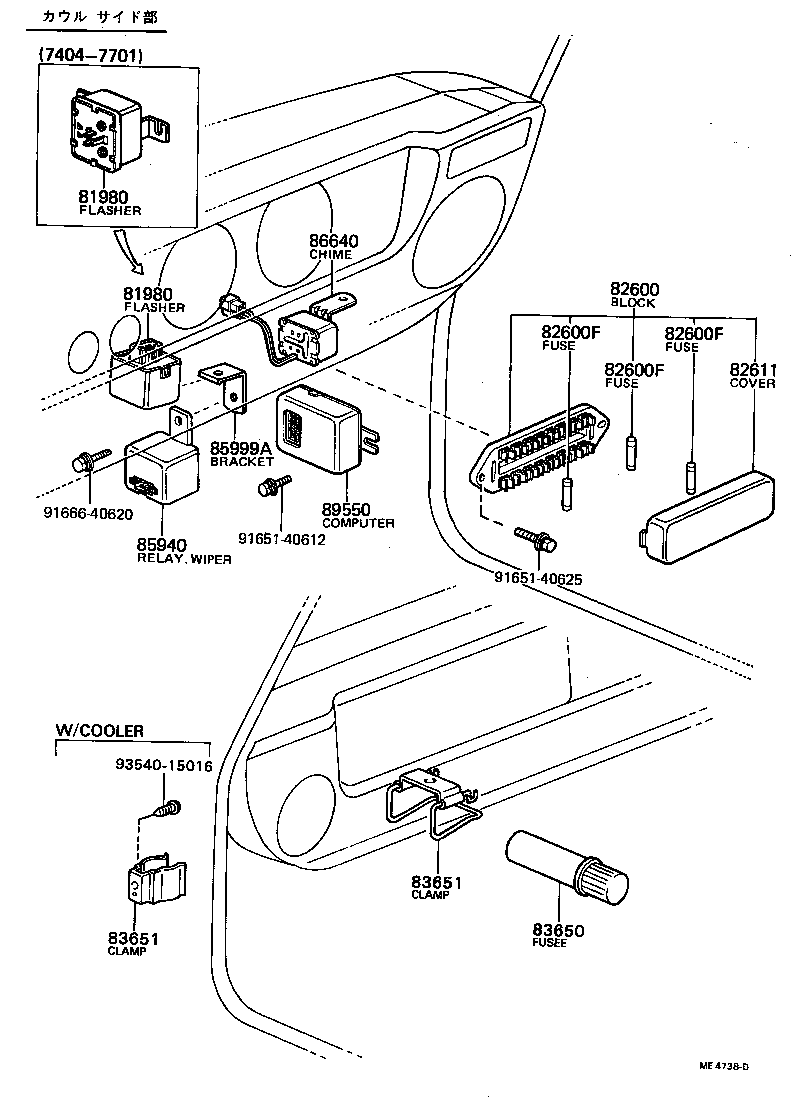

ILLUST NO. 3 OF 4(7511- )

Click highlighted areas on diagram

diagram 81980 81980 82600 82600F 82600F 82600F 82611 83650 83651 83651 85940 85999A 86640 89550 9165140612 9165140625 9166640620 9354015016
Part # Description Qty Price
81980 - FLASHER ASSY, TURN SIGNAL
81980-10050

KP3#,UP3#

 1
81980 - FLASHER ASSY, TURN SIGNAL
81980-10050

KP3#,UP3#

 1
82600 - BLOCK ASSY, FUSE
82600-10020

KP3#,UP3#

 1
82600F - FUSE, FUSE BLOCK
99118-62910

KP3#,UP3#

10A

 6
99118-62920

KP3#,50,UP3#

20A,20A

 6
99118-62905

KP3#,UP3#

5A,5A

 1
99118-62915

KP3#,50,UP3#

15A,15A

 5
82600F - FUSE, FUSE BLOCK
99118-62910

KP3#,UP3#

10A

 6
99118-62920

KP3#,50,UP3#

20A,20A

 6
99118-62905

KP3#,UP3#

5A,5A

 1
99118-62915

KP3#,50,UP3#

15A,15A

 5
82600F - FUSE, FUSE BLOCK
99118-62910

KP3#,UP3#

10A

 6
99118-62920

KP3#,50,UP3#

20A,20A

 6
99118-62905

KP3#,UP3#

5A,5A

 1
99118-62915

KP3#,50,UP3#

15A,15A

 5
82611 - COVER, FUSE BLOCK
82611-10020

KP3#,UP3#

 1
83650 - FUSEE
90986-01001

KP3#,UP3#

 1
Common parts
91651-40612
91651-40625
91666-40620
93540-15016
