KP36V- (1969)
Toyota Publica
Production
Apr 1969
-
Nov 1975
Engine
2K
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(6904-7010)KP3#

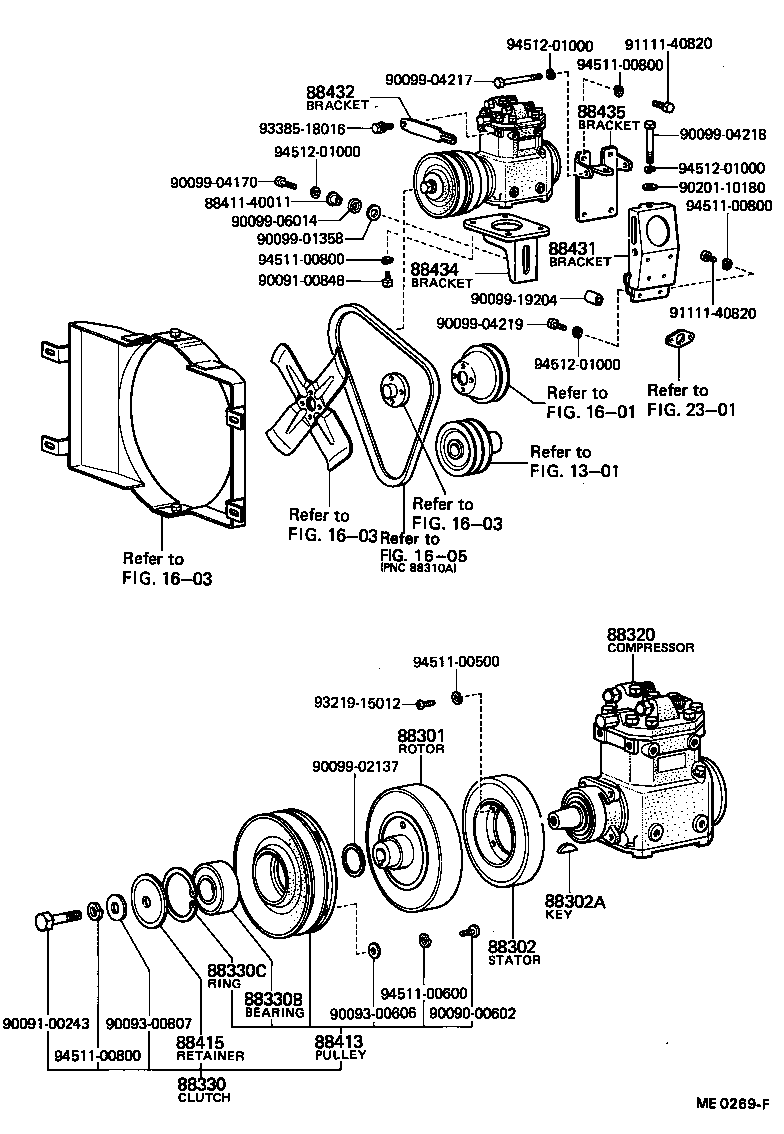

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88401-12010 |
KP3# |
1 | ||
| 88401-12030 |
KP3# |
1 | ||
| 88401-12032 |
KP3# |
1 | ||
| 88401-12032 |
KP3#..DLX,HDX,STD,XL |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-12010 |
KP3# |
1 | ||
| 88411-12021 |
KP3# |
1 | ||
| 88411-12020 |
KP3# |
1 | ||
| 88411-12021 |
KP3#..DLX,HDX,STD,XL |
1 | ||
| 88302A - KEY, COOLER MAGNET CLUTCH STATOR | ||||
| 90099-13008 |
KP3# |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-20060 |
KP3# |
1 | ||
| 88320-12022 |
KP3# |
1 | ||
| 88320-20060 |
KP3# |
1 | ||
| 88320-20060 |
KP3#..DLX,HDX,STD,XL |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-12010 |
KP3# |
1 | ||
| 88410-12020 |
KP3# |
1 | ||
| 88410-12022 |
KP3# |
1 | ||
| 88410-12022 |
KP3#..DLX,HDX,STD,XL |
1 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10083 |
KP3#..DLX,HDX,STD,XL |
2 | ||
| 90099-10083 |
KP3# |
2 | ||
| 88330C - RING, SNAP (FOR MAGNET CLUTCH) | ||||
| 90096-90007 |
KP3#..DLX,HDX,STD,XL |
1 | ||
| 90099-07001 |
KP3# |
1 | ||
| 88415-60040 |
KP3# |
1 | ||
| 88413 - PULLEY SUB-ASSY, MAGNET CLUTCH | ||||
| 88413-12010 |
KP3# |
1 | ||
| 88415 - RETAINER, MAGNET CLUTCH BEARING, NO.1 | ||||
| 88415-12010 |
KP3# |
1 | ||
| 88415-12040 |
KP3# |
1 | ||
| 88415-60030 |
KP3# |
1 | ||
| 88415-12040 |
KP3#..DLX,HDX,STD,XL |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-12011 |
KP3# |
1 | ||
| 88431-12040 |
KP3# |
1 | ||
| 88431-12040 |
KP3#..DLX,HDX,STD,XL |
1 | ||
| 88431-12041 |
KP3# |
1 | ||
| 88431-12041 |
KP3#..DLX,HDX,STD,XL |
1 | ||
| 88431-12042 |
KP3# |
1 | ||
| 88432 - BRACKET, COMPRESSOR MOUNTING, NO.2 | ||||
| 88437-12041 |
KP3#..DLX,HDX,STD,XL |
1 | ||
| 88437-12043 |
KP3# |
1 | ||
| 88437-12041 |
KP3# |
1 | ||
| 88437-12041 |
KP3# |
1 | ||
| 88437-12020 |
KP3# |
1 | ||
| 88434 - BRACKET, COMPRESSOR MOUNTING, NO.4 | ||||
| 88434-12012 |
KP3# |
1 | ||
| 88435 - BRACKET, COMPRESSOR MOUNTING, NO.5 | ||||
| 88437-12010 |
KP3# |
1 | ||
| Common parts | ||||
| 88411-40011 | ||||
| 90090-00602 | ||||
| 90091-00243 | ||||
| 90091-00848 | ||||
| 90093-00606 | ||||
| 90093-00807 | ||||
| 90099-01358 | ||||
| 90099-02137 | ||||
| 90099-04170 | ||||
| 90099-04217 | ||||
| 90099-04218 | ||||
| 90099-04219 | ||||
| 90099-06014 | ||||
| 90099-19204 | ||||
| 90201-10180 | ||||
| 91111-40820 | ||||
| 93219-15012 | ||||
| 93385-18016 | ||||
| 94511-00500 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
| 94512-01000 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1601 | ||||
| 1603 | ||||
| 1605 | ||||
| 2301 | ||||
