KP36V- (1969)

Toyota Publica

Production Apr 1969 - Nov 1975
Engine 2K
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(6904-7809)V

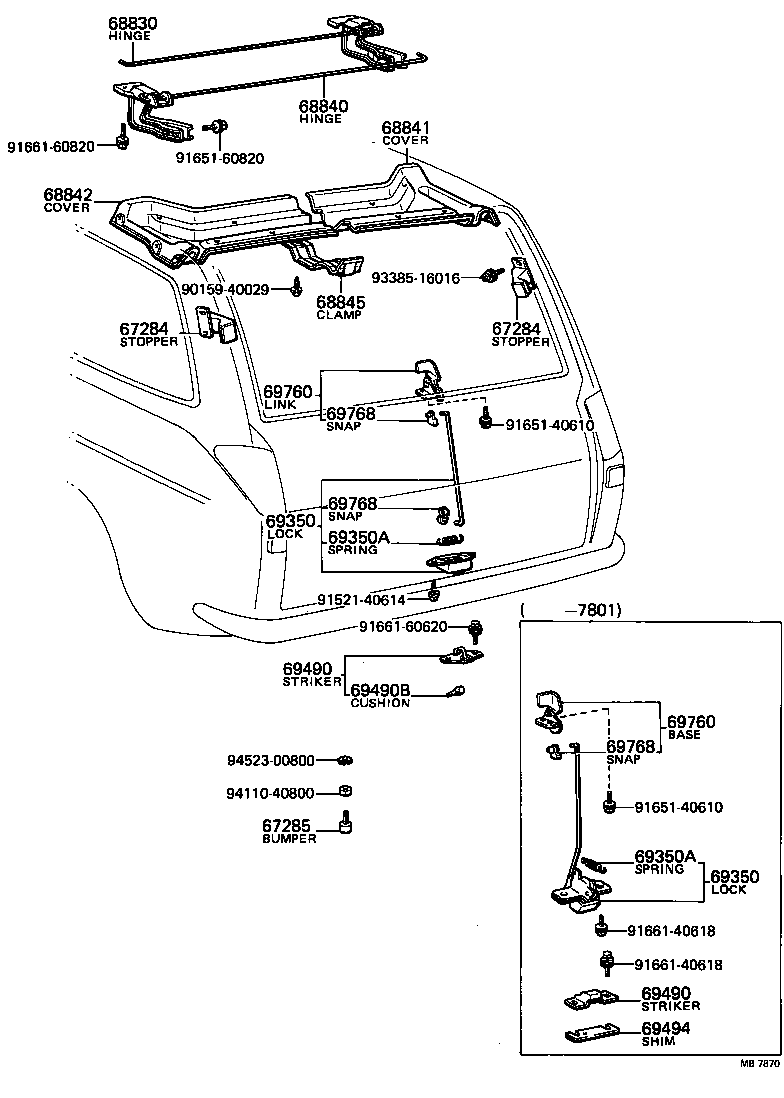

Click highlighted areas on diagram

diagram 67284 67284 67285 68830 68840 68841 68842 68845 69350 69350 69350A 69350A 69490 69490 69490B 69494 69760 69760 69768 69768 69768 9015940029 9152140614 9165140610 9165140610 9165160820 9166140618 9166140618 9166160620 9166160820 9338516016 9411040800 9452300800
Part # Description Qty Price
67284 - STOPPER, BACK DOOR, NO.2
61778-11010

KP36,37,UP36..V

 2
67284 - STOPPER, BACK DOOR, NO.2
61778-11010

KP36,37,UP36..V

 2
67285 - BUMPER, BACK DOOR
53382-20011

KP36,37,UP36..V

 2
68830 - HINGE ASSY, BACK DOOR, RH
68801-11011

KP36,37..V

 1
68801-11010

KP36,37,UP36..V

 1
68840 - HINGE ASSY, BACK DOOR, LH
68802-11010

KP36,37,UP36..V

 1
68802-11011

KP36,37..V

 1
68841 - COVER, TORSION BAR, RH
68841-1101003

KP36,37,UP36..V

LIGHT GRAY,GRAY,TRIM2#,4#

 1
68842 - COVER, TORSION BAR, LH
68842-1101003

KP36,37,UP36..V

LIGHT GRAY,GRAY,TRIM2#,4#

 1
68845 - CLAMP, TORSION BAR COVER
68843-11010

KP36,37,UP36..V

 1
69350 - LOCK ASSY, BACK DOOR
69350-11040

KP36,UP36

 1
69350 - LOCK ASSY, BACK DOOR
69350-11040

KP36,UP36

 1
69350A - SPRING(FOR BACK DOOR LOCK)
90506-12221

KP36,37,UP36..V

 1
69350A - SPRING(FOR BACK DOOR LOCK)
90506-12221

KP36,37,UP36..V

 1
69490 - STRIKER ASSY, BACK DOOR LOCK
69451-11020

KP36,37,UP36..V

 1
69490 - STRIKER ASSY, BACK DOOR LOCK
69451-11020

KP36,37,UP36..V

 1
69494 - SHIM, BACK DOOR LOCK STRIKER
69469-11010

KP36,37,UP36..V

 1
69760 - BASE ASSY, BACK DOOR LOCK CONTROL
69750-11020

KP36

 1
69760 - BASE ASSY, BACK DOOR LOCK CONTROL
69750-11020

KP36

 1
69768 - SNAP, BACK DOOR LOCK CONTROL LINK
69377-30020

KP36,37,UP36..V

 1
69768 - SNAP, BACK DOOR LOCK CONTROL LINK
69377-30020

KP36,37,UP36..V

 1
69768 - SNAP, BACK DOOR LOCK CONTROL LINK
69377-30020

KP36,37,UP36..V

 1
Common parts
90159-40029
91521-40614
91651-40610
91651-60820
91661-40618
91661-60620
91661-60820
93385-16016
94110-40800
94523-00800
