KP36V- (1969)

Toyota Publica

Production Apr 1969 - Nov 1975
Engine 2K
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(6904- )

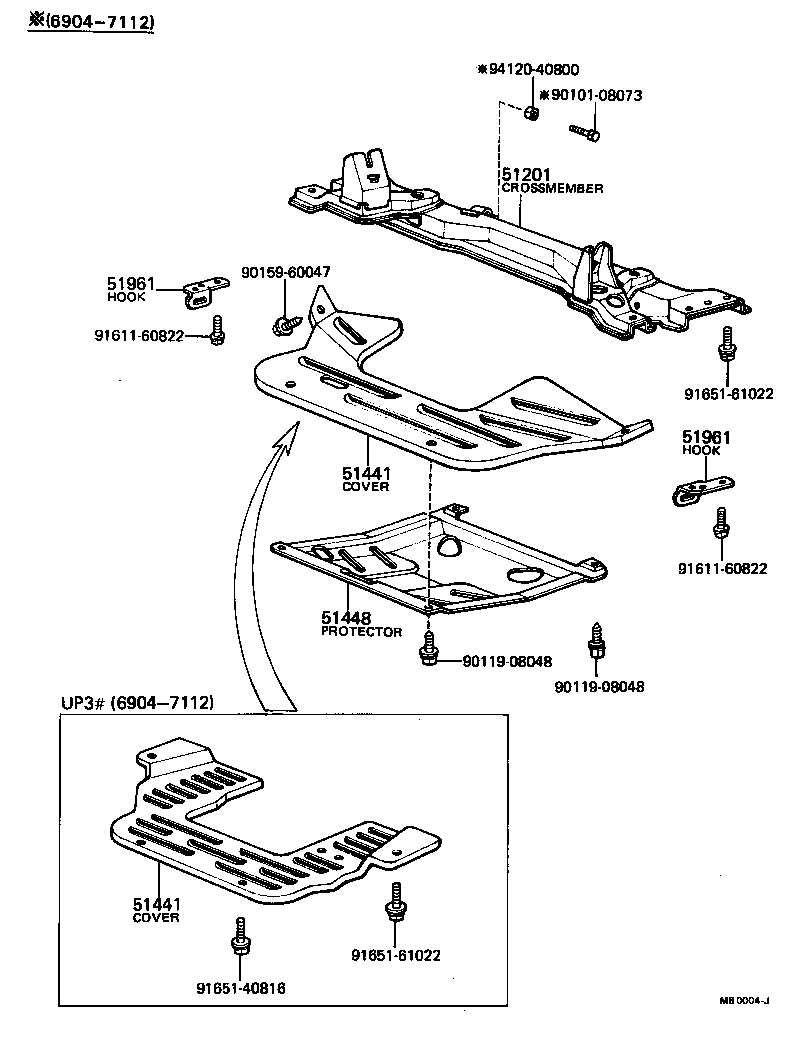

Click highlighted areas on diagram

diagram 51201 51441 51441 51448 51961 51961 9010108073 9011908048 9011908048 9015960047 9161160822 9161160822 9165140816 9165161022 9165161022 9412040800
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-10020

KP3#

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-10030

KP3#,50

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-10030

KP3#,50

 1
51961 - HOOK, NO.1
51963-10010

KP3#,50,UP3#

RH

 1
51964-10010

KP3#,50,UP3#

LH

 1
51961 - HOOK, NO.1
51963-10010

KP3#,50,UP3#

RH

 1
51964-10010

KP3#,50,UP3#

LH

 1
Common parts
90101-08073
90119-08048
90159-60047
91611-60822
91651-40816
91651-61022
94120-40800
