KP36-D (1969)

Toyota Publica

Production Nov 1969 - Nov 1975
Engine 2K
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

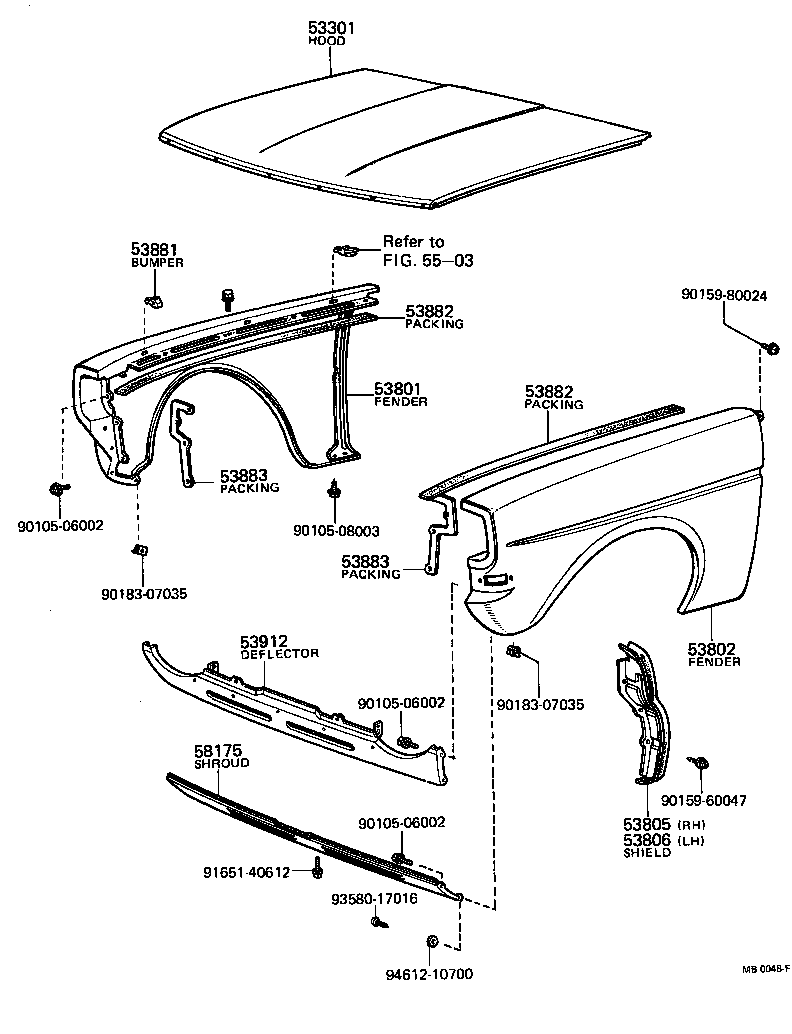

(6904-7112)

Click highlighted areas on diagram

diagram 53301 53801 53802 53805 53806 53881 53882 53882 53883 53883 53912 5503 58175 9010506002 9010506002 9010506002 9010508003 9015960047 9015980024 9018307035 9018307035 9165140612 9358017016 9461210700
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-10112

KP3#..DLX,HDX,STD,XL

 1
53301-10113

KP3#..DLX,HDX,STD,XL

 1
53301-10110

KP3#,UP3#

 1
53801 - FENDER SUB-ASSY, FRONT RH
53801-10904

KP3#..DLX,HDX,STD,XL

 1
53801-10141

KP3#,UP3#

 1
53801-10142

KP3#

 1
53801-10140

KP3#,UP3#

 1
53801-10143

KP3#..DLX,HDX,STD,XL

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-10192

KP3#

 1
53802-10191

KP3#,UP3#

 1
53802-10193

KP3#..DLX,HDX,STD,XL

 1
53802-10190

KP3#,UP3#

 1
53802-10904

KP3#..DLX,HDX,STD,XL

 1
53805 - SHIELD SUB-ASSY, FRONT FENDER SPLASH, RH
53805-10020

KP3#,50,UP3#

 1
53806 - SHIELD SUB-ASSY, FRONT FENDER SPLASH, LH
53806-10020

KP3#,50,UP3#

 1
53881 - BUMPER, FENDER TO HOOD
53349-10030

KP3#,50,UP3#

 4
53882 - PACKING, FRONT FENDER MAIN
53882-10020

KP3#,50,UP3#

 2
53882 - PACKING, FRONT FENDER MAIN
53882-10020

KP3#,50,UP3#

 2
53883 - PACKING, FRONT FENDER, FRONT
53883-10020

KP3#,UP3#

 2
53883 - PACKING, FRONT FENDER, FRONT
53883-10020

KP3#,UP3#

 2
53912 - DEFLECTOR, FRONT BUMPER STONE
53203-10031

KP3#,UP3#

 1
53203-10030

KP3#,UP3#

 1
58175 - SHROUD, RADIATOR, LOWER
53206-10010

KP3#,UP3#

 1
Common parts
90105-06002
90105-08003
90159-60047
90159-80024
90183-07035
91651-40612
93580-17016
94612-10700
Linked diagrams
5503

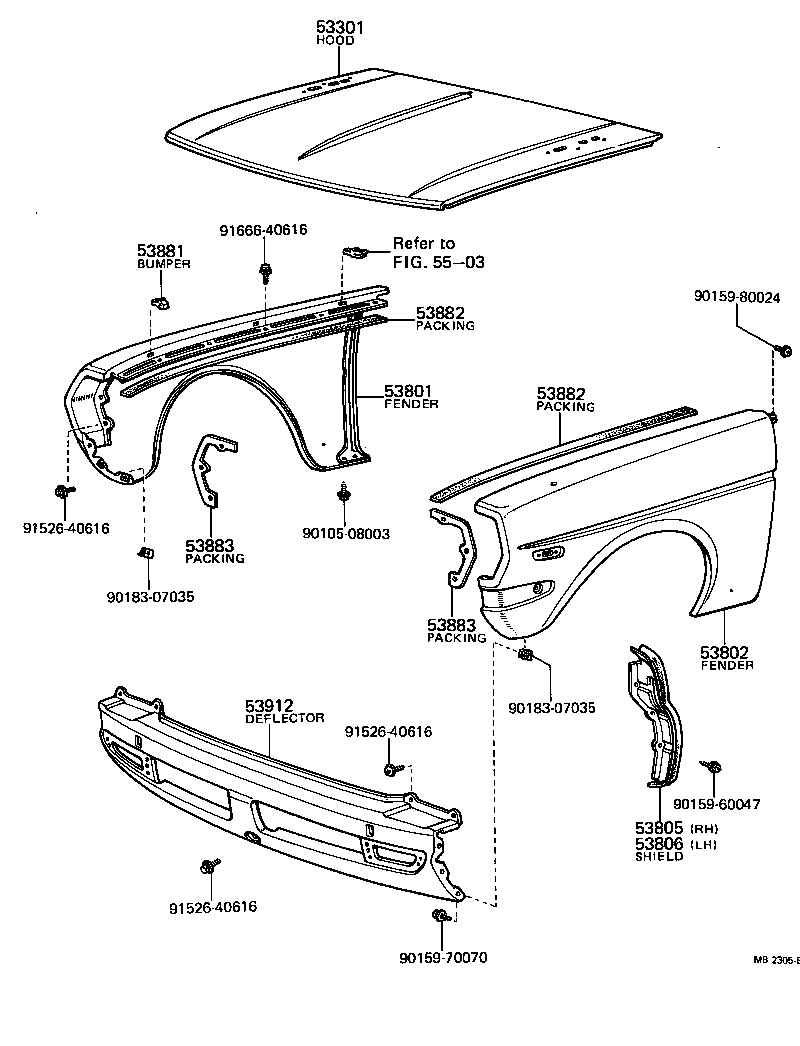

(7201- )

Click highlighted areas on diagram

diagram 53301 53801 53802 53805 53806 53881 53882 53882 53883 53883 53912 5503 9010508003 9015960047 9015970070 9015980024 9018307035 9018307035 9152640616 9152640616 9152640616 9166640616
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-10112

KP3#..DLX,HDX,STD,XL

 1
53301-10113

KP3#..DLX,HDX,STD,XL

 1
53301-10110

KP3#,UP3#

 1
53801 - FENDER SUB-ASSY, FRONT RH
53801-10904

KP3#..DLX,HDX,STD,XL

 1
53801-10141

KP3#,UP3#

 1
53801-10142

KP3#

 1
53801-10140

KP3#,UP3#

 1
53801-10143

KP3#..DLX,HDX,STD,XL

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-10192

KP3#

 1
53802-10191

KP3#,UP3#

 1
53802-10193

KP3#..DLX,HDX,STD,XL

 1
53802-10190

KP3#,UP3#

 1
53802-10904

KP3#..DLX,HDX,STD,XL

 1
53805 - SHIELD SUB-ASSY, FRONT FENDER SPLASH, RH
53805-10020

KP3#,50,UP3#

 1
53806 - SHIELD SUB-ASSY, FRONT FENDER SPLASH, LH
53806-10020

KP3#,50,UP3#

 1
53881 - BUMPER, FENDER TO HOOD
53349-10030

KP3#,50,UP3#

 4
53882 - PACKING, FRONT FENDER MAIN
53882-10020

KP3#,50,UP3#

 2
53882 - PACKING, FRONT FENDER MAIN
53882-10020

KP3#,50,UP3#

 2
53883 - PACKING, FRONT FENDER, FRONT
53883-10020

KP3#,UP3#

 2
53883 - PACKING, FRONT FENDER, FRONT
53883-10020

KP3#,UP3#

 2
53912 - DEFLECTOR, FRONT BUMPER STONE
53203-10031

KP3#,UP3#

 1
53203-10030

KP3#,UP3#

 1
Common parts
90105-08003
90159-60047
90159-70070
90159-80024
90183-07035
91526-40616
91666-40616
Linked diagrams
5503
