KP36-D (1969)
Toyota Publica
Production
Nov 1969
-
Nov 1975
Engine
2K
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)

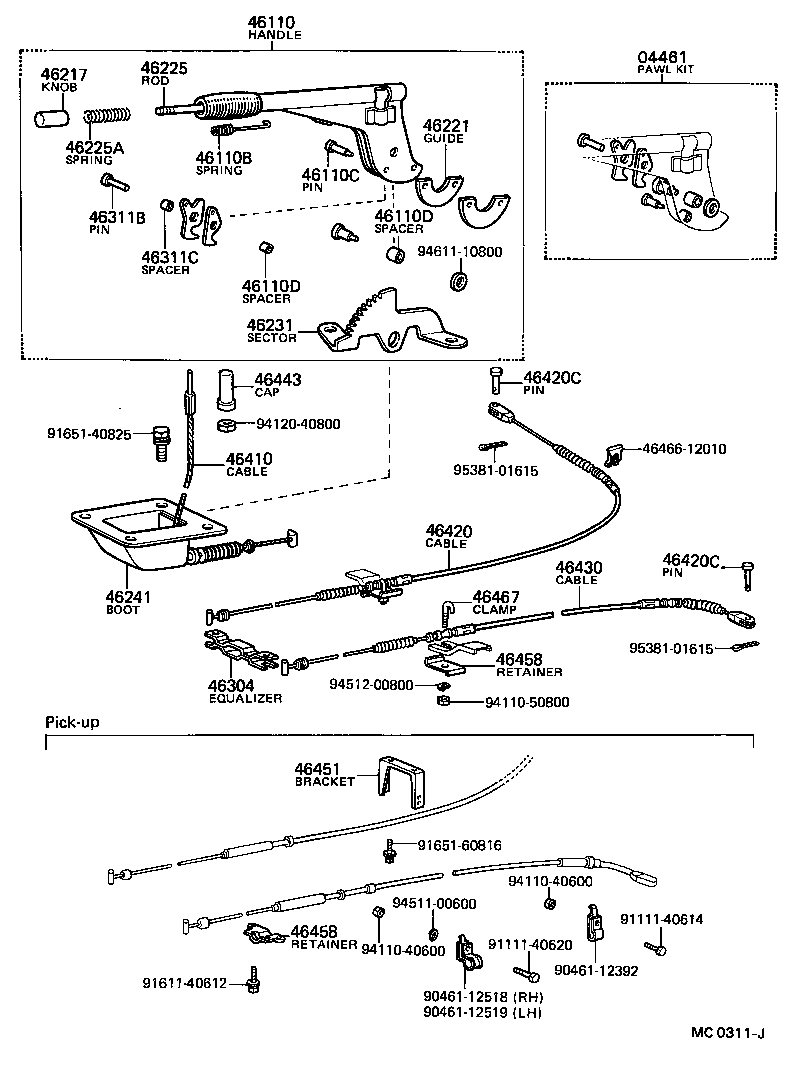

(6904-7310)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04461 - PAWL KIT, PARKING BRAKE | ||||
| 04461-12010 |
KP3#,50 |
1 | ||
| 46110 - HANDLE ASSY, PARKING BRAKE CONTROL | ||||
| 46201-10010 |
KP3#,UP3# |
1 | ||
| 46201-10010 |
KP37;KP30,31,36..DLX,S,SR,STD |
1 | ||
| 46110B - SPRING, TENSION(FOR PARKING BRAKE HANDLE) | ||||
| 90507-08001 |
KP3#,50 |
1 | ||
| 46110C - PIN(FOR PARKING BRAKE HANDLE SET) | ||||
| 90243-06018 |
KP3#,50 |
2 | ||
| 46110D - SPACER(FOR PARKING BRAKE HANDLE) | ||||
| 90560-10200 |
KP3#,50 L=6.2,ID=10 |
1 | ||
| 90560-06201 |
KP3#,50 L=6.0,ID=6.7 |
2 | ||
| 46110D - SPACER(FOR PARKING BRAKE HANDLE) | ||||
| 90560-10200 |
KP3#,50 L=6.2,ID=10 |
1 | ||
| 90560-06201 |
KP3#,50 L=6.0,ID=6.7 |
2 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-1001301 |
KP3# BLACK |
1 | ||
| 46221 - GUIDE, PARKING BRAKE CABLE | ||||
| 46221-12010 |
KP3#,50 |
1 | ||
| 46225 - ROD, PARKING BRAKE PAWL RELEASE | ||||
| 46225-12012 |
KP3#,50 |
1 | ||
| 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) | ||||
| 90501-12160 |
KP3#,50 |
1 | ||
| 46231 - SECTOR, PARKING BRAKE LEVER | ||||
| 46231-12011 |
KP3#,50 |
1 | ||
| 46241 - BOOT, PARKING BRAKE LEVER | ||||
| 46241-12010 |
KP3#,50 |
1 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46341-12010 |
KP3#,50 |
1 | ||
| 46311B - PIN, PARKING BRAKE PAWL PIVOT | ||||
| 90243-06017 |
KP3#,50 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-12010 |
KP3#,50 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-11042 |
KP36..PIC |
1 | ||
| 46420-11041 |
KP36..PIC |
1 | ||
| 46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE) | ||||
| 90240-06082 |
KP3# |
2 | ||
| 46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE) | ||||
| 90240-06082 |
KP3# |
2 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46420-11042 |
KP36..PIC |
1 | ||
| 46420-11041 |
KP36..PIC |
1 | ||
| 46443 - CAP, CABLE ADJUSTING | ||||
| 46443-12010 |
KP3#,UP3# |
1 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46451-11010 |
KP36..PIC |
1 | ||
| Common parts | ||||
| 46466-12010 | ||||
| 90461-12392 | ||||
| 90461-12518 | ||||
| 90461-12519 | ||||
| 91111-40614 | ||||
| 91111-40620 | ||||
| 91611-40612 | ||||
| 91651-40825 | ||||
| 91651-60816 | ||||
| 94110-40600 | ||||
| 94110-50800 | ||||
| 94120-40800 | ||||
| 94511-00600 | ||||
| 94512-00800 | ||||
| 94611-10800 | ||||
| 95381-01615 | ||||

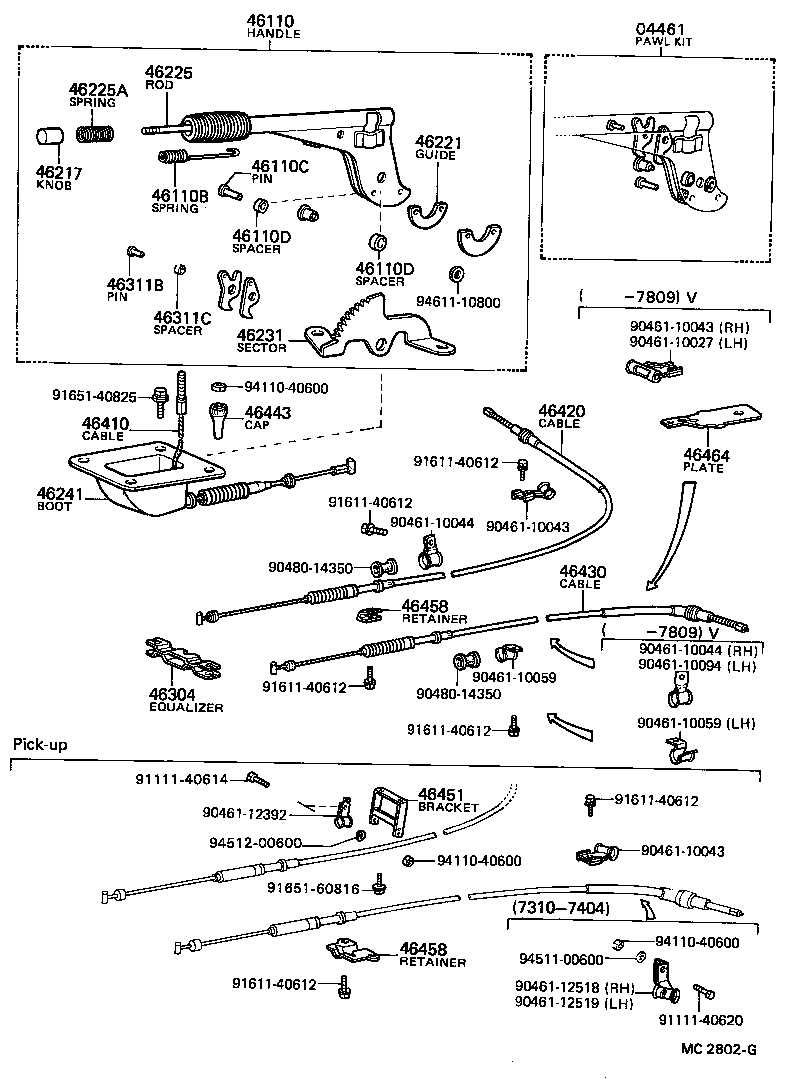

(7310- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04461 - PAWL KIT, PARKING BRAKE | ||||
| 04461-12010 |
KP3#,50 |
1 | ||
| 46110 - HANDLE ASSY, PARKING BRAKE CONTROL | ||||
| 46201-10010 |
KP3#,UP3# |
1 | ||
| 46201-10010 |
KP37;KP30,31,36..DLX,S,SR,STD |
1 | ||
| 46110B - SPRING, TENSION(FOR PARKING BRAKE HANDLE) | ||||
| 90507-08001 |
KP3#,50 |
1 | ||
| 46110C - PIN(FOR PARKING BRAKE HANDLE SET) | ||||
| 90243-06018 |
KP3#,50 |
2 | ||
| 46110D - SPACER(FOR PARKING BRAKE HANDLE) | ||||
| 90560-10200 |
KP3#,50 L=6.2,ID=10 |
1 | ||
| 90560-06201 |
KP3#,50 L=6.0,ID=6.7 |
2 | ||
| 46110D - SPACER(FOR PARKING BRAKE HANDLE) | ||||
| 90560-10200 |
KP3#,50 L=6.2,ID=10 |
1 | ||
| 90560-06201 |
KP3#,50 L=6.0,ID=6.7 |
2 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-1001301 |
KP3# BLACK |
1 | ||
| 46221 - GUIDE, PARKING BRAKE CABLE | ||||
| 46221-12010 |
KP3#,50 |
1 | ||
| 46225 - ROD, PARKING BRAKE PAWL RELEASE | ||||
| 46225-12012 |
KP3#,50 |
1 | ||
| 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) | ||||
| 90501-12160 |
KP3#,50 |
1 | ||
| 46231 - SECTOR, PARKING BRAKE LEVER | ||||
| 46231-12011 |
KP3#,50 |
1 | ||
| 46241 - BOOT, PARKING BRAKE LEVER | ||||
| 46241-12010 |
KP3#,50 |
1 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46341-12010 |
KP3#,50 |
1 | ||
| 46311B - PIN, PARKING BRAKE PAWL PIVOT | ||||
| 90243-06017 |
KP3#,50 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-12010 |
KP3#,50 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-11042 |
KP36..PIC |
1 | ||
| 46420-11041 |
KP36..PIC |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46420-11042 |
KP36..PIC |
1 | ||
| 46420-11041 |
KP36..PIC |
1 | ||
| 46443 - CAP, CABLE ADJUSTING | ||||
| 46443-12010 |
KP3#,UP3# |
1 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46451-11010 |
KP36..PIC |
1 | ||
| Common parts | ||||
| 90461-10027 | ||||
| 90461-10043 | ||||
| 90461-10044 | ||||
| 90461-10059 | ||||
| 90461-10094 | ||||
| 90461-12392 | ||||
| 90461-12518 | ||||
| 90461-12519 | ||||
| 90480-14350 | ||||
| 91111-40614 | ||||
| 91111-40620 | ||||
| 91611-40612 | ||||
| 91651-40825 | ||||
| 91651-60816 | ||||
| 94110-40600 | ||||
| 94511-00600 | ||||
| 94512-00600 | ||||
| 94611-10800 | ||||
