KP36- (1969)

Toyota Publica

Production Nov 1969 - Nov 1975
Engine 2K
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(6911- )PIC

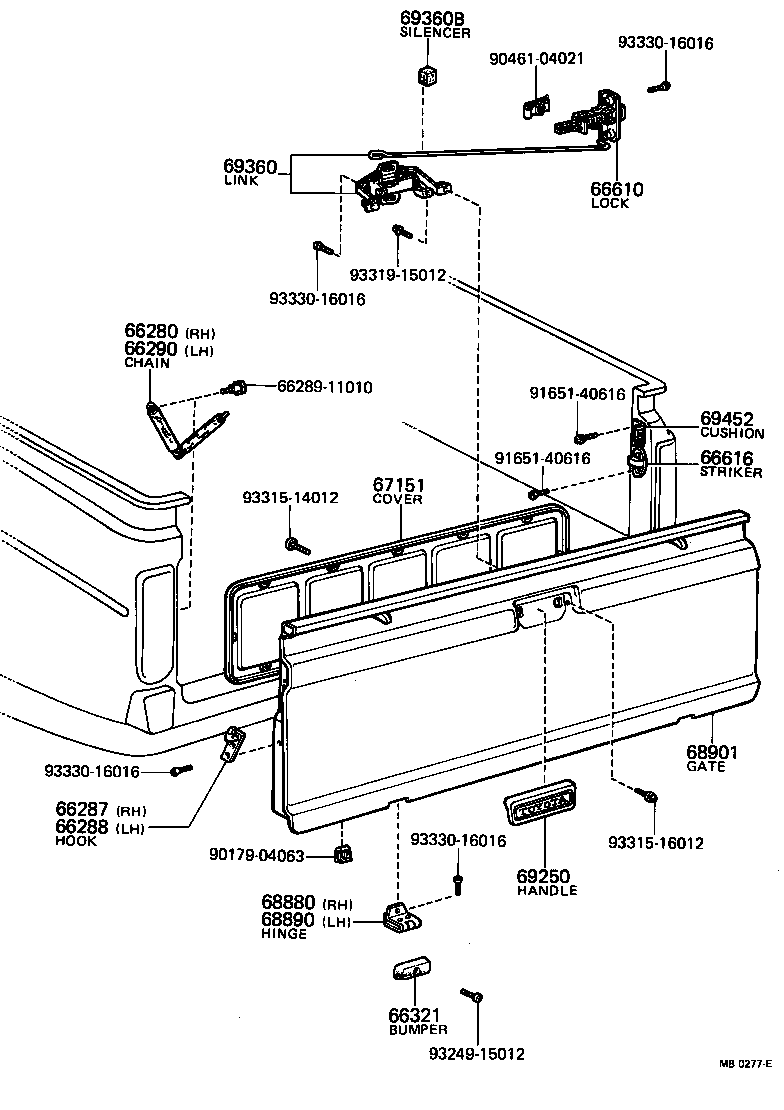

Click highlighted areas on diagram

diagram 66280 66287 66288 6628911010 66290 66321 66610 66616 67151 68880 68890 68901 69250 69360 69360B 69452 9017904063 9046104021 9165140616 9165140616 9324915012 9331514012 9331516012 9331915012 9333016016 9333016016 9333016016 9333016016
Part # Description Qty Price
66287 - HOOK, TAIL GATE CHAIN, RH
66288-11010

KP36..PIC

 1
66288 - HOOK, TAIL GATE CHAIN, LH
66288-11010

KP36..PIC

 1
66610 - LOCK ASSY, TAIL GATE
69350-11020

KP36,37..PIC

 2
66616 - STRIKER, TAIL GATE LOCK
69451-11010

KP36,37..PIC

 2
68901 - GATE SUB-ASSY, TAIL
67007-11030

KP36..PIC

 1
69250 - HANDLE ASSY, TAIL GATE LOCK
69251-11020

KP36..PIC

 1
Common parts
66289-11010
90179-04063
90461-04021
91651-40616
93249-15012
93315-14012
93315-16012
93319-15012
93330-16016
