KP36- (1969)
Toyota Publica

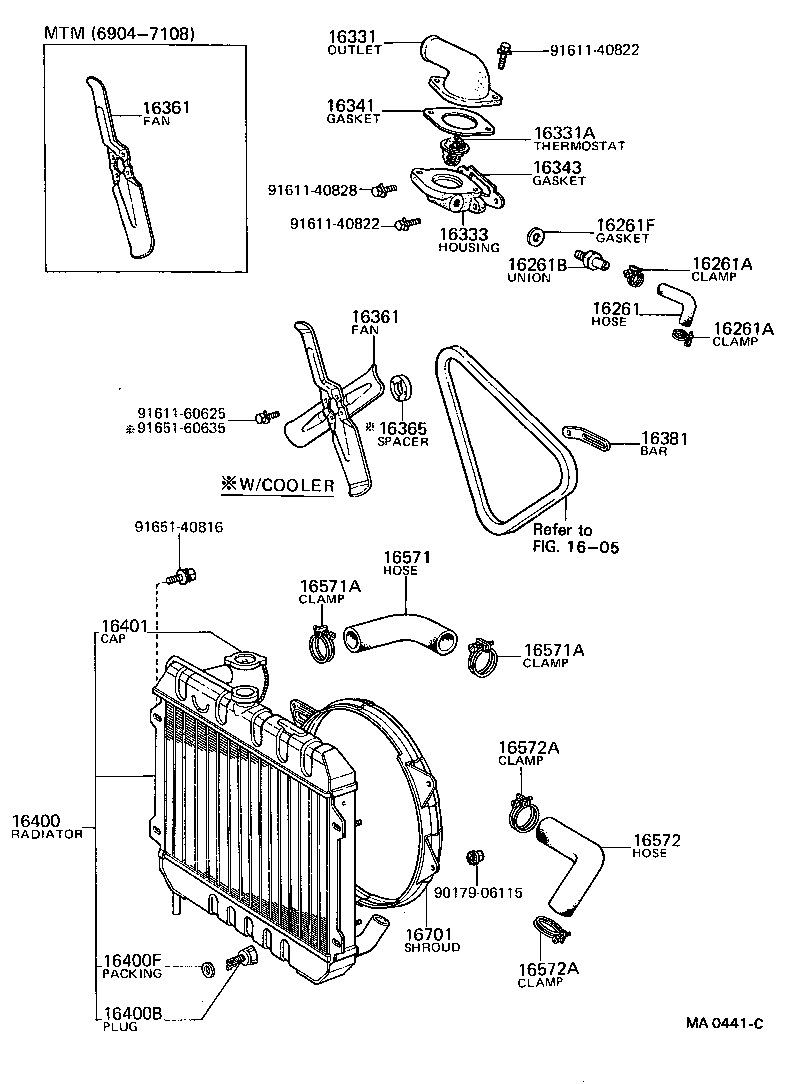

(6904-7304)KB,2K,3K,3KB#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-22010 |
2K..KP30,36..STD W/O HEATER |
1 | ||
| 16261-22011 |
2K..KP30,36..STD W/O HEATER |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10220 |
2K..KP30,36..STD W/O HEATER |
2 | ||
| 90460-22004 |
2K..KP3#..STD W/O HEATER |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10220 |
2K..KP30,36..STD W/O HEATER |
2 | ||
| 90460-22004 |
2K..KP3#..STD W/O HEATER |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-16185 |
2K..KP3# W/HEATER |
1 | ||
| 90407-16039 |
2K,3K,3KB#..KP3# W/HEATER |
1 | ||
| 90404-16106 |
2K..KP3#..STD W/O HEATER |
1 | ||
| 16261F - GASKET(FOR WATER BY-PASS HOSE) | ||||
| 90301-13105 |
2K,3K,3KB#..KP3# W/HEATER |
1 | ||
| 90301-13105 |
2K..KP3# W/HEATER |
1 | ||
| 90430-16044 |
2K..KP30,36..STD W/O HEATER |
1 | ||
| 90430-16044 |
2K,3K,3KB#..KP3# W/HEATER |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16301-24010 |
KB,2K,3K,3KB#..KP3# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03020 |
2K,3K,3KB#,3KHJ,3KU..KP3#,50 *WAX 82-95,*(F) |
1 | ||
| 90916-03021 |
2K,3K,3KB#..KP3# *WAX 82-95,KUZEH |
1 | ||
| 90916-03008 |
KB,2K..KP3# *WAX 82-95,KUZEH |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-22020 |
KB,2K,3K,3KB#..KP3# |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-22010 |
KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-22010 |
KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50 |
1 | ||
| 16361 - FAN | ||||
| 16361-22010 |
KB,2K,3K,3KB#..KP3#..4F 2 BLADES |
1 | ||
| 16361-24020 |
2K,3K,3KB#..KP3# 4 BLADES W/COOLER |
1 | ||
| 88453-12010 |
KB,2K,3K,3KB#..KP3# W/COOLER |
1 | ||
| 16361-12010 |
2K,3K,3KB#..KP3#..4F 4 BLADES |
1 | ||
| 16361-24020 |
2K,3K..KP3# 4 BLADES W/COOLER |
1 | ||
| 16361-24010 |
2K,3K,3KB#..KP3#..4F 4 BLADES |
1 | ||
| 16361 - FAN | ||||
| 16361-22010 |
KB,2K,3K,3KB#..KP3#..4F 2 BLADES |
1 | ||
| 16361-24020 |
2K,3K,3KB#..KP3# 4 BLADES W/COOLER |
1 | ||
| 88453-12010 |
KB,2K,3K,3KB#..KP3# W/COOLER |
1 | ||
| 16361-12010 |
2K,3K,3KB#..KP3#..4F 4 BLADES |
1 | ||
| 16361-24020 |
2K,3K..KP3# 4 BLADES W/COOLER |
1 | ||
| 16361-24010 |
2K,3K,3KB#..KP3#..4F 4 BLADES |
1 | ||
| 16365 - SPACER, FAN | ||||
| 88457-10010 |
KB,2K,3K,3KB#..KP3# W/COOLER |
1 | ||
| 88457-12011 |
2K,3K..KP3# W/COOLER |
1 | ||
| 88457-12011 |
2K,3K,3KB#..KP3# W/COOLER |
1 | ||
| 88457-12012 |
2K,3K,3KB#..KP3# W/COOLER |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-22010 |
KB,2K,3K,3KB#..KP3# |
1 | ||
| 16381-22010 |
2K,3K,3KB#..KP3#..DLX,HDX,S,SR,STD 12V 30A ALTERNATOR |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-24060 |
2K,3K,3KB#..KP3#..4F |
1 | ||
| 16400-22010 |
KB,2K,3K,3KB#..KP3#..4F |
1 | ||
| 16400-24061 |
2K,3K,3KB#..KP3#..4F |
1 | ||
| 16400-22012 |
2K,3K,3KB#..KP3#..4F |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90099-18501 |
KB,2K,3K..KP3# |
1 | ||
| 90910-09052 |
2K,3K,3KB#..KP3# |
1 | ||
| 90099-18502 |
2K,3K,3KB#..KP3# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 90099-06030 |
2K,3K,3KB#..KP3# |
1 | ||
| 90099-06027 |
2K,3K,3KB#..KP3# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-50010 |
2K,3K,3KB#..KP3# |
1 | ||
| 16401-40120 |
KB,2K,3K,3KB#..KP3# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 90916-01013 |
KB,2K,3K,3KB#..KP3# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-43005 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-43005 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 90916-01049 |
KB,2K,3K,3KB#..KP3# |
1 | ||
| 90916-01117 |
2K,3K,3KB#..KP3# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-43005 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-43005 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 88454-10010 |
2K,3K,3KB#..KP3# W/COOLER |
1 | ||
| 88454-10011 |
2K,3K,3KB#..KP3# W/COOLER |
1 | ||
| 16701-12010 |
2K,3K,3KB#..KP3# |
1 | ||
| 16701-12030 |
2K,3K,3KB#..KP3# |
1 | ||
| 88454-10010 |
2K,3K..KP3# W/COOLER |
1 | ||
| 88454-12010 |
KB,2K,3K,3KB#..KP3# W/COOLER |
1 | ||
| Common parts | ||||
| 90179-06115 | ||||
| 91611-40822 | ||||
| 91611-40828 | ||||
| 91611-60625 | ||||
| 91651-40816 | ||||
| 91651-60635 | ||||
| Linked diagrams | ||||
| 1605 | ||||

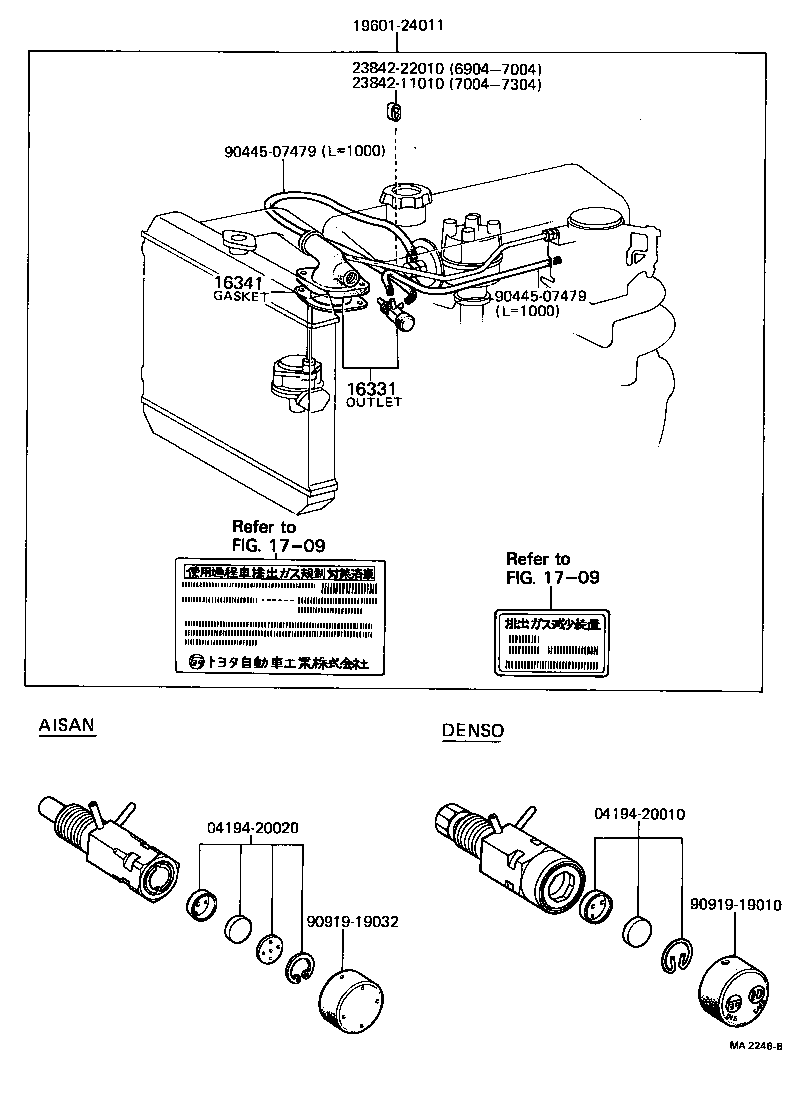

(6904-7304)KB,2K,3K,3KB#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16331 - OUTLET, WATER | ||||
| 16301-24010 |
KB,2K,3K,3KB#..KP3# |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-22010 |
KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50 |
1 | ||
| Common parts | ||||
| 04194-20010 | ||||
| 04194-20020 | ||||
| 19601-24011 | ||||
| 23842-11010 | ||||
| 23842-22010 | ||||
| 90445-07479 | ||||
| 90919-19010 | ||||
| 90919-19032 | ||||
| Linked diagrams | ||||
| 1709 | ||||

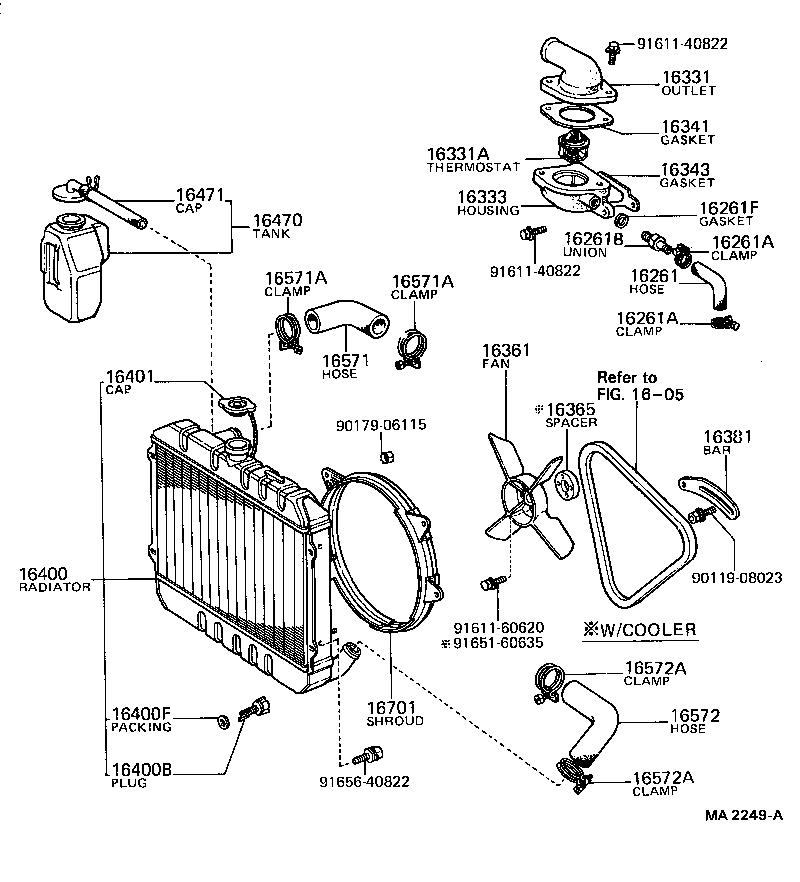

(7304-7511)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-22010 |
2K..KP30,36..STD W/O HEATER |
1 | ||
| 16261-22011 |
2K..KP30,36..STD W/O HEATER |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10220 |
2K..KP30,36..STD W/O HEATER |
2 | ||
| 90460-22004 |
2K..KP3#..STD W/O HEATER |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10220 |
2K..KP30,36..STD W/O HEATER |
2 | ||
| 90460-22004 |
2K..KP3#..STD W/O HEATER |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-16185 |
2K..KP3# W/HEATER |
1 | ||
| 90407-16039 |
2K,3K,3KB#..KP3# W/HEATER |
1 | ||
| 90404-16106 |
2K..KP3#..STD W/O HEATER |
1 | ||
| 16261F - GASKET(FOR WATER BY-PASS HOSE) | ||||
| 90301-13105 |
2K,3K,3KB#..KP3# W/HEATER |
1 | ||
| 90301-13105 |
2K..KP3# W/HEATER |
1 | ||
| 90430-16044 |
2K..KP30,36..STD W/O HEATER |
1 | ||
| 90430-16044 |
2K,3K,3KB#..KP3# W/HEATER |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16301-24010 |
KB,2K,3K,3KB#..KP3# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03020 |
2K,3K,3KB#,3KHJ,3KU..KP3#,50 *WAX 82-95,*(F) |
1 | ||
| 90916-03021 |
2K,3K,3KB#..KP3# *WAX 82-95,KUZEH |
1 | ||
| 90916-03008 |
KB,2K..KP3# *WAX 82-95,KUZEH |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-22020 |
KB,2K,3K,3KB#..KP3# |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-22010 |
KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-22010 |
KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50 |
1 | ||
| 16361 - FAN | ||||
| 16361-22010 |
KB,2K,3K,3KB#..KP3#..4F 2 BLADES |
1 | ||
| 16361-24020 |
2K,3K,3KB#..KP3# 4 BLADES W/COOLER |
1 | ||
| 88453-12010 |
KB,2K,3K,3KB#..KP3# W/COOLER |
1 | ||
| 16361-12010 |
2K,3K,3KB#..KP3#..4F 4 BLADES |
1 | ||
| 16361-24020 |
2K,3K..KP3# 4 BLADES W/COOLER |
1 | ||
| 16361-24010 |
2K,3K,3KB#..KP3#..4F 4 BLADES |
1 | ||
| 16365 - SPACER, FAN | ||||
| 88457-10010 |
KB,2K,3K,3KB#..KP3# W/COOLER |
1 | ||
| 88457-12011 |
2K,3K..KP3# W/COOLER |
1 | ||
| 88457-12011 |
2K,3K,3KB#..KP3# W/COOLER |
1 | ||
| 88457-12012 |
2K,3K,3KB#..KP3# W/COOLER |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-22010 |
KB,2K,3K,3KB#..KP3# |
1 | ||
| 16381-22010 |
2K,3K,3KB#..KP3#..DLX,HDX,S,SR,STD 12V 30A ALTERNATOR |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-24060 |
2K,3K,3KB#..KP3#..4F |
1 | ||
| 16400-22010 |
KB,2K,3K,3KB#..KP3#..4F |
1 | ||
| 16400-24061 |
2K,3K,3KB#..KP3#..4F |
1 | ||
| 16400-22012 |
2K,3K,3KB#..KP3#..4F |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90099-18501 |
KB,2K,3K..KP3# |
1 | ||
| 90910-09052 |
2K,3K,3KB#..KP3# |
1 | ||
| 90099-18502 |
2K,3K,3KB#..KP3# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 90099-06030 |
2K,3K,3KB#..KP3# |
1 | ||
| 90099-06027 |
2K,3K,3KB#..KP3# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-50010 |
2K,3K,3KB#..KP3# |
1 | ||
| 16401-40120 |
KB,2K,3K,3KB#..KP3# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-12020 |
2K,3K,3KB#..KP3# COLD SPEC |
1 | ||
| 16470-12010 |
2K,3K,3KB#..KP3# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-12010 |
2K,3K,3KB#..KP3# |
1 | ||
| 16471-12020 |
2K,3K,3KB#..KP3# COLD SPEC |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 90916-01013 |
KB,2K,3K,3KB#..KP3# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-43005 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-43005 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 90916-01049 |
KB,2K,3K,3KB#..KP3# |
1 | ||
| 90916-01117 |
2K,3K,3KB#..KP3# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-43005 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-43005 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 88454-10010 |
2K,3K,3KB#..KP3# W/COOLER |
1 | ||
| 88454-10011 |
2K,3K,3KB#..KP3# W/COOLER |
1 | ||
| 16701-12010 |
2K,3K,3KB#..KP3# |
1 | ||
| 16701-12030 |
2K,3K,3KB#..KP3# |
1 | ||
| 88454-10010 |
2K,3K..KP3# W/COOLER |
1 | ||
| 88454-12010 |
KB,2K,3K,3KB#..KP3# W/COOLER |
1 | ||
| Common parts | ||||
| 90119-08023 | ||||
| 90179-06115 | ||||
| 91611-40822 | ||||
| 91611-60620 | ||||
| 91651-60635 | ||||
| 91656-40822 | ||||
| Linked diagrams | ||||
| 1605 | ||||
