KP31-XR (1971)
Toyota Publica
Production
Mar 1971
-
Nov 1975
Engine
3KBR
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(6904-7802)KP30,31,50,UP30

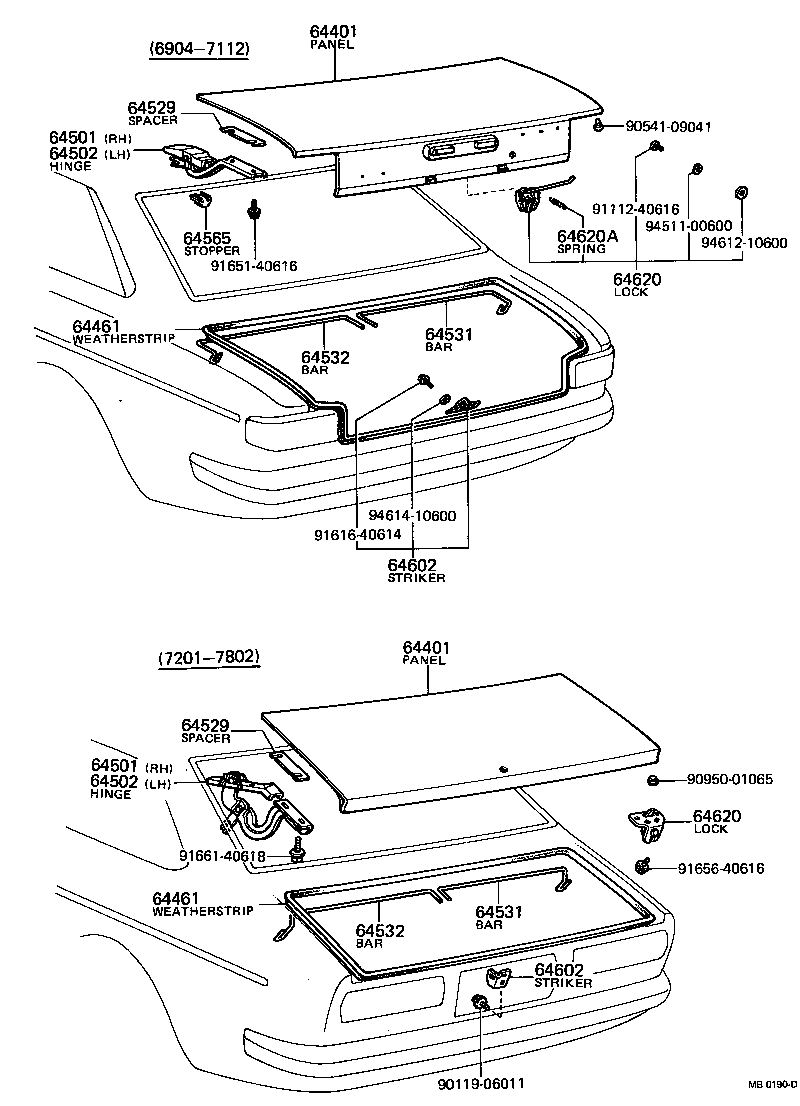

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-10062 |
KP30,31 |
1 | ||
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-10062 |
KP30,31 |
1 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-10030 |
KP30,31,UP30 |
1 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-10030 |
KP30,31,UP30 |
1 | ||
| 64529 - SPACER, LUGGAGE COMPARTMENT DOOR HINGE | ||||
| 64529-10010 |
KP30,31,UP30 |
4 | ||
| 64529 - SPACER, LUGGAGE COMPARTMENT DOOR HINGE | ||||
| 64529-10010 |
KP30,31,UP30 |
4 | ||
| 64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH | ||||
| 64531-10012 |
KP30,31 |
1 | ||
| 64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH | ||||
| 64531-10012 |
KP30,31 |
1 | ||
| 64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH | ||||
| 64532-10012 |
KP30,31 |
1 | ||
| 64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH | ||||
| 64532-10012 |
KP30,31 |
1 | ||
| 64602 - STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 64602-19025 |
KP30,31,UP30 |
1 | ||
| 64602 - STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 64602-19025 |
KP30,31,UP30 |
1 | ||
| 64620 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64620-19035 |
KP30,31,UP30 |
1 | ||
| 64620 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64620-19035 |
KP30,31,UP30 |
1 | ||
| 64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK) | ||||
| 90506-09236 |
KP30,31,UP30 |
1 | ||
| Common parts | ||||
| 90119-06011 | ||||
| 90541-09041 | ||||
| 90950-01065 | ||||
| 91112-40616 | ||||
| 91616-40614 | ||||
| 91651-40616 | ||||
| 91656-40616 | ||||
| 91661-40618 | ||||
| 94511-00600 | ||||
| 94612-10600 | ||||
| 94614-10600 | ||||
