KP31-XR (1971)
Toyota Publica

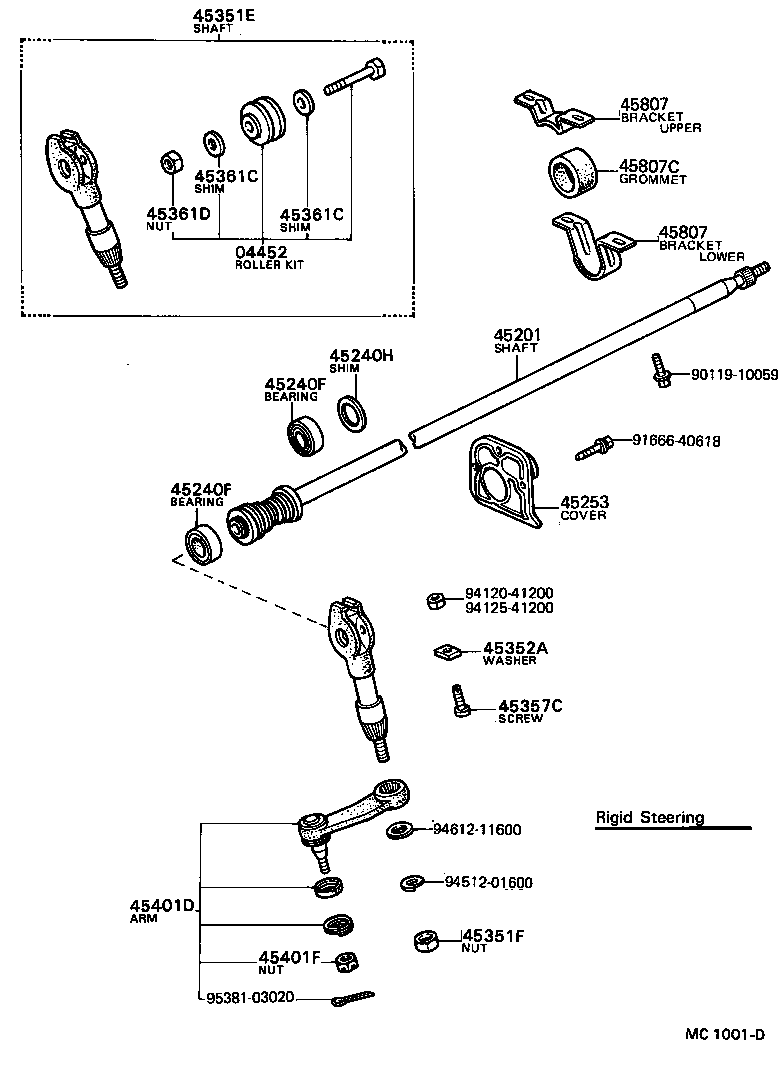

ILLUST NO. 2 OF 2(6904-7112)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04452 - ROLLER KIT, STEERING SECTOR | ||||
| 04452-10011 |
KP3#,UP3# |
1 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45220-10020 |
KP31..SR,ST,XL COLLAPSIBLE STEERING |
1 | ||
| 45220-10010 |
KP3#..DLX,HDX,S,STD RIGID STEERING |
1 | ||
| 45201-10060 |
KP3#,UP3# RIGID STEERING |
1 | ||
| 45220-10020 |
KP30,31 COLLAPSIBLE STEERING |
1 | ||
| 45240F - BEARING(FOR STEERING WORM) | ||||
| 90363-20031 |
KP3#,UP3# |
2 | ||
| 45240F - BEARING(FOR STEERING WORM) | ||||
| 90363-20031 |
KP3#,UP3# |
2 | ||
| 45240H - SHIM(FOR STEERING WORM BEARING ADJUST) | ||||
| 90564-34054 |
KP3#,UP3# T=0.3 |
2 | ||
| 90564-34055 |
KP3#,UP3# T=0.5 |
2 | ||
| 90564-34053 |
KP3#,UP3# T=0.2 |
2 | ||
| 90564-34052 |
KP3#,UP3# T=0.1 |
2 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 55209-10030 |
KP31..SR,ST,XL COLLAPSIBLE STEERING |
1 | ||
| 55209-10031 |
KP30,31 COLLAPSIBLE STEERING |
1 | ||
| 55209-10012 |
KP3#..DLX,HDX,S,STD RIGID STEERING |
1 | ||
| 55209-10010 |
KP3#,UP3# RIGID STEERING |
1 | ||
| 45351E - SHAFT, STEERING SECTOR | ||||
| 45350-10011 |
KP3#,UP3# |
1 | ||
| 45351F - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 94110-41600 |
KP3#,UP3# |
1 | ||
| 45352A - WASHER, SECTOR SHAFT THRUST | ||||
| 45353-10011 |
KP3#,UP3# T=2.07 |
1 | ||
| 45352-10011 |
KP3#,UP3# T=2.01 |
1 | ||
| 45354-10010 |
KP3#,UP3# T=2.11 |
1 | ||
| 45355-10010 |
KP3#,UP3# T=2.15 |
1 | ||
| 45356-10010 |
KP3#,UP3# T=2.19 |
1 | ||
| 45358-10010 |
KP3#,UP3# T=2.24 |
1 | ||
| 45357C - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-10020 |
KP3#,UP3# |
1 | ||
| 45361C - SHIM(FOR STEERING SECTOR ROLLER ADJUSTING) | ||||
| 90564-10059 |
KP3#,UP3# |
2 | ||
| 45361C - SHIM(FOR STEERING SECTOR ROLLER ADJUSTING) | ||||
| 90564-10059 |
KP3#,UP3# |
2 | ||
| 45361D - NUT(FOR STEERING SECTOR ROLLER SETTING) | ||||
| 90170-09101 |
KP3#,UP3# |
1 | ||
| 45401D - ARM SUB-ASSY, PITMAN | ||||
| 45401-19035 |
KP3#,UP3# |
1 | ||
| 45401F - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90171-12028 |
KP3#,50 |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 55601-10010 |
KP3#,UP3# UPR |
1 | ||
| 45807-10010 |
KP3#..SED,V COLLAPSIBLE STEERING |
1 | ||
| 55663-10020 |
KP3#,UP3# LWR |
1 | ||
| 45807-10010 |
KP31..SR,ST,XL COLLAPSIBLE STEERING |
1 | ||
| 45807-10010 |
KP30,31 COLLAPSIBLE STEERING |
1 | ||
| 55602-10011 |
KP3#..DLX,HDX,S,STD LWR,RIGID STEERING |
1 | ||
| 55661-10022 |
KP3#..DLX,HDX,S,STD UPR,RIGID STEERING |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 55601-10010 |
KP3#,UP3# UPR |
1 | ||
| 45807-10010 |
KP3#..SED,V COLLAPSIBLE STEERING |
1 | ||
| 55663-10020 |
KP3#,UP3# LWR |
1 | ||
| 45807-10010 |
KP31..SR,ST,XL COLLAPSIBLE STEERING |
1 | ||
| 45807-10010 |
KP30,31 COLLAPSIBLE STEERING |
1 | ||
| 55602-10011 |
KP3#..DLX,HDX,S,STD LWR,RIGID STEERING |
1 | ||
| 55661-10022 |
KP3#..DLX,HDX,S,STD UPR,RIGID STEERING |
1 | ||
| 45807C - GROMMET(FOR STEERING COLUMN CLAMP) | ||||
| 90480-32134 |
KP3#,UP3# |
1 | ||
| 90480-45252 |
KP3#..DLX,HDX,S,STD |
1 | ||
| Common parts | ||||
| 90119-10059 | ||||
| 91666-40618 | ||||
| 94120-41200 | ||||
| 94125-41200 | ||||
| 94512-01600 | ||||
| 94612-11600 | ||||
| 95381-03020 | ||||

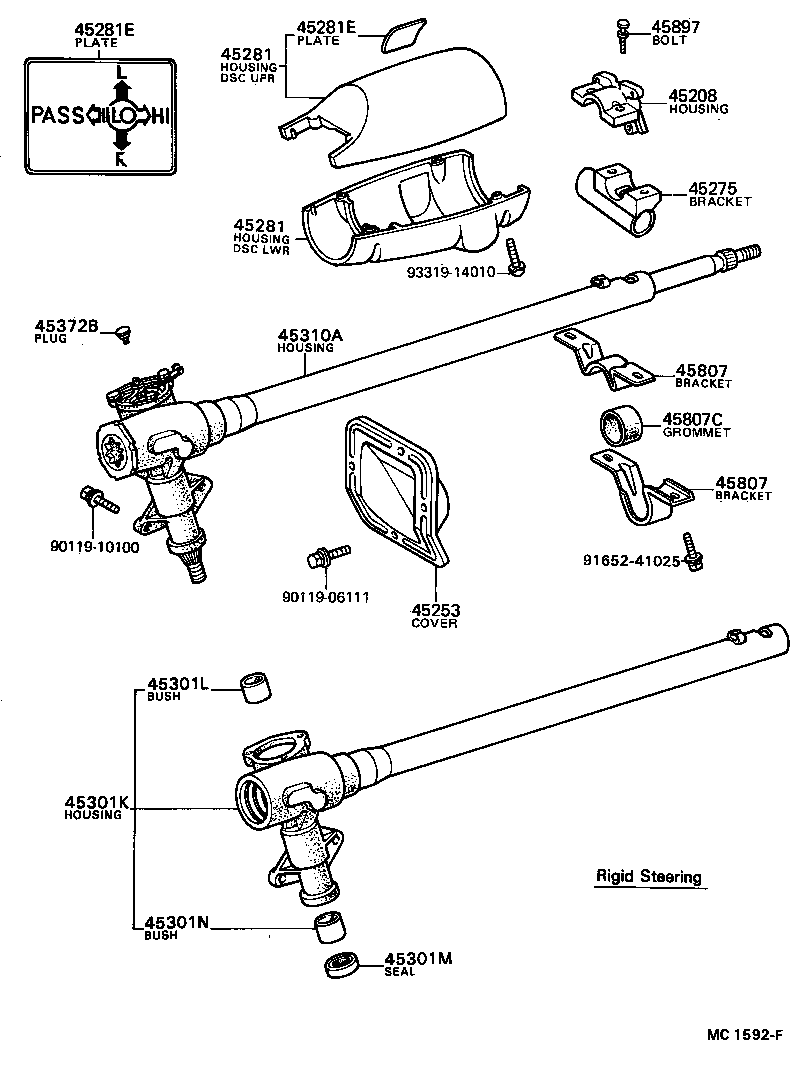

ILLUST NO. 1 OF 2(7201-7310) ; (7310- )KP36,37,38,39
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45208 - HOUSING SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 45208-10010 |
KP3# |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 55209-10030 |
KP31..SR,ST,XL COLLAPSIBLE STEERING |
1 | ||
| 55209-10031 |
KP30,31 COLLAPSIBLE STEERING |
1 | ||
| 55209-10012 |
KP3#..DLX,HDX,S,STD RIGID STEERING |
1 | ||
| 55209-10010 |
KP3#,UP3# RIGID STEERING |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45307-10010 |
KP3# |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-10010 |
KP3#,UP3# UPR |
1 | ||
| 45287-10010 |
KP3#,UP3# LWR |
1 | ||
| 45287-10012 |
KP3# LWR |
1 | ||
| 45286-10012 |
KP3# UPR |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-10010 |
KP3#,UP3# UPR |
1 | ||
| 45287-10010 |
KP3#,UP3# LWR |
1 | ||
| 45287-10012 |
KP3# LWR |
1 | ||
| 45286-10012 |
KP3# UPR |
1 | ||
| 45301K - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-10080 |
KP3#,UP3# RIGID STEERING |
1 | ||
| 45301-12090 |
KP3#..SED,V COLLAPSIBLE STEERING |
1 | ||
| 45301-12090 |
KP30,31 COLLAPSIBLE STEERING |
1 | ||
| 45301-10082 |
KP3#..DLX,HDX,S,STD RIGID STEERING |
1 | ||
| 45301-12090 |
KP31..SR,ST,XL COLLAPSIBLE STEERING |
1 | ||
| 45301L - BUSH OR BEARING(FOR SECTOR SHAFT NO.1) | ||||
| 90999-71013 |
KP3#,UP3# |
1 | ||
| 45301M - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90310-25021 |
KP3#,UP3# |
1 | ||
| 45301N - BUSH OR BEARING(FOR SECTOR SHAFT NO.2) | ||||
| 90999-71013 |
KP3#,UP3# |
1 | ||
| 45310A - HOUSING ASSY, STEERING GEAR | ||||
| 45310-10010 |
KP3#..DLX,HDX,S,STD RIGID STEERING |
1 | ||
| 45310-10020 |
KP31..SR,ST,XL COLLAPSIBLE STEERING |
1 | ||
| 45310-10020 |
KP3#..SED,V COLLAPSIBLE STEERING |
1 | ||
| 45310-10020 |
KP30,31 COLLAPSIBLE STEERING |
1 | ||
| 45372B - PLUG, STEERING GEAR HOUSING OIL | ||||
| 45372-10010 |
KP3#,UP3# |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 55601-10010 |
KP3#,UP3# UPR |
1 | ||
| 45807-10010 |
KP3#..SED,V COLLAPSIBLE STEERING |
1 | ||
| 55663-10020 |
KP3#,UP3# LWR |
1 | ||
| 45807-10010 |
KP31..SR,ST,XL COLLAPSIBLE STEERING |
1 | ||
| 45807-10010 |
KP30,31 COLLAPSIBLE STEERING |
1 | ||
| 55602-10011 |
KP3#..DLX,HDX,S,STD LWR,RIGID STEERING |
1 | ||
| 55661-10022 |
KP3#..DLX,HDX,S,STD UPR,RIGID STEERING |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 55601-10010 |
KP3#,UP3# UPR |
1 | ||
| 45807-10010 |
KP3#..SED,V COLLAPSIBLE STEERING |
1 | ||
| 55663-10020 |
KP3#,UP3# LWR |
1 | ||
| 45807-10010 |
KP31..SR,ST,XL COLLAPSIBLE STEERING |
1 | ||
| 45807-10010 |
KP30,31 COLLAPSIBLE STEERING |
1 | ||
| 55602-10011 |
KP3#..DLX,HDX,S,STD LWR,RIGID STEERING |
1 | ||
| 55661-10022 |
KP3#..DLX,HDX,S,STD UPR,RIGID STEERING |
1 | ||
| 45807C - GROMMET(FOR STEERING COLUMN CLAMP) | ||||
| 90480-32134 |
KP3#,UP3# |
1 | ||
| 90480-45252 |
KP3#..DLX,HDX,S,STD |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12010 |
KP3# |
2 | ||
| Common parts | ||||
| 90119-06111 | ||||
| 90119-10100 | ||||
| 91652-41025 | ||||
| 93319-14010 | ||||

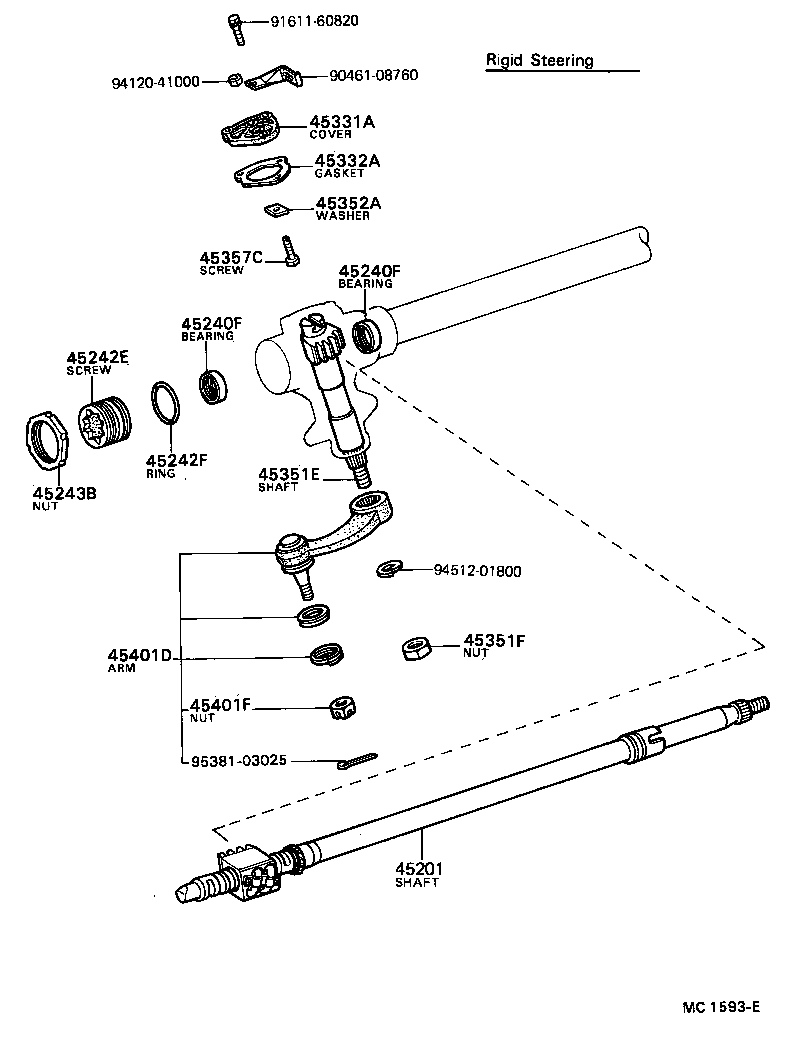

ILLUST NO. 2 OF 2(7201-7310) ; (7310- )KP36,37,38,39
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45220-10020 |
KP31..SR,ST,XL COLLAPSIBLE STEERING |
1 | ||
| 45220-10010 |
KP3#..DLX,HDX,S,STD RIGID STEERING |
1 | ||
| 45201-10060 |
KP3#,UP3# RIGID STEERING |
1 | ||
| 45220-10020 |
KP30,31 COLLAPSIBLE STEERING |
1 | ||
| 45240F - BEARING(FOR STEERING WORM) | ||||
| 90363-20031 |
KP3#,UP3# |
2 | ||
| 45240F - BEARING(FOR STEERING WORM) | ||||
| 90363-20031 |
KP3#,UP3# |
2 | ||
| 45242E - SCREW, WORM BEARING ADJUSTING | ||||
| 45242-12010 |
KP3#,UP3# |
1 | ||
| 45242F - RING, O(FOR WORM BEARING ADJUSTING SCREW) | ||||
| 90301-37095 |
KP3#,UP3# |
1 | ||
| 45243B - NUT, WORM BEARING ADJUSTING SCREW LOCK | ||||
| 45243-12010 |
KP3#,UP3# |
1 | ||
| 45331A - COVER, SECTOR SHAFT END | ||||
| 45331-10020 |
KP3#,UP3# |
1 | ||
| 45332A - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-10011 |
KP3#,UP3# |
1 | ||
| 45351E - SHAFT, STEERING SECTOR | ||||
| 45350-10011 |
KP3#,UP3# |
1 | ||
| 45351F - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 94110-41600 |
KP3#,UP3# |
1 | ||
| 45352A - WASHER, SECTOR SHAFT THRUST | ||||
| 45353-10011 |
KP3#,UP3# T=2.07 |
1 | ||
| 45352-10011 |
KP3#,UP3# T=2.01 |
1 | ||
| 45354-10010 |
KP3#,UP3# T=2.11 |
1 | ||
| 45355-10010 |
KP3#,UP3# T=2.15 |
1 | ||
| 45356-10010 |
KP3#,UP3# T=2.19 |
1 | ||
| 45358-10010 |
KP3#,UP3# T=2.24 |
1 | ||
| 45357C - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-10020 |
KP3#,UP3# |
1 | ||
| 45401D - ARM SUB-ASSY, PITMAN | ||||
| 45401-19035 |
KP3#,UP3# |
1 | ||
| 45401F - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90171-12028 |
KP3#,50 |
1 | ||
| Common parts | ||||
| 90461-08760 | ||||
| 91611-60820 | ||||
| 94120-41000 | ||||
| 94512-01800 | ||||
| 95381-03025 | ||||

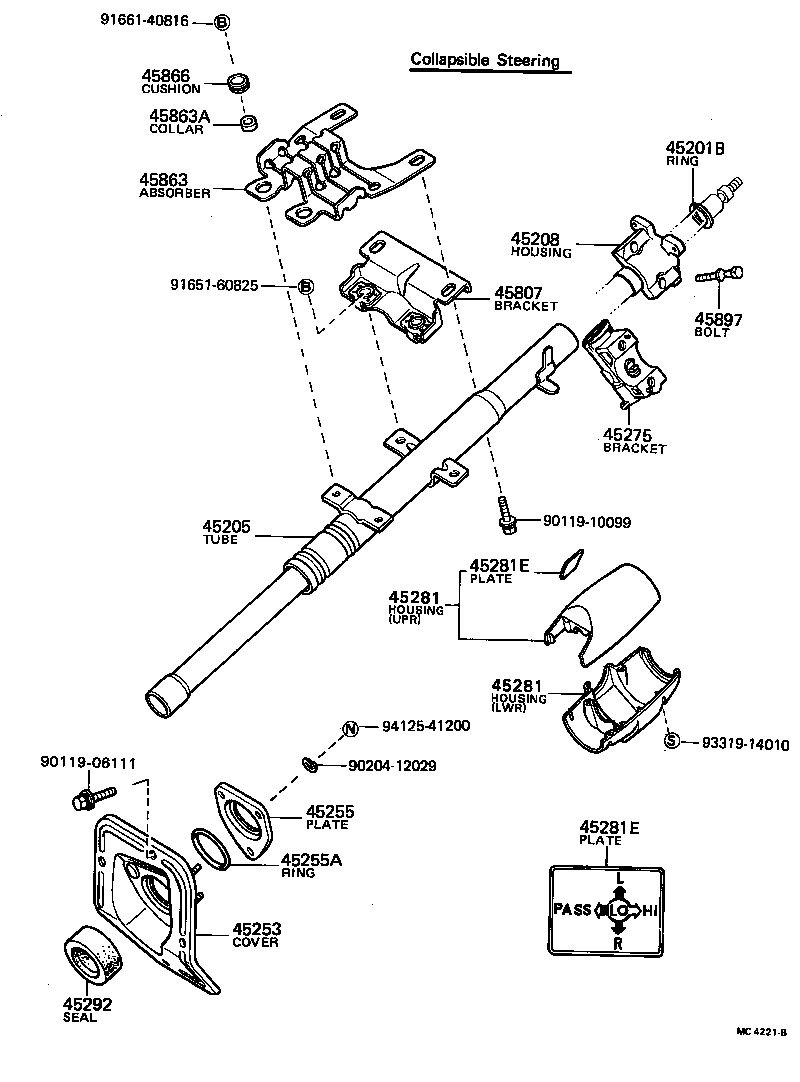

ILLUST NO. 1 OF 2(7201-7511)SED,V ; (7511-7907)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
KP30,31 厚さ=1.20,COLLAPSIBLE STEERING |
1 | ||
| 90520-17042 |
KP31..SR,ST,XL 厚さ=1.20,COLLAPSIBLE STEERING |
1 | ||
| 90520-17042 |
KP3#..SED,V 厚さ=1.20,COLLAPSIBLE STEERING |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45251-10070 |
KP3#,UP3# RIGID STEERING |
1 | ||
| 45250-10010 |
KP31..SR,ST,XL COLLAPSIBLE STEERING |
1 | ||
| 45250-10011 |
KP30,31 COLLAPSIBLE STEERING |
1 | ||
| 45250-10011 |
KP3#..SED,V COLLAPSIBLE STEERING |
1 | ||
| 45208 - HOUSING SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 45208-10010 |
KP3# |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 55209-10030 |
KP31..SR,ST,XL COLLAPSIBLE STEERING |
1 | ||
| 55209-10031 |
KP30,31 COLLAPSIBLE STEERING |
1 | ||
| 55209-10012 |
KP3#..DLX,HDX,S,STD RIGID STEERING |
1 | ||
| 55209-10010 |
KP3#,UP3# RIGID STEERING |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-10010 |
KP30,31 COLLAPSIBLE STEERING |
1 | ||
| 45255-10010 |
KP31..SR,ST,XL COLLAPSIBLE STEERING |
1 | ||
| 45255-10010 |
KP3#..SED,V COLLAPSIBLE STEERING |
1 | ||
| 45255A - GROMMET OR RING, O(FOR STEERING COLUMN CLAMP) | ||||
| 90301-37131 |
KP30,31 COLLAPSIBLE STEERING |
1 | ||
| 90301-37131 |
KP3#..SED,V COLLAPSIBLE STEERING |
1 | ||
| 90301-37131 |
KP31..SR,ST,XL COLLAPSIBLE STEERING |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45307-10010 |
KP3# |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-10010 |
KP3#,UP3# UPR |
1 | ||
| 45287-10010 |
KP3#,UP3# LWR |
1 | ||
| 45287-10012 |
KP3# LWR |
1 | ||
| 45286-10012 |
KP3# UPR |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-10010 |
KP3#,UP3# UPR |
1 | ||
| 45287-10010 |
KP3#,UP3# LWR |
1 | ||
| 45287-10012 |
KP3# LWR |
1 | ||
| 45286-10012 |
KP3# UPR |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-12020 |
KP30,31 COLLAPSIBLE STEERING |
1 | ||
| 45292-12020 |
KP3#..SED,V COLLAPSIBLE STEERING |
1 | ||
| 45292-12012 |
KP31..SR,ST,XL COLLAPSIBLE STEERING |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 55601-10010 |
KP3#,UP3# UPR |
1 | ||
| 45807-10010 |
KP3#..SED,V COLLAPSIBLE STEERING |
1 | ||
| 55663-10020 |
KP3#,UP3# LWR |
1 | ||
| 45807-10010 |
KP31..SR,ST,XL COLLAPSIBLE STEERING |
1 | ||
| 45807-10010 |
KP30,31 COLLAPSIBLE STEERING |
1 | ||
| 55602-10011 |
KP3#..DLX,HDX,S,STD LWR,RIGID STEERING |
1 | ||
| 55661-10022 |
KP3#..DLX,HDX,S,STD UPR,RIGID STEERING |
1 | ||
| 45863 - ABSORBER, STEERING COLUMN ENERGY | ||||
| 45863-10011 |
KP3#..SED,V COLLAPSIBLE STEERING |
1 | ||
| 45863-10011 |
KP30,31 COLLAPSIBLE STEERING |
1 | ||
| 45863-10010 |
KP31..SR,ST,XL COLLAPSIBLE STEERING |
1 | ||
| 45863A - COLLAR | ||||
| 90387-08120 |
KP3#..SED,V COLLAPSIBLE STEERING |
2 | ||
| 90387-08120 |
KP30,31 COLLAPSIBLE STEERING |
2 | ||
| 45866 - CUSHION, STEERING COLUMN ENERGY ABSORBER | ||||
| 45866-10010 |
KP30,31 COLLAPSIBLE STEERING |
2 | ||
| 45866-10010 |
KP3#..SED,V COLLAPSIBLE STEERING |
2 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12010 |
KP3# |
2 | ||
| Common parts | ||||
| 90119-06111 | ||||
| 90119-10099 | ||||
| 90204-12029 | ||||
| 91651-60825 | ||||
| 91661-40816 | ||||
| 93319-14010 | ||||
| 94125-41200 | ||||

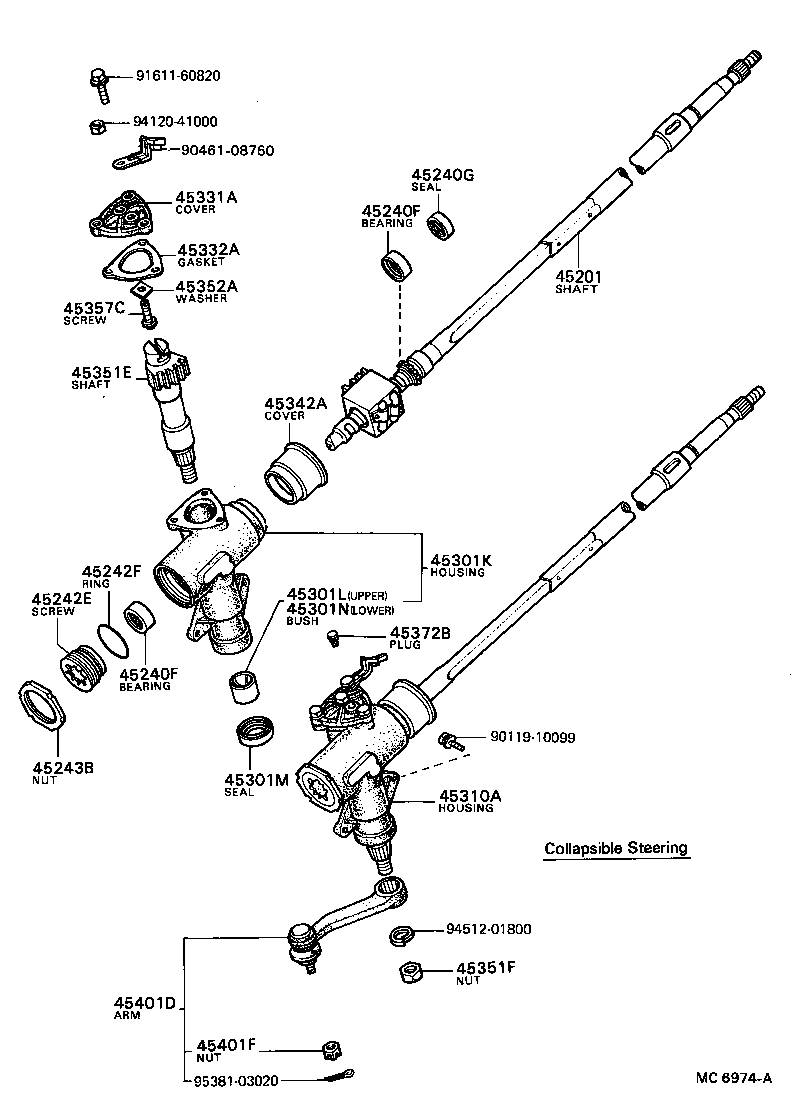

ILLUST NO. 2 OF 2(7201-7511)SED,V ; (7511-7907)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45220-10020 |
KP31..SR,ST,XL COLLAPSIBLE STEERING |
1 | ||
| 45220-10010 |
KP3#..DLX,HDX,S,STD RIGID STEERING |
1 | ||
| 45201-10060 |
KP3#,UP3# RIGID STEERING |
1 | ||
| 45220-10020 |
KP30,31 COLLAPSIBLE STEERING |
1 | ||
| 45240F - BEARING(FOR STEERING WORM) | ||||
| 90363-20031 |
KP3#,UP3# |
2 | ||
| 45240F - BEARING(FOR STEERING WORM) | ||||
| 90363-20031 |
KP3#,UP3# |
2 | ||
| 45240G - SEAL, OIL(FOR STEERING WORM) | ||||
| 90310-30035 |
KP31..SR,ST,XL COLLAPSIBLE STEERING |
1 | ||
| 90310-30035 |
KP30,31 COLLAPSIBLE STEERING |
1 | ||
| 90310-30035 |
KP3#..SED,V COLLAPSIBLE STEERING |
1 | ||
| 45242E - SCREW, WORM BEARING ADJUSTING | ||||
| 45242-12010 |
KP3#,UP3# |
1 | ||
| 45242F - RING, O(FOR WORM BEARING ADJUSTING SCREW) | ||||
| 90301-37095 |
KP3#,UP3# |
1 | ||
| 45243B - NUT, WORM BEARING ADJUSTING SCREW LOCK | ||||
| 45243-12010 |
KP3#,UP3# |
1 | ||
| 45301K - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-10080 |
KP3#,UP3# RIGID STEERING |
1 | ||
| 45301-12090 |
KP3#..SED,V COLLAPSIBLE STEERING |
1 | ||
| 45301-12090 |
KP30,31 COLLAPSIBLE STEERING |
1 | ||
| 45301-10082 |
KP3#..DLX,HDX,S,STD RIGID STEERING |
1 | ||
| 45301-12090 |
KP31..SR,ST,XL COLLAPSIBLE STEERING |
1 | ||
| 45301L - BUSH OR BEARING(FOR SECTOR SHAFT NO.1) | ||||
| 90999-71013 |
KP3#,UP3# |
1 | ||
| 45301M - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90310-25021 |
KP3#,UP3# |
1 | ||
| 45301N - BUSH OR BEARING(FOR SECTOR SHAFT NO.2) | ||||
| 90999-71013 |
KP3#,UP3# |
1 | ||
| 45310A - HOUSING ASSY, STEERING GEAR | ||||
| 45310-10010 |
KP3#..DLX,HDX,S,STD RIGID STEERING |
1 | ||
| 45310-10020 |
KP31..SR,ST,XL COLLAPSIBLE STEERING |
1 | ||
| 45310-10020 |
KP3#..SED,V COLLAPSIBLE STEERING |
1 | ||
| 45310-10020 |
KP30,31 COLLAPSIBLE STEERING |
1 | ||
| 45331A - COVER, SECTOR SHAFT END | ||||
| 45331-10020 |
KP3#,UP3# |
1 | ||
| 45332A - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-10011 |
KP3#,UP3# |
1 | ||
| 45342A - COVER, STEERING GEAR HOUSING | ||||
| 45342-12010 |
KP3#..SED,V COLLAPSIBLE STEERING |
1 | ||
| 45342-12010 |
KP31..SR,ST,XL COLLAPSIBLE STEERING |
1 | ||
| 45342-12010 |
KP30,31 COLLAPSIBLE STEERING |
1 | ||
| 45351E - SHAFT, STEERING SECTOR | ||||
| 45350-10011 |
KP3#,UP3# |
1 | ||
| 45351F - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 94110-41600 |
KP3#,UP3# |
1 | ||
| 45352A - WASHER, SECTOR SHAFT THRUST | ||||
| 45353-10011 |
KP3#,UP3# T=2.07 |
1 | ||
| 45352-10011 |
KP3#,UP3# T=2.01 |
1 | ||
| 45354-10010 |
KP3#,UP3# T=2.11 |
1 | ||
| 45355-10010 |
KP3#,UP3# T=2.15 |
1 | ||
| 45356-10010 |
KP3#,UP3# T=2.19 |
1 | ||
| 45358-10010 |
KP3#,UP3# T=2.24 |
1 | ||
| 45357C - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-10020 |
KP3#,UP3# |
1 | ||
| 45372B - PLUG, STEERING GEAR HOUSING OIL | ||||
| 45372-10010 |
KP3#,UP3# |
1 | ||
| 45401D - ARM SUB-ASSY, PITMAN | ||||
| 45401-19035 |
KP3#,UP3# |
1 | ||
| 45401F - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90171-12028 |
KP3#,50 |
1 | ||
| Common parts | ||||
| 90119-10099 | ||||
| 90461-08760 | ||||
| 91611-60820 | ||||
| 94120-41000 | ||||
| 94512-01800 | ||||
| 95381-03020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
