KP31-XR (1971)
Toyota Publica

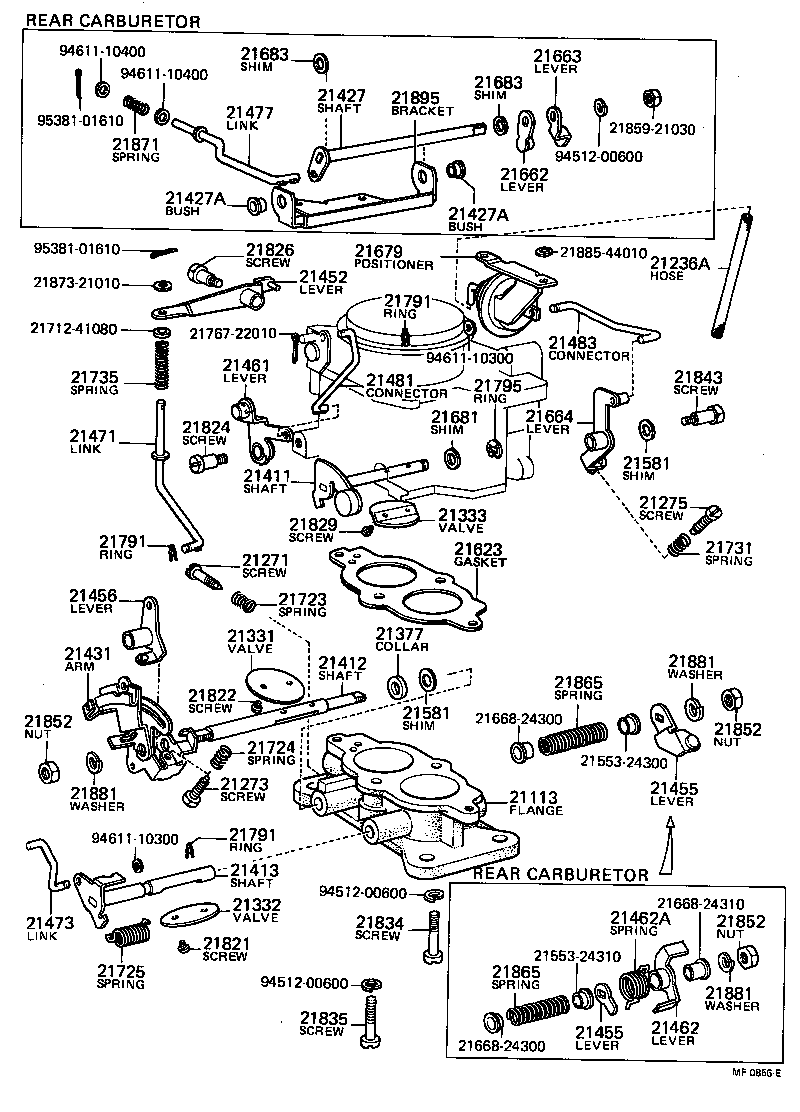

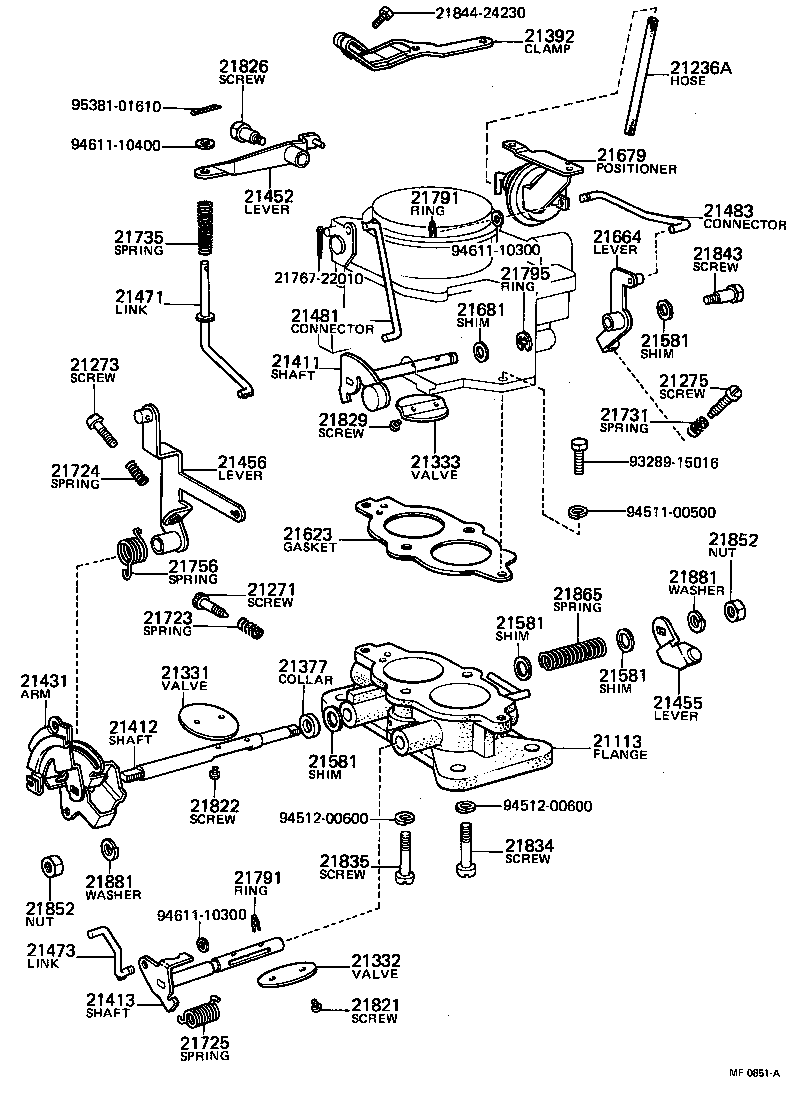

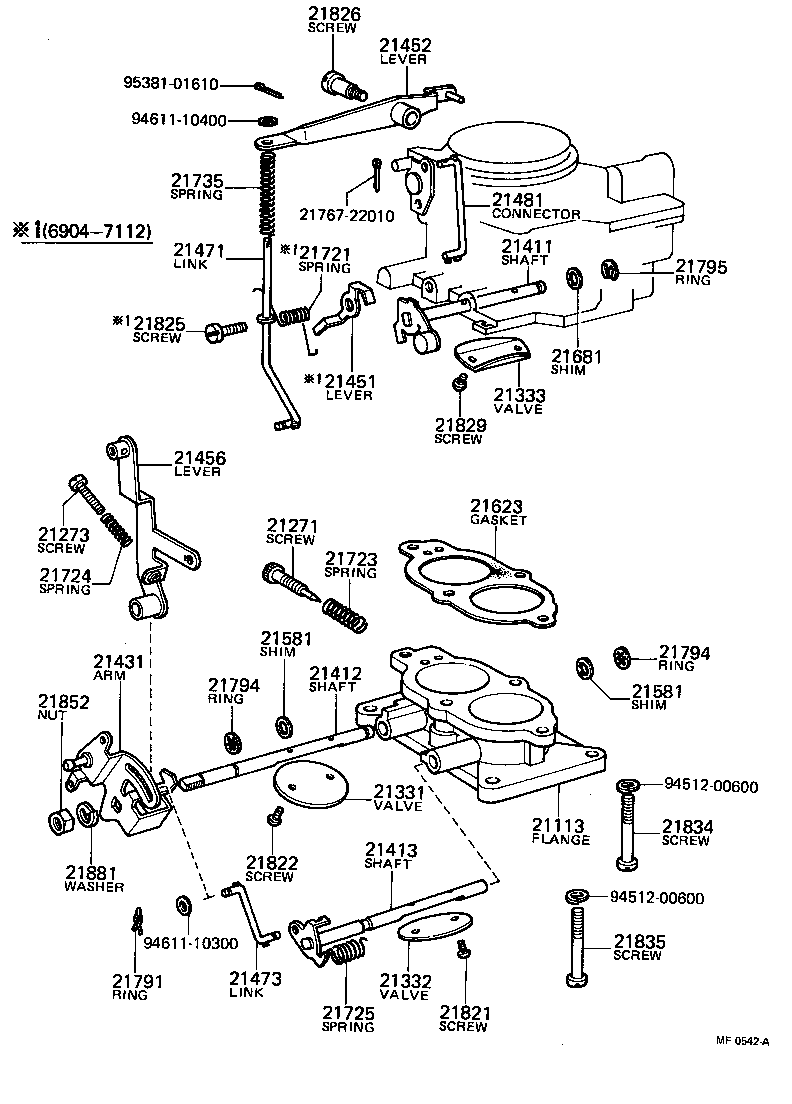

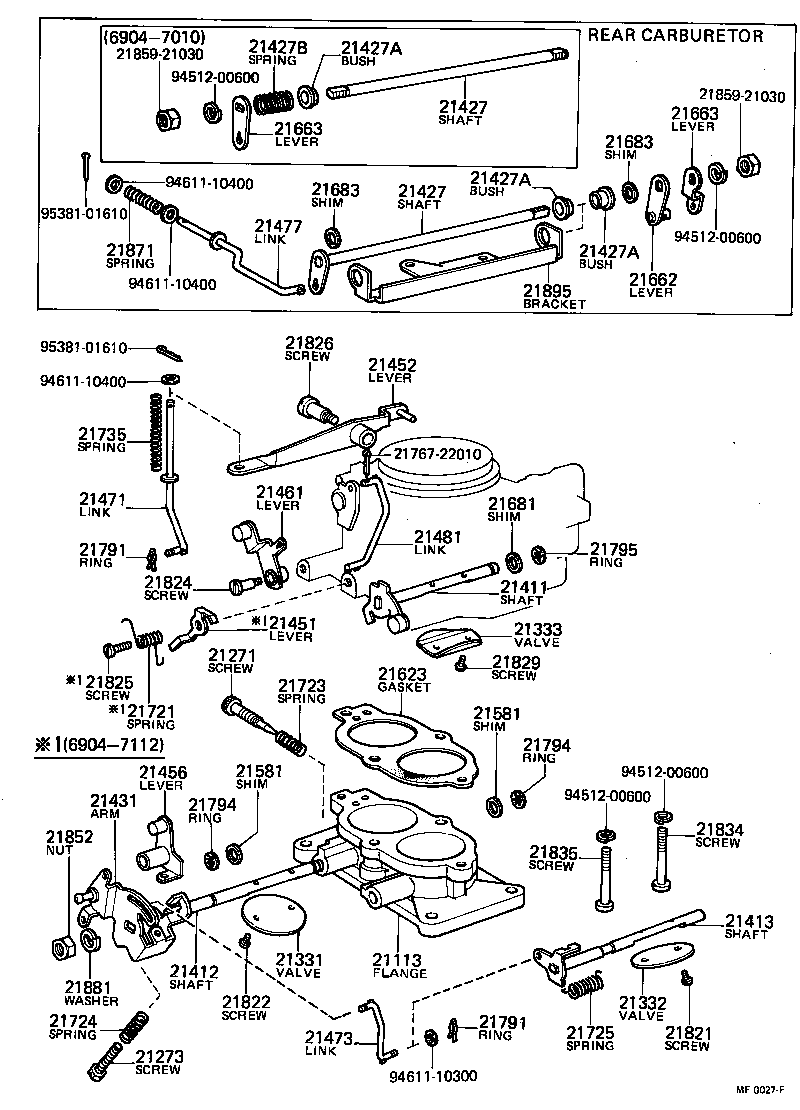

ILLUST NO. 2 OF 2(6904-7304)KB,3KB#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21113 - FLANGE, CARBURETOR | ||||
| 21113-24131 |
3KB#..KP31 RR CARBURETOR,COLD SPEC |
1 | ||
| 21113-24121 |
3KB#..KP31 FR CARBURETOR,COLD SPEC |
1 | ||
| 21113-24270 |
3KB#..KP31 RR CARBURETOR |
1 | ||
| 21113-24280 |
3KB#..KP31 FR CARBURETOR,COLD SPEC |
1 | ||
| 21113-24111 |
3K..KP31,37 COLD SPEC |
1 | ||
| 21113-24240 |
3K..KP31,37 COLD SPEC |
1 | ||
| 21113-24300 |
3KB#..KP31 FR CARBURETOR |
1 | ||
| 21113-24260 |
3KB#..KP31 FR CARBURETOR |
1 | ||
| 21113-24230 |
3K..KP31,37 |
1 | ||
| 21113-24310 |
3KB#..KP31 RR CARBURETOR |
1 | ||
| 21113-24290 |
3KB#..KP31 RR CARBURETOR,COLD SPEC |
1 | ||
| 21113-24231 |
3K..KP31,37 |
1 | ||
| 21273 - SCREW, THROTTLE ADJUSTING | ||||
| 21273-50010 |
KB,2K..KP3# |
1 | ||
| 21331 - VALVE, 1ST THROTTLE | ||||
| 21331-21010 |
2K,3K,3KB#..KP3# |
1 | ||
| 21331-22010 |
3K,3KB#..KP31,37 |
2 | ||
| 21331-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21332 - VALVE, 2ND THROTTLE | ||||
| 21332-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21332-21060 |
2K,3K,3KB#..KP3# |
2 | ||
| 21332-22010 |
3K,3KB#..KP31,37 |
2 | ||
| 21333 - VALVE, HIGH SPEED | ||||
| 21333-22010 |
2K,3K..KP3# |
1 | ||
| 21333-22050 |
KB,3KB#..KP30,31 |
2 | ||
| 21411 - SHAFT, HIGH SPEED | ||||
| 21432-24030 |
2K,3K..KP3# |
1 | ||
| 21805-22011 |
2K,3K..KP3# |
1 | ||
| 21411-24010 |
2K,3K..KP3# |
1 | ||
| 21432-24030 |
3K..KP31,37 |
1 | ||
| 21432-24061 |
3KB#..KP31 |
2 | ||
| 21412 - SHAFT, 1ST THROTTLE | ||||
| 21412-24300 |
2K,3K,3KB#..KP3#..4F |
2 | ||
| 21412-24250 |
2K,3KB#..KP30,31,36 |
2 | ||
| 21412-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21412-24310 |
3KB#..KP31 RR CARBURETOR |
1 | ||
| 21412-24300 |
2K,3K,3KB#..KP3# |
2 | ||
| 21412-24230 |
3K,3KB#..KP31,37 |
2 | ||
| 21413 - SHAFT, 2ND THROTTLE | ||||
| 21413-24061 |
3KB#..KP31 |
2 | ||
| 21402-22010 |
KB,2K..KP3# |
1 | ||
| 21413-24030 |
2K,3K..KP3# |
1 | ||
| 21427 - SHAFT, CHOKE CONNECTOR | ||||
| 21427-24310 |
3KB#..KP31 |
1 | ||
| 21427 - SHAFT, CHOKE CONNECTOR | ||||
| 21427-24310 |
3KB#..KP31 |
1 | ||
| 21427A - BUSH, SHAFT CHOKE CONNECTOR | ||||
| 21895-22060 |
KB,3KB#..KP30,31 |
2 | ||
| 21427A - BUSH, SHAFT CHOKE CONNECTOR | ||||
| 21895-22060 |
KB,3KB#..KP30,31 |
2 | ||
| 21427A - BUSH, SHAFT CHOKE CONNECTOR | ||||
| 21895-22060 |
KB,3KB#..KP30,31 |
2 | ||
| 21431 - ARM, 1ST THROTTLE SHAFT | ||||
| 21431-24061 |
3KB#..KP31 |
2 | ||
| 21431-24080 |
3KB#..KP31 |
2 | ||
| 21431-24300 |
3KB#..KP31 |
2 | ||
| 21431-24231 |
2K,3K..KP3#..4F |
1 | ||
| 21431-24031 |
2K,3K..KP3#..4F |
1 | ||
| 21431-24301 |
3KB#..KP31 |
2 | ||
| 21431-24260 |
3KB#..KP31 |
2 | ||
| 21431-24230 |
2K,3K..KP3#..4F |
1 | ||
| 21431-24232 |
2K,3K..KP3#..4F |
1 | ||
| 21451 - LEVER, HIGH SPEED VALVE STOP | ||||
| 21451-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21452 - LEVER, PUMP | ||||
| 21407-22011 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21452-24300 |
3KB#..KP31 |
2 | ||
| 21452-24100 |
2K,3K..KP3#..4F |
1 | ||
| 21452-24230 |
3K..KP31,37 |
1 | ||
| 21456 - LEVER, 1ST THROTTLE IDLE ADJUSTING, NO.1 | ||||
| 21456-24240 |
3K..KP31,37 COLD SPEC |
1 | ||
| 21456-24230 |
2K,3K..KP3# |
1 | ||
| 21456-24110 |
3K..KP31,37 COLD SPEC |
1 | ||
| 21456-24101 |
2K,3K..KP3#..4F |
1 | ||
| 21456-24260 |
3KB#..KP31 |
2 | ||
| 21456-22012 |
2K,3K..KP3# |
1 | ||
| 21461 - LEVER, 1ST IDLE | ||||
| 21458-24060 |
3KB#..KP31 |
2 | ||
| 21471 - LINK, PUMP CONNECTING | ||||
| 21474-22011 |
KB,2K..KP3# |
2 | ||
| 21474-24101 |
2K,3K..KP3# |
1 | ||
| 21471-24230 |
2K,3K..KP3# |
1 | ||
| 21474-24101 |
2K,3K..KP3#..4F |
1 | ||
| 21473 - LINK, THROTTLE SHAFT | ||||
| 21473-31010 |
KB,2K..KP3# |
2 | ||
| 21473-24060 |
3KB#..KP31 |
2 | ||
| 21473-24010 |
2K,3K..KP3# |
1 | ||
| 21473-24230 |
2K,3K..KP3# |
1 | ||
| 21477 - LINK, CHOKE LEVER | ||||
| 21477-24310 |
3KB#..KP31 |
1 | ||
| 21481 - CONNECTOR, 1ST IDLE | ||||
| 21481-22012 |
2K,3K..KP3# |
1 | ||
| 21581 - SHIM, 1ST THROTTLE SHAFT | ||||
| 21581-21010 |
KB,2K,3K,3KB#..KP3# T=0.2 |
1 | ||
| 21582-21010 |
KB,2K,3K,3KB#..KP3# T=0.3 |
1 | ||
| 21583-32010 |
3K,3KB#..KP31,37 T=0.6 |
1 | ||
| 26228-31010 |
3K,3KB#..KP31,37 T=0.6 |
1 | ||
| 21583-41010 |
2K,3K,3KB#..KP3# T=0.3 |
1 | ||
| 21588-21010 |
KB,2K,3K,3KB#..KP3# T=0.1 |
1 | ||
| 21581-32010 |
2K,3K,3KB#..KP3# T=0.2 |
1 | ||
| 21583-21010 |
3K,3KB#..KP31,37 T=0.6 |
1 | ||
| 21581-41010 |
2K,3K,3KB#..KP3# T=0.1 |
1 | ||
| 21581 - SHIM, 1ST THROTTLE SHAFT | ||||
| 21581-21010 |
KB,2K,3K,3KB#..KP3# T=0.2 |
1 | ||
| 21582-21010 |
KB,2K,3K,3KB#..KP3# T=0.3 |
1 | ||
| 21583-32010 |
3K,3KB#..KP31,37 T=0.6 |
1 | ||
| 26228-31010 |
3K,3KB#..KP31,37 T=0.6 |
1 | ||
| 21583-41010 |
2K,3K,3KB#..KP3# T=0.3 |
1 | ||
| 21588-21010 |
KB,2K,3K,3KB#..KP3# T=0.1 |
1 | ||
| 21581-32010 |
2K,3K,3KB#..KP3# T=0.2 |
1 | ||
| 21583-21010 |
3K,3KB#..KP31,37 T=0.6 |
1 | ||
| 21581-41010 |
2K,3K,3KB#..KP3# T=0.1 |
1 | ||
| 21623 - GASKET, BODY FLANGE | ||||
| 21623-22011 |
KB,2K..KP3# |
2 | ||
| 21623-24300 |
2K,3K,3KB#..KP3# |
2 | ||
| 21623-24300 |
2K,3K,3KB#..KP3#..4F |
2 | ||
| 21662 - LEVER, CHOKE CONNECTOR SHAFT, NO.1 | ||||
| 21454-24310 |
3KB#..KP31 RR CARBURETOR |
1 | ||
| 21663 - LEVER, CHOKE CONNECTOR SHAFT, NO.2 | ||||
| 21464-24310 |
3KB#..KP31 RR CARBURETOR |
1 | ||
| 21663 - LEVER, CHOKE CONNECTOR SHAFT, NO.2 | ||||
| 21464-24310 |
3KB#..KP31 RR CARBURETOR |
1 | ||
| 21681 - SHIM(FOR HIGH SPEED SHAFT) | ||||
| 21681-21060 |
KB,2K,3K,3KB#..KP3# T=0.1 |
1 | ||
| 21682-21060 |
KB,2K,3K,3KB#..KP3# T=0.2 |
1 | ||
| 21721 - SPRING, HIGH SPEED VALVE STOP LEVER | ||||
| 21721-22010 |
KB,2K..KP3# |
1 | ||
| 21723 - SPRING, IDLE ADJUSTING | ||||
| 21723-21030 |
KB,2K..KP3# |
2 | ||
| 21724 - SPRING, THROTTLE ADJUSTING | ||||
| 21726-40010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21725 - SPRING, 2ND THROTTLE BACK | ||||
| 21725-24030 |
2K,3K,3KB#..KP3# |
2 | ||
| 21725-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21735 - SPRING, PUMP ARM | ||||
| 21735-24030 |
2K,3K,3KB#..KP3#..4F |
2 | ||
| 21735-22010 |
KB,2K..KP3# |
2 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
6 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
6 | ||
| 21794 - RING, RETAINER, NO.1(FOR THROTTLE SHAFT) | ||||
| 21794-40010 |
KB,2K,3K,3KB#..KP3# |
4 | ||
| 21794 - RING, RETAINER, NO.1(FOR THROTTLE SHAFT) | ||||
| 21794-40010 |
KB,2K,3K,3KB#..KP3# |
4 | ||
| 21795 - RING, RETAINER, NO.2(FOR HIGH SPEED SHAFT) | ||||
| 21795-30010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21821 - SCREW, 2ND THROTTLE VALVE SET | ||||
| 21821-60010 |
KB,2K..KP3# |
2 | ||
| 21822 - SCREW, 1ST THROTTLE VALVE SET | ||||
| 21822-10010 |
KB,2K..KP3# |
4 | ||
| 21822-44100 |
2K,3K,3KB#..KP3# |
4 | ||
| 21825 - SCREW, STOP LEVER SET | ||||
| 21825-33010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21826 - SCREW, PUMP ARM SET | ||||
| 21826-31010 |
KB,2K,3K..KP3# |
2 | ||
| 21826-31011 |
2K,3K,3KB#..KP3# |
1 | ||
| 21829 - SCREW, HIGH SPEED VALVE SET | ||||
| 21823-60010 |
KB,2K..KP3# |
2 | ||
| 21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET) | ||||
| 21834-31010 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
2 | ||
| 21835 - SCREW, SET, NO.3(FOR CARBURETOR BODY SET) | ||||
| 21835-40010 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
2 | ||
| 21852 - NUT, THROTTLE LEVER SET | ||||
| 21852-30010 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
2 | ||
| 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) | ||||
| 21881-60010 |
KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50 |
2 | ||
| 21895 - BRACKET, CHOKE CONNECTOR SHAFT | ||||
| 21896-24310 |
3KB#..KP31 RR CARBURETOR |
1 | ||
| Common parts | ||||
| 21767-22010 | ||||
| 21859-21030 | ||||
| 94512-00600 | ||||
| 94611-10300 | ||||
| 94611-10400 | ||||
| 95381-01610 | ||||

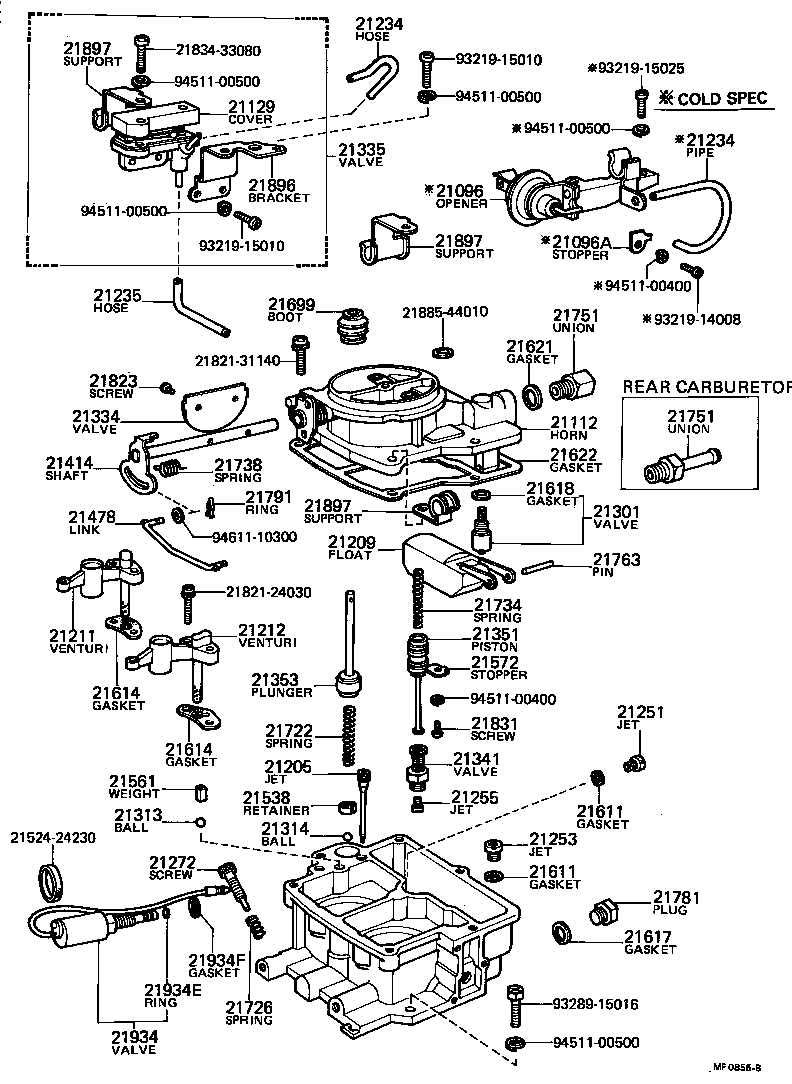

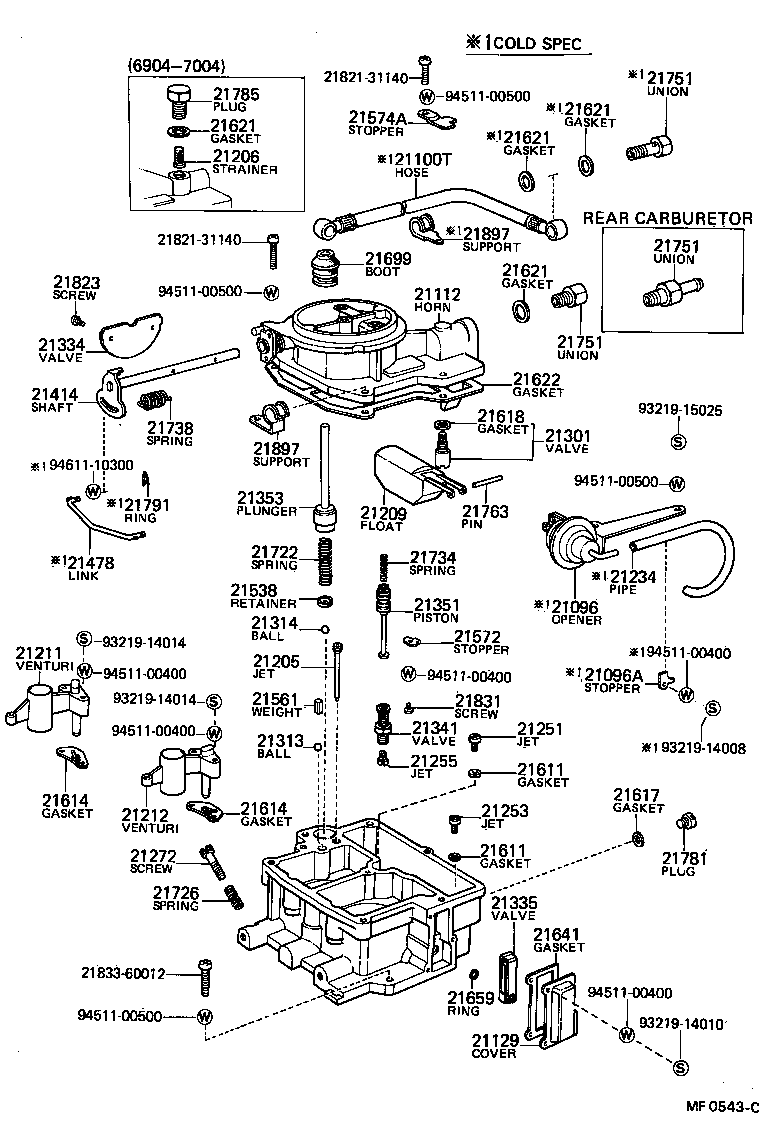

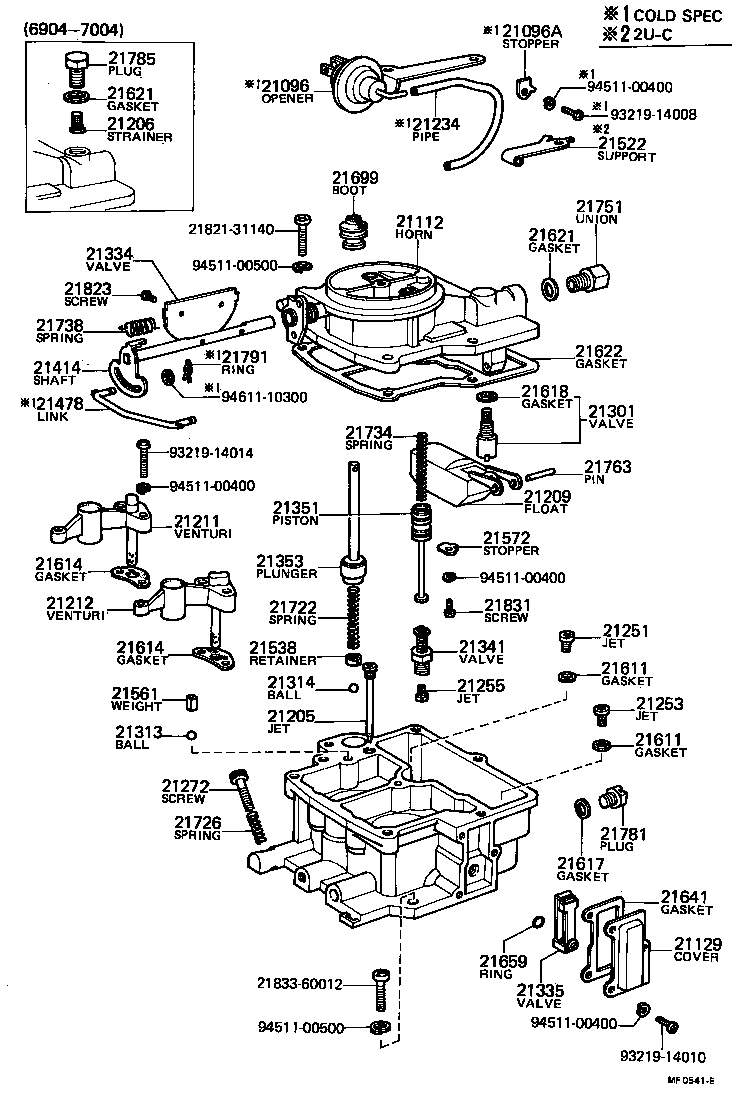

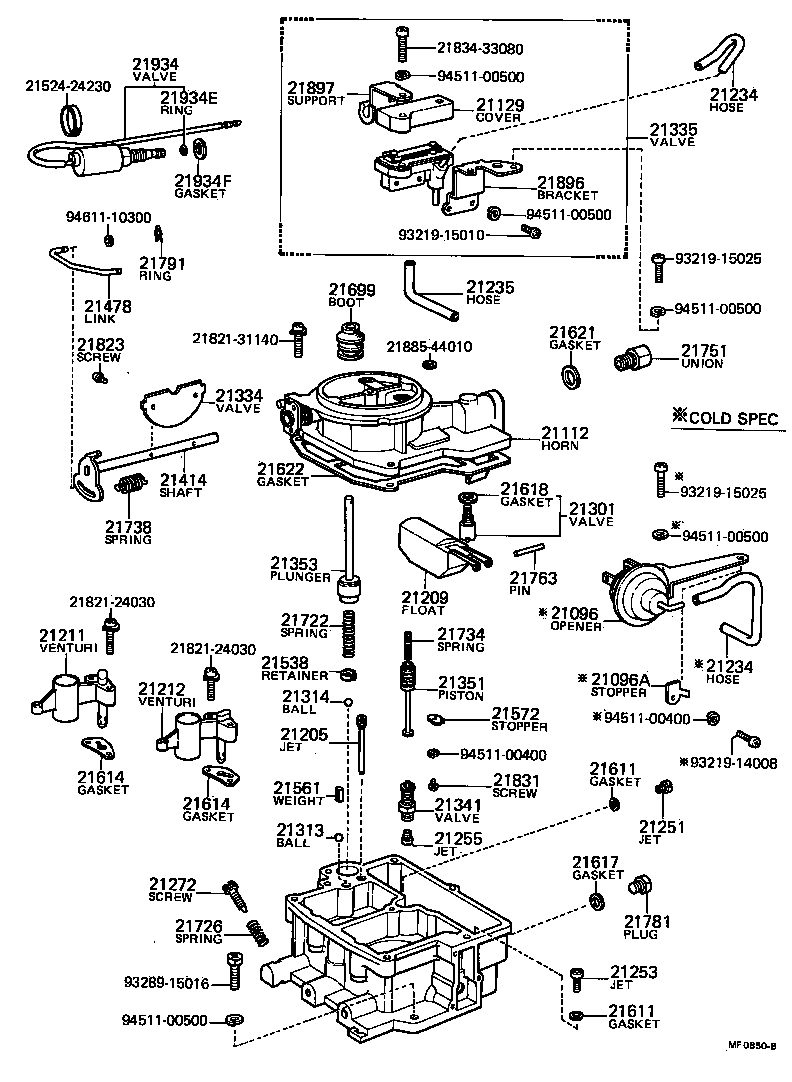

ILLUST NO. 1 OF 2(6904-7304)2K,3K
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21096 - OPENER SUB-ASSY, THROTTLE | ||||
| 21191-24122 |
3KB#..KP31 FR CARBURETOR |
1 | ||
| 21191-24122 |
3KB#..KP31 FR CARBURETOR |
1 | ||
| 21191-24131 |
3KB#..KP31 RR CARBURETOR |
1 | ||
| 21191-24131 |
3KB#..KP31 RR CARBURETOR |
1 | ||
| 21191-24111 |
3K..KP31,37 |
1 | ||
| 21191-24111 |
3K..KP31,37 |
1 | ||
| 21191-24280 |
3KB#..KP31 FR CARBURETOR |
1 | ||
| 21191-24280 |
3KB#..KP31 FR CARBURETOR |
1 | ||
| 21096A - STOPPER(FOR OPENER) | ||||
| 21575-24240 |
3K,3KB#..KP31,37 COLD SPEC |
1 | ||
| 21575-24240 |
3K,3KB#..KP31,37 COLD SPEC |
1 | ||
| 21112 - HORN, AIR | ||||
| 21112-24032 |
2K,3K..KP3# |
1 | ||
| 21112-24032 |
2K,3K..KP3# |
1 | ||
| 21112-24100 |
2K,3K..KP3# |
1 | ||
| 21112-24100 |
2K,3K..KP3# |
1 | ||
| 21112-24310 |
3KB#..KP31 RR CARBURETOR |
2 | ||
| 21112-24310 |
3KB#..KP31 RR CARBURETOR |
2 | ||
| 21112-24181 |
3KB#..KP31 FR CARBURETOR |
1 | ||
| 21112-24181 |
3KB#..KP31 FR CARBURETOR |
1 | ||
| 21112-24062 |
3KB#..KP31 RR CARBURETOR |
2 | ||
| 21112-24062 |
3KB#..KP31 RR CARBURETOR |
2 | ||
| 21102-22013 |
KB,2K..KP3# |
1 | ||
| 21102-22013 |
KB,2K..KP3# |
1 | ||
| 21112-24100 |
2K,3K..KP3#..4F |
1 | ||
| 21112-24100 |
2K,3K..KP3#..4F |
1 | ||
| 21112-24031 |
2K,3K..KP3# |
1 | ||
| 21112-24031 |
2K,3K..KP3# |
1 | ||
| 21112-24061 |
3KB#..KP31 |
2 | ||
| 21112-24061 |
3KB#..KP31 |
2 | ||
| 21129 - COVER(FOR THERMOSTATIC VALVE) | ||||
| 21129-23010 |
KB,2K..KP3# |
1 | ||
| 21129-23010 |
KB,2K..KP3# |
1 | ||
| 21129-24160 |
2K,3K,3KB#..KP3# |
1 | ||
| 21129-24160 |
2K,3K,3KB#..KP3# |
1 | ||
| 21205 - JET SUB-ASSY, SLOW | ||||
| 21205-22010 |
KB,2K,3K..KP3# ID=0.47 |
1 | ||
| 21205-22010 |
KB,2K,3K..KP3# ID=0.47 |
1 | ||
| 21205-24011 |
2K,3K,3KB#..KP3# ID=0.47 |
2 | ||
| 21205-24011 |
2K,3K,3KB#..KP3# ID=0.47 |
2 | ||
| 90999-44147 |
2K,3K,3KB#..KP3# ID=0.47 |
2 | ||
| 90999-44147 |
2K,3K,3KB#..KP3# ID=0.47 |
2 | ||
| 90999-44144 |
3KB#..KP31 ID=0.44 |
2 | ||
| 90999-44144 |
3KB#..KP31 ID=0.44 |
2 | ||
| 90999-44145 |
3K..KP31,37 ID=0.45 |
1 | ||
| 90999-44145 |
3K..KP31,37 ID=0.45 |
1 | ||
| 21206 - STRAINER SUB-ASSY | ||||
| 21294-10010 |
KB,2K..KP3# |
1 | ||
| 21294-10010 |
KB,2K..KP3# |
1 | ||
| 21209 - FLOAT SUB-ASSY | ||||
| 21209-22010 |
KB,2K..KP3# |
2 | ||
| 21209-22010 |
KB,2K..KP3# |
2 | ||
| 21211 - VENTURI, 1ST SMALL | ||||
| 21211-22040 |
2K,3KB#..KP30,31,36 |
2 | ||
| 21211-22040 |
2K,3KB#..KP30,31,36 |
2 | ||
| 21211-24230 |
3K..KP31,37 |
1 | ||
| 21211-24230 |
3K..KP31,37 |
1 | ||
| 21211-22040 |
KB,2K,3K,3KB#..KP3# |
1 | ||
| 21211-22040 |
KB,2K,3K,3KB#..KP3# |
1 | ||
| 21212 - VENTURI, 2ND SMALL | ||||
| 21212-24230 |
3K..KP31,37 |
1 | ||
| 21212-24230 |
3K..KP31,37 |
1 | ||
| 21202-22010 |
KB,2K,3KB#..KP30,31,36 |
2 | ||
| 21202-22010 |
KB,2K,3KB#..KP30,31,36 |
2 | ||
| 21202-22010 |
3KB#..KP31 |
2 | ||
| 21202-22010 |
3KB#..KP31 |
2 | ||
| 21212-24231 |
3K..KP31,37 |
1 | ||
| 21212-24231 |
3K..KP31,37 |
1 | ||
| 21234 - PIPE OR HOSE | ||||
| 21234-24200 |
3K,3KB#..KP31,37 COLD SPEC |
1 | ||
| 21234-24200 |
3K,3KB#..KP31,37 COLD SPEC |
1 | ||
| 21234-24230 |
2K,3K,3KB#..KP3# |
1 | ||
| 21234-24230 |
2K,3K,3KB#..KP3# |
1 | ||
| 21251 - JET, 1ST MAIN | ||||
| 90999-41105 |
3K..KP31,37 ID=1.05 |
1 | ||
| 90999-41105 |
3K..KP31,37 ID=1.05 |
1 | ||
| 90999-41102 |
3K..KP31,37 ID=1.02 |
1 | ||
| 90999-41102 |
3K..KP31,37 ID=1.02 |
1 | ||
| 21253 - JET, 2ND MAIN | ||||
| 90999-42141 |
2K,3K..KP3# ID=1.41 |
1 | ||
| 90999-42141 |
2K,3K..KP3# ID=1.41 |
1 | ||
| 90999-42138 |
3KB#..KP31 ID=1.38 |
2 | ||
| 90999-42138 |
3KB#..KP31 ID=1.38 |
2 | ||
| 90999-42162 |
2K,3K..KP3# ID=1.62 |
1 | ||
| 90999-42162 |
2K,3K..KP3# ID=1.62 |
1 | ||
| 90999-42126 |
3KB#..KP31 ID=1.26 |
2 | ||
| 90999-42126 |
3KB#..KP31 ID=1.26 |
2 | ||
| 21255 - JET, POWER | ||||
| 90999-43055 |
2K,3KB#..KP30,31,36 ID=0.55 |
2 | ||
| 90999-43055 |
2K,3KB#..KP30,31,36 ID=0.55 |
2 | ||
| 90999-43080 |
3K..KP31,37 ID=0.80 |
1 | ||
| 90999-43080 |
3K..KP31,37 ID=0.80 |
1 | ||
| 21272 - SCREW, 1ST IDLE ADJUSTING | ||||
| 21273-22010 |
KB,2K..KP3# |
2 | ||
| 21273-22010 |
KB,2K..KP3# |
2 | ||
| 21301 - VALVE SUB-ASSY, NEEDLE | ||||
| 21301-22010 |
KB,2K..KP3# |
2 | ||
| 21301-22010 |
KB,2K..KP3# |
2 | ||
| 21301-24030 |
2K,3K,3KB#..KP3# |
2 | ||
| 21301-24030 |
2K,3K,3KB#..KP3# |
2 | ||
| 21313 - BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT) | ||||
| 21313-11020 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
1 | ||
| 21313-11020 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
1 | ||
| 21314 - BALL, STEEL, NO.2(FOR PUMP PLUNGER) | ||||
| 21314-60010 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
1 | ||
| 21314-60010 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
1 | ||
| 21334 - VALVE, CHOKE | ||||
| 21334-25030 |
2K,3K,3KB#..KP3# |
2 | ||
| 21334-25030 |
2K,3K,3KB#..KP3# |
2 | ||
| 21334-22010 |
3K,3KB#..KP31,37 |
2 | ||
| 21334-22010 |
3K,3KB#..KP31,37 |
2 | ||
| 21334-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21334-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21335 - VALVE, THERMOSTATIC | ||||
| 21335-22060 |
KB,3KB#..KP30,31 |
1 | ||
| 21335-22060 |
KB,3KB#..KP30,31 |
1 | ||
| 21061-24230 |
2K,3K..KP3# |
1 | ||
| 21061-24230 |
2K,3K..KP3# |
1 | ||
| 21061-24260 |
3KB#..KP31 |
1 | ||
| 21061-24260 |
3KB#..KP31 |
1 | ||
| 21061-24230 |
2K,3K,3KB#..KP3# |
1 | ||
| 21061-24230 |
2K,3K,3KB#..KP3# |
1 | ||
| 21335-24030 |
3K..KP31,37 |
1 | ||
| 21335-24030 |
3K..KP31,37 |
1 | ||
| 21341 - VALVE, POWER | ||||
| 21304-30010 |
KB,2K,3KB#..KP30,31,36 |
2 | ||
| 21304-30010 |
KB,2K,3KB#..KP30,31,36 |
2 | ||
| 21351 - PISTON, POWER | ||||
| 21708-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21708-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21353 - PLUNGER, PUMP | ||||
| 21305-22011 |
KB,2K,3K,3KB#,3KHJ,4KJ..KP3# |
2 | ||
| 21305-22011 |
KB,2K,3K,3KB#,3KHJ,4KJ..KP3# |
2 | ||
| 21414 - SHAFT, CHOKE | ||||
| 21414-24111 |
3K,3KB#..KP31,37 COLD SPEC |
2 | ||
| 21414-24111 |
3K,3KB#..KP31,37 COLD SPEC |
2 | ||
| 21403-22011 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21403-22011 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21478 - LINK, CONNECTING | ||||
| 21478-24280 |
3KB#..KP31 FR CARBURETOR,COLD SPEC |
1 | ||
| 21478-24280 |
3KB#..KP31 FR CARBURETOR,COLD SPEC |
1 | ||
| 21538 - RETAINER, BALL CHECK | ||||
| 21538-31010 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
2 | ||
| 21538-31010 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
2 | ||
| 21561 - WEIGHT, PUMP DISCHARGE | ||||
| 21561-30010 |
KB,2K..KP3# |
2 | ||
| 21561-30010 |
KB,2K..KP3# |
2 | ||
| 21572 - STOP, POWER PISTON | ||||
| 21572-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21572-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21572-33080 |
2K,3K,3KB#..KP3# |
2 | ||
| 21572-33080 |
2K,3K,3KB#..KP3# |
2 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50 |
4 | ||
| 21611-22010 |
KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50 |
4 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50 |
4 | ||
| 21611-22010 |
KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50 |
4 | ||
| 21614 - GASKET, VENTURI | ||||
| 21614-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21614-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21614 - GASKET, VENTURI | ||||
| 21614-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21614-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21649-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21649-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21618 - GASKET, NEEDLE VALVE SEAT | ||||
| 21618-21010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21618-21010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21619-22010 |
KB,2K..KP3# |
1 | ||
| 21619-22010 |
KB,2K..KP3# |
1 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21619-22010 |
KB,2K..KP3# |
1 | ||
| 21619-22010 |
KB,2K..KP3# |
1 | ||
| 21622 - GASKET, AIR HORN | ||||
| 21622-24011 |
2K,3K,3KB#..KP3# |
2 | ||
| 21622-24011 |
2K,3K,3KB#..KP3# |
2 | ||
| 21622-22010 |
KB,2K,3K..KP3# |
2 | ||
| 21622-22010 |
KB,2K,3K..KP3# |
2 | ||
| 21641 - GASKET(FOR THERMOSTATIC VALVE COVER) | ||||
| 21641-23010 |
KB,2K,3K,3KB#..KP3# |
1 | ||
| 21641-23010 |
KB,2K,3K,3KB#..KP3# |
1 | ||
| 21659 - RING, O(FOR THERMOSTATIC VALVE) | ||||
| 23532-40010 |
KB,2K..KP3# |
1 | ||
| 23532-40010 |
KB,2K..KP3# |
1 | ||
| 21699 - BOOT(FOR PUMP PLUNGER) | ||||
| 21699-21061 |
KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50 |
2 | ||
| 21699-21061 |
KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50 |
2 | ||
| 21722 - SPRING, PUMP DAMPING | ||||
| 21722-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21722-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21726 - SPRING, 1ST IDLE ADJUSTING | ||||
| 21726-40010 |
KB,2K,3K,3KB#..KP3# |
1 | ||
| 21726-40010 |
KB,2K,3K,3KB#..KP3# |
1 | ||
| 21738 - SPRING, CHOKE VALVE RELIEF | ||||
| 21738-24060 |
3KB#..KP31 |
2 | ||
| 21738-24060 |
3KB#..KP31 |
2 | ||
| 21751 - UNION, NIPPLE | ||||
| 21751-24072 |
3KB#..KP31 |
1 | ||
| 21751-24072 |
3KB#..KP31 |
1 | ||
| 21751-24122 |
3KB#..KP31 COLD SPEC |
1 | ||
| 21751-24122 |
3KB#..KP31 COLD SPEC |
1 | ||
| 21751-24071 |
3KB#..KP31 |
1 | ||
| 21751-24071 |
3KB#..KP31 |
1 | ||
| 21751-24032 |
2K,3K,3KB#..KP3# |
1 | ||
| 21751-24032 |
2K,3K,3KB#..KP3# |
1 | ||
| 21751-24290 |
3KB#..KP31 |
1 | ||
| 21751-24290 |
3KB#..KP31 |
1 | ||
| 21763 - PIN, FLOAT LEVER | ||||
| 21763-29270 |
KB,2K,3K,3KB#..KP3# |
1 | ||
| 21763-29270 |
KB,2K,3K,3KB#..KP3# |
1 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21677-22010 |
2K,3K..KP3# |
1 | ||
| 21677-22010 |
2K,3K..KP3# |
1 | ||
| 21785 - PLUG, CARBURETOR FUEL INLET STRAINER | ||||
| 21781-60010 |
KB,2K..KP3# |
2 | ||
| 21781-60010 |
KB,2K..KP3# |
2 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
6 | ||
| 21791-60010 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
6 | ||
| 21823 - SCREW, CHOKE, VALVE SET | ||||
| 21823-60010 |
KB,2K..KP3# |
2 | ||
| 21823-60010 |
KB,2K..KP3# |
2 | ||
| 21831 - SCREW, POWER PISTON STOP | ||||
| 21842-33010 |
KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50 |
2 | ||
| 21842-33010 |
KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50 |
2 | ||
| Common parts | ||||
| 21821-31140 | ||||
| 21833-60012 | ||||
| 93219-14008 | ||||
| 93219-14010 | ||||
| 93219-14014 | ||||
| 94511-00400 | ||||
| 94511-00500 | ||||
| 94611-10300 | ||||
ILLUST NO. 2 OF 2(6904-7304)2K,3K
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21113 - FLANGE, CARBURETOR | ||||
| 21113-24131 |
3KB#..KP31 RR CARBURETOR,COLD SPEC |
1 | ||
| 21113-24131 |
3KB#..KP31 RR CARBURETOR,COLD SPEC |
1 | ||
| 21113-24121 |
3KB#..KP31 FR CARBURETOR,COLD SPEC |
1 | ||
| 21113-24121 |
3KB#..KP31 FR CARBURETOR,COLD SPEC |
1 | ||
| 21113-24270 |
3KB#..KP31 RR CARBURETOR |
1 | ||
| 21113-24270 |
3KB#..KP31 RR CARBURETOR |
1 | ||
| 21113-24280 |
3KB#..KP31 FR CARBURETOR,COLD SPEC |
1 | ||
| 21113-24280 |
3KB#..KP31 FR CARBURETOR,COLD SPEC |
1 | ||
| 21113-24111 |
3K..KP31,37 COLD SPEC |
1 | ||
| 21113-24111 |
3K..KP31,37 COLD SPEC |
1 | ||
| 21113-24240 |
3K..KP31,37 COLD SPEC |
1 | ||
| 21113-24240 |
3K..KP31,37 COLD SPEC |
1 | ||
| 21113-24300 |
3KB#..KP31 FR CARBURETOR |
1 | ||
| 21113-24300 |
3KB#..KP31 FR CARBURETOR |
1 | ||
| 21113-24260 |
3KB#..KP31 FR CARBURETOR |
1 | ||
| 21113-24260 |
3KB#..KP31 FR CARBURETOR |
1 | ||
| 21113-24230 |
3K..KP31,37 |
1 | ||
| 21113-24230 |
3K..KP31,37 |
1 | ||
| 21113-24310 |
3KB#..KP31 RR CARBURETOR |
1 | ||
| 21113-24310 |
3KB#..KP31 RR CARBURETOR |
1 | ||
| 21113-24290 |
3KB#..KP31 RR CARBURETOR,COLD SPEC |
1 | ||
| 21113-24290 |
3KB#..KP31 RR CARBURETOR,COLD SPEC |
1 | ||
| 21113-24231 |
3K..KP31,37 |
1 | ||
| 21113-24231 |
3K..KP31,37 |
1 | ||
| 21273 - SCREW, THROTTLE ADJUSTING | ||||
| 21273-50010 |
KB,2K..KP3# |
1 | ||
| 21273-50010 |
KB,2K..KP3# |
1 | ||
| 21331 - VALVE, 1ST THROTTLE | ||||
| 21331-21010 |
2K,3K,3KB#..KP3# |
1 | ||
| 21331-21010 |
2K,3K,3KB#..KP3# |
1 | ||
| 21331-22010 |
3K,3KB#..KP31,37 |
2 | ||
| 21331-22010 |
3K,3KB#..KP31,37 |
2 | ||
| 21331-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21331-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21332 - VALVE, 2ND THROTTLE | ||||
| 21332-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21332-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21332-21060 |
2K,3K,3KB#..KP3# |
2 | ||
| 21332-21060 |
2K,3K,3KB#..KP3# |
2 | ||
| 21332-22010 |
3K,3KB#..KP31,37 |
2 | ||
| 21332-22010 |
3K,3KB#..KP31,37 |
2 | ||
| 21333 - VALVE, HIGH SPEED | ||||
| 21333-22010 |
2K,3K..KP3# |
1 | ||
| 21333-22010 |
2K,3K..KP3# |
1 | ||
| 21333-22050 |
KB,3KB#..KP30,31 |
2 | ||
| 21333-22050 |
KB,3KB#..KP30,31 |
2 | ||
| 21411 - SHAFT, HIGH SPEED | ||||
| 21432-24030 |
2K,3K..KP3# |
1 | ||
| 21432-24030 |
2K,3K..KP3# |
1 | ||
| 21805-22011 |
2K,3K..KP3# |
1 | ||
| 21805-22011 |
2K,3K..KP3# |
1 | ||
| 21411-24010 |
2K,3K..KP3# |
1 | ||
| 21411-24010 |
2K,3K..KP3# |
1 | ||
| 21432-24030 |
3K..KP31,37 |
1 | ||
| 21432-24030 |
3K..KP31,37 |
1 | ||
| 21432-24061 |
3KB#..KP31 |
2 | ||
| 21432-24061 |
3KB#..KP31 |
2 | ||
| 21412 - SHAFT, 1ST THROTTLE | ||||
| 21412-24300 |
2K,3K,3KB#..KP3#..4F |
2 | ||
| 21412-24300 |
2K,3K,3KB#..KP3#..4F |
2 | ||
| 21412-24250 |
2K,3KB#..KP30,31,36 |
2 | ||
| 21412-24250 |
2K,3KB#..KP30,31,36 |
2 | ||
| 21412-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21412-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21412-24310 |
3KB#..KP31 RR CARBURETOR |
1 | ||
| 21412-24310 |
3KB#..KP31 RR CARBURETOR |
1 | ||
| 21412-24300 |
2K,3K,3KB#..KP3# |
2 | ||
| 21412-24300 |
2K,3K,3KB#..KP3# |
2 | ||
| 21412-24230 |
3K,3KB#..KP31,37 |
2 | ||
| 21412-24230 |
3K,3KB#..KP31,37 |
2 | ||
| 21413 - SHAFT, 2ND THROTTLE | ||||
| 21413-24061 |
3KB#..KP31 |
2 | ||
| 21413-24061 |
3KB#..KP31 |
2 | ||
| 21402-22010 |
KB,2K..KP3# |
1 | ||
| 21402-22010 |
KB,2K..KP3# |
1 | ||
| 21413-24030 |
2K,3K..KP3# |
1 | ||
| 21413-24030 |
2K,3K..KP3# |
1 | ||
| 21431 - ARM, 1ST THROTTLE SHAFT | ||||
| 21431-24061 |
3KB#..KP31 |
2 | ||
| 21431-24061 |
3KB#..KP31 |
2 | ||
| 21431-24080 |
3KB#..KP31 |
2 | ||
| 21431-24080 |
3KB#..KP31 |
2 | ||
| 21431-24300 |
3KB#..KP31 |
2 | ||
| 21431-24300 |
3KB#..KP31 |
2 | ||
| 21431-24231 |
2K,3K..KP3#..4F |
1 | ||
| 21431-24231 |
2K,3K..KP3#..4F |
1 | ||
| 21431-24031 |
2K,3K..KP3#..4F |
1 | ||
| 21431-24031 |
2K,3K..KP3#..4F |
1 | ||
| 21431-24301 |
3KB#..KP31 |
2 | ||
| 21431-24301 |
3KB#..KP31 |
2 | ||
| 21431-24260 |
3KB#..KP31 |
2 | ||
| 21431-24260 |
3KB#..KP31 |
2 | ||
| 21431-24230 |
2K,3K..KP3#..4F |
1 | ||
| 21431-24230 |
2K,3K..KP3#..4F |
1 | ||
| 21431-24232 |
2K,3K..KP3#..4F |
1 | ||
| 21431-24232 |
2K,3K..KP3#..4F |
1 | ||
| 21451 - LEVER, HIGH SPEED VALVE STOP | ||||
| 21451-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21451-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21452 - LEVER, PUMP | ||||
| 21407-22011 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21407-22011 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21452-24300 |
3KB#..KP31 |
2 | ||
| 21452-24300 |
3KB#..KP31 |
2 | ||
| 21452-24100 |
2K,3K..KP3#..4F |
1 | ||
| 21452-24100 |
2K,3K..KP3#..4F |
1 | ||
| 21452-24230 |
3K..KP31,37 |
1 | ||
| 21452-24230 |
3K..KP31,37 |
1 | ||
| 21456 - LEVER, 1ST THROTTLE IDLE ADJUSTING, NO.1 | ||||
| 21456-24240 |
3K..KP31,37 COLD SPEC |
1 | ||
| 21456-24240 |
3K..KP31,37 COLD SPEC |
1 | ||
| 21456-24230 |
2K,3K..KP3# |
1 | ||
| 21456-24230 |
2K,3K..KP3# |
1 | ||
| 21456-24110 |
3K..KP31,37 COLD SPEC |
1 | ||
| 21456-24110 |
3K..KP31,37 COLD SPEC |
1 | ||
| 21456-24101 |
2K,3K..KP3#..4F |
1 | ||
| 21456-24101 |
2K,3K..KP3#..4F |
1 | ||
| 21456-24260 |
3KB#..KP31 |
2 | ||
| 21456-24260 |
3KB#..KP31 |
2 | ||
| 21456-22012 |
2K,3K..KP3# |
1 | ||
| 21456-22012 |
2K,3K..KP3# |
1 | ||
| 21471 - LINK, PUMP CONNECTING | ||||
| 21474-22011 |
KB,2K..KP3# |
2 | ||
| 21474-22011 |
KB,2K..KP3# |
2 | ||
| 21474-24101 |
2K,3K..KP3# |
1 | ||
| 21474-24101 |
2K,3K..KP3# |
1 | ||
| 21471-24230 |
2K,3K..KP3# |
1 | ||
| 21471-24230 |
2K,3K..KP3# |
1 | ||
| 21474-24101 |
2K,3K..KP3#..4F |
1 | ||
| 21474-24101 |
2K,3K..KP3#..4F |
1 | ||
| 21473 - LINK, THROTTLE SHAFT | ||||
| 21473-31010 |
KB,2K..KP3# |
2 | ||
| 21473-31010 |
KB,2K..KP3# |
2 | ||
| 21473-24060 |
3KB#..KP31 |
2 | ||
| 21473-24060 |
3KB#..KP31 |
2 | ||
| 21473-24010 |
2K,3K..KP3# |
1 | ||
| 21473-24010 |
2K,3K..KP3# |
1 | ||
| 21473-24230 |
2K,3K..KP3# |
1 | ||
| 21473-24230 |
2K,3K..KP3# |
1 | ||
| 21481 - CONNECTOR, 1ST IDLE | ||||
| 21481-22012 |
2K,3K..KP3# |
1 | ||
| 21481-22012 |
2K,3K..KP3# |
1 | ||
| 21581 - SHIM, 1ST THROTTLE SHAFT | ||||
| 21581-21010 |
KB,2K,3K,3KB#..KP3# T=0.2 |
1 | ||
| 21581-21010 |
KB,2K,3K,3KB#..KP3# T=0.2 |
1 | ||
| 21582-21010 |
KB,2K,3K,3KB#..KP3# T=0.3 |
1 | ||
| 21582-21010 |
KB,2K,3K,3KB#..KP3# T=0.3 |
1 | ||
| 21583-32010 |
3K,3KB#..KP31,37 T=0.6 |
1 | ||
| 21583-32010 |
3K,3KB#..KP31,37 T=0.6 |
1 | ||
| 26228-31010 |
3K,3KB#..KP31,37 T=0.6 |
1 | ||
| 26228-31010 |
3K,3KB#..KP31,37 T=0.6 |
1 | ||
| 21583-41010 |
2K,3K,3KB#..KP3# T=0.3 |
1 | ||
| 21583-41010 |
2K,3K,3KB#..KP3# T=0.3 |
1 | ||
| 21588-21010 |
KB,2K,3K,3KB#..KP3# T=0.1 |
1 | ||
| 21588-21010 |
KB,2K,3K,3KB#..KP3# T=0.1 |
1 | ||
| 21581-32010 |
2K,3K,3KB#..KP3# T=0.2 |
1 | ||
| 21581-32010 |
2K,3K,3KB#..KP3# T=0.2 |
1 | ||
| 21583-21010 |
3K,3KB#..KP31,37 T=0.6 |
1 | ||
| 21583-21010 |
3K,3KB#..KP31,37 T=0.6 |
1 | ||
| 21581-41010 |
2K,3K,3KB#..KP3# T=0.1 |
1 | ||
| 21581-41010 |
2K,3K,3KB#..KP3# T=0.1 |
1 | ||
| 21581 - SHIM, 1ST THROTTLE SHAFT | ||||
| 21581-21010 |
KB,2K,3K,3KB#..KP3# T=0.2 |
1 | ||
| 21581-21010 |
KB,2K,3K,3KB#..KP3# T=0.2 |
1 | ||
| 21582-21010 |
KB,2K,3K,3KB#..KP3# T=0.3 |
1 | ||
| 21582-21010 |
KB,2K,3K,3KB#..KP3# T=0.3 |
1 | ||
| 21583-32010 |
3K,3KB#..KP31,37 T=0.6 |
1 | ||
| 21583-32010 |
3K,3KB#..KP31,37 T=0.6 |
1 | ||
| 26228-31010 |
3K,3KB#..KP31,37 T=0.6 |
1 | ||
| 26228-31010 |
3K,3KB#..KP31,37 T=0.6 |
1 | ||
| 21583-41010 |
2K,3K,3KB#..KP3# T=0.3 |
1 | ||
| 21583-41010 |
2K,3K,3KB#..KP3# T=0.3 |
1 | ||
| 21588-21010 |
KB,2K,3K,3KB#..KP3# T=0.1 |
1 | ||
| 21588-21010 |
KB,2K,3K,3KB#..KP3# T=0.1 |
1 | ||
| 21581-32010 |
2K,3K,3KB#..KP3# T=0.2 |
1 | ||
| 21581-32010 |
2K,3K,3KB#..KP3# T=0.2 |
1 | ||
| 21583-21010 |
3K,3KB#..KP31,37 T=0.6 |
1 | ||
| 21583-21010 |
3K,3KB#..KP31,37 T=0.6 |
1 | ||
| 21581-41010 |
2K,3K,3KB#..KP3# T=0.1 |
1 | ||
| 21581-41010 |
2K,3K,3KB#..KP3# T=0.1 |
1 | ||
| 21623 - GASKET, BODY FLANGE | ||||
| 21623-22011 |
KB,2K..KP3# |
2 | ||
| 21623-22011 |
KB,2K..KP3# |
2 | ||
| 21623-24300 |
2K,3K,3KB#..KP3# |
2 | ||
| 21623-24300 |
2K,3K,3KB#..KP3# |
2 | ||
| 21623-24300 |
2K,3K,3KB#..KP3#..4F |
2 | ||
| 21623-24300 |
2K,3K,3KB#..KP3#..4F |
2 | ||
| 21681 - SHIM(FOR HIGH SPEED SHAFT) | ||||
| 21681-21060 |
KB,2K,3K,3KB#..KP3# T=0.1 |
1 | ||
| 21681-21060 |
KB,2K,3K,3KB#..KP3# T=0.1 |
1 | ||
| 21682-21060 |
KB,2K,3K,3KB#..KP3# T=0.2 |
1 | ||
| 21682-21060 |
KB,2K,3K,3KB#..KP3# T=0.2 |
1 | ||
| 21721 - SPRING, HIGH SPEED VALVE STOP LEVER | ||||
| 21721-22010 |
KB,2K..KP3# |
1 | ||
| 21721-22010 |
KB,2K..KP3# |
1 | ||
| 21723 - SPRING, IDLE ADJUSTING | ||||
| 21723-21030 |
KB,2K..KP3# |
2 | ||
| 21723-21030 |
KB,2K..KP3# |
2 | ||
| 21724 - SPRING, THROTTLE ADJUSTING | ||||
| 21726-40010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21726-40010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21725 - SPRING, 2ND THROTTLE BACK | ||||
| 21725-24030 |
2K,3K,3KB#..KP3# |
2 | ||
| 21725-24030 |
2K,3K,3KB#..KP3# |
2 | ||
| 21725-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21725-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21735 - SPRING, PUMP ARM | ||||
| 21735-24030 |
2K,3K,3KB#..KP3#..4F |
2 | ||
| 21735-24030 |
2K,3K,3KB#..KP3#..4F |
2 | ||
| 21735-22010 |
KB,2K..KP3# |
2 | ||
| 21735-22010 |
KB,2K..KP3# |
2 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
6 | ||
| 21791-60010 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
6 | ||
| 21794 - RING, RETAINER, NO.1(FOR THROTTLE SHAFT) | ||||
| 21794-40010 |
KB,2K,3K,3KB#..KP3# |
4 | ||
| 21794-40010 |
KB,2K,3K,3KB#..KP3# |
4 | ||
| 21794 - RING, RETAINER, NO.1(FOR THROTTLE SHAFT) | ||||
| 21794-40010 |
KB,2K,3K,3KB#..KP3# |
4 | ||
| 21794-40010 |
KB,2K,3K,3KB#..KP3# |
4 | ||
| 21795 - RING, RETAINER, NO.2(FOR HIGH SPEED SHAFT) | ||||
| 21795-30010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21795-30010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21821 - SCREW, 2ND THROTTLE VALVE SET | ||||
| 21821-60010 |
KB,2K..KP3# |
2 | ||
| 21821-60010 |
KB,2K..KP3# |
2 | ||
| 21822 - SCREW, 1ST THROTTLE VALVE SET | ||||
| 21822-10010 |
KB,2K..KP3# |
4 | ||
| 21822-10010 |
KB,2K..KP3# |
4 | ||
| 21822-44100 |
2K,3K,3KB#..KP3# |
4 | ||
| 21822-44100 |
2K,3K,3KB#..KP3# |
4 | ||
| 21825 - SCREW, STOP LEVER SET | ||||
| 21825-33010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21825-33010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21826 - SCREW, PUMP ARM SET | ||||
| 21826-31010 |
KB,2K,3K..KP3# |
2 | ||
| 21826-31010 |
KB,2K,3K..KP3# |
2 | ||
| 21826-31011 |
2K,3K,3KB#..KP3# |
1 | ||
| 21826-31011 |
2K,3K,3KB#..KP3# |
1 | ||
| 21829 - SCREW, HIGH SPEED VALVE SET | ||||
| 21823-60010 |
KB,2K..KP3# |
2 | ||
| 21823-60010 |
KB,2K..KP3# |
2 | ||
| 21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET) | ||||
| 21834-31010 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
2 | ||
| 21834-31010 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
2 | ||
| 21835 - SCREW, SET, NO.3(FOR CARBURETOR BODY SET) | ||||
| 21835-40010 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
2 | ||
| 21835-40010 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
2 | ||
| 21852 - NUT, THROTTLE LEVER SET | ||||
| 21852-30010 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
2 | ||
| 21852-30010 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
2 | ||
| 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) | ||||
| 21881-60010 |
KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50 |
2 | ||
| 21881-60010 |
KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50 |
2 | ||
| Common parts | ||||
| 21767-22010 | ||||
| 94512-00600 | ||||
| 94611-10300 | ||||
| 94611-10400 | ||||
| 95381-01610 | ||||
ILLUST NO. 1 OF 2(6904-7304)KB,3KB#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21096 - OPENER SUB-ASSY, THROTTLE | ||||
| 21191-24122 |
3KB#..KP31 FR CARBURETOR |
1 | ||
| 21191-24131 |
3KB#..KP31 RR CARBURETOR |
1 | ||
| 21191-24111 |
3K..KP31,37 |
1 | ||
| 21191-24280 |
3KB#..KP31 FR CARBURETOR |
1 | ||
| 21096A - STOPPER(FOR OPENER) | ||||
| 21575-24240 |
3K,3KB#..KP31,37 COLD SPEC |
1 | ||
| 21112 - HORN, AIR | ||||
| 21112-24032 |
2K,3K..KP3# |
1 | ||
| 21112-24100 |
2K,3K..KP3# |
1 | ||
| 21112-24310 |
3KB#..KP31 RR CARBURETOR |
2 | ||
| 21112-24181 |
3KB#..KP31 FR CARBURETOR |
1 | ||
| 21112-24062 |
3KB#..KP31 RR CARBURETOR |
2 | ||
| 21102-22013 |
KB,2K..KP3# |
1 | ||
| 21112-24100 |
2K,3K..KP3#..4F |
1 | ||
| 21112-24031 |
2K,3K..KP3# |
1 | ||
| 21112-24061 |
3KB#..KP31 |
2 | ||
| 21129 - COVER(FOR THERMOSTATIC VALVE) | ||||
| 21129-23010 |
KB,2K..KP3# |
1 | ||
| 21129-24160 |
2K,3K,3KB#..KP3# |
1 | ||
| 21205 - JET SUB-ASSY, SLOW | ||||
| 21205-22010 |
KB,2K,3K..KP3# ID=0.47 |
1 | ||
| 21205-24011 |
2K,3K,3KB#..KP3# ID=0.47 |
2 | ||
| 90999-44147 |
2K,3K,3KB#..KP3# ID=0.47 |
2 | ||
| 90999-44144 |
3KB#..KP31 ID=0.44 |
2 | ||
| 90999-44145 |
3K..KP31,37 ID=0.45 |
1 | ||
| 21206 - STRAINER SUB-ASSY | ||||
| 21294-10010 |
KB,2K..KP3# |
1 | ||
| 21209 - FLOAT SUB-ASSY | ||||
| 21209-22010 |
KB,2K..KP3# |
2 | ||
| 21211 - VENTURI, 1ST SMALL | ||||
| 21211-22040 |
2K,3KB#..KP30,31,36 |
2 | ||
| 21211-24230 |
3K..KP31,37 |
1 | ||
| 21211-22040 |
KB,2K,3K,3KB#..KP3# |
1 | ||
| 21212 - VENTURI, 2ND SMALL | ||||
| 21212-24230 |
3K..KP31,37 |
1 | ||
| 21202-22010 |
KB,2K,3KB#..KP30,31,36 |
2 | ||
| 21202-22010 |
3KB#..KP31 |
2 | ||
| 21212-24231 |
3K..KP31,37 |
1 | ||
| 21234 - PIPE OR HOSE | ||||
| 21234-24200 |
3K,3KB#..KP31,37 COLD SPEC |
1 | ||
| 21234-24230 |
2K,3K,3KB#..KP3# |
1 | ||
| 21251 - JET, 1ST MAIN | ||||
| 90999-41105 |
3K..KP31,37 ID=1.05 |
1 | ||
| 90999-41102 |
3K..KP31,37 ID=1.02 |
1 | ||
| 21253 - JET, 2ND MAIN | ||||
| 90999-42141 |
2K,3K..KP3# ID=1.41 |
1 | ||
| 90999-42138 |
3KB#..KP31 ID=1.38 |
2 | ||
| 90999-42162 |
2K,3K..KP3# ID=1.62 |
1 | ||
| 90999-42126 |
3KB#..KP31 ID=1.26 |
2 | ||
| 21255 - JET, POWER | ||||
| 90999-43055 |
2K,3KB#..KP30,31,36 ID=0.55 |
2 | ||
| 90999-43080 |
3K..KP31,37 ID=0.80 |
1 | ||
| 21272 - SCREW, 1ST IDLE ADJUSTING | ||||
| 21273-22010 |
KB,2K..KP3# |
2 | ||
| 21301 - VALVE SUB-ASSY, NEEDLE | ||||
| 21301-22010 |
KB,2K..KP3# |
2 | ||
| 21301-24030 |
2K,3K,3KB#..KP3# |
2 | ||
| 21313 - BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT) | ||||
| 21313-11020 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
1 | ||
| 21314 - BALL, STEEL, NO.2(FOR PUMP PLUNGER) | ||||
| 21314-60010 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
1 | ||
| 21334 - VALVE, CHOKE | ||||
| 21334-25030 |
2K,3K,3KB#..KP3# |
2 | ||
| 21334-22010 |
3K,3KB#..KP31,37 |
2 | ||
| 21334-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21335 - VALVE, THERMOSTATIC | ||||
| 21335-22060 |
KB,3KB#..KP30,31 |
1 | ||
| 21061-24230 |
2K,3K..KP3# |
1 | ||
| 21061-24260 |
3KB#..KP31 |
1 | ||
| 21061-24230 |
2K,3K,3KB#..KP3# |
1 | ||
| 21335-24030 |
3K..KP31,37 |
1 | ||
| 21341 - VALVE, POWER | ||||
| 21304-30010 |
KB,2K,3KB#..KP30,31,36 |
2 | ||
| 21351 - PISTON, POWER | ||||
| 21708-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21353 - PLUNGER, PUMP | ||||
| 21305-22011 |
KB,2K,3K,3KB#,3KHJ,4KJ..KP3# |
2 | ||
| 21414 - SHAFT, CHOKE | ||||
| 21414-24111 |
3K,3KB#..KP31,37 COLD SPEC |
2 | ||
| 21403-22011 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21478 - LINK, CONNECTING | ||||
| 21478-24280 |
3KB#..KP31 FR CARBURETOR,COLD SPEC |
1 | ||
| 21538 - RETAINER, BALL CHECK | ||||
| 21538-31010 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
2 | ||
| 21561 - WEIGHT, PUMP DISCHARGE | ||||
| 21561-30010 |
KB,2K..KP3# |
2 | ||
| 21572 - STOP, POWER PISTON | ||||
| 21572-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21572-33080 |
2K,3K,3KB#..KP3# |
2 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50 |
4 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50 |
4 | ||
| 21614 - GASKET, VENTURI | ||||
| 21614-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21614 - GASKET, VENTURI | ||||
| 21614-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21649-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21618 - GASKET, NEEDLE VALVE SEAT | ||||
| 21618-21010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21619-22010 |
KB,2K..KP3# |
1 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21619-22010 |
KB,2K..KP3# |
1 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21619-22010 |
KB,2K..KP3# |
1 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21619-22010 |
KB,2K..KP3# |
1 | ||
| 21622 - GASKET, AIR HORN | ||||
| 21622-24011 |
2K,3K,3KB#..KP3# |
2 | ||
| 21622-22010 |
KB,2K,3K..KP3# |
2 | ||
| 21641 - GASKET(FOR THERMOSTATIC VALVE COVER) | ||||
| 21641-23010 |
KB,2K,3K,3KB#..KP3# |
1 | ||
| 21659 - RING, O(FOR THERMOSTATIC VALVE) | ||||
| 23532-40010 |
KB,2K..KP3# |
1 | ||
| 21699 - BOOT(FOR PUMP PLUNGER) | ||||
| 21699-21061 |
KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50 |
2 | ||
| 21722 - SPRING, PUMP DAMPING | ||||
| 21722-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21726 - SPRING, 1ST IDLE ADJUSTING | ||||
| 21726-40010 |
KB,2K,3K,3KB#..KP3# |
1 | ||
| 21738 - SPRING, CHOKE VALVE RELIEF | ||||
| 21738-24060 |
3KB#..KP31 |
2 | ||
| 21751 - UNION, NIPPLE | ||||
| 21751-24072 |
3KB#..KP31 |
1 | ||
| 21751-24122 |
3KB#..KP31 COLD SPEC |
1 | ||
| 21751-24071 |
3KB#..KP31 |
1 | ||
| 21751-24032 |
2K,3K,3KB#..KP3# |
1 | ||
| 21751-24290 |
3KB#..KP31 |
1 | ||
| 21751 - UNION, NIPPLE | ||||
| 21751-24072 |
3KB#..KP31 |
1 | ||
| 21751-24122 |
3KB#..KP31 COLD SPEC |
1 | ||
| 21751-24071 |
3KB#..KP31 |
1 | ||
| 21751-24032 |
2K,3K,3KB#..KP3# |
1 | ||
| 21751-24290 |
3KB#..KP31 |
1 | ||
| 21751 - UNION, NIPPLE | ||||
| 21751-24072 |
3KB#..KP31 |
1 | ||
| 21751-24122 |
3KB#..KP31 COLD SPEC |
1 | ||
| 21751-24071 |
3KB#..KP31 |
1 | ||
| 21751-24032 |
2K,3K,3KB#..KP3# |
1 | ||
| 21751-24290 |
3KB#..KP31 |
1 | ||
| 21763 - PIN, FLOAT LEVER | ||||
| 21763-29270 |
KB,2K,3K,3KB#..KP3# |
1 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21677-22010 |
2K,3K..KP3# |
1 | ||
| 21785 - PLUG, CARBURETOR FUEL INLET STRAINER | ||||
| 21781-60010 |
KB,2K..KP3# |
2 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
6 | ||
| 21823 - SCREW, CHOKE, VALVE SET | ||||
| 21823-60010 |
KB,2K..KP3# |
2 | ||
| 21831 - SCREW, POWER PISTON STOP | ||||
| 21842-33010 |
KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50 |
2 | ||
| 21897 - SUPPORT, FRONT(FOR CHOKE SHAFT) | ||||
| 21897-24260 |
2K,3K,3KB#..KP3# FR CARBURETOR |
1 | ||
| 21897-24270 |
3KB#..KP31 RR CARBURETOR |
1 | ||
| 21897-22050 |
KB,3KB#..KP30,31 |
1 | ||
| 21897-24230 |
2K,3K,3KB#..KP3# FR CARBURETOR |
1 | ||
| 21897 - SUPPORT, FRONT(FOR CHOKE SHAFT) | ||||
| 21897-24260 |
2K,3K,3KB#..KP3# FR CARBURETOR |
1 | ||
| 21897-24270 |
3KB#..KP31 RR CARBURETOR |
1 | ||
| 21897-22050 |
KB,3KB#..KP30,31 |
1 | ||
| 21897-24230 |
2K,3K,3KB#..KP3# FR CARBURETOR |
1 | ||
| Common parts | ||||
| 21821-31140 | ||||
| 21833-60012 | ||||
| 93219-14008 | ||||
| 93219-14010 | ||||
| 93219-14014 | ||||
| 93219-15025 | ||||
| 94511-00400 | ||||
| 94511-00500 | ||||
| 94611-10300 | ||||
ILLUST NO. 1 OF 2(7304-7511)3K
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21096 - OPENER SUB-ASSY, THROTTLE | ||||
| 21191-24122 |
3KB#..KP31 FR CARBURETOR |
1 | ||
| 21191-24131 |
3KB#..KP31 RR CARBURETOR |
1 | ||
| 21191-24111 |
3K..KP31,37 |
1 | ||
| 21191-24280 |
3KB#..KP31 FR CARBURETOR |
1 | ||
| 21096A - STOPPER(FOR OPENER) | ||||
| 21575-24240 |
3K,3KB#..KP31,37 COLD SPEC |
1 | ||
| 21112 - HORN, AIR | ||||
| 21112-24032 |
2K,3K..KP3# |
1 | ||
| 21112-24100 |
2K,3K..KP3# |
1 | ||
| 21112-24310 |
3KB#..KP31 RR CARBURETOR |
2 | ||
| 21112-24181 |
3KB#..KP31 FR CARBURETOR |
1 | ||
| 21112-24062 |
3KB#..KP31 RR CARBURETOR |
2 | ||
| 21102-22013 |
KB,2K..KP3# |
1 | ||
| 21112-24100 |
2K,3K..KP3#..4F |
1 | ||
| 21112-24031 |
2K,3K..KP3# |
1 | ||
| 21112-24061 |
3KB#..KP31 |
2 | ||
| 21129 - COVER(FOR THERMOSTATIC VALVE) | ||||
| 21129-23010 |
KB,2K..KP3# |
1 | ||
| 21129-24160 |
2K,3K,3KB#..KP3# |
1 | ||
| 21205 - JET SUB-ASSY, SLOW | ||||
| 21205-22010 |
KB,2K,3K..KP3# ID=0.47 |
1 | ||
| 21205-24011 |
2K,3K,3KB#..KP3# ID=0.47 |
2 | ||
| 90999-44147 |
2K,3K,3KB#..KP3# ID=0.47 |
2 | ||
| 90999-44144 |
3KB#..KP31 ID=0.44 |
2 | ||
| 90999-44145 |
3K..KP31,37 ID=0.45 |
1 | ||
| 21209 - FLOAT SUB-ASSY | ||||
| 21209-22010 |
KB,2K..KP3# |
2 | ||
| 21211 - VENTURI, 1ST SMALL | ||||
| 21211-22040 |
2K,3KB#..KP30,31,36 |
2 | ||
| 21211-24230 |
3K..KP31,37 |
1 | ||
| 21211-22040 |
KB,2K,3K,3KB#..KP3# |
1 | ||
| 21212 - VENTURI, 2ND SMALL | ||||
| 21212-24230 |
3K..KP31,37 |
1 | ||
| 21202-22010 |
KB,2K,3KB#..KP30,31,36 |
2 | ||
| 21202-22010 |
3KB#..KP31 |
2 | ||
| 21212-24231 |
3K..KP31,37 |
1 | ||
| 21234 - PIPE OR HOSE | ||||
| 21234-24200 |
3K,3KB#..KP31,37 COLD SPEC |
1 | ||
| 21234-24230 |
2K,3K,3KB#..KP3# |
1 | ||
| 21234 - PIPE OR HOSE | ||||
| 21234-24200 |
3K,3KB#..KP31,37 COLD SPEC |
1 | ||
| 21234-24230 |
2K,3K,3KB#..KP3# |
1 | ||
| 21235 - PIPE OR HOSE, CONNECTING | ||||
| 21234-24160 |
2K,3K,3KB#..KP3# |
1 | ||
| 21251 - JET, 1ST MAIN | ||||
| 90999-41105 |
3K..KP31,37 ID=1.05 |
1 | ||
| 90999-41102 |
3K..KP31,37 ID=1.02 |
1 | ||
| 21253 - JET, 2ND MAIN | ||||
| 90999-42141 |
2K,3K..KP3# ID=1.41 |
1 | ||
| 90999-42138 |
3KB#..KP31 ID=1.38 |
2 | ||
| 90999-42162 |
2K,3K..KP3# ID=1.62 |
1 | ||
| 90999-42126 |
3KB#..KP31 ID=1.26 |
2 | ||
| 21255 - JET, POWER | ||||
| 90999-43055 |
2K,3KB#..KP30,31,36 ID=0.55 |
2 | ||
| 90999-43080 |
3K..KP31,37 ID=0.80 |
1 | ||
| 21272 - SCREW, 1ST IDLE ADJUSTING | ||||
| 21273-22010 |
KB,2K..KP3# |
2 | ||
| 21301 - VALVE SUB-ASSY, NEEDLE | ||||
| 21301-22010 |
KB,2K..KP3# |
2 | ||
| 21301-24030 |
2K,3K,3KB#..KP3# |
2 | ||
| 21313 - BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT) | ||||
| 21313-11020 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
1 | ||
| 21314 - BALL, STEEL, NO.2(FOR PUMP PLUNGER) | ||||
| 21314-60010 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
1 | ||
| 21334 - VALVE, CHOKE | ||||
| 21334-25030 |
2K,3K,3KB#..KP3# |
2 | ||
| 21334-22010 |
3K,3KB#..KP31,37 |
2 | ||
| 21334-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21335 - VALVE, THERMOSTATIC | ||||
| 21335-22060 |
KB,3KB#..KP30,31 |
1 | ||
| 21061-24230 |
2K,3K..KP3# |
1 | ||
| 21061-24260 |
3KB#..KP31 |
1 | ||
| 21061-24230 |
2K,3K,3KB#..KP3# |
1 | ||
| 21335-24030 |
3K..KP31,37 |
1 | ||
| 21341 - VALVE, POWER | ||||
| 21304-30010 |
KB,2K,3KB#..KP30,31,36 |
2 | ||
| 21351 - PISTON, POWER | ||||
| 21708-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21353 - PLUNGER, PUMP | ||||
| 21305-22011 |
KB,2K,3K,3KB#,3KHJ,4KJ..KP3# |
2 | ||
| 21414 - SHAFT, CHOKE | ||||
| 21414-24111 |
3K,3KB#..KP31,37 COLD SPEC |
2 | ||
| 21403-22011 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21478 - LINK, CONNECTING | ||||
| 21478-24280 |
3KB#..KP31 FR CARBURETOR,COLD SPEC |
1 | ||
| 21538 - RETAINER, BALL CHECK | ||||
| 21538-31010 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
2 | ||
| 21561 - WEIGHT, PUMP DISCHARGE | ||||
| 21561-30010 |
KB,2K..KP3# |
2 | ||
| 21572 - STOP, POWER PISTON | ||||
| 21572-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21572-33080 |
2K,3K,3KB#..KP3# |
2 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50 |
4 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50 |
4 | ||
| 21614 - GASKET, VENTURI | ||||
| 21614-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21614 - GASKET, VENTURI | ||||
| 21614-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21649-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21618 - GASKET, NEEDLE VALVE SEAT | ||||
| 21618-21010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21619-22010 |
KB,2K..KP3# |
1 | ||
| 21622 - GASKET, AIR HORN | ||||
| 21622-24011 |
2K,3K,3KB#..KP3# |
2 | ||
| 21622-22010 |
KB,2K,3K..KP3# |
2 | ||
| 21699 - BOOT(FOR PUMP PLUNGER) | ||||
| 21699-21061 |
KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50 |
2 | ||
| 21722 - SPRING, PUMP DAMPING | ||||
| 21722-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21726 - SPRING, 1ST IDLE ADJUSTING | ||||
| 21726-40010 |
KB,2K,3K,3KB#..KP3# |
1 | ||
| 21738 - SPRING, CHOKE VALVE RELIEF | ||||
| 21738-24060 |
3KB#..KP31 |
2 | ||
| 21751 - UNION, NIPPLE | ||||
| 21751-24072 |
3KB#..KP31 |
1 | ||
| 21751-24122 |
3KB#..KP31 COLD SPEC |
1 | ||
| 21751-24071 |
3KB#..KP31 |
1 | ||
| 21751-24032 |
2K,3K,3KB#..KP3# |
1 | ||
| 21751-24290 |
3KB#..KP31 |
1 | ||
| 21763 - PIN, FLOAT LEVER | ||||
| 21763-29270 |
KB,2K,3K,3KB#..KP3# |
1 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21677-22010 |
2K,3K..KP3# |
1 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
6 | ||
| 21823 - SCREW, CHOKE, VALVE SET | ||||
| 21823-60010 |
KB,2K..KP3# |
2 | ||
| 21831 - SCREW, POWER PISTON STOP | ||||
| 21842-33010 |
KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50 |
2 | ||
| 21896 - BRACKET, THERMOSTATIC VALVE | ||||
| 21896-24230 |
2K,3K,3KB#..KP3# |
1 | ||
| 21897 - SUPPORT, FRONT(FOR CHOKE SHAFT) | ||||
| 21897-24260 |
2K,3K,3KB#..KP3# FR CARBURETOR |
1 | ||
| 21897-24270 |
3KB#..KP31 RR CARBURETOR |
1 | ||
| 21897-22050 |
KB,3KB#..KP30,31 |
1 | ||
| 21897-24230 |
2K,3K,3KB#..KP3# FR CARBURETOR |
1 | ||
| 21934 - SOLENOID, THROTTLE VALVE | ||||
| 21062-24230 |
2K,3K,3KB#..KP3# RR CARBURETOR |
2 | ||
| 21062-12030 |
3KB#..KP31 FR CARBURETOR |
1 | ||
| 21062-12030 |
2K,3K,3KB#..KP3# |
2 | ||
| Common parts | ||||
| 21524-24230 | ||||
| 21821-24030 | ||||
| 21821-31140 | ||||
| 21834-33080 | ||||
| 21885-44010 | ||||
| 93219-14008 | ||||
| 93219-15010 | ||||
| 93219-15025 | ||||
| 93289-15016 | ||||
| 94511-00400 | ||||
| 94511-00500 | ||||
| 94611-10300 | ||||
ILLUST NO. 2 OF 2(7304-7511)3K
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21113 - FLANGE, CARBURETOR | ||||
| 21113-24131 |
3KB#..KP31 RR CARBURETOR,COLD SPEC |
1 | ||
| 21113-24121 |
3KB#..KP31 FR CARBURETOR,COLD SPEC |
1 | ||
| 21113-24270 |
3KB#..KP31 RR CARBURETOR |
1 | ||
| 21113-24280 |
3KB#..KP31 FR CARBURETOR,COLD SPEC |
1 | ||
| 21113-24111 |
3K..KP31,37 COLD SPEC |
1 | ||
| 21113-24240 |
3K..KP31,37 COLD SPEC |
1 | ||
| 21113-24300 |
3KB#..KP31 FR CARBURETOR |
1 | ||
| 21113-24260 |
3KB#..KP31 FR CARBURETOR |
1 | ||
| 21113-24230 |
3K..KP31,37 |
1 | ||
| 21113-24310 |
3KB#..KP31 RR CARBURETOR |
1 | ||
| 21113-24290 |
3KB#..KP31 RR CARBURETOR,COLD SPEC |
1 | ||
| 21113-24231 |
3K..KP31,37 |
1 | ||
| 21236A - HOSE, NO.1(FOR OPENER) | ||||
| 21662-24230 |
3K,3KB#..KP31,37 |
1 | ||
| 21273 - SCREW, THROTTLE ADJUSTING | ||||
| 21273-50010 |
KB,2K..KP3# |
1 | ||
| 21275 - SCREW, ADJUSTING | ||||
| 21844-34080 |
3K..KP31,37 |
1 | ||
| 21842-24230 |
3KB#..KP31 |
1 | ||
| 21842-60191 |
3K,3KB#..KP31,37 |
1 | ||
| 21331 - VALVE, 1ST THROTTLE | ||||
| 21331-21010 |
2K,3K,3KB#..KP3# |
1 | ||
| 21331-22010 |
3K,3KB#..KP31,37 |
2 | ||
| 21331-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21332 - VALVE, 2ND THROTTLE | ||||
| 21332-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21332-21060 |
2K,3K,3KB#..KP3# |
2 | ||
| 21332-22010 |
3K,3KB#..KP31,37 |
2 | ||
| 21333 - VALVE, HIGH SPEED | ||||
| 21333-22010 |
2K,3K..KP3# |
1 | ||
| 21333-22050 |
KB,3KB#..KP30,31 |
2 | ||
| 21377 - COLLAR(FOR 2ND THROTTLE SHAFT) | ||||
| 21377-24230 |
2K,3K,3KB#..KP3# |
2 | ||
| 21392 - CLAMP, CHOKE WIRE | ||||
| 21392-24230 |
2K,3K..KP3#..4F |
1 | ||
| 21392-24230 |
2K,3K..KP3# |
1 | ||
| 21392-24231 |
2K,3K..KP3# |
1 | ||
| 21411 - SHAFT, HIGH SPEED | ||||
| 21432-24030 |
2K,3K..KP3# |
1 | ||
| 21805-22011 |
2K,3K..KP3# |
1 | ||
| 21411-24010 |
2K,3K..KP3# |
1 | ||
| 21432-24030 |
3K..KP31,37 |
1 | ||
| 21432-24061 |
3KB#..KP31 |
2 | ||
| 21412 - SHAFT, 1ST THROTTLE | ||||
| 21412-24300 |
2K,3K,3KB#..KP3#..4F |
2 | ||
| 21412-24250 |
2K,3KB#..KP30,31,36 |
2 | ||
| 21412-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21412-24310 |
3KB#..KP31 RR CARBURETOR |
1 | ||
| 21412-24300 |
2K,3K,3KB#..KP3# |
2 | ||
| 21412-24230 |
3K,3KB#..KP31,37 |
2 | ||
| 21413 - SHAFT, 2ND THROTTLE | ||||
| 21413-24061 |
3KB#..KP31 |
2 | ||
| 21402-22010 |
KB,2K..KP3# |
1 | ||
| 21413-24030 |
2K,3K..KP3# |
1 | ||
| 21431 - ARM, 1ST THROTTLE SHAFT | ||||
| 21431-24061 |
3KB#..KP31 |
2 | ||
| 21431-24080 |
3KB#..KP31 |
2 | ||
| 21431-24300 |
3KB#..KP31 |
2 | ||
| 21431-24231 |
2K,3K..KP3#..4F |
1 | ||
| 21431-24031 |
2K,3K..KP3#..4F |
1 | ||
| 21431-24301 |
3KB#..KP31 |
2 | ||
| 21431-24260 |
3KB#..KP31 |
2 | ||
| 21431-24230 |
2K,3K..KP3#..4F |
1 | ||
| 21431-24232 |
2K,3K..KP3#..4F |
1 | ||
| 21452 - LEVER, PUMP | ||||
| 21407-22011 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21452-24300 |
3KB#..KP31 |
2 | ||
| 21452-24100 |
2K,3K..KP3#..4F |
1 | ||
| 21452-24230 |
3K..KP31,37 |
1 | ||
| 21455 - LEVER, THROTTLE | ||||
| 21444-24310 |
3KB#..KP31 RR CARBURETOR |
1 | ||
| 21455-24230 |
3K,3KB#..KP31,37 |
1 | ||
| 21456 - LEVER, 1ST THROTTLE IDLE ADJUSTING, NO.1 | ||||
| 21456-24240 |
3K..KP31,37 COLD SPEC |
1 | ||
| 21456-24230 |
2K,3K..KP3# |
1 | ||
| 21456-24110 |
3K..KP31,37 COLD SPEC |
1 | ||
| 21456-24101 |
2K,3K..KP3#..4F |
1 | ||
| 21456-24260 |
3KB#..KP31 |
2 | ||
| 21456-22012 |
2K,3K..KP3# |
1 | ||
| 21471 - LINK, PUMP CONNECTING | ||||
| 21474-22011 |
KB,2K..KP3# |
2 | ||
| 21474-24101 |
2K,3K..KP3# |
1 | ||
| 21471-24230 |
2K,3K..KP3# |
1 | ||
| 21474-24101 |
2K,3K..KP3#..4F |
1 | ||
| 21473 - LINK, THROTTLE SHAFT | ||||
| 21473-31010 |
KB,2K..KP3# |
2 | ||
| 21473-24060 |
3KB#..KP31 |
2 | ||
| 21473-24010 |
2K,3K..KP3# |
1 | ||
| 21473-24230 |
2K,3K..KP3# |
1 | ||
| 21481 - CONNECTOR, 1ST IDLE | ||||
| 21481-22012 |
2K,3K..KP3# |
1 | ||
| 21483 - CONNECTOR, NO.1 | ||||
| 21483-24231 |
3K,3KB#..KP31,37 |
1 | ||
| 21581 - SHIM, 1ST THROTTLE SHAFT | ||||
| 21581-21010 |
KB,2K,3K,3KB#..KP3# T=0.2 |
1 | ||
| 21582-21010 |
KB,2K,3K,3KB#..KP3# T=0.3 |
1 | ||
| 21583-32010 |
3K,3KB#..KP31,37 T=0.6 |
1 | ||
| 26228-31010 |
3K,3KB#..KP31,37 T=0.6 |
1 | ||
| 21583-41010 |
2K,3K,3KB#..KP3# T=0.3 |
1 | ||
| 21588-21010 |
KB,2K,3K,3KB#..KP3# T=0.1 |
1 | ||
| 21581-32010 |
2K,3K,3KB#..KP3# T=0.2 |
1 | ||
| 21583-21010 |
3K,3KB#..KP31,37 T=0.6 |
1 | ||
| 21581-41010 |
2K,3K,3KB#..KP3# T=0.1 |
1 | ||
| 21581 - SHIM, 1ST THROTTLE SHAFT | ||||
| 21581-21010 |
KB,2K,3K,3KB#..KP3# T=0.2 |
1 | ||
| 21582-21010 |
KB,2K,3K,3KB#..KP3# T=0.3 |
1 | ||
| 21583-32010 |
3K,3KB#..KP31,37 T=0.6 |
1 | ||
| 26228-31010 |
3K,3KB#..KP31,37 T=0.6 |
1 | ||
| 21583-41010 |
2K,3K,3KB#..KP3# T=0.3 |
1 | ||
| 21588-21010 |
KB,2K,3K,3KB#..KP3# T=0.1 |
1 | ||
| 21581-32010 |
2K,3K,3KB#..KP3# T=0.2 |
1 | ||
| 21583-21010 |
3K,3KB#..KP31,37 T=0.6 |
1 | ||
| 21581-41010 |
2K,3K,3KB#..KP3# T=0.1 |
1 | ||
| 21581 - SHIM, 1ST THROTTLE SHAFT | ||||
| 21581-21010 |
KB,2K,3K,3KB#..KP3# T=0.2 |
1 | ||
| 21582-21010 |
KB,2K,3K,3KB#..KP3# T=0.3 |
1 | ||
| 21583-32010 |
3K,3KB#..KP31,37 T=0.6 |
1 | ||
| 26228-31010 |
3K,3KB#..KP31,37 T=0.6 |
1 | ||
| 21583-41010 |
2K,3K,3KB#..KP3# T=0.3 |
1 | ||
| 21588-21010 |
KB,2K,3K,3KB#..KP3# T=0.1 |
1 | ||
| 21581-32010 |
2K,3K,3KB#..KP3# T=0.2 |
1 | ||
| 21583-21010 |
3K,3KB#..KP31,37 T=0.6 |
1 | ||
| 21581-41010 |
2K,3K,3KB#..KP3# T=0.1 |
1 | ||
| 21581 - SHIM, 1ST THROTTLE SHAFT | ||||
| 21581-21010 |
KB,2K,3K,3KB#..KP3# T=0.2 |
1 | ||
| 21582-21010 |
KB,2K,3K,3KB#..KP3# T=0.3 |
1 | ||
| 21583-32010 |
3K,3KB#..KP31,37 T=0.6 |
1 | ||
| 26228-31010 |
3K,3KB#..KP31,37 T=0.6 |
1 | ||
| 21583-41010 |
2K,3K,3KB#..KP3# T=0.3 |
1 | ||
| 21588-21010 |
KB,2K,3K,3KB#..KP3# T=0.1 |
1 | ||
| 21581-32010 |
2K,3K,3KB#..KP3# T=0.2 |
1 | ||
| 21583-21010 |
3K,3KB#..KP31,37 T=0.6 |
1 | ||
| 21581-41010 |
2K,3K,3KB#..KP3# T=0.1 |
1 | ||
| 21623 - GASKET, BODY FLANGE | ||||
| 21623-22011 |
KB,2K..KP3# |
2 | ||
| 21623-24300 |
2K,3K,3KB#..KP3# |
2 | ||
| 21623-24300 |
2K,3K,3KB#..KP3#..4F |
2 | ||
| 21664 - LEVER(FOR DASH POT OR POSITIONER) | ||||
| 21444-24230 |
3K,3KB#..KP31,37 |
1 | ||
| 21679 - POSITIONER | ||||
| 21679-24350 |
3K,3KB#..KP31,37 |
1 | ||
| 21679-24230 |
3K,3KB#..KP31,37 |
1 | ||
| 21681 - SHIM(FOR HIGH SPEED SHAFT) | ||||
| 21681-21060 |
KB,2K,3K,3KB#..KP3# T=0.1 |
1 | ||
| 21682-21060 |
KB,2K,3K,3KB#..KP3# T=0.2 |
1 | ||
| 21723 - SPRING, IDLE ADJUSTING | ||||
| 21723-21030 |
KB,2K..KP3# |
2 | ||
| 21724 - SPRING, THROTTLE ADJUSTING | ||||
| 21726-40010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21725 - SPRING, 2ND THROTTLE BACK | ||||
| 21725-24030 |
2K,3K,3KB#..KP3# |
2 | ||
| 21725-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21731 - SPRING, DASH POT OR POSITIONER ADJUSTING | ||||
| 21723-21030 |
3K,3KB#..KP31,37 |
1 | ||
| 21735 - SPRING, PUMP ARM | ||||
| 21735-24030 |
2K,3K,3KB#..KP3#..4F |
2 | ||
| 21735-22010 |
KB,2K..KP3# |
2 | ||
| 21756 - SPRING, BACK(FOR THROTTLE SHAFT) | ||||
| 21756-24100 |
2K,3K..KP3#..4F |
1 | ||
| 21756-24230 |
2K,3K..KP3#..4F |
1 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
6 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
6 | ||
| 21795 - RING, RETAINER, NO.2(FOR HIGH SPEED SHAFT) | ||||
| 21795-30010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21821 - SCREW, 2ND THROTTLE VALVE SET | ||||
| 21821-60010 |
KB,2K..KP3# |
2 | ||
| 21822 - SCREW, 1ST THROTTLE VALVE SET | ||||
| 21822-10010 |
KB,2K..KP3# |
4 | ||
| 21822-44100 |
2K,3K,3KB#..KP3# |
4 | ||
| 21826 - SCREW, PUMP ARM SET | ||||
| 21826-31010 |
KB,2K,3K..KP3# |
2 | ||
| 21826-31011 |
2K,3K,3KB#..KP3# |
1 | ||
| 21829 - SCREW, HIGH SPEED VALVE SET | ||||
| 21823-60010 |
KB,2K..KP3# |
2 | ||
| 21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET) | ||||
| 21834-31010 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
2 | ||
| 21835 - SCREW, SET, NO.3(FOR CARBURETOR BODY SET) | ||||
| 21835-40010 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
2 | ||
| 21843 - SCREW OR PIN (FOR DASH POT OR POSITIONER LEVER) | ||||
| 21842-34064 |
3K,3KB#..KP31,37 |
1 | ||
| 21852 - NUT, THROTTLE LEVER SET | ||||
| 21852-30010 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
2 | ||
| 21852 - NUT, THROTTLE LEVER SET | ||||
| 21852-30010 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
2 | ||
| 21865 - SPRING | ||||
| 21756-24310 |
3KB#..KP31 RR CARBURETOR |
1 | ||
| 21865-44100 |
3K,3KB#..KP31,37 |
1 | ||
| 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) | ||||
| 21881-60010 |
KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50 |
2 | ||
| 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) | ||||
| 21881-60010 |
KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50 |
2 | ||
| Common parts | ||||
| 21767-22010 | ||||
| 21844-24230 | ||||
| 93289-15016 | ||||
| 94511-00500 | ||||
| 94512-00600 | ||||
| 94611-10300 | ||||
| 94611-10400 | ||||
| 95381-01610 | ||||
ILLUST NO. 1 OF 2(7304-7511)3KB#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21096 - OPENER SUB-ASSY, THROTTLE | ||||
| 21191-24122 |
3KB#..KP31 FR CARBURETOR |
1 | ||
| 21191-24131 |
3KB#..KP31 RR CARBURETOR |
1 | ||
| 21191-24111 |
3K..KP31,37 |
1 | ||
| 21191-24280 |
3KB#..KP31 FR CARBURETOR |
1 | ||
| 21096A - STOPPER(FOR OPENER) | ||||
| 21575-24240 |
3K,3KB#..KP31,37 COLD SPEC |
1 | ||
| 21112 - HORN, AIR | ||||
| 21112-24032 |
2K,3K..KP3# |
1 | ||
| 21112-24100 |
2K,3K..KP3# |
1 | ||
| 21112-24310 |
3KB#..KP31 RR CARBURETOR |
2 | ||
| 21112-24181 |
3KB#..KP31 FR CARBURETOR |
1 | ||
| 21112-24062 |
3KB#..KP31 RR CARBURETOR |
2 | ||
| 21102-22013 |
KB,2K..KP3# |
1 | ||
| 21112-24100 |
2K,3K..KP3#..4F |
1 | ||
| 21112-24031 |
2K,3K..KP3# |
1 | ||
| 21112-24061 |
3KB#..KP31 |
2 | ||
| 21129 - COVER(FOR THERMOSTATIC VALVE) | ||||
| 21129-23010 |
KB,2K..KP3# |
1 | ||
| 21129-24160 |
2K,3K,3KB#..KP3# |
1 | ||
| 21205 - JET SUB-ASSY, SLOW | ||||
| 21205-22010 |
KB,2K,3K..KP3# ID=0.47 |
1 | ||
| 21205-24011 |
2K,3K,3KB#..KP3# ID=0.47 |
2 | ||
| 90999-44147 |
2K,3K,3KB#..KP3# ID=0.47 |
2 | ||
| 90999-44144 |
3KB#..KP31 ID=0.44 |
2 | ||
| 90999-44145 |
3K..KP31,37 ID=0.45 |
1 | ||
| 21209 - FLOAT SUB-ASSY | ||||
| 21209-22010 |
KB,2K..KP3# |
2 | ||
| 21211 - VENTURI, 1ST SMALL | ||||
| 21211-22040 |
2K,3KB#..KP30,31,36 |
2 | ||
| 21211-24230 |
3K..KP31,37 |
1 | ||
| 21211-22040 |
KB,2K,3K,3KB#..KP3# |
1 | ||
| 21212 - VENTURI, 2ND SMALL | ||||
| 21212-24230 |
3K..KP31,37 |
1 | ||
| 21202-22010 |
KB,2K,3KB#..KP30,31,36 |
2 | ||
| 21202-22010 |
3KB#..KP31 |
2 | ||
| 21212-24231 |
3K..KP31,37 |
1 | ||
| 21234 - PIPE OR HOSE | ||||
| 21234-24200 |
3K,3KB#..KP31,37 COLD SPEC |
1 | ||
| 21234-24230 |
2K,3K,3KB#..KP3# |
1 | ||
| 21234 - PIPE OR HOSE | ||||
| 21234-24200 |
3K,3KB#..KP31,37 COLD SPEC |
1 | ||
| 21234-24230 |
2K,3K,3KB#..KP3# |
1 | ||
| 21235 - PIPE OR HOSE, CONNECTING | ||||
| 21234-24160 |
2K,3K,3KB#..KP3# |
1 | ||
| 21251 - JET, 1ST MAIN | ||||
| 90999-41105 |
3K..KP31,37 ID=1.05 |
1 | ||
| 90999-41102 |
3K..KP31,37 ID=1.02 |
1 | ||
| 21253 - JET, 2ND MAIN | ||||
| 90999-42141 |
2K,3K..KP3# ID=1.41 |
1 | ||
| 90999-42138 |
3KB#..KP31 ID=1.38 |
2 | ||
| 90999-42162 |
2K,3K..KP3# ID=1.62 |
1 | ||
| 90999-42126 |
3KB#..KP31 ID=1.26 |
2 | ||
| 21255 - JET, POWER | ||||
| 90999-43055 |
2K,3KB#..KP30,31,36 ID=0.55 |
2 | ||
| 90999-43080 |
3K..KP31,37 ID=0.80 |
1 | ||
| 21272 - SCREW, 1ST IDLE ADJUSTING | ||||
| 21273-22010 |
KB,2K..KP3# |
2 | ||
| 21301 - VALVE SUB-ASSY, NEEDLE | ||||
| 21301-22010 |
KB,2K..KP3# |
2 | ||
| 21301-24030 |
2K,3K,3KB#..KP3# |
2 | ||
| 21313 - BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT) | ||||
| 21313-11020 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
1 | ||
| 21314 - BALL, STEEL, NO.2(FOR PUMP PLUNGER) | ||||
| 21314-60010 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
1 | ||
| 21334 - VALVE, CHOKE | ||||
| 21334-25030 |
2K,3K,3KB#..KP3# |
2 | ||
| 21334-22010 |
3K,3KB#..KP31,37 |
2 | ||
| 21334-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21335 - VALVE, THERMOSTATIC | ||||
| 21335-22060 |
KB,3KB#..KP30,31 |
1 | ||
| 21061-24230 |
2K,3K..KP3# |
1 | ||
| 21061-24260 |
3KB#..KP31 |
1 | ||
| 21061-24230 |
2K,3K,3KB#..KP3# |
1 | ||
| 21335-24030 |
3K..KP31,37 |
1 | ||
| 21341 - VALVE, POWER | ||||
| 21304-30010 |
KB,2K,3KB#..KP30,31,36 |
2 | ||
| 21351 - PISTON, POWER | ||||
| 21708-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21353 - PLUNGER, PUMP | ||||
| 21305-22011 |
KB,2K,3K,3KB#,3KHJ,4KJ..KP3# |
2 | ||
| 21414 - SHAFT, CHOKE | ||||
| 21414-24111 |
3K,3KB#..KP31,37 COLD SPEC |
2 | ||
| 21403-22011 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21478 - LINK, CONNECTING | ||||
| 21478-24280 |
3KB#..KP31 FR CARBURETOR,COLD SPEC |
1 | ||
| 21538 - RETAINER, BALL CHECK | ||||
| 21538-31010 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
2 | ||
| 21561 - WEIGHT, PUMP DISCHARGE | ||||
| 21561-30010 |
KB,2K..KP3# |
2 | ||
| 21572 - STOP, POWER PISTON | ||||
| 21572-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21572-33080 |
2K,3K,3KB#..KP3# |
2 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50 |
4 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50 |
4 | ||
| 21614 - GASKET, VENTURI | ||||
| 21614-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21614 - GASKET, VENTURI | ||||
| 21614-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21649-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21618 - GASKET, NEEDLE VALVE SEAT | ||||
| 21618-21010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21619-22010 |
KB,2K..KP3# |
1 | ||
| 21622 - GASKET, AIR HORN | ||||
| 21622-24011 |
2K,3K,3KB#..KP3# |
2 | ||
| 21622-22010 |
KB,2K,3K..KP3# |
2 | ||
| 21699 - BOOT(FOR PUMP PLUNGER) | ||||
| 21699-21061 |
KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50 |
2 | ||
| 21722 - SPRING, PUMP DAMPING | ||||
| 21722-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21726 - SPRING, 1ST IDLE ADJUSTING | ||||
| 21726-40010 |
KB,2K,3K,3KB#..KP3# |
1 | ||
| 21738 - SPRING, CHOKE VALVE RELIEF | ||||
| 21738-24060 |
3KB#..KP31 |
2 | ||
| 21751 - UNION, NIPPLE | ||||
| 21751-24072 |
3KB#..KP31 |
1 | ||
| 21751-24122 |
3KB#..KP31 COLD SPEC |
1 | ||
| 21751-24071 |
3KB#..KP31 |
1 | ||
| 21751-24032 |
2K,3K,3KB#..KP3# |
1 | ||
| 21751-24290 |
3KB#..KP31 |
1 | ||
| 21751 - UNION, NIPPLE | ||||
| 21751-24072 |
3KB#..KP31 |
1 | ||
| 21751-24122 |
3KB#..KP31 COLD SPEC |
1 | ||
| 21751-24071 |
3KB#..KP31 |
1 | ||
| 21751-24032 |
2K,3K,3KB#..KP3# |
1 | ||
| 21751-24290 |
3KB#..KP31 |
1 | ||
| 21763 - PIN, FLOAT LEVER | ||||
| 21763-29270 |
KB,2K,3K,3KB#..KP3# |
1 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21677-22010 |
2K,3K..KP3# |
1 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
6 | ||
| 21823 - SCREW, CHOKE, VALVE SET | ||||
| 21823-60010 |
KB,2K..KP3# |
2 | ||
| 21831 - SCREW, POWER PISTON STOP | ||||
| 21842-33010 |
KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50 |
2 | ||
| 21896 - BRACKET, THERMOSTATIC VALVE | ||||
| 21896-24230 |
2K,3K,3KB#..KP3# |
1 | ||
| 21897 - SUPPORT, FRONT(FOR CHOKE SHAFT) | ||||
| 21897-24260 |
2K,3K,3KB#..KP3# FR CARBURETOR |
1 | ||
| 21897-24270 |
3KB#..KP31 RR CARBURETOR |
1 | ||
| 21897-22050 |
KB,3KB#..KP30,31 |
1 | ||
| 21897-24230 |
2K,3K,3KB#..KP3# FR CARBURETOR |
1 | ||
| 21897 - SUPPORT, FRONT(FOR CHOKE SHAFT) | ||||
| 21897-24260 |
2K,3K,3KB#..KP3# FR CARBURETOR |
1 | ||
| 21897-24270 |
3KB#..KP31 RR CARBURETOR |
1 | ||
| 21897-22050 |
KB,3KB#..KP30,31 |
1 | ||
| 21897-24230 |
2K,3K,3KB#..KP3# FR CARBURETOR |
1 | ||
| 21897 - SUPPORT, FRONT(FOR CHOKE SHAFT) | ||||
| 21897-24260 |
2K,3K,3KB#..KP3# FR CARBURETOR |
1 | ||
| 21897-24270 |
3KB#..KP31 RR CARBURETOR |
1 | ||
| 21897-22050 |
KB,3KB#..KP30,31 |
1 | ||
| 21897-24230 |
2K,3K,3KB#..KP3# FR CARBURETOR |
1 | ||
| 21934 - SOLENOID, THROTTLE VALVE | ||||
| 21062-24230 |
2K,3K,3KB#..KP3# RR CARBURETOR |
2 | ||
| 21062-12030 |
3KB#..KP31 FR CARBURETOR |
1 | ||
| 21062-12030 |
2K,3K,3KB#..KP3# |
2 | ||
| Common parts | ||||
| 21524-24230 | ||||
| 21821-24030 | ||||
| 21821-31140 | ||||
| 21834-33080 | ||||
| 21885-44010 | ||||
| 93219-14008 | ||||
| 93219-15010 | ||||
| 93219-15025 | ||||
| 93289-15016 | ||||
| 94511-00400 | ||||
| 94511-00500 | ||||
| 94611-10300 | ||||
ILLUST NO. 2 OF 2(7304-7511)3KB#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21113 - FLANGE, CARBURETOR | ||||
| 21113-24131 |
3KB#..KP31 RR CARBURETOR,COLD SPEC |
1 | ||
| 21113-24121 |
3KB#..KP31 FR CARBURETOR,COLD SPEC |
1 | ||
| 21113-24270 |
3KB#..KP31 RR CARBURETOR |
1 | ||
| 21113-24280 |
3KB#..KP31 FR CARBURETOR,COLD SPEC |
1 | ||
| 21113-24111 |
3K..KP31,37 COLD SPEC |
1 | ||
| 21113-24240 |
3K..KP31,37 COLD SPEC |
1 | ||
| 21113-24300 |
3KB#..KP31 FR CARBURETOR |
1 | ||
| 21113-24260 |
3KB#..KP31 FR CARBURETOR |
1 | ||
| 21113-24230 |
3K..KP31,37 |
1 | ||
| 21113-24310 |
3KB#..KP31 RR CARBURETOR |
1 | ||
| 21113-24290 |
3KB#..KP31 RR CARBURETOR,COLD SPEC |
1 | ||
| 21113-24231 |
3K..KP31,37 |
1 | ||
| 21236A - HOSE, NO.1(FOR OPENER) | ||||
| 21662-24230 |
3K,3KB#..KP31,37 |
1 | ||
| 21273 - SCREW, THROTTLE ADJUSTING | ||||
| 21273-50010 |
KB,2K..KP3# |
1 | ||
| 21275 - SCREW, ADJUSTING | ||||
| 21844-34080 |
3K..KP31,37 |
1 | ||
| 21842-24230 |
3KB#..KP31 |
1 | ||
| 21842-60191 |
3K,3KB#..KP31,37 |
1 | ||
| 21331 - VALVE, 1ST THROTTLE | ||||
| 21331-21010 |
2K,3K,3KB#..KP3# |
1 | ||
| 21331-22010 |
3K,3KB#..KP31,37 |
2 | ||
| 21331-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21332 - VALVE, 2ND THROTTLE | ||||
| 21332-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21332-21060 |
2K,3K,3KB#..KP3# |
2 | ||
| 21332-22010 |
3K,3KB#..KP31,37 |
2 | ||
| 21333 - VALVE, HIGH SPEED | ||||
| 21333-22010 |
2K,3K..KP3# |
1 | ||
| 21333-22050 |
KB,3KB#..KP30,31 |
2 | ||
| 21377 - COLLAR(FOR 2ND THROTTLE SHAFT) | ||||
| 21377-24230 |
2K,3K,3KB#..KP3# |
2 | ||
| 21411 - SHAFT, HIGH SPEED | ||||
| 21432-24030 |
2K,3K..KP3# |
1 | ||
| 21805-22011 |
2K,3K..KP3# |
1 | ||
| 21411-24010 |
2K,3K..KP3# |
1 | ||
| 21432-24030 |
3K..KP31,37 |
1 | ||
| 21432-24061 |
3KB#..KP31 |
2 | ||
| 21412 - SHAFT, 1ST THROTTLE | ||||
| 21412-24300 |
2K,3K,3KB#..KP3#..4F |
2 | ||
| 21412-24250 |
2K,3KB#..KP30,31,36 |
2 | ||
| 21412-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21412-24310 |
3KB#..KP31 RR CARBURETOR |
1 | ||
| 21412-24300 |
2K,3K,3KB#..KP3# |
2 | ||
| 21412-24230 |
3K,3KB#..KP31,37 |
2 | ||
| 21413 - SHAFT, 2ND THROTTLE | ||||
| 21413-24061 |
3KB#..KP31 |
2 | ||
| 21402-22010 |
KB,2K..KP3# |
1 | ||
| 21413-24030 |
2K,3K..KP3# |
1 | ||
| 21427 - SHAFT, CHOKE CONNECTOR | ||||
| 21427-24310 |
3KB#..KP31 |
1 | ||
| 21427A - BUSH, SHAFT CHOKE CONNECTOR | ||||
| 21895-22060 |
KB,3KB#..KP30,31 |
2 | ||
| 21427A - BUSH, SHAFT CHOKE CONNECTOR | ||||
| 21895-22060 |
KB,3KB#..KP30,31 |
2 | ||
| 21431 - ARM, 1ST THROTTLE SHAFT | ||||
| 21431-24061 |
3KB#..KP31 |
2 | ||
| 21431-24080 |
3KB#..KP31 |
2 | ||
| 21431-24300 |
3KB#..KP31 |
2 | ||
| 21431-24231 |
2K,3K..KP3#..4F |
1 | ||
| 21431-24031 |
2K,3K..KP3#..4F |
1 | ||
| 21431-24301 |
3KB#..KP31 |
2 | ||
| 21431-24260 |
3KB#..KP31 |
2 | ||
| 21431-24230 |
2K,3K..KP3#..4F |
1 | ||
| 21431-24232 |
2K,3K..KP3#..4F |
1 | ||
| 21452 - LEVER, PUMP | ||||
| 21407-22011 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21452-24300 |
3KB#..KP31 |
2 | ||
| 21452-24100 |
2K,3K..KP3#..4F |
1 | ||
| 21452-24230 |
3K..KP31,37 |
1 | ||
| 21455 - LEVER, THROTTLE | ||||
| 21444-24310 |
3KB#..KP31 RR CARBURETOR |
1 | ||
| 21455-24230 |
3K,3KB#..KP31,37 |
1 | ||
| 21455 - LEVER, THROTTLE | ||||
| 21444-24310 |
3KB#..KP31 RR CARBURETOR |
1 | ||
| 21455-24230 |
3K,3KB#..KP31,37 |
1 | ||
| 21456 - LEVER, 1ST THROTTLE IDLE ADJUSTING, NO.1 | ||||
| 21456-24240 |
3K..KP31,37 COLD SPEC |
1 | ||
| 21456-24230 |
2K,3K..KP3# |
1 | ||
| 21456-24110 |
3K..KP31,37 COLD SPEC |
1 | ||
| 21456-24101 |
2K,3K..KP3#..4F |
1 | ||
| 21456-24260 |
3KB#..KP31 |
2 | ||
| 21456-22012 |
2K,3K..KP3# |
1 | ||
| 21461 - LEVER, 1ST IDLE | ||||
| 21458-24060 |
3KB#..KP31 |
2 | ||
| 21462 - LEVER, SLOW ADJUSTING | ||||
| 21462-24310 |
3KB#..KP31 |
1 | ||
| 21462A - SCREW, SLOW ADJUSTING | ||||
| 21866-24311 |
3KB#..KP31 |
1 | ||
| 21471 - LINK, PUMP CONNECTING | ||||
| 21474-22011 |
KB,2K..KP3# |
2 | ||
| 21474-24101 |
2K,3K..KP3# |
1 | ||
| 21471-24230 |
2K,3K..KP3# |
1 | ||
| 21474-24101 |
2K,3K..KP3#..4F |
1 | ||
| 21473 - LINK, THROTTLE SHAFT | ||||
| 21473-31010 |
KB,2K..KP3# |
2 | ||
| 21473-24060 |
3KB#..KP31 |
2 | ||
| 21473-24010 |
2K,3K..KP3# |
1 | ||
| 21473-24230 |
2K,3K..KP3# |
1 | ||
| 21477 - LINK, CHOKE LEVER | ||||
| 21477-24310 |
3KB#..KP31 |
1 | ||
| 21481 - CONNECTOR, 1ST IDLE | ||||
| 21481-22012 |
2K,3K..KP3# |
1 | ||
| 21483 - CONNECTOR, NO.1 | ||||
| 21483-24231 |
3K,3KB#..KP31,37 |
1 | ||
| 21581 - SHIM, 1ST THROTTLE SHAFT | ||||
| 21581-21010 |
KB,2K,3K,3KB#..KP3# T=0.2 |
1 | ||
| 21582-21010 |
KB,2K,3K,3KB#..KP3# T=0.3 |
1 | ||
| 21583-32010 |
3K,3KB#..KP31,37 T=0.6 |
1 | ||
| 26228-31010 |
3K,3KB#..KP31,37 T=0.6 |
1 | ||
| 21583-41010 |
2K,3K,3KB#..KP3# T=0.3 |
1 | ||
| 21588-21010 |
KB,2K,3K,3KB#..KP3# T=0.1 |
1 | ||
| 21581-32010 |
2K,3K,3KB#..KP3# T=0.2 |
1 | ||
| 21583-21010 |
3K,3KB#..KP31,37 T=0.6 |
1 | ||
| 21581-41010 |
2K,3K,3KB#..KP3# T=0.1 |
1 | ||
| 21581 - SHIM, 1ST THROTTLE SHAFT | ||||
| 21581-21010 |
KB,2K,3K,3KB#..KP3# T=0.2 |
1 | ||
| 21582-21010 |
KB,2K,3K,3KB#..KP3# T=0.3 |
1 | ||
| 21583-32010 |
3K,3KB#..KP31,37 T=0.6 |
1 | ||
| 26228-31010 |
3K,3KB#..KP31,37 T=0.6 |
1 | ||
| 21583-41010 |
2K,3K,3KB#..KP3# T=0.3 |
1 | ||
| 21588-21010 |
KB,2K,3K,3KB#..KP3# T=0.1 |
1 | ||
| 21581-32010 |
2K,3K,3KB#..KP3# T=0.2 |
1 | ||
| 21583-21010 |
3K,3KB#..KP31,37 T=0.6 |
1 | ||
| 21581-41010 |
2K,3K,3KB#..KP3# T=0.1 |
1 | ||
| 21623 - GASKET, BODY FLANGE | ||||
| 21623-22011 |
KB,2K..KP3# |
2 | ||
| 21623-24300 |
2K,3K,3KB#..KP3# |
2 | ||
| 21623-24300 |
2K,3K,3KB#..KP3#..4F |
2 | ||
| 21662 - LEVER, CHOKE CONNECTOR SHAFT, NO.1 | ||||
| 21454-24310 |
3KB#..KP31 RR CARBURETOR |
1 | ||
| 21663 - LEVER, CHOKE CONNECTOR SHAFT, NO.2 | ||||
| 21464-24310 |
3KB#..KP31 RR CARBURETOR |
1 | ||
| 21664 - LEVER(FOR DASH POT OR POSITIONER) | ||||
| 21444-24230 |
3K,3KB#..KP31,37 |
1 | ||
| 21679 - POSITIONER | ||||
| 21679-24350 |
3K,3KB#..KP31,37 |
1 | ||
| 21679-24230 |
3K,3KB#..KP31,37 |
1 | ||
| 21681 - SHIM(FOR HIGH SPEED SHAFT) | ||||
| 21681-21060 |
KB,2K,3K,3KB#..KP3# T=0.1 |
1 | ||
| 21682-21060 |
KB,2K,3K,3KB#..KP3# T=0.2 |
1 | ||
| 21723 - SPRING, IDLE ADJUSTING | ||||
| 21723-21030 |
KB,2K..KP3# |
2 | ||
| 21724 - SPRING, THROTTLE ADJUSTING | ||||
| 21726-40010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21725 - SPRING, 2ND THROTTLE BACK | ||||
| 21725-24030 |
2K,3K,3KB#..KP3# |
2 | ||
| 21725-22010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21731 - SPRING, DASH POT OR POSITIONER ADJUSTING | ||||
| 21723-21030 |
3K,3KB#..KP31,37 |
1 | ||
| 21735 - SPRING, PUMP ARM | ||||
| 21735-24030 |
2K,3K,3KB#..KP3#..4F |
2 | ||
| 21735-22010 |
KB,2K..KP3# |
2 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
6 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
6 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
6 | ||
| 21795 - RING, RETAINER, NO.2(FOR HIGH SPEED SHAFT) | ||||
| 21795-30010 |
KB,2K,3K,3KB#..KP3# |
2 | ||
| 21821 - SCREW, 2ND THROTTLE VALVE SET | ||||
| 21821-60010 |
KB,2K..KP3# |
2 | ||
| 21822 - SCREW, 1ST THROTTLE VALVE SET | ||||
| 21822-10010 |
KB,2K..KP3# |
4 | ||
| 21822-44100 |
2K,3K,3KB#..KP3# |
4 | ||
| 21826 - SCREW, PUMP ARM SET | ||||
| 21826-31010 |
KB,2K,3K..KP3# |
2 | ||
| 21826-31011 |
2K,3K,3KB#..KP3# |
1 | ||
| 21829 - SCREW, HIGH SPEED VALVE SET | ||||
| 21823-60010 |
KB,2K..KP3# |
2 | ||
| 21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET) | ||||
| 21834-31010 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
2 | ||
| 21835 - SCREW, SET, NO.3(FOR CARBURETOR BODY SET) | ||||
| 21835-40010 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
2 | ||
| 21843 - SCREW OR PIN (FOR DASH POT OR POSITIONER LEVER) | ||||
| 21842-34064 |
3K,3KB#..KP31,37 |
1 | ||
| 21852 - NUT, THROTTLE LEVER SET | ||||
| 21852-30010 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
2 | ||
| 21852 - NUT, THROTTLE LEVER SET | ||||
| 21852-30010 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
2 | ||
| 21852 - NUT, THROTTLE LEVER SET | ||||
| 21852-30010 |
KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
2 | ||
| 21865 - SPRING | ||||
| 21756-24310 |
3KB#..KP31 RR CARBURETOR |
1 | ||
| 21865-44100 |
3K,3KB#..KP31,37 |
1 | ||
| 21865 - SPRING | ||||
| 21756-24310 |
3KB#..KP31 RR CARBURETOR |
1 | ||
| 21865-44100 |
3K,3KB#..KP31,37 |
1 | ||
| 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) | ||||
| 21881-60010 |
KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50 |
2 | ||
| 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) | ||||
| 21881-60010 |
KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50 |
2 | ||
| 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) | ||||
| 21881-60010 |
KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50 |
2 | ||
| 21895 - BRACKET, CHOKE CONNECTOR SHAFT | ||||
| 21896-24310 |
3KB#..KP31 RR CARBURETOR |
1 | ||
| Common parts | ||||
| 21553-24300 | ||||
| 21553-24310 | ||||
| 21668-24300 | ||||
| 21668-24310 | ||||
| 21712-41080 | ||||
| 21767-22010 | ||||
| 21859-21030 | ||||
| 21873-21010 | ||||
| 21885-44010 | ||||
| 94512-00600 | ||||
| 94611-10300 | ||||
| 94611-10400 | ||||
| 95381-01610 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
