KP31-SR (1972)

Toyota Publica

Production Jan 1972 - Nov 1975
Engine 3KBR
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

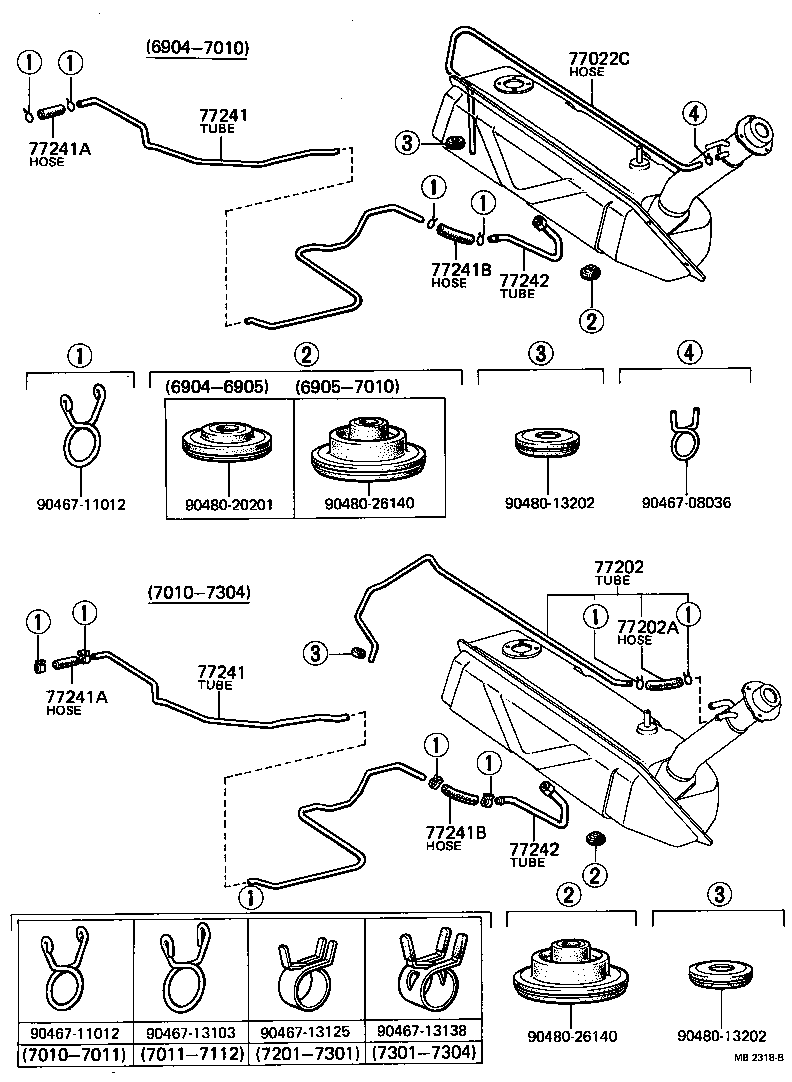

ILLUST NO. 2 OF 2(6904-7304)KP30,31,UP30

Click highlighted areas on diagram

diagram 77022C 77202 77202A 77241 77241 77241A 77241A 77241B 77241B 77242 77242 9046708036 9046711012 9046711012 9046713103 9046713125 9046713138 9048013202 9048013202 9048020201 9048026140 9048026140
Part # Description Qty Price
77202 - TUBE SUB-ASSY, BREATHER
77202-10011

KP30,31

 1
77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE)
95331-08012

KP30,31

*H,L=120

 1
77241 - TUBE, FUEL MAIN, NO.1
77241-10026

KP30,31..4F

 1
77241-10025

KP30,31..4F

 1
77241 - TUBE, FUEL MAIN, NO.1
77241-10026

KP30,31..4F

 1
77241-10025

KP30,31..4F

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95331-08008

KP3#

*H,L=80

 1
90445-12414

KP3#,UP3#

L=80

 1
95331-06007

KP3#

*H,L=70

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95331-08008

KP3#

*H,L=80

 1
90445-12414

KP3#,UP3#

L=80

 1
95331-06007

KP3#

*H,L=70

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
90445-12433

KP30,31,UP30

L=115

 1
95331-06010

KP30,31

*H,L=100

 1
95331-08012

KP30,31

*H,L=120

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
90445-12433

KP30,31,UP30

L=115

 1
95331-06010

KP30,31

*H,L=100

 1
95331-08012

KP30,31

*H,L=120

 1
77242 - TUBE, FUEL MAIN, NO.2
77242-10013

KP30,31

 1
77242 - TUBE, FUEL MAIN, NO.2
77242-10013

KP30,31

 1
Common parts
90467-08036
90467-11012
90467-13103
90467-13125
90467-13138
90480-13202
90480-20201
90480-26140

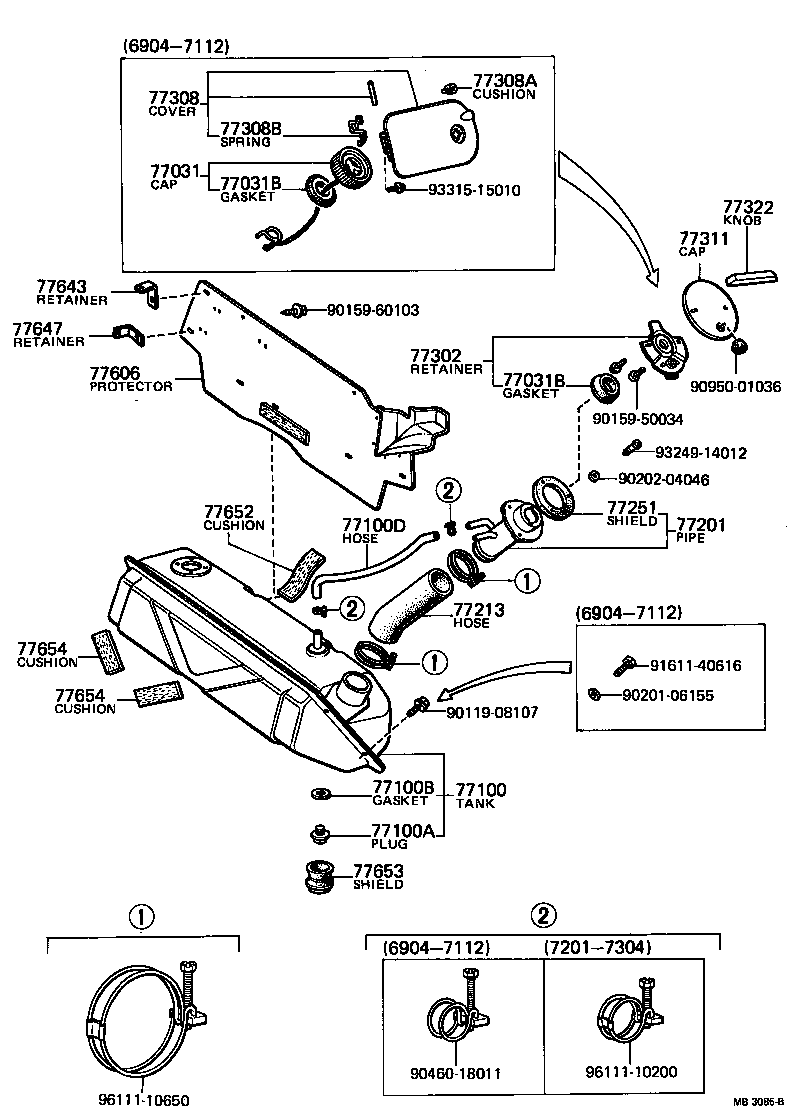

ILLUST NO. 1 OF 2(6904-7304)KP30,31,UP30

Click highlighted areas on diagram

diagram 77031 77031B 77031B 77100 77100A 77100B 77100D 77201 77213 77251 77302 77308 77308A 77308B 77311 77322 77606 77643 77647 77652 77653 77654 77654 9011908107 9015950034 9015960103 9020106155 9020204046 9046018011 9095001036 9161140616 9324914012 9331515010 9611110200 9611110650
Part # Description Qty Price
77031 - CAP ASSY, FUEL TANK
77310-12010

KP3#,UP3#

 1
77031B - GASKET (FOR FUEL TANK CAP)
77316-12010

KP3#,UP3#

 1
77316-12012

KP30,31

 1
77031B - GASKET (FOR FUEL TANK CAP)
77316-12010

KP3#,UP3#

 1
77316-12012

KP30,31

 1
77100 - TANK ASSY, FUEL
77001-10032

KP30,31

 1
77100A - PLUG(FOR FUEL TANK)
90105-12018

KP3#,50,UP3#

 1
77100B - GASKET(FOR FUEL TANK)
90430-12038

KP3#,50,UP3#

 1
77100D - HOSE, FUEL, NO.1(FOR FUEL TANK)
90445-18869

KP30,31

L=850

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-10901

KP30,31,UP30

 1
77201-10050

KP30,31

 1
77201-10031

KP30,31

 1
77213 - HOSE, FUEL TANK SUB INLET
77213-10010

KP30,31,UP30

 1
77213-10011

KP30,31

 1
77213-10012

KP30,31

 1
77251 - SHIELD, FUEL TANK, INLET, NO.1
77291-12010

KP3#,50,UP3#

 1
77302 - RETAINER, FUEL TANK CAP
77302-10021

KP30,31..DLX,HDX,S,SR,ST,XL

 1
77302-10022

KP30,31..DLX,HDX,SR,ST,XL

 1
77302-10020

KP30,31..DLX,HDX,S,SR,ST,XL

 1
77308 - COVER SUB-ASSY, FUEL INLET BOX
77308-10010

KP30,31,UP30..SR,STD

 1
77308A - CUSHION(FOR FUEL INLET BOX COVER)
90541-05040

KP3#,UP3#

 1
77308B - SPRING, TORSION(FOR FUEL INLET BOX COVER)
90508-16163

KP3#,UP3#

 1
77311 - CAP, FUEL TANK
77311-10020

KP30,31

 1
77311-10021

KP30,31..DLX,SR,ST,STD

 1
77322 - KNOB, FUEL TANK CAP
77322-10010

KP30,31

 1
77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77606-10010

KP30,31,UP30

 1
77643 - RETAINER, FUEL TANK PROTECTOR
77643-12011

KP30,31,UP30

 3
77647 - RETAINER, FUEL TANK PROTECTOR, SIDE
77647-10010

KP30,31,50,UP30

 2
77652 - CUSHION, FUEL TANK, NO.1
77652-10010

KP30,31,50,UP30

 2
77653 - SHIELD, FUEL TANK DRAIN PLUG
77653-10010

KP30,31,50,UP30

 1
77654 - CUSHION, FUEL TANK, NO.2
77654-10010

KP30,31,50,UP30

 4
77654 - CUSHION, FUEL TANK, NO.2
77654-10010

KP30,31,50,UP30

 4
Common parts
90119-08107
90159-50034
90159-60103
90201-06155
90202-04046
90460-18011
90950-01036
91611-40616
93249-14012
93315-15010
96111-10200
96111-10650

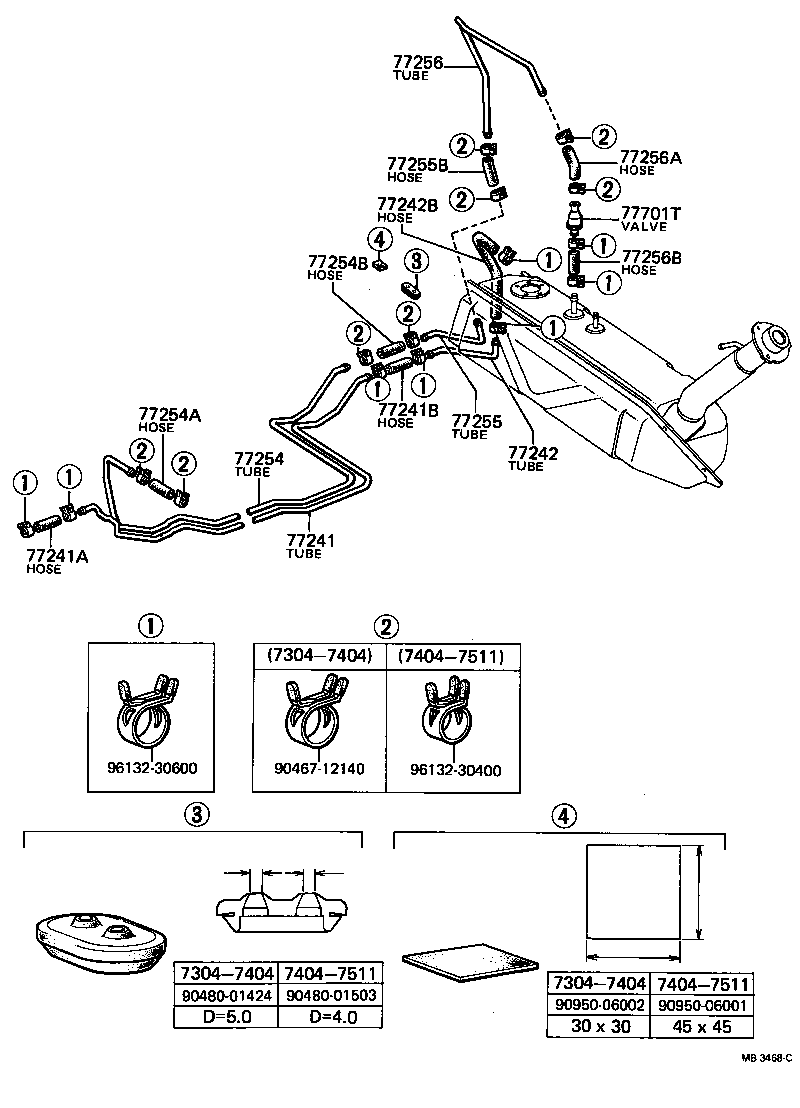

ILLUST NO. 2 OF 2(7304-7511)KP30,31

Click highlighted areas on diagram

diagram 77241 77241A 77241B 77242 77242B 77254 77254A 77254B 77255 77255B 77256 77256A 77256B 77701T 9046712140 9048001424 9048001503 9095006001 9095006002 9613230400 9613230600
Part # Description Qty Price
77241 - TUBE, FUEL MAIN, NO.1
77241-10026

KP30,31..4F

 1
77241-10025

KP30,31..4F

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95331-08008

KP3#

*H,L=80

 1
90445-12414

KP3#,UP3#

L=80

 1
95331-06007

KP3#

*H,L=70

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
90445-12433

KP30,31,UP30

L=115

 1
95331-06010

KP30,31

*H,L=100

 1
95331-08012

KP30,31

*H,L=120

 1
77242 - TUBE, FUEL MAIN, NO.2
77242-10013

KP30,31

 1
77254 - TUBE, FUEL EMISSION, NO.1
77253-10010

KP30,31..4F

 1
77253-10012

KP30,31..4F

 1
77253-10011

KP30,31..4F

 1
77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)
95331-04022

KP3#

*H,L=220

 1
95331-06022

KP3#

*H,L=220

 1
77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)
95331-04011

KP30,31

*H,L=110

 1
95331-06011

KP30,31

*H,L=110

 1
77255 - TUBE, FUEL EMISSION, NO.2
77255-10011

KP30,31

 1
77255-10010

KP30,31

 1
77255B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.2)
95331-06012

KP30,31

*H,L=120

 1
95331-04012

KP30,31

*H,L=120

 1
77256 - TUBE, FUEL EMISSION, NO.3
77224-10040

KP30,31

 1
77224-10041

KP30,31

 1
77256A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.3)
95331-04007

KP30,31

*H,L=70

 1
95331-06007

KP30,31

*H,L=70

 1
77256B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.3)
95331-06007

KP30,31

*H,L=70

 1
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10029

KP3#

 1
90917-10020

KP3#

 1
Common parts
90467-12140
90480-01424
90480-01503
90950-06001
90950-06002
96132-30400
96132-30600
