KP31-S (1972)

Toyota Publica

Production Jan 1972 - Jan 1975
Engine 3KB
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7201- )

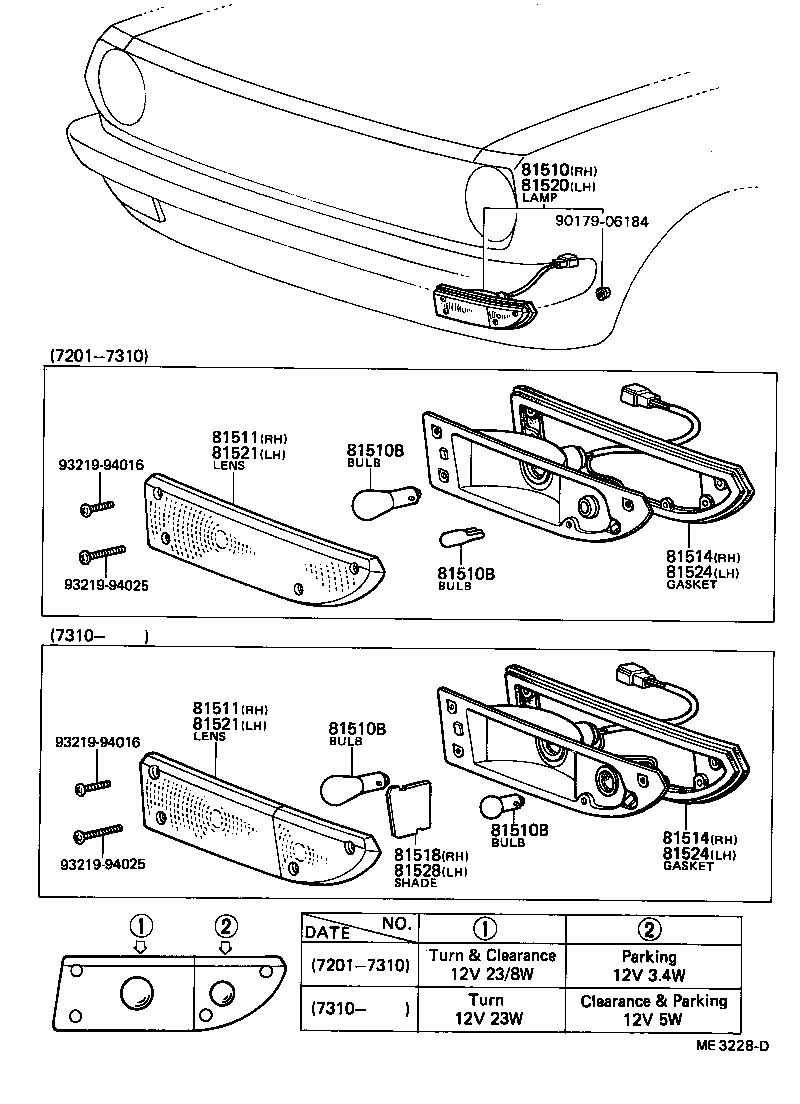

Click highlighted areas on diagram

diagram 81510 81510B 81510B 81510B 81510B 81511 81511 81514 81514 81518 81520 81521 81521 81524 81524 81528 9017906184 9321994016 9321994016 9321994025 9321994025
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-19075

KP3#,UP3#

 1
81510-19295

KP3#

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-12034

KP3#

12V 3.4W,12V 3.4W

 2
99132-11034

KP3#,UP3#

12V 3.4W,12V 3.4W

 2
99132-21230

KP3#,UP3#

12V 23/8W,12V 23/8W

 2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-12034

KP3#

12V 3.4W,12V 3.4W

 2
99132-11034

KP3#,UP3#

12V 3.4W,12V 3.4W

 2
99132-21230

KP3#,UP3#

12V 23/8W,12V 23/8W

 2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-12034

KP3#

12V 3.4W,12V 3.4W

 2
99132-11034

KP3#,UP3#

12V 3.4W,12V 3.4W

 2
99132-21230

KP3#,UP3#

12V 23/8W,12V 23/8W

 2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-12034

KP3#

12V 3.4W,12V 3.4W

 2
99132-11034

KP3#,UP3#

12V 3.4W,12V 3.4W

 2
99132-21230

KP3#,UP3#

12V 23/8W,12V 23/8W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-12060

KP3#

 1
81511-10050

KP3#,UP3#

 1
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-12060

KP3#

 1
81511-10050

KP3#,UP3#

 1
81514 - GASKET, FRONT TURN SIGNAL LAMP BODY, RH
81512-10050

KP3#,UP3#

 1
81514 - GASKET, FRONT TURN SIGNAL LAMP BODY, RH
81512-10050

KP3#,UP3#

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-19295

KP3#

 1
81520-19075

KP3#,UP3#

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-10030

KP3#,UP3#

 1
81521-12050

KP3#

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-10030

KP3#,UP3#

 1
81521-12050

KP3#

 1
81524 - GASKET, FRONT TURN SIGNAL LAMP BODY, LH
81522-10030

KP3#,UP3#

 1
81524 - GASKET, FRONT TURN SIGNAL LAMP BODY, LH
81522-10030

KP3#,UP3#

 1
Common parts
90179-06184
93219-94016
93219-94025
