KP31-S (1972)

Toyota Publica

Production Jan 1972 - Jan 1975
Engine 3KB
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(6904-7410)KB,2K,3K,3KB#

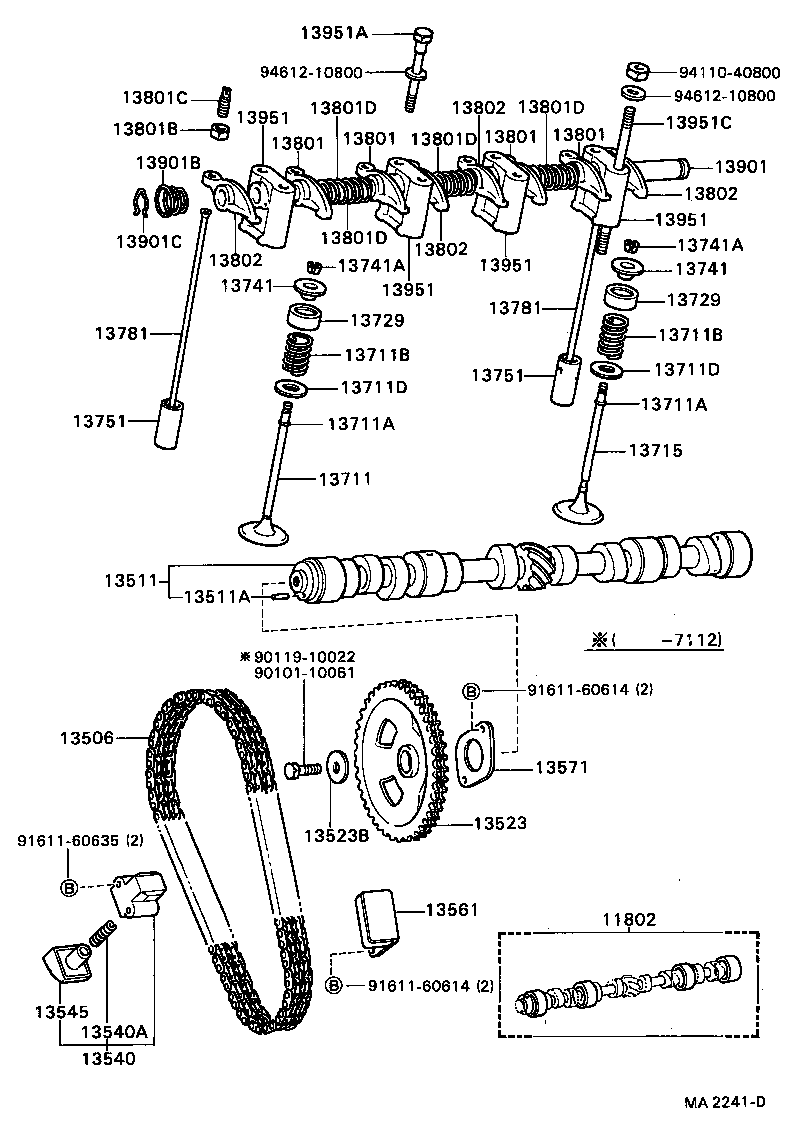

Click highlighted areas on diagram

diagram 11802 13506 13511 13511A 13523 13523B 13540 13540A 13545 13561 13571 13711 13711A 13711A 13711B 13711B 13711D 13711D 13715 13729 13729 13741 13741 13741A 13741A 13751 13751 13781 13781 13801 13801 13801 13801 13801B 13801C 13801D 13801D 13801D 13801D 13802 13802 13802 13802 13901 13901B 13901C 13951 13951 13951 13951 13951A 13951C 9010110061 9011910022 9161160614 9161160614 9161160635 9411040800 9461210800 9461210800
Part # Description Qty Price
11802 - BEARING SET, CAMSHAFT
11804-22010

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

U/S 0.250

 1
11803-22010

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

U/S 0.125

 1
11802-22010

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

STD

 1
13506 - CHAIN SUB-ASSY
13506-22010

KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50

 1
13511 - CAMSHAFT
13501-22010

KB,2K,3K,3KB#..KP3#

 1
13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK)
90250-05121

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

長さ=15,外径=5,L=15,OD=5

 1
13523 - GEAR OR SPROCKET, CAMSHAFT TIMING
13523-22010

KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50

N=36

 1
13523B - WASHER, PLATE(FOR TIMING GEAR)
90201-10203

2K,3K,3KB#..KP3#

 1
13540 - TENSIONER ASSY, CHAIN, NO.1
13540-22012

2K,3K,3KB#,3KHJ,3KU..KP3#,50

 1
13540A - SPRING, COMPRESSION(FOR CHAIN TENSIONER)
90501-10595

2K,3K,3KB#,3KHJ,3KU..KP3#,50

 1
13545 - PLUNGER, CHAIN TENSIONER
13545-22010

KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50

 1
13561 - DAMPER, CHAIN VIBRATION, NO.1
13561-22010

KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50

 1
13571 - PLATE, CAMSHAFT THRUST
13571-22010

KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50

 1
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90301-06096

KB,2K,3K,3KB#..KP3#

ID=6.5

 8
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90301-06096

KB,2K,3K,3KB#..KP3#

ID=6.5

 8
13711B - SPRING, COMPRESSION(FOR INNER)
90501-42409

KB,3KB#..KP30,31

WD=4.2,CW=6

 8
90501-42293

2K,3K,3KHJ,3KU,4KJ..KP3#,50

WD=4.2,CW=6.5

 8
13711B - SPRING, COMPRESSION(FOR INNER)
90501-42409

KB,3KB#..KP30,31

WD=4.2,CW=6

 8
90501-42293

2K,3K,3KHJ,3KU,4KJ..KP3#,50

WD=4.2,CW=6.5

 8
13711D - WASHER, PLATE(FOR VALVE SPRING SEAT)
90201-15247

KB,2K,3K,3KB#..KP3#

 8
13711D - WASHER, PLATE(FOR VALVE SPRING SEAT)
90201-15247

KB,2K,3K,3KB#..KP3#

 8
13729 - SHIELD, VALVE STEM OIL
13729-22010

KB,2K,3K,3KB#..KP3#

 8
13729 - SHIELD, VALVE STEM OIL
13729-22010

KB,2K,3K,3KB#..KP3#

 8
13741 - RETAINER, VALVE SPRING
13741-22011

KB,2K,3K,3KB#..KP3#

 8
13741 - RETAINER, VALVE SPRING
13741-22011

KB,2K,3K,3KB#..KP3#

 8
13741A - LOCK, VALVE SPRING RETAINER
90913-03005

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

 16
13741A - LOCK, VALVE SPRING RETAINER
90913-03005

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

 16
13751 - LIFTER, VALVE
13751-22011

KB,2K,3K,3KB#..KP3#

STD

 8
13755-22011

KB,2K,3K,3KB#..KP3#

O/S 0.05

 8
13751 - LIFTER, VALVE
13751-22011

KB,2K,3K,3KB#..KP3#

STD

 8
13755-22011

KB,2K,3K,3KB#..KP3#

O/S 0.05

 8
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-22011

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

 4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-22011

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

 4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-22011

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

 4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-22011

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

 4
13801B - NUT, HEXAGON(FOR VALVE ADJUSTING)
90170-08152

KB,2K..KP3#

 8
13801C - SCREW, VALVE ADJUSTING
90913-05013

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

 8
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-14292

KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50

 3
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-14292

KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50

 3
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-14292

KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50

 3
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-14292

KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50

 3
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-22011

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

 4
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-22011

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

 4
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-22011

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

 4
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-22011

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

 4
13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1
13901-22010

KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50

 1
13901B - SPRING, CONICAL(FOR VALVE ROCKER SHAFT)
90502-14022

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

 2
13901C - SPRING, RETAINER(FOR VALVE ROCKER SHAFT)
90524-13009

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

 2
13951 - SUPPORT, VALVE ROCKER, NO.1
13951-22010

KB,2K,3K,3KB#..KP3#

 4
13951 - SUPPORT, VALVE ROCKER, NO.1
13951-22010

KB,2K,3K,3KB#..KP3#

 4
13951 - SUPPORT, VALVE ROCKER, NO.1
13951-22010

KB,2K,3K,3KB#..KP3#

 4
13951 - SUPPORT, VALVE ROCKER, NO.1
13951-22010

KB,2K,3K,3KB#..KP3#

 4
13951A - BOLT(FOR ROCKER SUPPORT SET)
90910-01005

KB,2K,3K,3KB#..KP3#

 6
13951C - BOLT, STUD(FOR ROCKER SUPPORT)
90116-08127

KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50

L=86,S=10&10

 2
Common parts
90101-10061
90119-10022
91611-60614
91611-60635
94110-40800
94612-10800

(7410- )

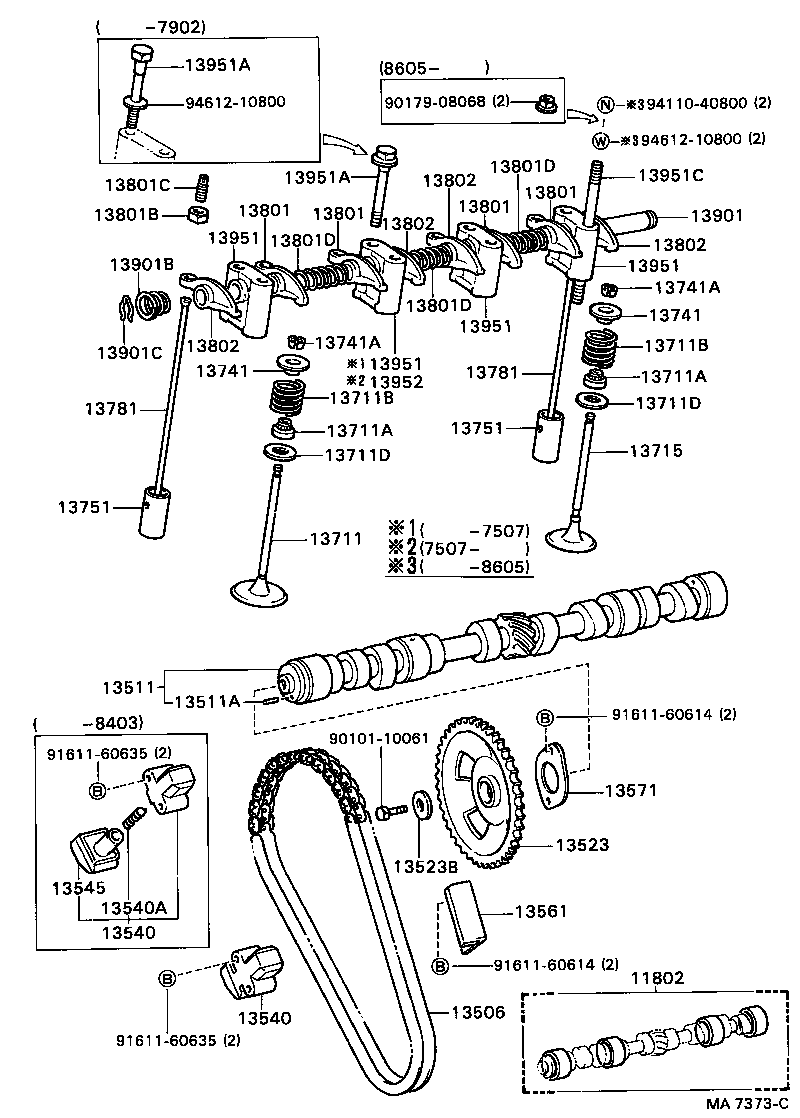

Click highlighted areas on diagram

diagram 11802 13506 13511 13511A 13523 13523B 13540 13540 13540A 13545 13561 13571 13711 13711A 13711A 13711B 13711B 13711D 13711D 13715 13741 13741 13741A 13741A 13751 13751 13781 13781 13801 13801 13801 13801 13801B 13801C 13801D 13801D 13801D 13802 13802 13802 13802 13901 13901B 13901C 13951 13951 13951 13951 13951A 13951A 13951C 13952 9010110061 9017908068 9161160614 9161160614 9161160635 9161160635 9411040800 9461210800 9461210800
Part # Description Qty Price
11802 - BEARING SET, CAMSHAFT
11804-22010

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

U/S 0.250

 1
11803-22010

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

U/S 0.125

 1
11802-22010

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

STD

 1
13506 - CHAIN SUB-ASSY
13506-22010

KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50

 1
13511 - CAMSHAFT
13501-22010

KB,2K,3K,3KB#..KP3#

 1
13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK)
90250-05121

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

長さ=15,外径=5,L=15,OD=5

 1
13523 - GEAR OR SPROCKET, CAMSHAFT TIMING
13523-22010

KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50

N=36

 1
13523B - WASHER, PLATE(FOR TIMING GEAR)
90201-10203

2K,3K,3KB#..KP3#

 1
13540 - TENSIONER ASSY, CHAIN, NO.1
13540-22012

2K,3K,3KB#,3KHJ,3KU..KP3#,50

 1
13540 - TENSIONER ASSY, CHAIN, NO.1
13540-22012

2K,3K,3KB#,3KHJ,3KU..KP3#,50

 1
13540A - SPRING, COMPRESSION(FOR CHAIN TENSIONER)
90501-10595

2K,3K,3KB#,3KHJ,3KU..KP3#,50

 1
13545 - PLUNGER, CHAIN TENSIONER
13545-22010

KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50

 1
13561 - DAMPER, CHAIN VIBRATION, NO.1
13561-22010

KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50

 1
13571 - PLATE, CAMSHAFT THRUST
13571-22010

KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50

 1
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90301-06096

KB,2K,3K,3KB#..KP3#

ID=6.5

 8
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90301-06096

KB,2K,3K,3KB#..KP3#

ID=6.5

 8
13711B - SPRING, COMPRESSION(FOR INNER)
90501-42409

KB,3KB#..KP30,31

WD=4.2,CW=6

 8
90501-42293

2K,3K,3KHJ,3KU,4KJ..KP3#,50

WD=4.2,CW=6.5

 8
13711B - SPRING, COMPRESSION(FOR INNER)
90501-42409

KB,3KB#..KP30,31

WD=4.2,CW=6

 8
90501-42293

2K,3K,3KHJ,3KU,4KJ..KP3#,50

WD=4.2,CW=6.5

 8
13711D - WASHER, PLATE(FOR VALVE SPRING SEAT)
90201-15247

KB,2K,3K,3KB#..KP3#

 8
13711D - WASHER, PLATE(FOR VALVE SPRING SEAT)
90201-15247

KB,2K,3K,3KB#..KP3#

 8
13741 - RETAINER, VALVE SPRING
13741-22011

KB,2K,3K,3KB#..KP3#

 8
13741 - RETAINER, VALVE SPRING
13741-22011

KB,2K,3K,3KB#..KP3#

 8
13741A - LOCK, VALVE SPRING RETAINER
90913-03005

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

 16
13741A - LOCK, VALVE SPRING RETAINER
90913-03005

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

 16
13751 - LIFTER, VALVE
13751-22011

KB,2K,3K,3KB#..KP3#

STD

 8
13755-22011

KB,2K,3K,3KB#..KP3#

O/S 0.05

 8
13751 - LIFTER, VALVE
13751-22011

KB,2K,3K,3KB#..KP3#

STD

 8
13755-22011

KB,2K,3K,3KB#..KP3#

O/S 0.05

 8
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-22011

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

 4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-22011

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

 4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-22011

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

 4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-22011

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

 4
13801B - NUT, HEXAGON(FOR VALVE ADJUSTING)
90170-08152

KB,2K..KP3#

 8
13801C - SCREW, VALVE ADJUSTING
90913-05013

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

 8
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-14292

KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50

 3
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-14292

KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50

 3
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-14292

KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50

 3
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-22011

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

 4
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-22011

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

 4
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-22011

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

 4
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-22011

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

 4
13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1
13901-22010

KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50

 1
13901B - SPRING, CONICAL(FOR VALVE ROCKER SHAFT)
90502-14022

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

 2
13901C - SPRING, RETAINER(FOR VALVE ROCKER SHAFT)
90524-13009

KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50

 2
13951 - SUPPORT, VALVE ROCKER, NO.1
13951-22010

KB,2K,3K,3KB#..KP3#

 4
13951 - SUPPORT, VALVE ROCKER, NO.1
13951-22010

KB,2K,3K,3KB#..KP3#

 4
13951 - SUPPORT, VALVE ROCKER, NO.1
13951-22010

KB,2K,3K,3KB#..KP3#

 4
13951 - SUPPORT, VALVE ROCKER, NO.1
13951-22010

KB,2K,3K,3KB#..KP3#

 4
13951A - BOLT(FOR ROCKER SUPPORT SET)
90910-01005

KB,2K,3K,3KB#..KP3#

 6
13951A - BOLT(FOR ROCKER SUPPORT SET)
90910-01005

KB,2K,3K,3KB#..KP3#

 6
13951C - BOLT, STUD(FOR ROCKER SUPPORT)
90116-08127

KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50

L=86,S=10&10

 2
Common parts
90101-10061
90179-08068
91611-60614
91611-60635
94110-40800
94612-10800
