KP31-CN (1970)

Toyota Publica

Production Oct 1970 - Dec 1971
Engine 3K
Transmission 2FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

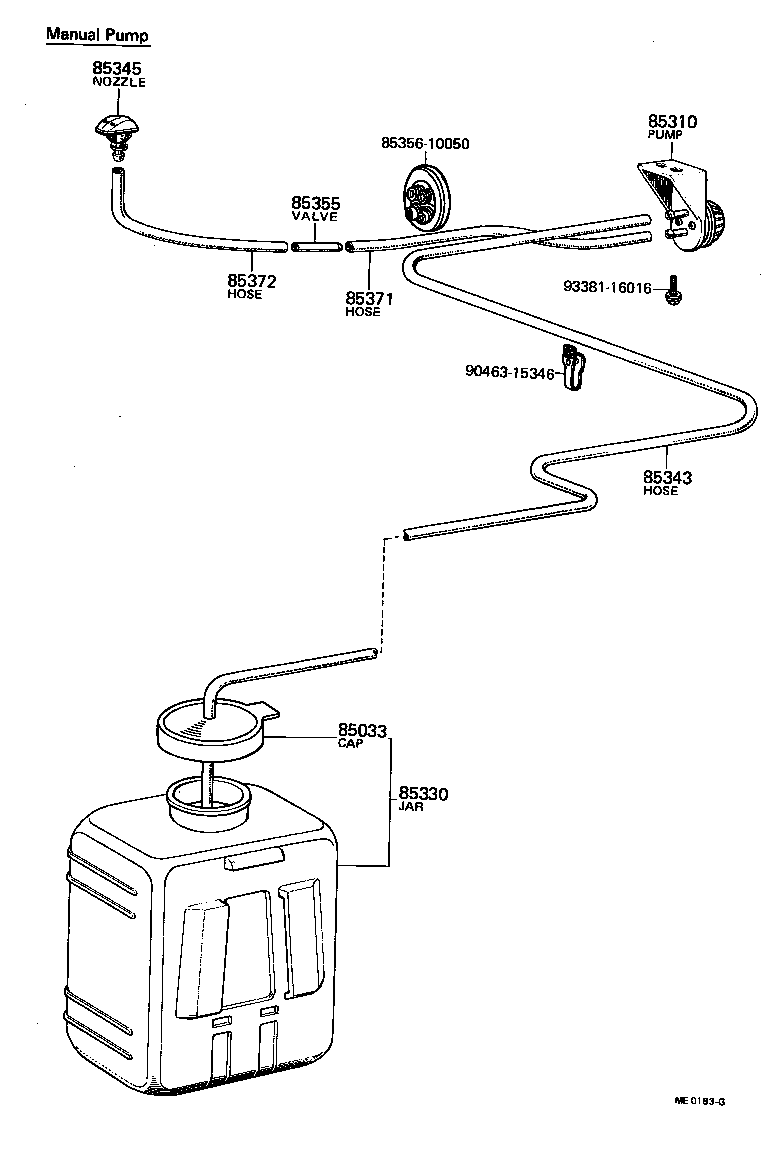

(6904-7410)S,STD

Click highlighted areas on diagram

diagram 85033 85310 85330 85343 85345 85355 8535610050 85371 85372 9046315346 9338116016
Part # Description Qty Price
85033 - CAP ASSY, WINDSHIELD WASHER
85332-10060

KP3#,UP3#..DLX,HDX,SL,SR,ST,XL

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-10060

KP3#,UP3#..DLX,HDX,SL,SR,ST,XL

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-10060

KP3#,UP3#..DLX,HDX,SL,SR,ST,XL

 1
85330-11010

KP30,31,36,UP3#..S,STD

 1
85345 - NOZZLE, WINDSHIELD WASHER
85035-10060

KP3#,UP3#

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85031-11010

KP30,31,36,UP3#..S,STD

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-06265

KP3#,UP3#..DLX,HDX,SL,SR,ST,XL

*H,L=230

 1
85344-11010

KP30,31,36,UP3#..S,STD

L=100

 1
Common parts
85356-10050
90463-15346
93381-16016

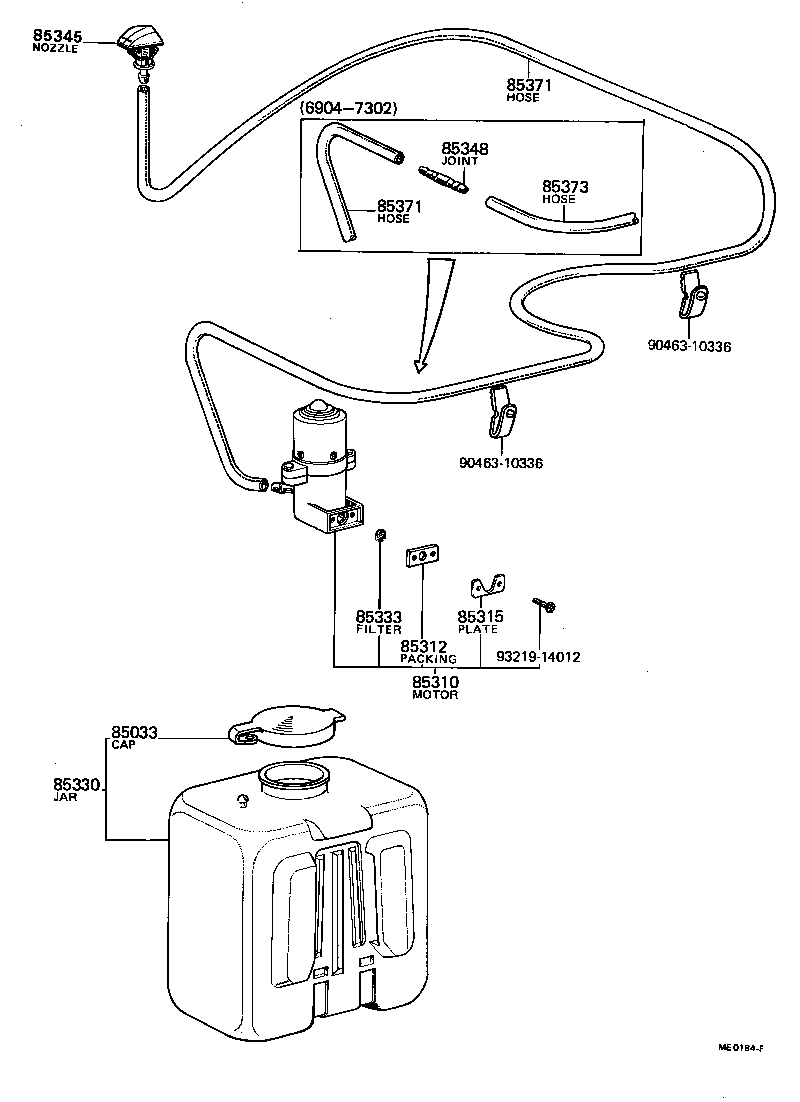

(6904-7410)DLX,HDX,SL,SR,ST,XL ; (7410-7511)

Click highlighted areas on diagram

diagram 85033 85310 85312 85315 85330 85333 85345 85348 85371 85371 85373 9046310336 9046310336 9321914012
Part # Description Qty Price
85033 - CAP ASSY, WINDSHIELD WASHER
85332-10060

KP3#,UP3#..DLX,HDX,SL,SR,ST,XL

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-10060

KP3#,UP3#..DLX,HDX,SL,SR,ST,XL

 1
85315 - PLATE, WINDSHIELD WASHER PUMP
85312-10060

KP3#,UP3#..DLX,HDX,SL,SR,ST,XL

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-10060

KP3#,UP3#..DLX,HDX,SL,SR,ST,XL

 1
85330-11010

KP30,31,36,UP3#..S,STD

 1
85333 - FILTER, WINDSHIELD WASHER JAR
85336-10060

KP3#,UP3#..DLX,HDX,SL,SR

 1
85345 - NOZZLE, WINDSHIELD WASHER
85035-10060

KP3#,UP3#

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-10060

KP3#,UP3#..DLX,HDX,SL,SR,ST,XL

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-06265

KP3#,UP3#..DLX,HDX,SL,SR,ST,XL

*H,L=230

 1
85344-11010

KP30,31,36,UP3#..S,STD

L=100

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-06265

KP3#,UP3#..DLX,HDX,SL,SR,ST,XL

*H,L=230

 1
85344-11010

KP30,31,36,UP3#..S,STD

L=100

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06055

KP3#,UP3#..DLX,HDX,SR

L=1300

 1
Common parts
90463-10336
93219-14012
