KP31-CN (1970)

Toyota Publica

Production Oct 1970 - Dec 1971
Engine 3K
Transmission 2FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(6904-7310)

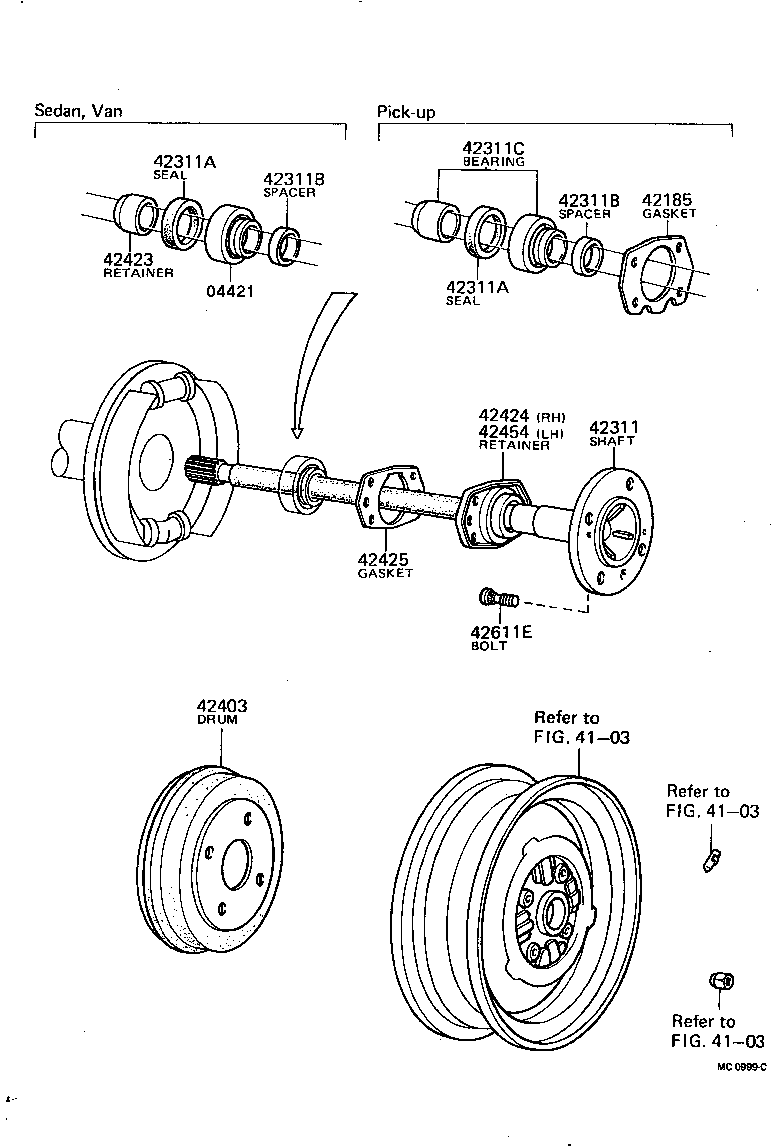

Click highlighted areas on diagram

diagram 04421 4103 4103 4103 42185 42311 42311A 42311A 42311B 42311B 42311C 42403 42423 42424 42425 42454 42611E
Part # Description Qty Price
04421 - BEARING KIT, REAR AXLE SHAFT
90363-25002

KP30,31

 2
42311 - SHAFT, REAR AXLE
42311-10020

KP3#,UP3#..SED,V

 2
42311A - SEAL, OIL (FOR REAR AXLE SHAFT)
90311-35099

KP3#,UP3#..SED,V

 2
42311A - SEAL, OIL (FOR REAR AXLE SHAFT)
90311-35099

KP3#,UP3#..SED,V

 2
42311B - SPACER (FOR REAR AXLE SHAFT BEARING)
90560-25328

KP3#,UP3#..SED,V

 2
42311B - SPACER (FOR REAR AXLE SHAFT BEARING)
90560-25328

KP3#,UP3#..SED,V

 2
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-10020

KP3#..SED,V

 2
42423 - RETAINER, REAR AXLE BEARING, INNER
42423-10020

KP3#..SED,V

 2
42425 - GASKET, REAR AXLE BEARING RETAINER
42425-12010

KP3#..SED,V

 2
42454 - RETAINER, REAR AXLE BEARING, OUTER, LH
42424-10021

KP30,31,UP30

 1
42611E - BOLT, HUB (FOR REAR AXLE)
90942-02021

KP3#

*12-1.5PX38-24

 8
Linked diagrams
4103
