KP31- (1972)

Toyota Publica

Production Jan 1972 - Oct 1973
Engine 3K
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(6904-7404)

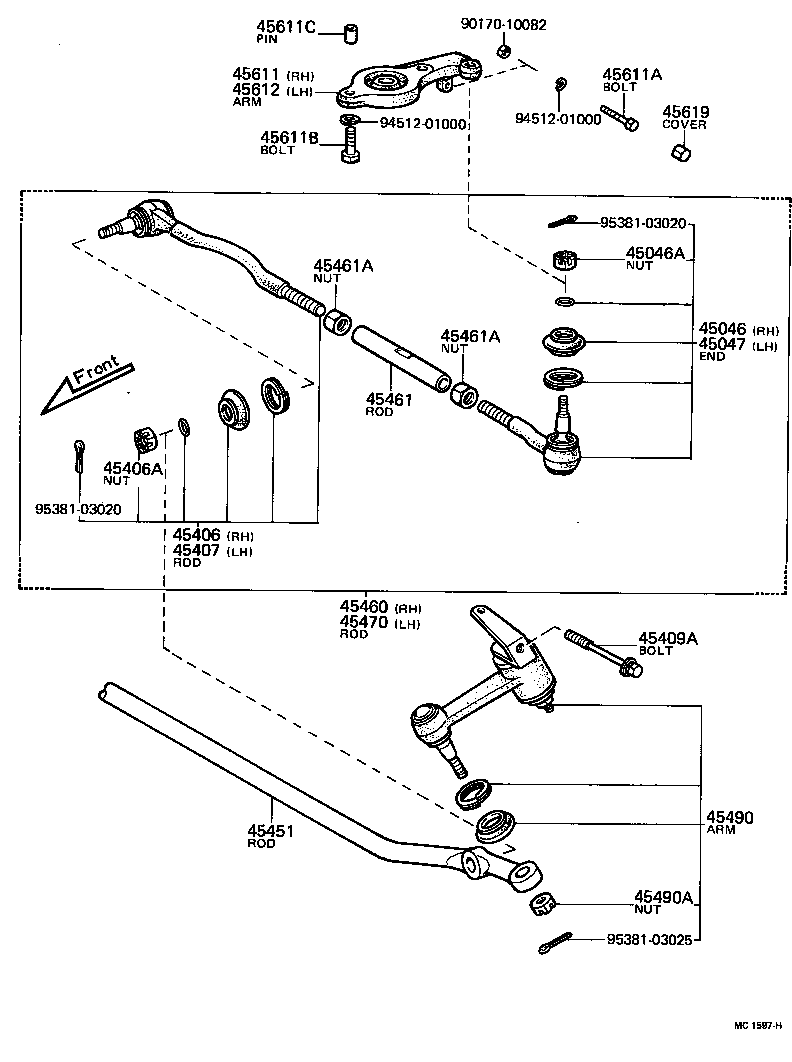

Click highlighted areas on diagram

diagram 45046 45046A 45047 45406 45406A 45407 45409A 45451 45460 45461 45461A 45461A 45470 45490 45490A 45611 45611A 45611B 45611C 45612 45619 9017010082 9451201000 9451201000 9538103020 9538103020 9538103025
Part # Description Qty Price
45046 - END SUB-ASSY, TIE ROD, RH
45047-19016

KP3#,UP3#

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-10004

KP3#,UP3#

 2
45047 - END SUB-ASSY, TIE ROD, LH
45047-19016

KP3#,UP3#

 1
45406 - ROD SUB-ASSY, TIE, RH
45046-19045

KP3#,UP3#

 1
45406A - NUT, CASTLE(FOR TIE ROD)
90171-10004

KP3#,UP3#

 2
45407 - ROD SUB-ASSY, TIE, LH
45046-19045

KP3#,UP3#

 1
45409A - BOLT, HEXAGON(FOR IDLER ARM SUPPORT SETTING)
90119-08018

KP3#,UP3#

 2
45451 - ROD, STEERING RELAY
45451-10030

KP3#,UP3#

 1
45460 - ROD ASSY, TIE, RH
45460-19015

KP3#,UP3#

 1
45461 - ROD, STEERING TIE
45461-10020

KP3#,UP3#

 2
45461A - NUT(FOR STEERING TIE ROD LOCK)
90170-12128

KP3#,UP3#

LH SCREW

 2
90170-12127

KP3#,UP3#

RH SCREW

 2
45461A - NUT(FOR STEERING TIE ROD LOCK)
90170-12128

KP3#,UP3#

LH SCREW

 2
90170-12127

KP3#,UP3#

RH SCREW

 2
45470 - ROD ASSY, TIE, LH
45460-19015

KP3#,UP3#

 1
45490 - ARM ASSY, STEERING IDLER
45490-19035

KP3#,UP3#

 1
45490A - NUT, CASTLE(FOR IDLER ARM)
90171-12028

KP3#,50

ISO

 1
45611 - ARM, STEERING KNUCKLE, RH
45611-10010

KP3#,UP3#

 1
45611A - BOLT, KNUCKLE STOPPER
90106-10031

KP3#

 2
45611B - BOLT, HEXAGON(FOR STEERING KNUCKLE TO SHOCK ABSORBER)
90101-10275

KP3#,50

 4
45611C - PIN, STRAIGHT(FOR STEERING KNUCKLE TO SHOCK ABSORBER)
90253-13013

KP3#,50

 4
45612 - ARM, STEERING KNUCKLE, LH
45612-10010

KP3#,UP3#

 1
45619 - COVER, KNUCKLE STOPPER
45619-10011

KP3#

 2
Common parts
90170-10082
94512-01000
95381-03020
95381-03025
