KP31- (1972)

Toyota Publica

Production Jan 1972 - Oct 1973
Engine 3K
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(6904-7304)2K,3K

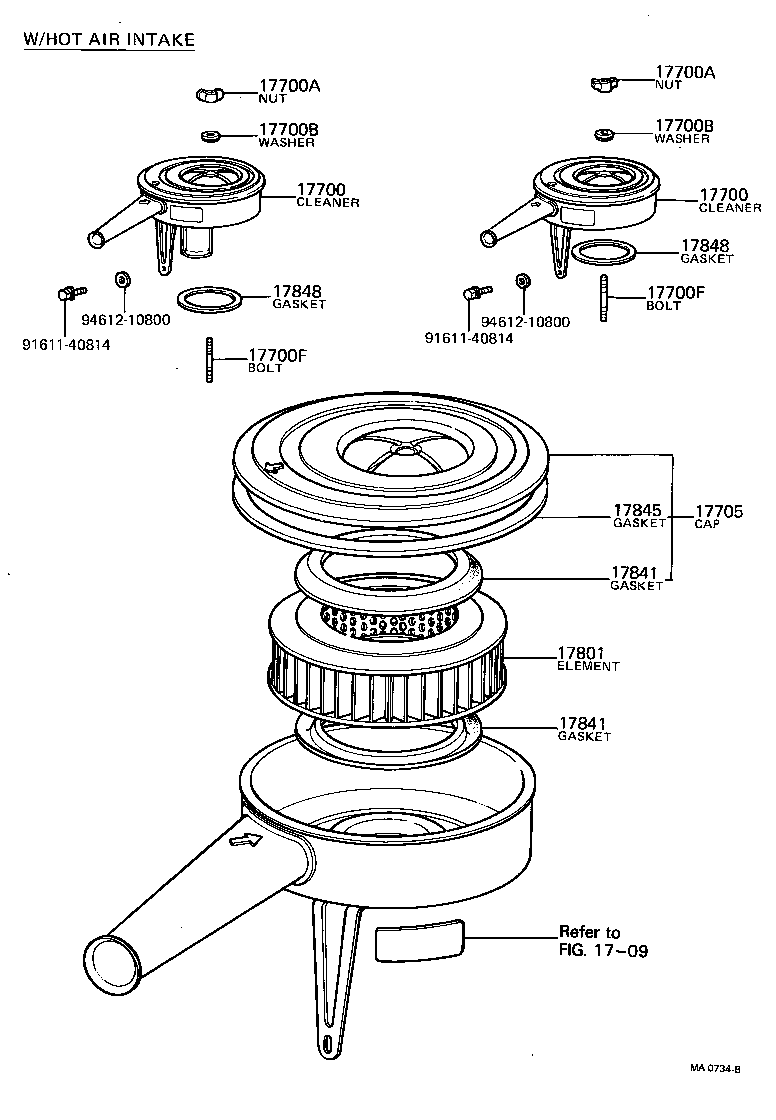

Click highlighted areas on diagram

diagram 1709 17700 17700 17700A 17700A 17700B 17700B 17700F 17700F 17705 17801 17841 17841 17845 17848 17848 9161140814 9161140814 9461210800 9461210800
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-24092

2K,3K..KP3#

HOT AIR INTAKE

 1
17700 - CLEANER ASSY, AIR
17700-24092

2K,3K..KP3#

HOT AIR INTAKE

 1
17700A - NUT, WING(FOR AIR CLEANER)
94270-00600

KB,2K,3K,3KB#..KP3#

 2
17700A - NUT, WING(FOR AIR CLEANER)
94270-00600

KB,2K,3K,3KB#..KP3#

 2
17700B - WASHER, SEAL(FOR AIR CLEANER)
94711-90600

KB,2K,3K..KP3#

 2
17700B - WASHER, SEAL(FOR AIR CLEANER)
94711-90600

KB,2K,3K..KP3#

 2
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06131

2K,3K,3KHJ,3KU..KP3#,50

L=102,S=12&30

 2
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06131

2K,3K,3KHJ,3KU..KP3#,50

L=102,S=12&30

 2
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-24010

2K,3K,3KHJ,3KU..KP3#,50

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
90430-64139

KB,2K,3K,3KB#..KP3#

 2
17848 - GASKET, AIR CLEANER TO CARBURETOR
90430-64139

KB,2K,3K,3KB#..KP3#

 2
Common parts
91611-40814
94612-10800
Linked diagrams
1709
