KP30-D (1969)

Toyota Publica

Production Apr 1969 - Nov 1975
Engine 2K
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(6904-7010)KP3#

Click highlighted areas on diagram

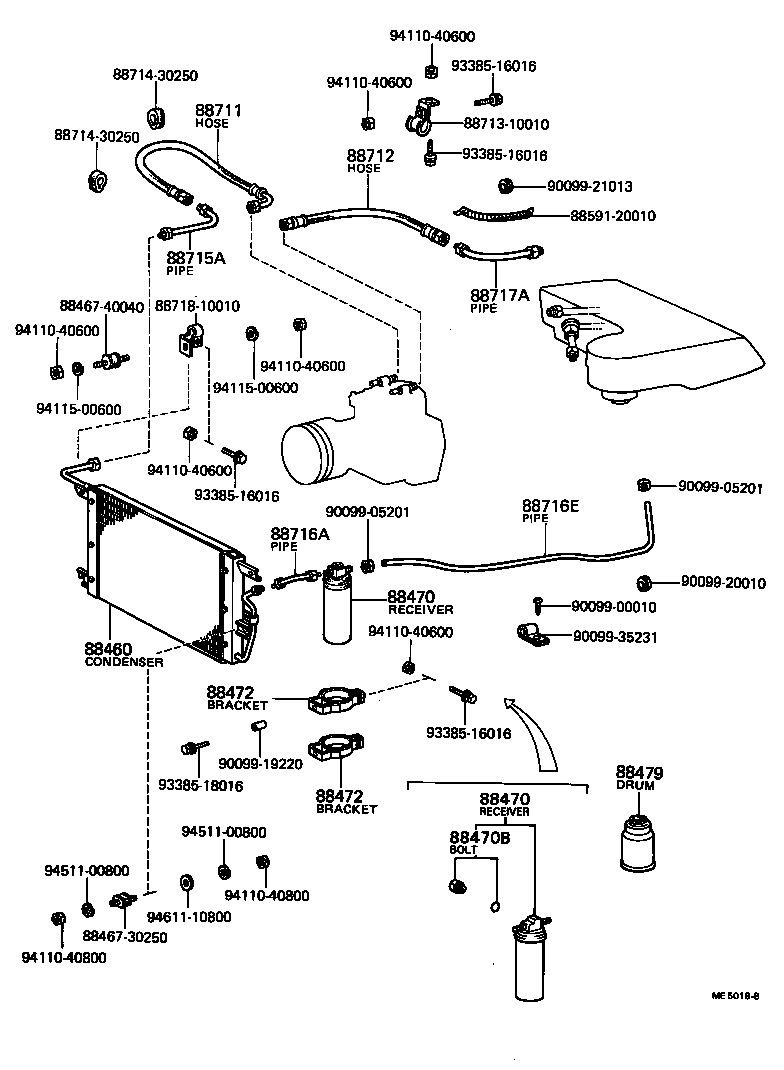

diagram 88460 8846730250 8846740040 88470 88470 88470B 88472 88472 88479 8859120010 88711 88712 8871310010 8871430250 8871430250 88715A 88716A 88716E 88717A 8871810010 9009900010 9009905201 9009905201 9009919220 9009920010 9009921013 9009935231 9338516016 9338516016 9338516016 9338516016 9338518016 9411040600 9411040600 9411040600 9411040600 9411040600 9411040600 9411040800 9411040800 9411500600 9411500600 9451100800 9451100800 9461110800
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-10010

KP3#..DLX,HDX,STD,XL

 1
88460-10010

KP3#

 1
88460-10010

KP3#

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-10010

KP3#..DLX,HDX,STD,XL

 1
88470-10010

KP3#

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-10010

KP3#..DLX,HDX,STD,XL

 1
88470-10010

KP3#

 1
88470B - BOLT, FUSE
90099-04579

KP3#

 1
90099-04579

KP3#..DLX,HDX,STD,XL

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-10040

KP3#

UPR

 1
88472-10010

KP3#..DLX,HDX,STD,XL

 2
88472-10010

KP3#

 2
88472-10050

KP3#

LWR

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-10040

KP3#

UPR

 1
88472-10010

KP3#..DLX,HDX,STD,XL

 2
88472-10010

KP3#

 2
88472-10050

KP3#

LWR

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
88434-30010

KP3#

 3
88434-30010

KP3#..DLX,HDX,STD,XL

 3
88434-30010

KP3#

 3
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-10010

KP3#..DLX,HDX,STD,XL

 1
88711-10010

KP3#

 1
88711-10010

KP3#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-10011

KP3#..DLX,HDX,STD,XL

 1
88712-10011

KP3#

 1
88712-10010

KP3#

 1
88712-10011

KP3#

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-10011

KP3#

 1
88715-10011

KP3#

 1
88715-10010

KP3#

 1
88715-10011

KP3#..DLX,HDX,STD,XL

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-10090

KP3#

 1
88716-10011

KP3#

 1
88716-10011

KP3#..DLX,HDX,STD,XL

 1
88716-10010

KP3#

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-10020

KP3#

 1
88716-10031

KP3#..DLX,HDX,STD,XL

 1
88716-10070

KP3#

 1
88716-10030

KP3#

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-10010

KP3#

 1
88717-10011

KP3#

 1
88717-10012

KP3#..DLX,HDX,STD,XL

 1
88717-10030

KP3#

 1
Common parts
88467-30250
88467-40040
88591-20010
88713-10010
88714-30250
88718-10010
90099-00010
90099-05201
90099-19220
90099-20010
90099-21013
90099-35231
93385-16016
93385-18016
94110-40600
94110-40800
94115-00600
94511-00800
94611-10800

(7010-7310)KP3#

Click highlighted areas on diagram

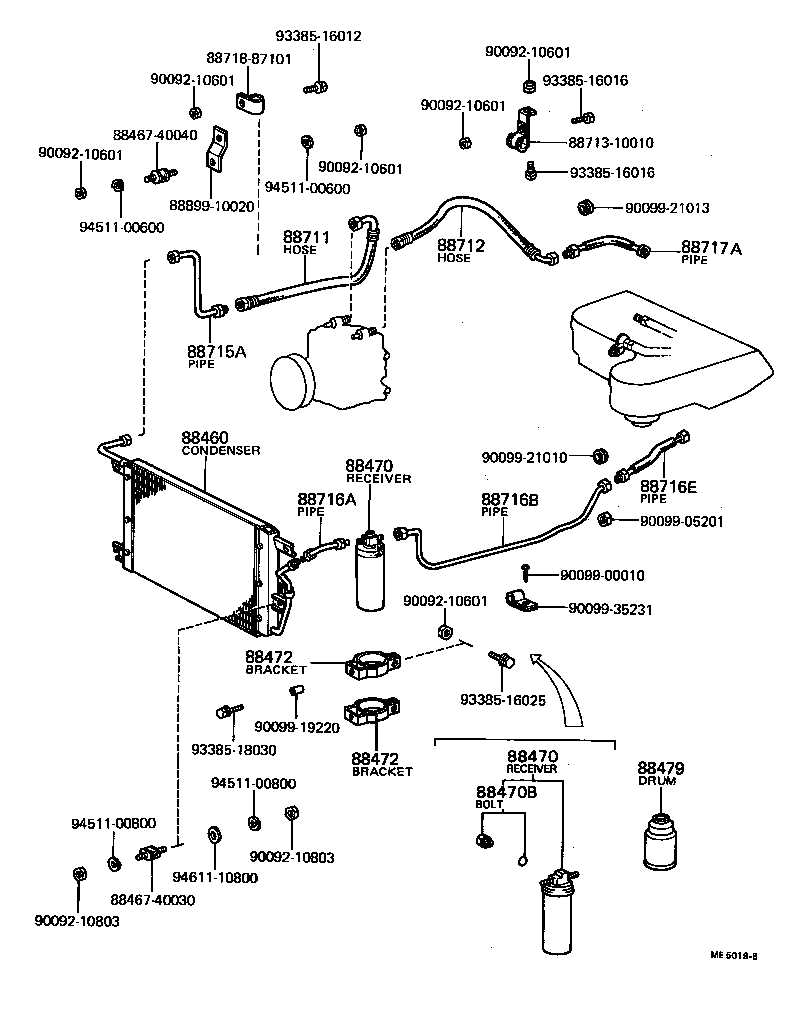

diagram 88460 8846740030 8846740040 88470 88470 88470B 88472 88472 88479 88711 88712 8871310010 88715A 88716A 88716B 88716E 88717A 8871887101 8889910020 9009210601 9009210601 9009210601 9009210601 9009210601 9009210601 9009210803 9009210803 9009900010 9009905201 9009919220 9009921010 9009921013 9009935231 9338516012 9338516016 9338516016 9338516025 9338518030 9451100600 9451100600 9451100800 9451100800 9461110800
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-10010

KP3#..DLX,HDX,STD,XL

 1
88460-10010

KP3#

 1
88460-10010

KP3#

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-10010

KP3#..DLX,HDX,STD,XL

 1
88470-10010

KP3#

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-10010

KP3#..DLX,HDX,STD,XL

 1
88470-10010

KP3#

 1
88470B - BOLT, FUSE
90099-04579

KP3#

 1
90099-04579

KP3#..DLX,HDX,STD,XL

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-10040

KP3#

UPR

 1
88472-10010

KP3#..DLX,HDX,STD,XL

 2
88472-10010

KP3#

 2
88472-10050

KP3#

LWR

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-10040

KP3#

UPR

 1
88472-10010

KP3#..DLX,HDX,STD,XL

 2
88472-10010

KP3#

 2
88472-10050

KP3#

LWR

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
88434-30010

KP3#

 3
88434-30010

KP3#..DLX,HDX,STD,XL

 3
88434-30010

KP3#

 3
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-10010

KP3#..DLX,HDX,STD,XL

 1
88711-10010

KP3#

 1
88711-10010

KP3#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-10011

KP3#..DLX,HDX,STD,XL

 1
88712-10011

KP3#

 1
88712-10010

KP3#

 1
88712-10011

KP3#

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-10011

KP3#

 1
88715-10011

KP3#

 1
88715-10010

KP3#

 1
88715-10011

KP3#..DLX,HDX,STD,XL

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-10090

KP3#

 1
88716-10011

KP3#

 1
88716-10011

KP3#..DLX,HDX,STD,XL

 1
88716-10010

KP3#

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-10021

KP3#..DLX,HDX,STD,XL

 1
88716-10021

KP3#

 1
88716-10080

KP3#

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-10020

KP3#

 1
88716-10031

KP3#..DLX,HDX,STD,XL

 1
88716-10070

KP3#

 1
88716-10030

KP3#

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-10010

KP3#

 1
88717-10011

KP3#

 1
88717-10012

KP3#..DLX,HDX,STD,XL

 1
88717-10030

KP3#

 1
Common parts
88467-40030
88467-40040
88713-10010
88718-87101
88899-10020
90092-10601
90092-10803
90099-00010
90099-05201
90099-19220
90099-21010
90099-21013
90099-35231
93385-16012
93385-16016
93385-16025
93385-18030
94511-00600
94511-00800
94611-10800

(7310-7511)

Click highlighted areas on diagram

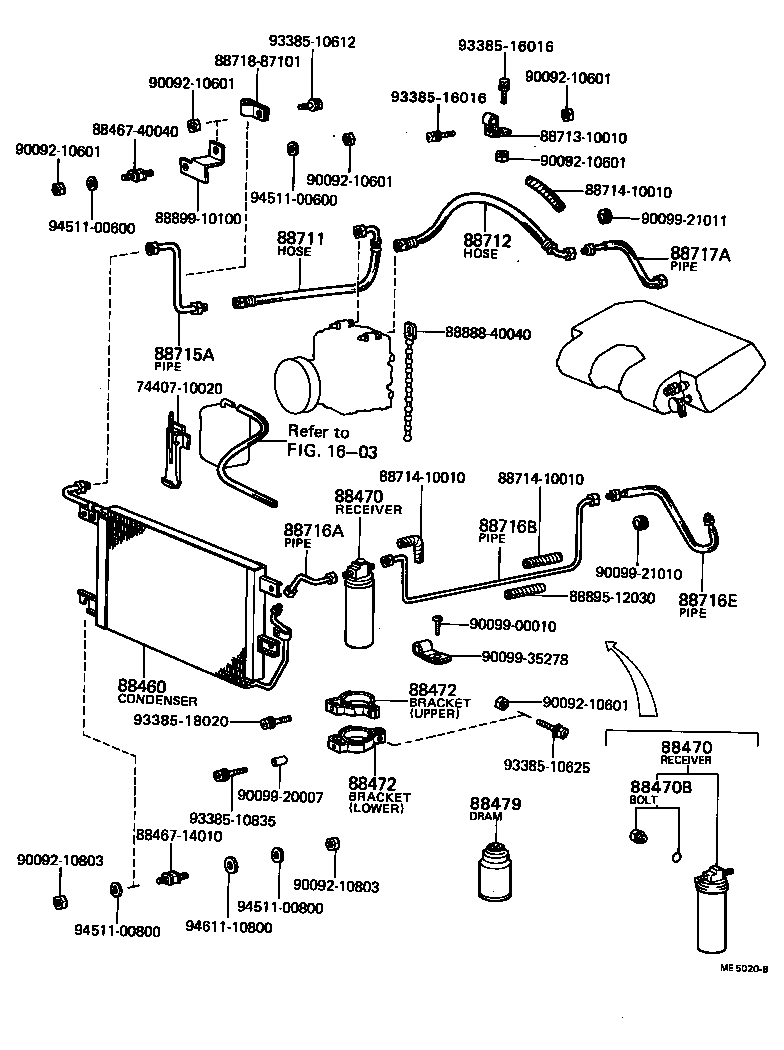

diagram 1603 7440710020 88460 8846714010 8846740040 88470 88470 88470B 88472 88472 88479 88711 88712 8871310010 8871410010 8871410010 8871410010 88715A 88716A 88716B 88716E 88717A 8871887101 8888840040 8889512030 8889910100 9009210601 9009210601 9009210601 9009210601 9009210601 9009210601 9009210803 9009210803 9009900010 9009920007 9009921010 9009921011 9009935278 9338510612 9338510625 9338510835 9338516016 9338516016 9338518020 9451100600 9451100600 9451100800 9451100800 9461110800
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-10010

KP3#..DLX,HDX,STD,XL

 1
88460-10010

KP3#

 1
88460-10010

KP3#

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-10010

KP3#..DLX,HDX,STD,XL

 1
88470-10010

KP3#

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-10010

KP3#..DLX,HDX,STD,XL

 1
88470-10010

KP3#

 1
88470B - BOLT, FUSE
90099-04579

KP3#

 1
90099-04579

KP3#..DLX,HDX,STD,XL

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-10040

KP3#

UPR

 1
88472-10010

KP3#..DLX,HDX,STD,XL

 2
88472-10010

KP3#

 2
88472-10050

KP3#

LWR

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-10040

KP3#

UPR

 1
88472-10010

KP3#..DLX,HDX,STD,XL

 2
88472-10010

KP3#

 2
88472-10050

KP3#

LWR

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
88434-30010

KP3#

 3
88434-30010

KP3#..DLX,HDX,STD,XL

 3
88434-30010

KP3#

 3
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-10010

KP3#..DLX,HDX,STD,XL

 1
88711-10010

KP3#

 1
88711-10010

KP3#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-10011

KP3#..DLX,HDX,STD,XL

 1
88712-10011

KP3#

 1
88712-10010

KP3#

 1
88712-10011

KP3#

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-10011

KP3#

 1
88715-10011

KP3#

 1
88715-10010

KP3#

 1
88715-10011

KP3#..DLX,HDX,STD,XL

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-10090

KP3#

 1
88716-10011

KP3#

 1
88716-10011

KP3#..DLX,HDX,STD,XL

 1
88716-10010

KP3#

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-10021

KP3#..DLX,HDX,STD,XL

 1
88716-10021

KP3#

 1
88716-10080

KP3#

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-10020

KP3#

 1
88716-10031

KP3#..DLX,HDX,STD,XL

 1
88716-10070

KP3#

 1
88716-10030

KP3#

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-10010

KP3#

 1
88717-10011

KP3#

 1
88717-10012

KP3#..DLX,HDX,STD,XL

 1
88717-10030

KP3#

 1
Common parts
74407-10020
88467-14010
88467-40040
88713-10010
88714-10010
88718-87101
88888-40040
88895-12030
88899-10100
90092-10601
90092-10803
90099-00010
90099-20007
90099-21010
90099-21011
90099-35278
93385-10612
93385-10625
93385-10835
93385-16016
93385-18020
94511-00600
94511-00800
94611-10800
Linked diagrams
1603
