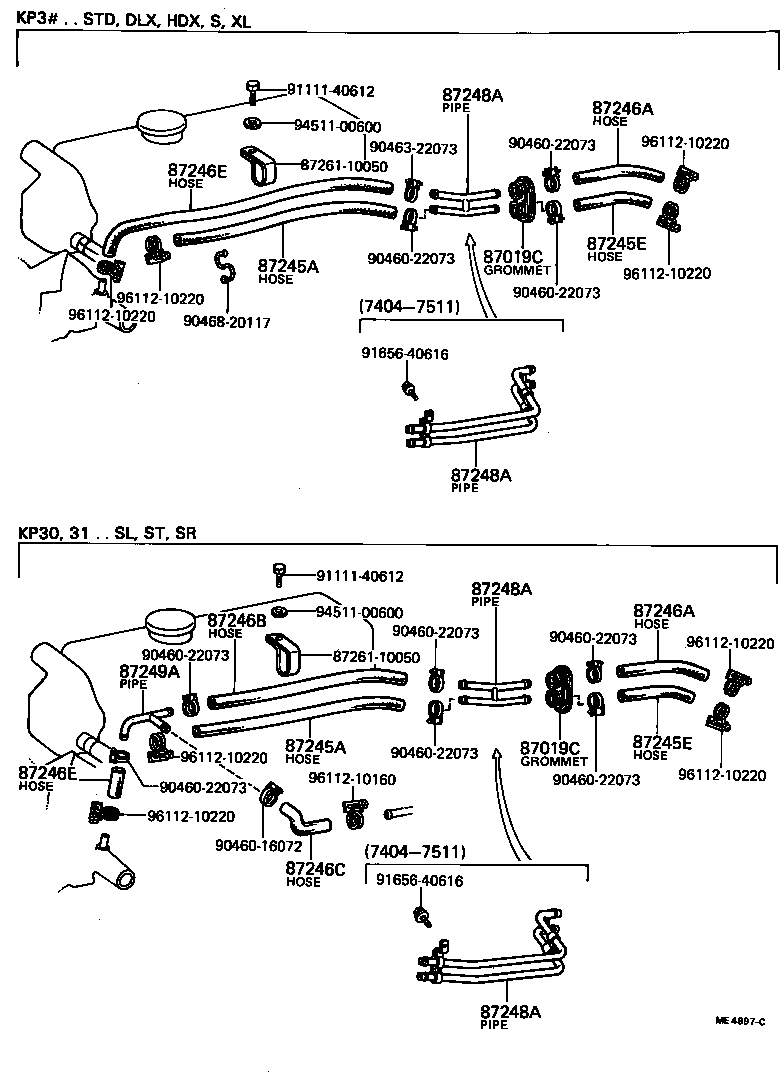

KP30-D (1969)
Toyota Publica
(6904-7511)KP3#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87019C - GROMMET, HEATER HOSE | ||||
| 90480-01195 |
KP3# |
1 | ||
| 90480-01412 |
KP3# |
1 | ||
| 87019C - GROMMET, HEATER HOSE | ||||
| 90480-01195 |
KP3# |
1 | ||
| 90480-01412 |
KP3# |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 99551-20450 |
KP3# L=450 |
1 | ||
| 99552-20450 |
KP3# 長さ=450 |
1 | ||
| 90445-21283 |
KP3# L=450 |
1 | ||
| 99552-20500 |
KP3# *H,L=350 |
1 | ||
| 87245-10051 |
KP3# L=450 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 99551-20450 |
KP3# L=450 |
1 | ||
| 99552-20450 |
KP3# 長さ=450 |
1 | ||
| 90445-21283 |
KP3# L=450 |
1 | ||
| 99552-20500 |
KP3# *H,L=350 |
1 | ||
| 87245-10051 |
KP3# L=450 |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 90445-21564 |
KP3# L=220,HEAVY DUTY HEATER |
1 | ||
| 99551-20155 |
KP3# L=155 |
1 | ||
| 99551-20165 |
KP3# L=165 |
1 | ||
| 99552-20155 |
KP3# L=155 |
1 | ||
| 90445-21412 |
KP3# L=165 |
1 | ||
| 99551-20210 |
KP3# L=220,HEAVY DUTY HEATER |
1 | ||
| 99551-20220 |
KP3# L=220,HEAVY DUTY HEATER |
1 | ||
| 99552-20210 |
KP3# L=210,HEAVY DUTY HEATER |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 90445-21564 |
KP3# L=220,HEAVY DUTY HEATER |
1 | ||
| 99551-20155 |
KP3# L=155 |
1 | ||
| 99551-20165 |
KP3# L=165 |
1 | ||
| 99552-20155 |
KP3# L=155 |
1 | ||
| 90445-21412 |
KP3# L=165 |
1 | ||
| 99551-20210 |
KP3# L=220,HEAVY DUTY HEATER |
1 | ||
| 99551-20220 |
KP3# L=220,HEAVY DUTY HEATER |
1 | ||
| 99552-20210 |
KP3# L=210,HEAVY DUTY HEATER |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 99551-20190 |
KP3# L=190 |
1 | ||
| 99551-20240 |
KP3# L=240,HEAVY DUTY HEATER |
1 | ||
| 99551-20180 |
KP3# L=180 |
1 | ||
| 90445-21565 |
KP3# L=240,HEAVY DUTY HEATER |
1 | ||
| 90445-21413 |
KP3# L=190 |
1 | ||
| 99552-20230 |
KP3# L=230,HEAVY DUTY HEATER |
1 | ||
| 99552-20190 |
KP3# L=190 |
1 | ||
| 99552-20240 |
KP3# L=240,HEAVY DUTY HEATER |
1 | ||
| 99551-20230 |
KP3# L=230,HEAVY DUTY HEATER |
1 | ||
| 99552-20180 |
KP3# L=180 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 99551-20190 |
KP3# L=190 |
1 | ||
| 99551-20240 |
KP3# L=240,HEAVY DUTY HEATER |
1 | ||
| 99551-20180 |
KP3# L=180 |
1 | ||
| 90445-21565 |
KP3# L=240,HEAVY DUTY HEATER |
1 | ||
| 90445-21413 |
KP3# L=190 |
1 | ||
| 99552-20230 |
KP3# L=230,HEAVY DUTY HEATER |
1 | ||
| 99552-20190 |
KP3# L=190 |
1 | ||
| 99552-20240 |
KP3# L=240,HEAVY DUTY HEATER |
1 | ||
| 99551-20230 |
KP3# L=230,HEAVY DUTY HEATER |
1 | ||
| 99552-20180 |
KP3# L=180 |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 90445-21345 |
KP3#..DLX,HDX,STD L=500 |
1 | ||
| 99552-20500 |
KP3#..DLX,HDX,STD,XL *H,L=350 |
1 | ||
| 99551-20500 |
KP3#..DLX,HDX,S,STD,XL L=500 |
1 | ||
| 99552-20500 |
KP3#..DLX,HDX,S,STD,XL 長さ=500 |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 90445-21345 |
KP3#..DLX,HDX,STD L=500 |
1 | ||
| 99552-20500 |
KP3#..DLX,HDX,STD,XL *H,L=350 |
1 | ||
| 99551-20500 |
KP3#..DLX,HDX,S,STD,XL L=500 |
1 | ||
| 99552-20500 |
KP3#..DLX,HDX,S,STD,XL 長さ=500 |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87248-10070 |
KP3# |
1 | ||
| 87248-10050 |
KP3# |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87248-10070 |
KP3# |
1 | ||
| 87248-10050 |
KP3# |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87248-10070 |
KP3# |
1 | ||
| 87248-10050 |
KP3# |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87248-10070 |
KP3# |
1 | ||
| 87248-10050 |
KP3# |
1 | ||
| Common parts | ||||
| 87261-10050 | ||||
| 90460-16072 | ||||
| 90460-22073 | ||||
| 90463-22073 | ||||
| 90468-20117 | ||||
| 91111-40612 | ||||
| 91656-40616 | ||||
| 94511-00600 | ||||
| 96112-10160 | ||||
| 96112-10220 | ||||
